WB-AS-9108TLS

Model:

WB-AS-9108TLS

Max resolution

1920 x 1080 ( Max )

Connector

8 x Cat5

Size

555.4 x 482.6 x 44.45 mm

Installation

1U 19 inch rack mountable

Housing material

Metal

Ratio

19" Screen 16:9

Operating temperature

-10~+50

Operating Humidity

0-80%RH, No Condensation

Keyboard

English defaulted ( other optional )


Product Description

Payment & Shipment term

Supply

Unit Price:

Negotiable

Production Capacity:

5000 pcs/month

Trade Term:

FOB,CFR,CIF,DDP,EXW

Packing:

Cartons

Payment Terms:

L/C, WU, T/T, Paypal

Delivery Date:

Within 30 days

Means of Transport

Land, Ocean, Air

MOQ2 units



1U 19" 8 x Cat5 ports LCD KVM Switch console



Concept

  • KVM control platform is one with integrated 2/4/8/16ports KVM switch, monitor, keyboard & mouse into 1U height.

  • It controls several computers/servers with one platform (keyboard, mouse and monitor).


  • Main features

  • Control platform with 19" LCD monitor , keyboard, mouse and multiple Cat5 ports KVM switch

  • 1U height, suitable for 19-inch standard cabinet installation and metal structure

  • Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees

  • Ultra thin keyboard with keypad

  • Mouse touch board with two function button

  • Front panel with lock to prevent damage by accident


  • [Automatic power on/off]

When pulling control platform out from cabinet the power turns on automatically

When pushing it into the cabinet the power turns off automatically

  • Easy to use OSD menu


Compliant

One control platform can controls 8 computers by direct connection

Compatible with USB standard interface

Supports VGA, SVGA and XGA video input

Accord with DDC, DDC2, DDC2B standards and VESA standard

Supports maximum resolution of 1920 x 1080p

Supports multiple operating systems: Win95/98/98SE/ME/200/XP/7/Vista/WinNT/Unix/Linux



Type

WB-AS-9108TLS

Computer connections

8 x direct connect , 128 x maximum connect

CPU port selection

OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)

Connectors

console

DB 37PIN

Keyboard

Monitor

8 x VGA DB15 Female Blue

8 x USB or 8 x PS/2

Power

1 x DC jack

Key switch

KVM Reset

KVM Operation Panel Function Keys

IP Reset

1 x semi-embedded key

IP Port

Network

RJ45 port


LEDs

On Line

8 red LEDs

Selected

Nixie Tube Display

Video resolution

1920 x 1200 @ 60HZ Local & Remote

Power

DC12V, 4A

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating temperature

-10˚C~50˚C

Storage temperature

-20˚C~60˚C

Housing

Metal

Weight

17.4 Kg

Dimensions(L x W x H )

555.4 x 482.6 x 42 mm



KVM view

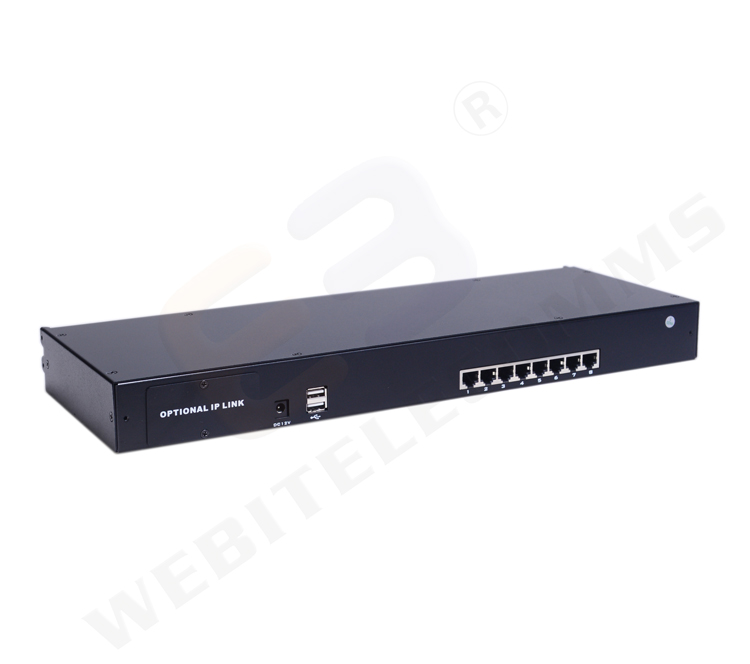

KVM switch module


Packing information



 Order information

Model NO.

Description

WB-AS-7104ULS

17" screen , 4 VGA port

WB-AS-7108ULS

17" screen , 8 VGA port

WB-AS-7116ULS

17" screen , 16 VGA port

WB-AS-9104ULS

19" screen , 4 VGA port

WB-AS-9108ULS

19" screen , 8 VGA port

WB-AS-9116ULS

19" screen , 16 VGA port

WB-AS-7104TLS

17" screen , 4 Cat5e port

WB-AS-7108TLS

17" screen , 8 Cat5e port

WB-AS-7116TLS

17" screen , 16 Cat5e port

WB-AS-9104TLS

19" screen , 4 Cat5e port

WB-AS-9108TLS

19" screen , 8 Cat5e port

WB-AS-9116TLS

19" screen , 16 Cat5e port

 -D

Option: Dual rail operaiton

 -W

Option: Wide screen
