Model:	WB-AS-9108ULG-D
Place of Origin:	Zhejiang,China (Mainland)
Ports:	8 VGA
Dimensions:	446 x 636 x 44 mm
Power:	DC12V, 4A
Power adaptor:	External: DC 12V
Video resolution:	1280 x 1024
CPU port selection:	Front panel switches/OSD menu
Support:	USB / PS2

Contact Now

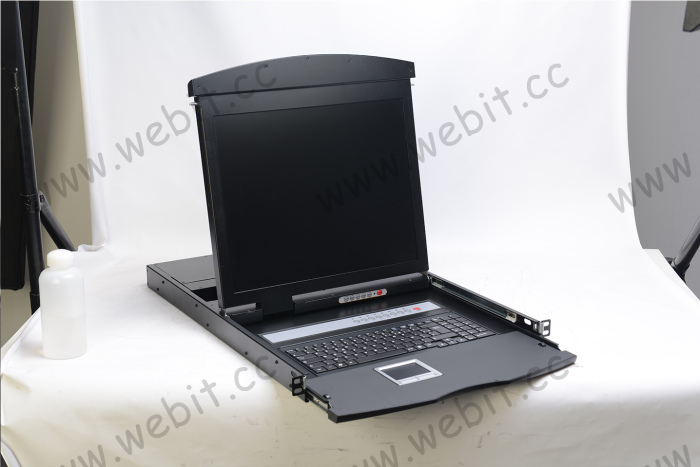

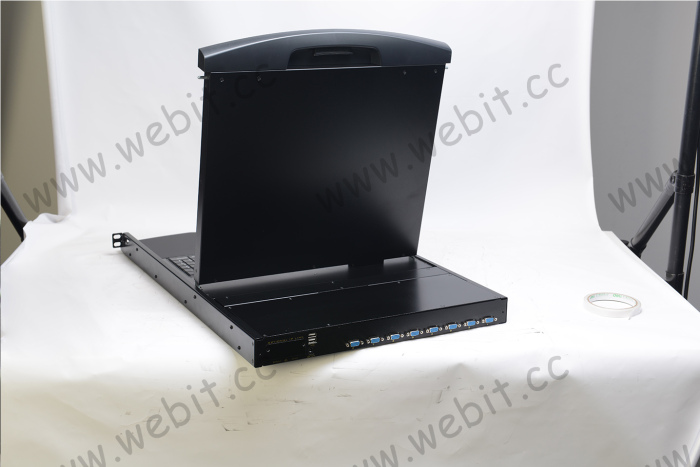

8 ports Dual rails VGA LCD KVM switch

Features

Control platform with LCD, keyboard, mouse and multiple ports VGA KVM switch.
1U height, suitable for 19" standard cabinet installation and metal structure.

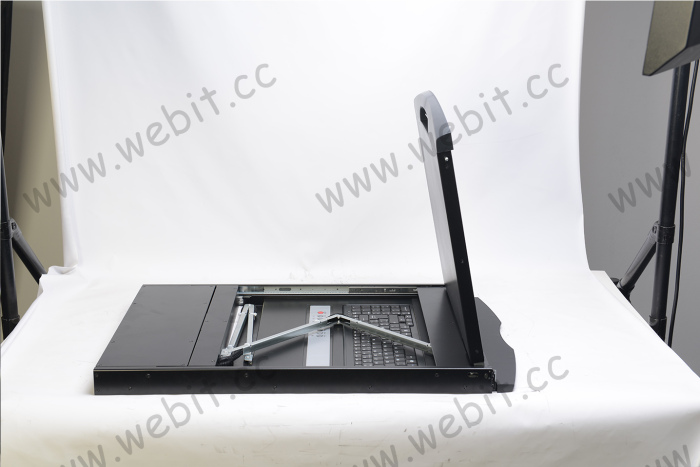

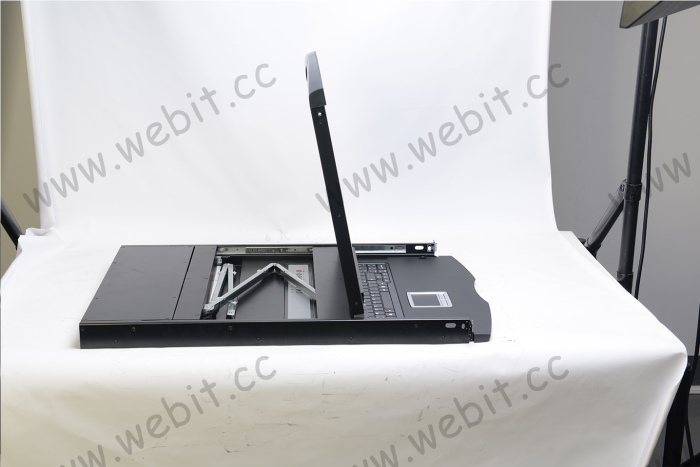

With dual rail structure, the monitor and keyboard can be pulled out respectively.
19" LED screen with high brightness, high clear and high resolution.
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees.
Ultra thin keyboard with keypad.
Mouse touch board with two function button.
Front panel with lock to prevent damage by accident.
Built-in power.

[Automatic power on/off]

When pulling control platform out from cabinet, the power turns off automatically.

When pushing it into the cabinet, the power turns on automatically.

Switch

One control platform can control 16 computers by direct connection.

Be compatible with USB/PS.2 standard interface.

Support VGA, SVGA, XGA video input.

Accord with DDC, DDC2, DDC2B standard and VESA standard.

Support maximum resolution of 1920 * 1080

Support multiple operating systems: WIN95/98/98SE/ME/200/XP/7/ NT, UNIX, LINUX.

Type		WB-AS-9116ULG-D
Computer Connection		16
CPU Port Selection		Front panel buttons/OSD menu
Console Connector	Keyboard	Disassembled standard 99-key keyboard
	Mouse	standard PS/2 touch pad; rear side with USB connector
	Video	19 inch SXGA color TFT-LCD
Dongle Connectors	Keyboard, mouse	KT-150 (1 x USB male)
	Keyboard, Mouse	KT-250 (2 x PS.2 male)
	Video	1 x HDB-15 male (blue)
	Network Port	RJ45 connector
	Distance(dongle to PC)	100m(STP/UTP)
LED's	Online	1 red LED's
LED's	Selected	1 green LED's
LCD monitor	monitor	19.0"SXGA Color TFT-LCD
	visible square	304.128(H)*228.096(V)mm
	Resolution(max)	1920*1080 60HZ
	Support Color	16.2 M / 262K colors
	White Luminance	250 (center, Typ)@ 60 mA
	contrast	700:1 (Typ)
	Back light	LED
	Pixel Pitch	0.297(per one triad)x0.297
	LCD MTBF	50,000hours
	Input power	DC 12 V
Keyboards	keyboard	99keys
	Compatible IBM/AT	Win95/98/98SE/ME/200/Win7 XP Vista WinNT Uni Linux
	Port	Standard PS/2&USB
	Using life	>1,000,000 times
Mouse	X/Y resolution	1000dots/inch 40x40/mm)
	hardware connector	Standard PS/2&USB
	Os support	Win95/98/98SE/ME/200/Win7 XP Vista WinNT Uni Linux
	Using life	>1,000,000 times
Power	Power (AC)	~100V-240V
Power	Using life	MTBF>60,000hours 25 °C
Housing		Metal ( black )
Gross weight		23.5 KGS
Dimensions		63045042mm
Rack installation depth		600mm ~ 1200mm(adjustable)
Operating/storage Temp		0 ~ 50 /-20 ~ 60℃

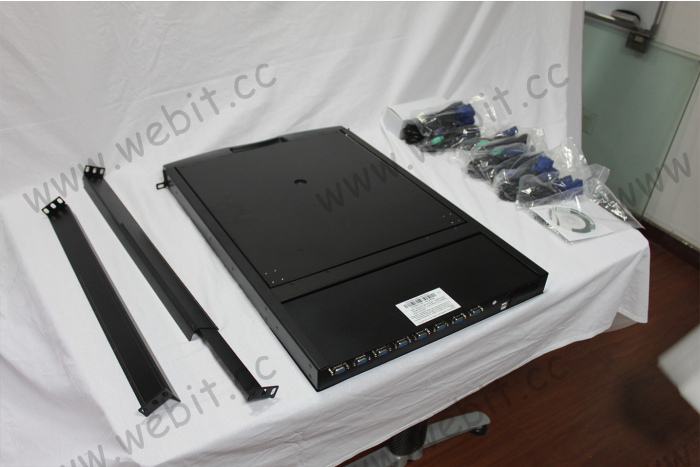

KVM and KVM combo cable


Package
