WB-AI9108ULG
Model: | WB-AI9108ULG |
Place of Origin: | Zhejiang,China (Mainland) |
Input power: | 12V DC |
Dimensions: | 446 x 636 x 42mm |
Housing: | Metal |
Operating temperature: | 0-50/-20-60 ℃ |
PC ports: | 8 ports |
LCD MTBF: | 50,000 hours |
Using life: | >1,000,000 times |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 5000 pcs per month |
Trade Term: | FOB,CFR,CIF,DDP,EXW | Packing: | Cartons |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | Within 20 days |
MOQ: | 2 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air |
19 Inch 8-port VGA LCD KVM Switch
Features
Control platform with LCD, keyboard, mouse and multiple ports
1U height, suitable for 19-inch standard cabinet installation and metal structure
19-inch LCD screen with high brightness, clear and resolution
Control platform can be totally pulled out from cabinet and LCD screen can be turned on to 120°
Ultra thin keyboard with keypad
Mouse touch board with two function button
Front panel with lock to prevent damage by accident
Built-in power
【Automatic power on/off】
when pulling control platform out from cabinet, power turns off automatically
When pushing it into cabinet, power turns on automatically
Easy to use OSD menu
Compliant
One control platform can control 8 computers by direct connection
Compatible with USB standard interface
Supports VGA, SVGA and XGA video input
Accord with DDC, DDC2, DDC2B standard and VESA standard
Supports maximum resolution of 1920 x 1440p
Supports multiple operating systems: Microsoft Windows 95/98/98SE/ME/200/XP/7/Vista/NT, Unix and Linux
IP module: realize remote control by IP card
Type | AS-9108ULG | |
LCD monitor | monitor | 19.0”SXGA Color TFT-LCD |
visible square | 376.32(H)*301.056(V)mm | |
Resolution(optimal) | 1280*1024 60HZ | |
color | 16.7M colors (RGB 8-bit data) | |
Luminance, White (5P) | 300 (center, Typ)@7.5mA | |
contrast | 1300:1 (Typ) | |
backlight | CCFL four lamps | |
Pixel Pitch | 0.294(per one triad)x0.294 | |
LCD MTBF | 50,000hours | |
Input power | DC 12V | |
Keyboards | keyboard | 99keys |
Compatible IBM/AT | WIN95/98/98SE/ME/200/XP、VISTA, WIN 7,WIN NT、UNIX,LINUX. | |
Port | Standard PS/2&USB | |
Using life | >1,000,000 times | |
Mouse | X/Y resolution | 1000dots/inch 40x40/mm) |
hardware connector | Standard PS/2&USB | |
Os support | WIN95/98/98SE/ME/200/XP、VISTA, WIN 7,WIN NT、UNIX,LINUX. | |
Using life | >1,000,000 times | |
Power built-in | Power input(AC) | ~100V-230V |
Using life | MTBF>60,000hours 25 °C | |
House | Metal | |
Gross weight | 19KGS | |
Dimensions | 446mm x 636mm x 42mm | |
Operating/storage Temp | 0 ~ 50/-20 ~ 60℃ | |
PC ports | 8 | |
PC selections | Hotkey, OSD menu | |
VGA resolution(highest) | 1920*1080 60HZ |

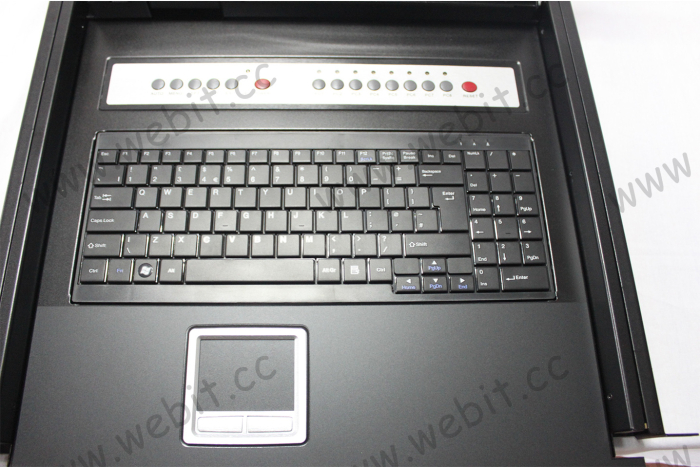

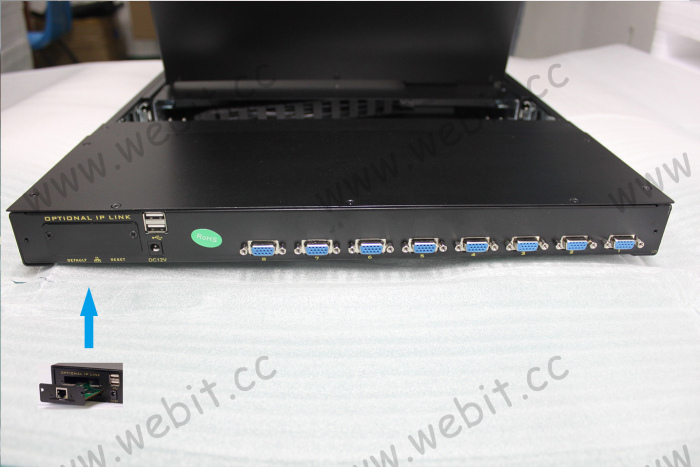

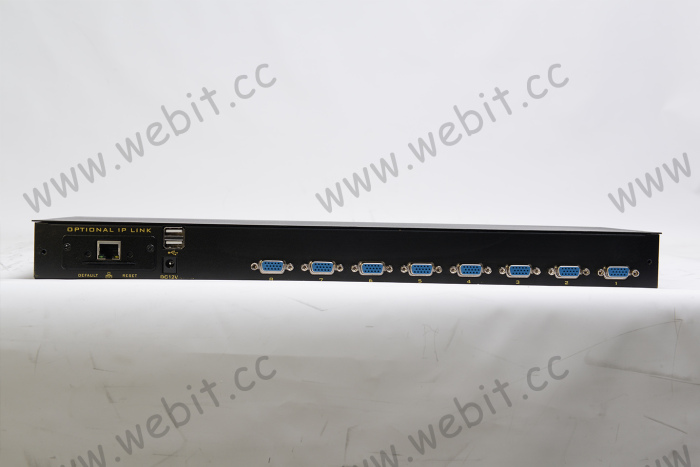

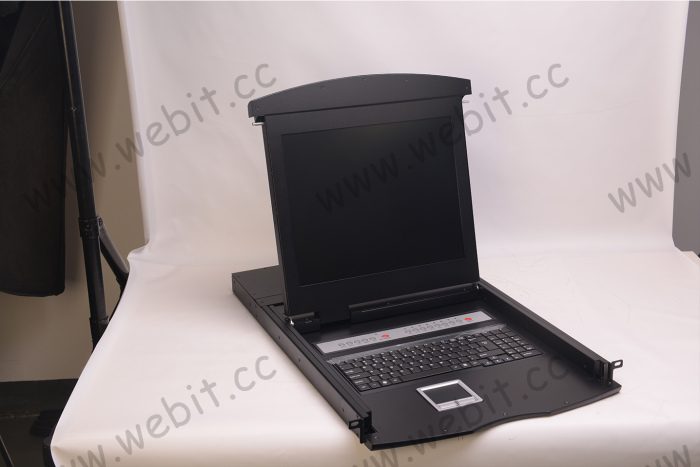

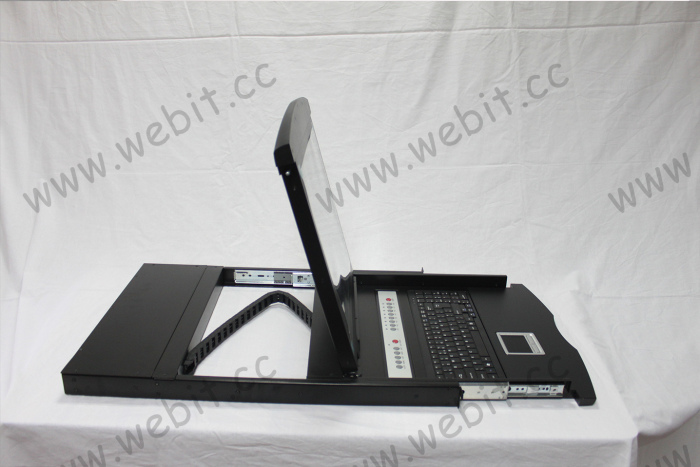

Products picture:

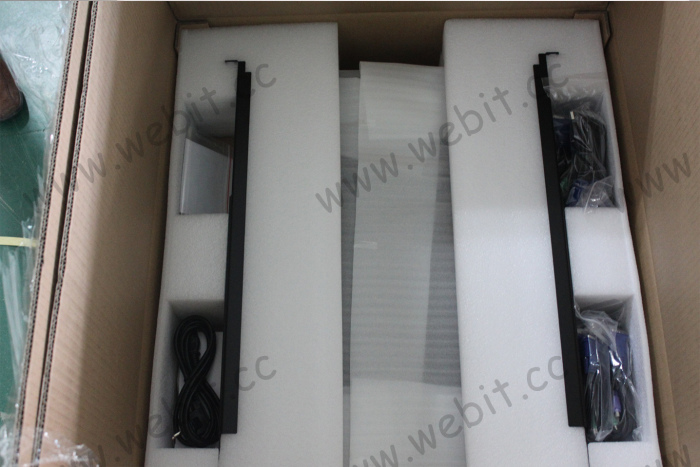

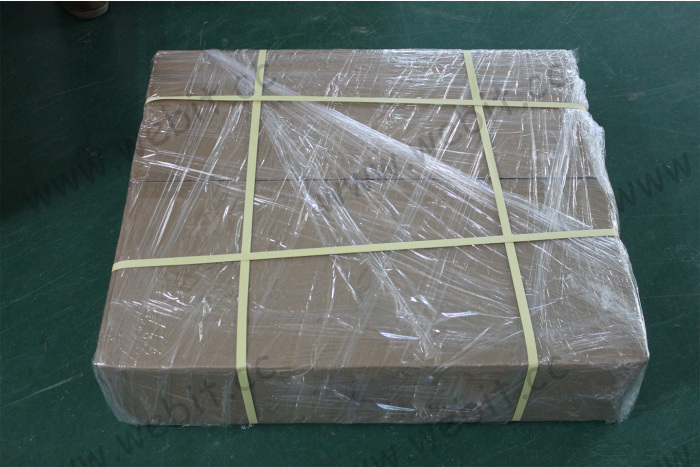

Package
