WB-KI3101
Model: | WB-KI3101 |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | All kinds of PC system |
Operation: | Soft downing |
Installation: | Swappable |
Connector: | Cat5 , Cat5e ,Cat6 |
Network rate: | 10/100/1000 M |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 10000 units per month |
Trade Term: | FOB,CFR,CIF,DDP,EXW | Packing: | standard cargo packing |
Payment Terms: | L/C, WU, D/P, T/T, Paypal | Delivery Date: | 30 days |
MOQ: | 50 Piece/Pieces | Means of Transport: | Land, Ocean, Air |

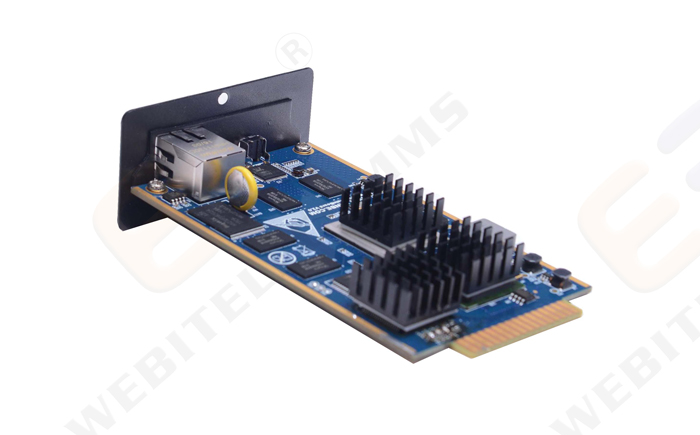

KVM used remote control module
Product Features
Our products adopt KVM over IP technology , make full use of existing Ethernet network to replace dependence of special cables & signal systems.
Expedient bandwidth control, can make adjustments of frame rate and code rate for video transmission to adapt to different network bandwidth.
Fully guarantee the transmission quality of the image.
Based on IP connection eliminates the distance analog KVM system and other restrictions,And therefore achieve flexible centralized management.
Because digital KVM signaling is based on IP agreement, the network administrator can use client applications to access in data center or anywhere in the world.
Uusing one computer to control servers and other devices.
It means can be added or change any number of users and devices without any complex reconfiguration.
Client-side soft can fully make use of IP technology to provide rich administrative control , including process sharing,server status monitor,simulate multi-platform keyboard and centralized records.
Multiple permissions setting to meet the use and operation of different users.
Through the video transmission and data encryption of keyboard and mouse to make sure the safety of network transport.
BIOS level connection is no limited by operating system, and applicable to various server,PC system and operating system.
Absolute synchronistical technologies of mouse to ensure the operating accuracy of window.
Support remote key combination to send.
10M,100M,1000M network transmission.
Product Features
Our products adopt KVM over IP technology and make full use of existing Ethernet network to replace dependence of special cables and signal systems.
Based on IP connection eliminates the distance analog KVM system and other restrictions, And therefore achieve flexible centralized management.
BIOS level connection is no limited by operating system, and applicable to various server, PC system and operating system.
Support remote key combination to send.
10M,100M,1000M network transmission.
Remote resolution can reach to 1920x1080@60HZ. Support screen zoom function with arbitrary proportion.
Base on WEB UI, convenient for customer to access under different operation system.
Support remote online update.
Specification
Product number | KI-4101 | |
Control Port | Keyboard | RJ45 port x 1 |
Mouse | ||
Video | ||
Input Port | Keyboard | HD15F/integration port x 1 (VGA video,USB mouse/keyboard, PS/2mouse/keyboard) |
Mouse | ||
Video | ||
Power Supply Port | DC-5.5*2.1 | |

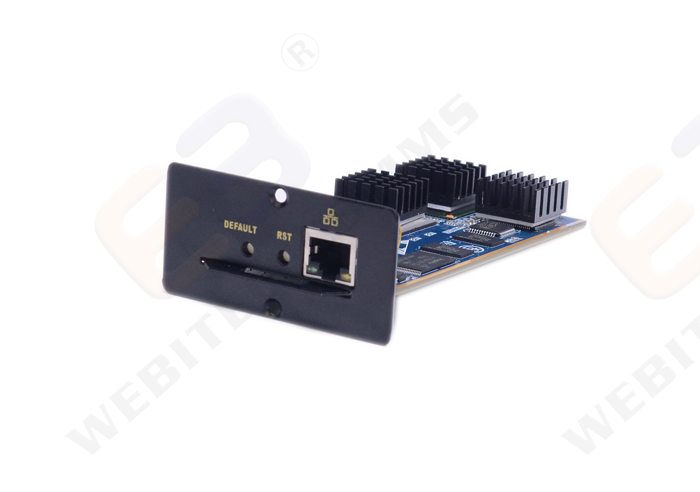

Reset | Network Re-connect | |
Default | Initialize IP module default IP address, administrator name and initial password | |
LED Indicator | Power indicator | |
Max Resolution | 1920 x 1080@60Hz | |
Power Supply | DC 12V 1000mA | |
Operating Temperature | 0-50˚C | |
Storage Temperature | -20ºC-60ºC | |
Housing | metal | |
Weight | 0.5KG | |
Dimensions(L x W x H ) | 162*78*30mm |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 50 pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
