Model: | WB-AS-7116TLS |
Max resolution | 1920 x 1200 @ 60HZ Local & Remote |
Connector | 16 x RJ45 |
Size | 555.4 x 482.6 x 44.45 mm |
Installation | 1U 19 inch rack mountable |
Housing material | Metal |
Ratio | 17" Screen 4:3 |
Operating temperature | -10~+50℃ |
Operating Humidity | 0-80%RH, No Condensation |
Keyboard | English defaulted ( other optional) |
Contact NowProduct Description
Payment & Shipment term | Supply | ||
Unit Price: | Negotiable | Production Capacity: | 5000 pcs/month |
Trade Term: | FOB,CFR,CIF,DDP,EXW | Packing: | Cartons |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | Within 30 days |
Means of Transport | Land, Ocean, Air | MOQ | 2 units |
1U 19" 16 x CAT5 ports LCD KVM Switch console
Concept
KVM control platform is one with integrated 2/4/8/16ports KVM switch, monitor, keyboard & mouse into 1U height.
It controls several computers/servers with one platform (keyboard, mouse and monitor).
Main features
Control platform with 17" LCD monitor , keyboard, mouse and multiple CAT5 ports KVM switch
1U height, suitable for 19-inch standard cabinet installation and metal structure
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees
Ultra thin keyboard with keypad
Mouse touch board with two function button
Front panel with lock to prevent damage by accident
[Automatic power on/off]
When pulling control platform out from cabinet the power turns on automatically
When pushing it into the cabinet the power turns off automatically
Easy to use OSD menu
Compliant
One control platform can controls 16 computers by direct connection
Compatible with USB standard interface
Supports VGA, SVGA and XGA video input
Accord with DDC, DDC2, DDC2B standards and VESA standard
Supports maximum resolution of 1920 x 1200p
Supports multiple operating systems: Win95/98/98SE/ME/200/XP/7/Vista/WinNT/Unix/Linux
Type | WB-AS-7116TLS | ||
Computer connections | 16 x direct connect , 256 x maximum connect | ||
CPU port selection | OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional) | ||
Connectors | console | DB 37PIN | |
Keyboard Monitor | 16 x VGA DB15 Female Blue 16 x USB or 8 x PS/2 | ||
Power | 1 x DC jack | ||
Key switch | KVM Reset | KVM Operation Panel Function Keys | |
IP Reset | 1 x semi-embedded key | ||
IP Port | Network | RJ45 port | |
LEDs | On Line | 16 red LEDs | |
Selected | 16 green LEDs | ||
Video resolution | 1920 x 1200 @ 60HZ Local & Remote | ||
Power | DC12V, 4A | ||
Scan time interval | 3, 5, 10, 15, 20, 30, 40, 60s (3s by default) | ||
Operating temperature | -10˚C~50˚C | ||
Storage temperature | -20˚C~60˚C | ||
Housing | Metal | ||
Weight | 18.1 Kg | ||
Dimensions(L x W x H ) | 555.4 x 482.6 x 42 mm | ||

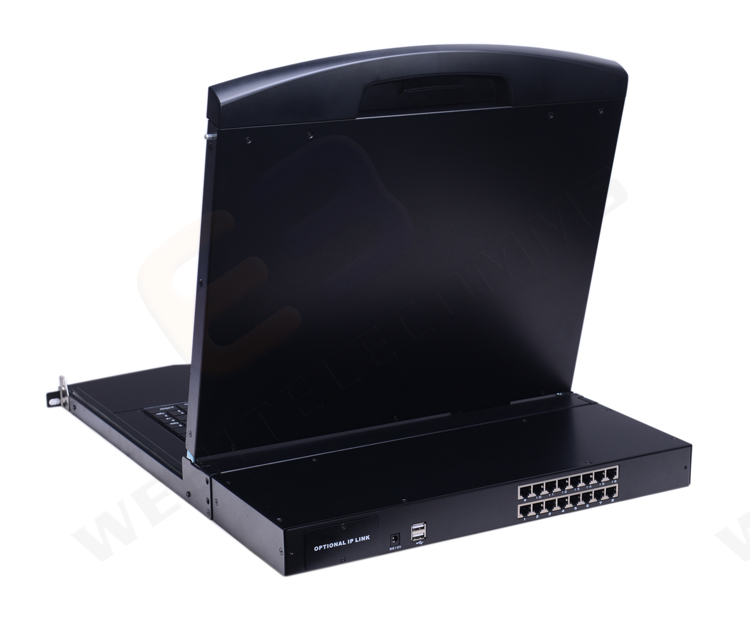

KVM view

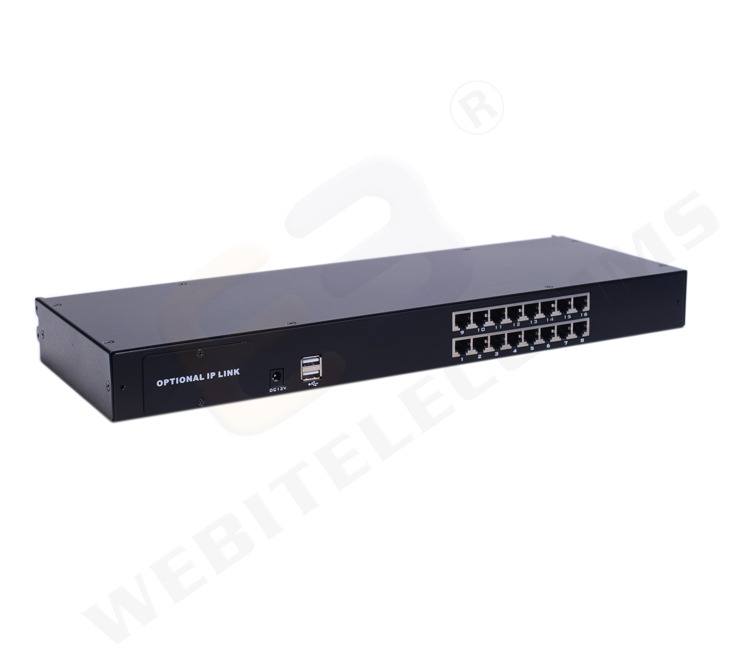

KVM switch module
Packing information
Order information
Model NO. | Description |
WB-AS-7104ULS | 17" screen , 4 VGA port |
WB-AS-7108ULS | 17" screen , 8 VGA port |
WB-AS-7116ULS | 17" screen , 16 VGA port |
WB-AS-9104ULS | 19" screen , 4 VGA port |
WB-AS-9108ULS | 19" screen , 8 VGA port |
WB-AS-9116ULS | 19" screen , 16 VGA port |
WB-AS-7104TLS | 17" screen , 4 Cat5e port |
WB-AS-7108TLS | 17" screen , 8 Cat5e port |
WB-AS-7116TLS | 17" screen , 16 Cat5e port |
WB-AS-9104TLS | 19" screen , 4 Cat5e port |
WB-AS-9108TLS | 19" screen , 8 Cat5e port |
WB-AS-9116TLS | 19" screen , 16 Cat5e port |
-D | Option: Dual rail operaiton |
-W | Option: Wide screen |
