Model: | WB-AI7108ULG |
Place of Origin: | Zhejiang,China (Mainland) |
Export Area: | all over the world |
Connector: | VGA |
Size: | 446 x 636 x 42 mm |
Installation: | 19" installation |
Video resolution: | 1280 x 1024 |
Power: | DC12V, 4A |
Screen: | 17", Wide screen for option |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 5000 pcs/month |
Trade Term: | FOB,CFR,CIF,DDP,EXW | Packing: | Cartons |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | Within 30 days |
MOQ: | 2 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||
Integrated 17 inch LCD VGA KVM console
Features
Control platform with LCD, keyboard, mouse and multiple ports VGA KVM switch
1U height, suitable for 19-inch standard cabinet installation and metal structure
17-inch LCD screen with high brightness, high clear and high resolution
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees
Ultra thin keyboard with keypad
Mouse touch board with two function button
Front panel with lock to prevent damage by accident
Built-in power
[Automatic power on/off]
When pulling control platform out from cabinet the power turns off automatically
When pushing it into the cabinet the power turns on automatically
Easy to use OSD menu.
Type | WB-AS-7108ULG | |
LCD monitor | monitor | 17”SXGA Color TFT-LCD |
visible square | 337.920(H)×270.336(V)mm | |
Resolution(optimal) | 1280*1024 60HZ | |
color | 16.7M colors (RGB 6-bits + FRC data) | |
Luminance, White (5P) | 300 (center,Typ)@7.5mA | |
contrast | 1000 : 1 (Typ) | |
backlight | CCFL two lamps | |
Pixel Pitch | 0.264(per one triad)x0.264 | |
LCD MTBF | 50,000 hours | |
Input power | DC 12V | |
Keyboards | keyboard | 99keys |
Compatible IBM/AT | WIN95/98/98SE/ME/200/XP、VISTA, WIN 7, WIN NT、UNIX、LINUX. | |
Port | Standard PS/2&USB | |
Using life | >1,000,000 times | |
Mouse | X/Y resolution | 1000dots/inch 40x40/mm) |
hardware connector | Standard PS/2&USB | |
Os support | WIN95/98/98SE/ME/200/XP、VISTA, WIN 7, WIN NT、UNIX、LINUX. | |
Using life | >1,000,000 times | |
Power built-in | Power input(AC) | ~100V-230V |
Using life | MTBF>60,000hours 25 °C | |
House color | black | |
House | Metal | |
Gross weight | 16.5KGS | |
Dimensions | 446mm x 636mm x 42mm | |
Rack installation depth | 600mm ~ 1200mm(adjustable) | |
Operating/storage Temp | 0 ~ 50/-20 ~ 60℃ | |
PC ports | 8 | |
PC selections | Hotkey, OSD menu | |
VGA resolution(highest) | 1920*1080 60Hz | |

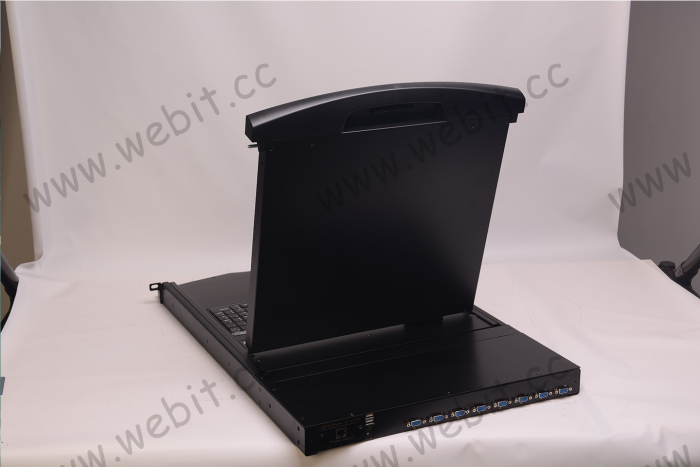

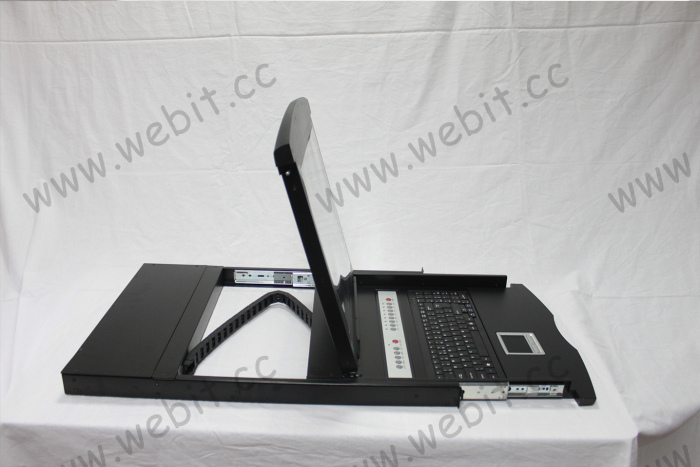

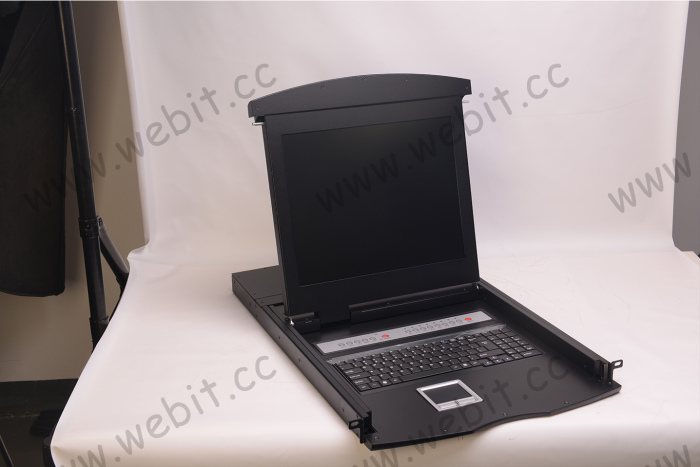

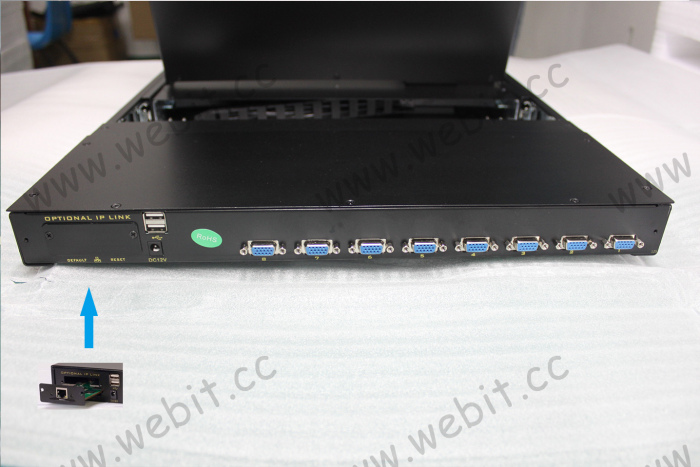

KVM photo show

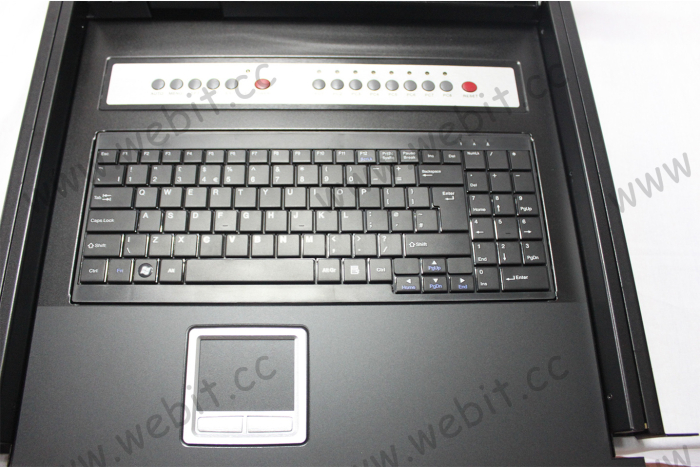

KVM keyboard & control panel

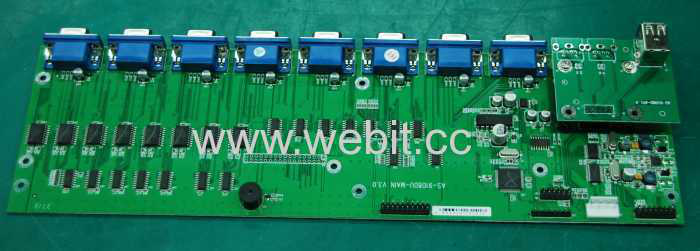

PCB

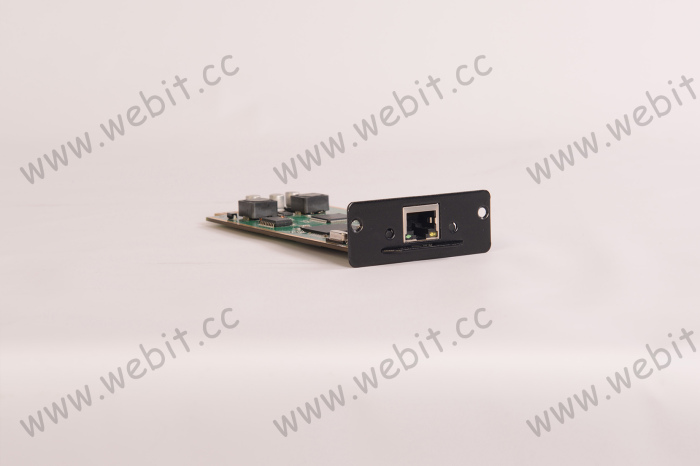

Card series IP module

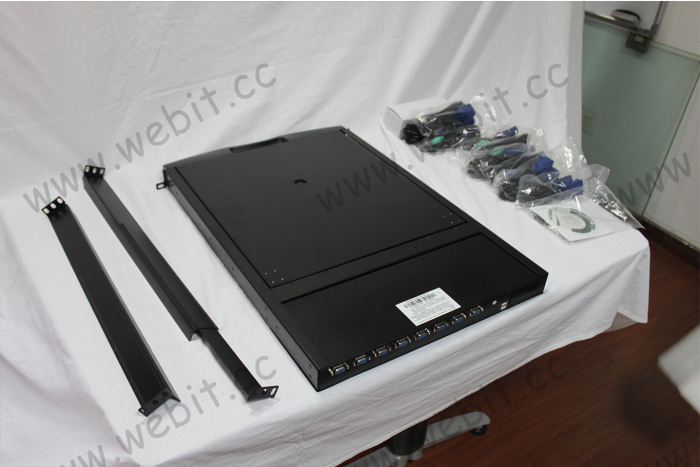

KVM and KVM combo cable
Package
Order information
Model NO. | Description |
WB-AI-7104ULG | 17" screen , 4 VGA port, Remote control |
WB-AI-7108ULG | 17" screen , 8 VGA port, Remote control |
WB-AI-7116ULG | 17" screen , 16 VGA port, Remote control |
WB-AI-9104ULG | 19" screen , 4 VGA port, Remote control |
WB-AI-9108ULG | 19" screen , 8 VGA port, Remote control |
WB-AI-9116ULG | 19" screen , 16 VGA port, Remote control |
WB-AI-7104TLG | 17" screen , 4 Cat5e port, Remote control |
WB-AI-7108TLG | 17" screen , 8 Cat5e port, Remote control |
WB-AI-7116TLG | 17" screen , 16 Cat5e port, Remote control |
WB-AI-9104TLG | 19" screen , 4 Cat5e port, Remote control |
WB-AI-9108TLG | 19" screen , 8 Cat5e port, Remote control |
WB-AI-9116TLG | 19" screen , 16 Cat5e port, Remote control |
-D | Option: Dual rail operaiton, Remote control |
-W | Option: Wide screen |
