IP55/65 pole mounted outdoor control cabinet

WB-OD-P follows the IEC's standardized International Protection Code system for measuing capabilities.

The IP Code reflects the degree of protection as "IP" followed by two numbers;

• the first digit shows the extent to which enclosures are protected against particles/dust, and protection to others from enclosed hazards.

• The second digit indicates the extent of protection against water.




We carry IP65 enclosures which offers complete protection against particles/dust, and a strict control of protection against water. Because all of our enclosures strictly observe the standards, you can expect first-rate and competitively-priced outdoor enclosures.

IP65 Enclosures' Characteristics:

• Complete protection from dust, oil, and other non-corrosive material

• Complete protection from contacting with enclosed equipment

• Protection from water, up to water projected by a nozzle against enclosure from any direction

• Available in wall-mounted, free standing, trough, and telegraph pole mounting

• Silk-screening logo, anodizing, or engraving services are available


• Custom with cutouts,insulation, hinges, latches or locks




IP55 Enclosures' Characteristics:




• Protection from dirt, dust, oil, and other non-corrosive material

• Complete protection from contact with enclosed equipment

• Available in aluminum, carbon steel, and stainless steel


• Available in wall-mounted, free standing, trough, and telegraph pole mounting

• Engraving, silk-screening, or anodizing services available

• Custom with cutouts, insulation,cooling system, hinges, latches, or locks

Specifications

1. Completed enclosed design with IP55 design

2. Bottom cabling entrance & cooling fan [IP55 only]

• Flange connecting

• AC cooling ( optional)




3. Material options:

• SPCC cold rolled steel

• Stainless steel

• Galvanized steel




4. IP rate : IP65 or IP55

5.Waterproof,dust proof:materials such as dirt, oils and non-corrosives

6.Strict rubber ealing belt

7. 4 ×Rear wall mounting kit /  pole mount kit

8.Machine protection solution:the cabinet is designed specifically to protect it from human damage, earthquake and other damages.

9.Yellow-green earthing cable for front door

10.Max static loading : 30 KGS

Standards

Width: 300  mm

Depth: 200 mm

Height: 300 ~ 800, customized dimensions

Customized size is available

WELD STRUCTURE ONLY!

Industry Standard and Material:

Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Material:SPCC cold rolled steel or EG steel

Thickness:

Mounting plate :1.5 mm

others:1.00 mm to 1.20 mm

IP degree: IP-65 or IP-55

Loading capacity: Max Static loading---30 KG

Body color:RAL9005(black);RAL7035(grey),etc

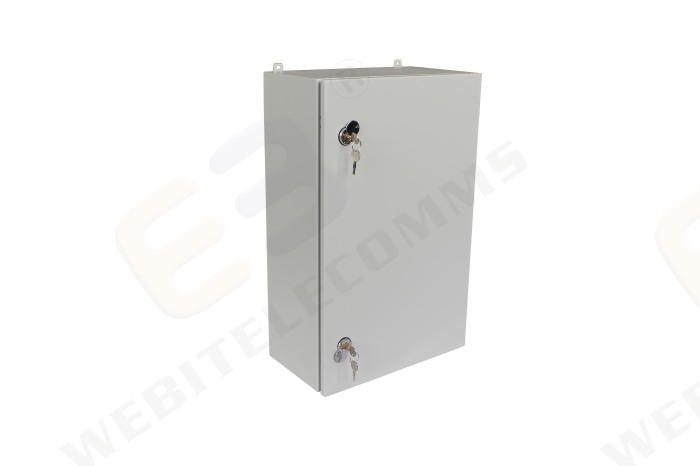

- Front side ( 2 x waterproof lock)

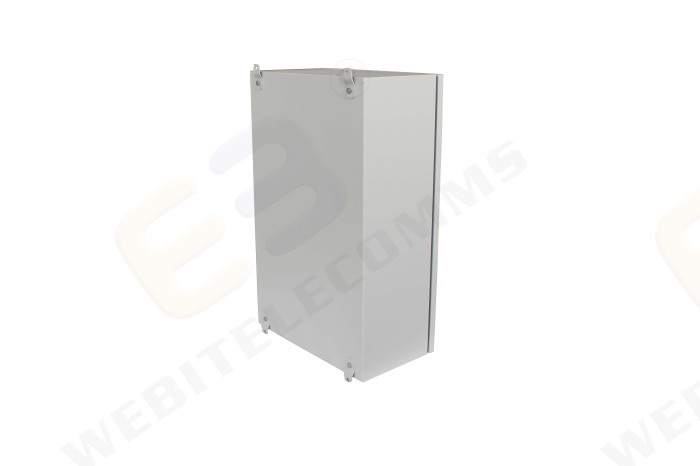

-Back side ( wall mounted )

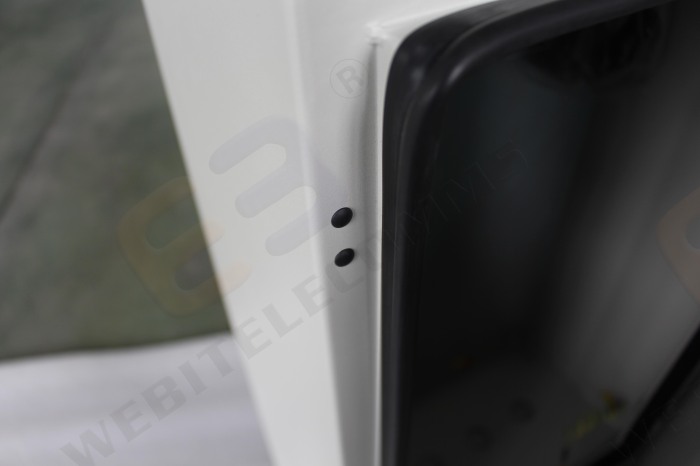

-Opened front side

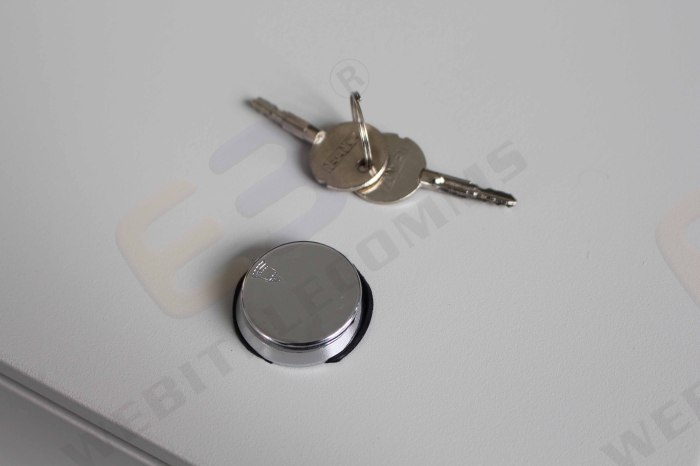

 -Waterproof lock

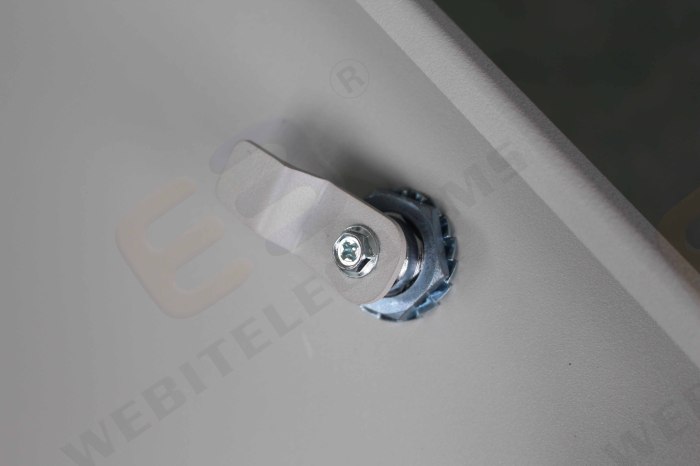

-Hinge insert ( hinge can be either left / right side)
