WB-OD-H follows the IEC's standardized International Protection Code system for measuing capabilities.

The IP Code reflects the degree of protection as "IP" followed by two numbers;
the first digit shows the extent to which enclosures are protected against particles/dust, and protection to others from enclosed hazards.
The second digit indicates the extent of protection against water.

We carry IP65 enclosures which offers complete protection against particles/dust, and a strict control of protection against water. Because all of our enclosures strictly observe the standards, you can expect first-rate and competitively-priced outdoor enclosures.

IP65= Enclosures' Characteristics:

• Complete protection from dust, oil, and other non-corrosive material


• Complete protection from contacting with enclosed equipment

• Protection from water, up to water projected by a nozzle against enclosure from any direction

• Available in wall-mounted, free standing, trough, and telegraph pole mounting


• Silk-screening logo, anodizing, or engraving services are available


• Custom with cutouts,insulation, hinges, latches or locks

IP55= Enclosures' Characteristics:

• Complete protection from dust, oil, and other non-corrosive material

• Complete protection from contacting with enclosed equipment


• Protection from water, up to water projected by a nozzle against enclosure from any direction


• Available in wall-mounted, free standing, trough, and telegraph pole mounting


• Silk-screening logo, anodizing, or engraving services are available

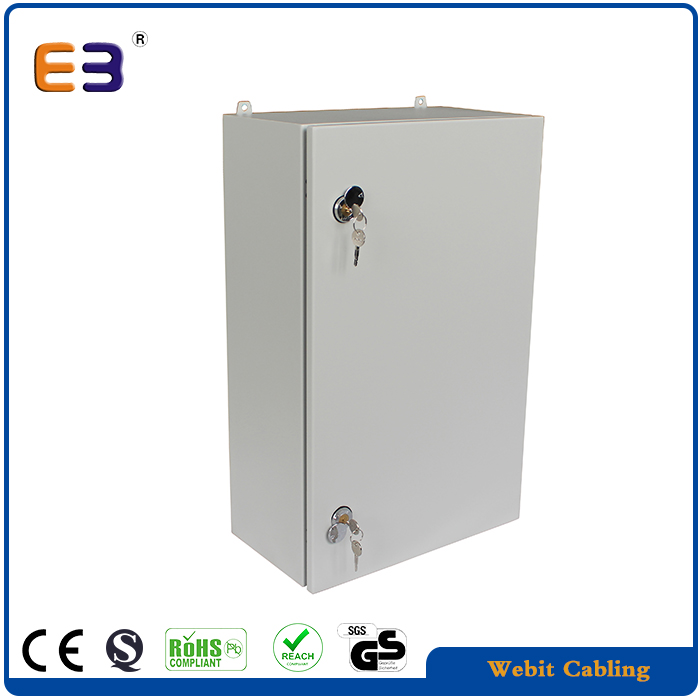

Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.

• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.

• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)

                        - w/ removable inner door are formed from sheet steel, depth adjustable

                        - Removable inner panel is formed from 14 or 16 gauge galvanized sheet

                        - Grounding and panel mounting hardware provided.
Features

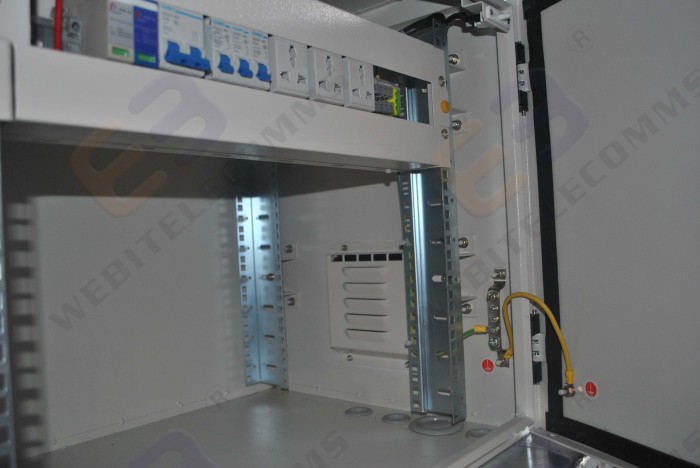

- Lockable front door installed with earthing cable
- Strong double wall type framework
- 19" galvanized/powder coated mounting profile for device installation
- Bottom panel cable entry, can be perfectly fix to floor

- Side louver vented aread for airflow

- Circuit board installed as per customized requirement
-  4 x galvanized rails

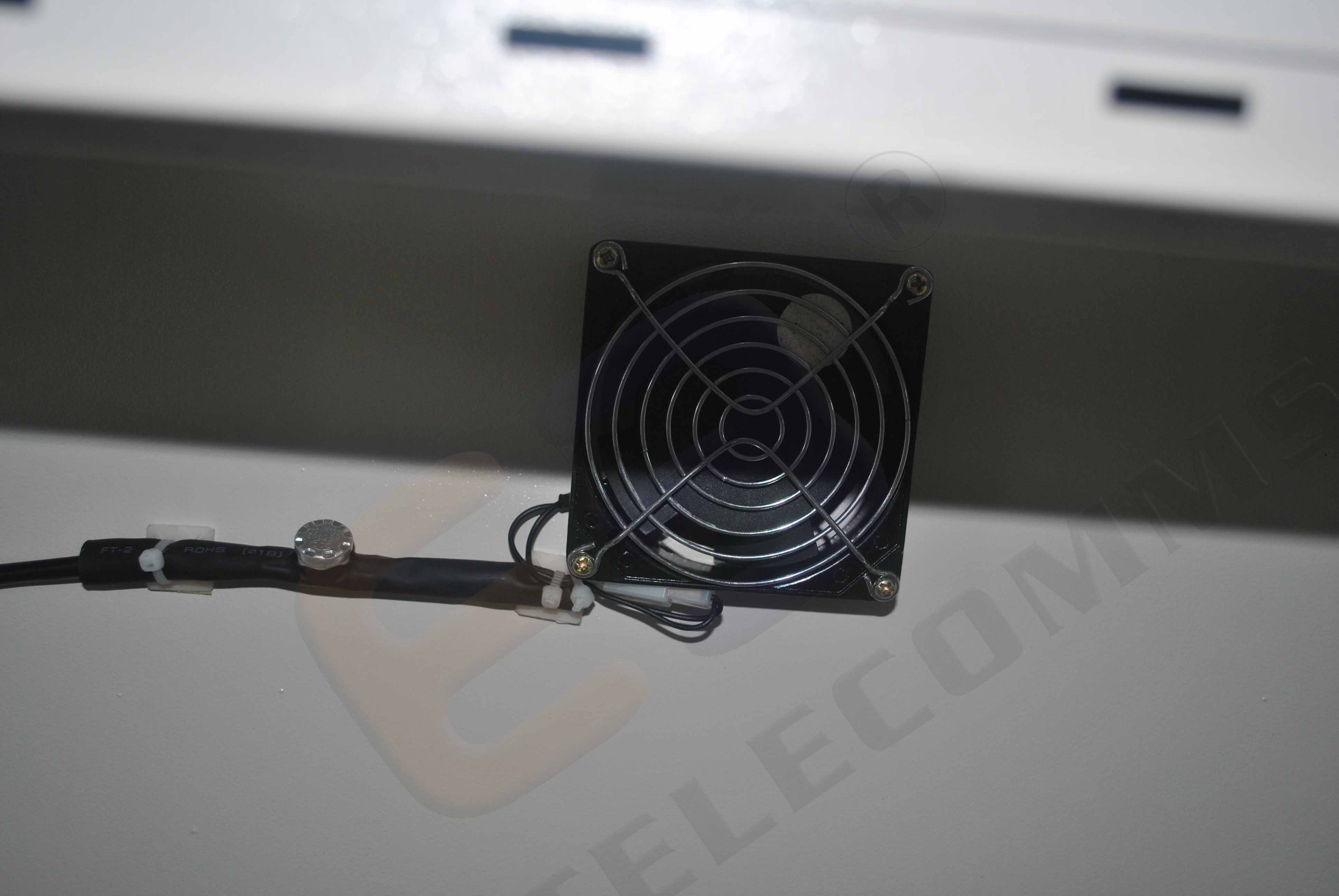

- peripheral is optional [ lighting system,smoke alarm,temperature sensor etc..]

MAKE TO ORDER service. below size is suggested for choose.

Width: 600 mm

Depth:  450, 600 mm

Height: 4U, 6U ,9U ,12U, 15U, 18U

Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Material:SPCC cold rolled steel or Zinc-plated plate or stainless steel

Thickness:Mounting profile:1.5mm,others: 1.00~1.20 mm

IP degree: IP-55 or IP-65

Body color:RAL5012(Top cover and base);RAL7035(The others)

Environment conditions:

• Temperature:                           -40°C ~+ 60°C

• Relative Humidity:                     ≤95% (at 40°C)

• Atmospheric pressure :             70kPa ~ 106kPa

Technical Specifications:

• The protection grade reaches IP55.

• Working with wavelength of 850nm, 1310nm and 1550nm.

• Pressurization between the frame high voltage protection earth device and the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.

• Insulation resistance between the frame high voltage protection earth device and the frame: ≥20,000M Ω/ 500V (DC).

• Each surface of the cabinet can bear a vertical pressure over 980N.

• The outermost part of the door can bear a vertical pressure over 200N when the door is open.

• The fixing position of cable can bear an axial tensile force 1000N, as well as three times of recyclable torsion of ±90°.

• Mechanical durability: No damage for all connectors and adaptors after 500 mating times.
