WB-OD-F

Model:WB-OD-F
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Structure:19" installation
Materials:SPCC or Stainless steel
IP rate:IP55 / IP65
Color:Black or grey , customization
Max loading capacity:60KG
Certification:CE,RoHS,SGS,ISO,REACH
Cabinet Wgoods_idth:600
Cabinet Depth:450/600


Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:10000 units per month
Payment Terms:L/C, WU, T/T, PaypalPacking:cartons
MOQ:5 Piece/PiecesDelivery Date:25 days
Means of Transport:Land, Ocean, Air



WB-OD-F follows the IEC's standardized International Protection Code system for measuing capabilities.

The IP Code reflects the degree of protection as "IP" followed by two numbers;

  1. the   first digit shows the extent to which enclosures are protected against   particles/dust, and protection to others from enclosed hazards.

  2. The second digit indicates the extent of protection against water.


We  carry IP65 enclosures which offers complete protection against   particles/dust, and a strict control of protection against water.   Because all of our enclosures strictly observe the standards, you can   expect first-rate and competitively-priced outdoor enclosures.


IP65 Enclosures' Characteristics:

  • Complete protection from dust, oil, and other non-corrosive material

  • Complete protection from contacting with enclosed equipment

  • Protection from water, up to water projected by a nozzle against enclosure from any direction

  • Available in wall-mounted, free standing, trough, and telegraph pole mounting

  • Silk-screening logo, anodizing, or engraving services are available

  • Custom with cutouts,insulation, hinges, latches or locks


IP55 Enclosures' Characteristics:



  • Protection from dirt, dust, oil, and other non-corrosive material

  • Complete protection from contact with enclosed equipment

  • Available in aluminum, carbon steel, and stainless steel

  • Available in wall-mounted, free standing, trough, and telegraph pole mounting

  • Engraving, silk-screening, or anodizing services available

  • Custom with cutouts, insulation,cooling system, hinges, latches, or locks



Specifications



1. Completed enclosed design with IP65 or IP55 design

2. Bottom cabling entrance & cooling fan[IP55 only]

  • Flange connecting

  • AC cooling

3. Material options:

  • SPCC cold rolled steel

  • Stainless steel

  • Galvanized steel

4. IP rate : IP65 or IP55

5.Waterproof,dust proof:materials such as dirt, oils and non-corrosives

6.Strict rubber ealing belt

7. 4 ×Rear wall mounting kit

8.Machine protection solution:the cabinet is designed specifically to protect it from human damage, earthquake and other damages.

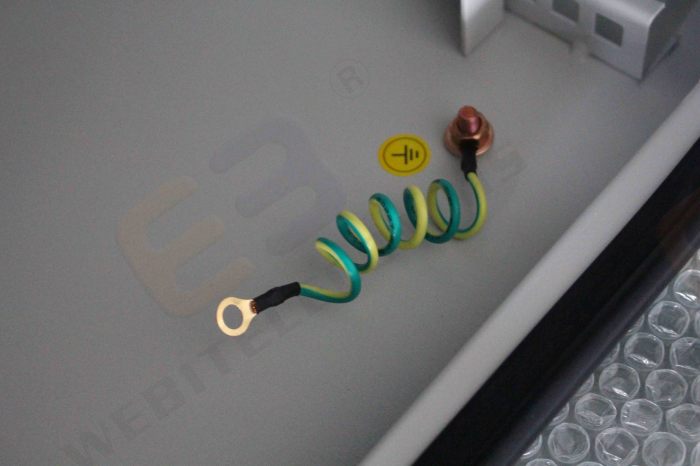

9.Yellow-green earthing cable for front door

10.Max static loading : 60 KGS


Standards

Width: 600 mm

Depth: 600,450 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM

Customized size is available

WELD STRUCTURE ONLY!



Industry Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.



Surface Finish:Degrease, acgoods_id pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating


Materials:SPCC cold rolled steel or EG steel



Thickness:

Mounting profile:1.5 mm

others:1.00 mm to 1.20 mm



IP degree: IP-65 or IP-55


Loading capacity: Max Static loading---60 KG


Body color:RAL9005(black);RAL7035(grey),etc

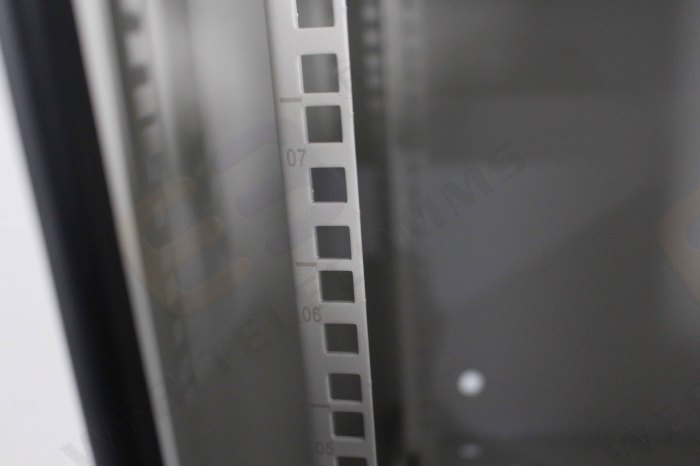

- Adjustable fixing depth( move the mounting rails)

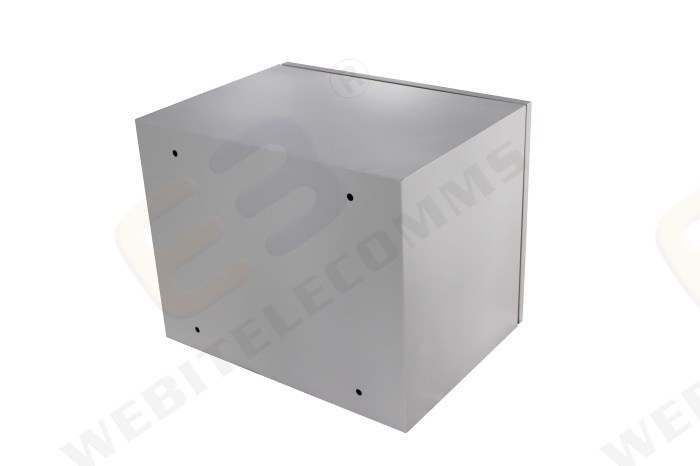

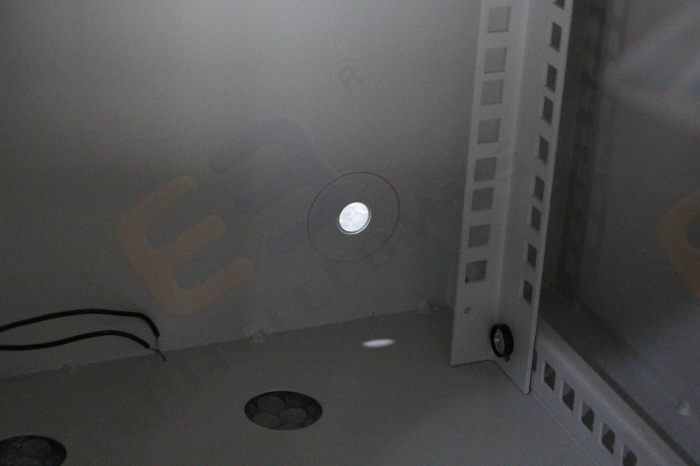

 -Back wall mounted

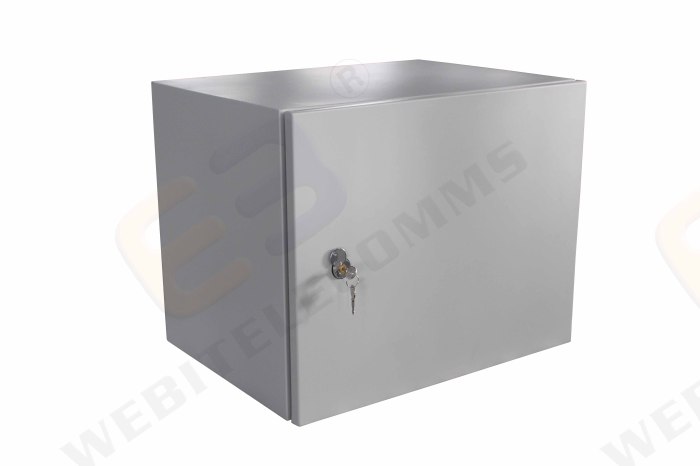

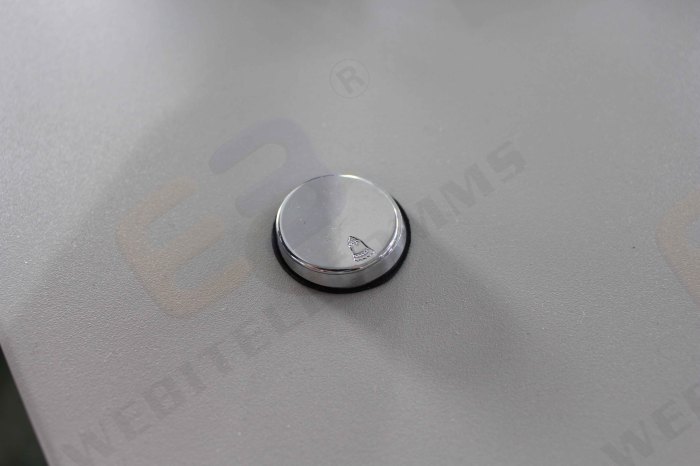

 -Common lock

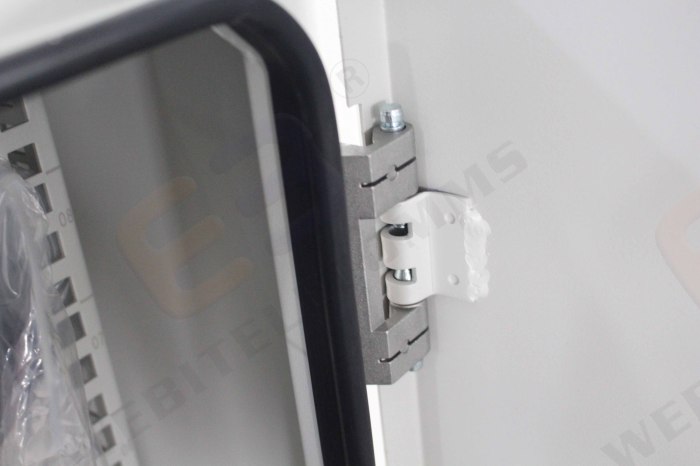

 - Hinge view


- Grey color rail (Silver silk printed U )

- Earthing cable at door

- Cable entrance with waterproof flange

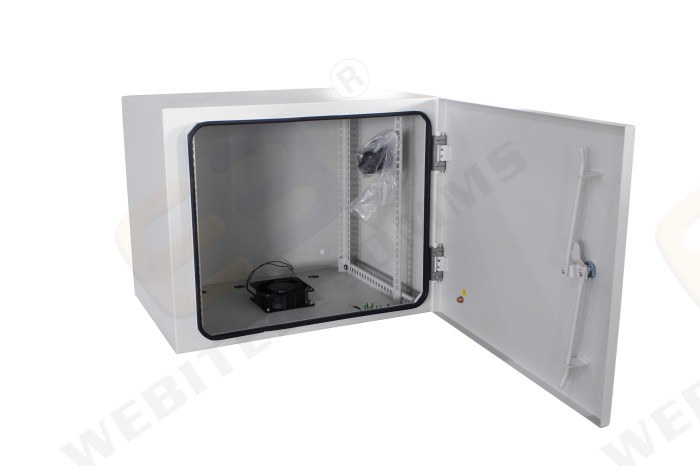

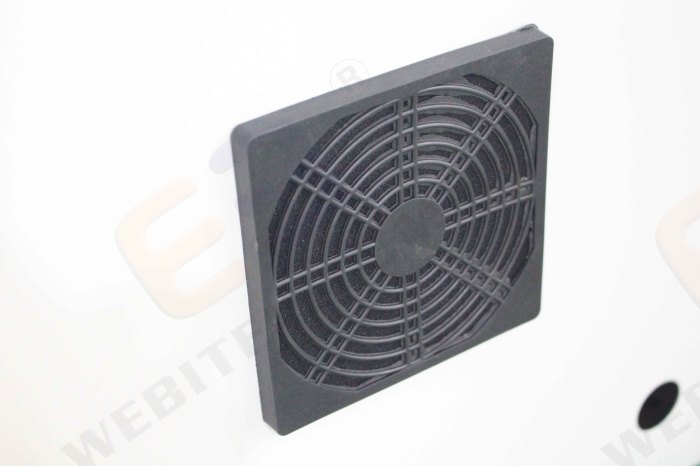

- AC cooling fan ( IP55 only )



MaterialSPCC cold rolled steel
Thickness0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available to be designed for the material used
ProcessingLaser cutting, CNC punching, CNC bending, Hand welding, stamping, etc
Surface treatmentPainting, Plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc
CertificationISO9001:2000 , CE,  RoHS , SGS
Delivery dateWithin 30 days
IP degreeIP55&65
Water proof

0.2Mpa,10mm/min,30min,Endure   water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min)

No   leakage inside Comply with GB 4208-1993 IP65 standard

Fire proofNon-metal marterial burning time< 1s(put onto blue fire over 30s)
Noise proof < 55db
Voltage testComply with 48V DC or 220V AC
Resistance testresistance from earthing bolt to body <0.01Ω
Working environmentCan normally work from -30 to 65 °
Color standardComply with GB/T 3181-1995 sheet 2 's color requirement
Painting standardComply with GB/T 9286-1998 sheet 1, Class-1
9. Tolerance+/-3mm


Dimensions list

Width×Depth×HeightWidth×Depth×Height
WB-OD-F6606600×600×6U mm
WB-OD-F6609600×600×9U mm
WB-OD-F6612600×600×12U mm
WB-OD-F6615600×600×15U mm
WB-OD-F6618600×600×18U mm
