| Model: | WB-OD-G |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Package: | Assembled |
| Protection data: | IP55 |
| Thickness: | Mounting profiel 2.0mm, others 1.2mm |
| Material: | spcc cold rolled steel |
| Fans: | 2-8 |
| Static Loading: | 800kgs |
| Export Area: | Europe, America,Middle east |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,FCA,EXW | Production Capacity: | 3000 pcs/ month |
| Payment Terms: | L/C, WU, T/T | Packing: | wooden case, cartons |
| MOQ: | 1 Piece/Pieces | Delivery Date: | 25days |
| Means of Transport: | Land, Ocean, Air | ||
WB-OD-G follows the IEC's standardized International Protection Code system for measuing capabilities.
The IP Code reflects the degree of protection as "IP" followed by two numbers;
the
first digit shows the extent to which enclosures are protected against
particles/dust, and protection to others from enclosed hazards.
The second digit indicates the extent of protection against water.
We
carry IP65 enclosures which offers complete protection against
particles/dust, and a strict control of protection against water.
Because all of our enclosures strictly observe the standards, you can
expect first-rate and competitively-priced outdoor enclosures.
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.
• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.
• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)
- w/ removable inner door are formed from sheet steel, depth adjustable
- Removable inner panel is formed from 14 or 16 gauge galvanized sheet
- Grounding and panel mounting hardware provided.

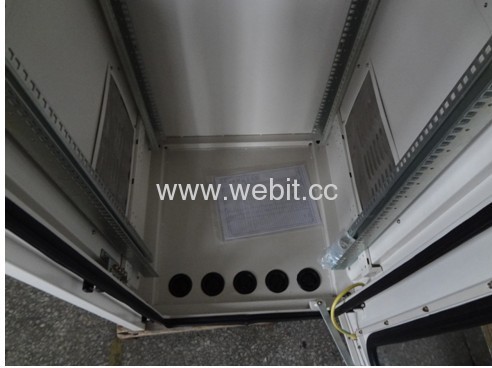

Features

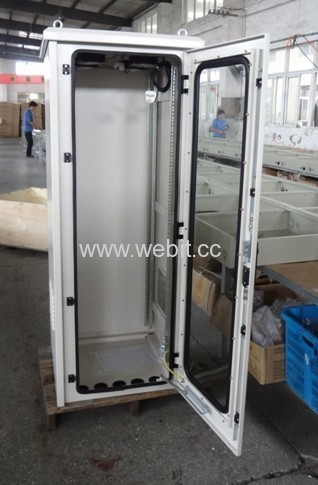

- Lockable front GLASS door
- Strong double wall type framework
- 19" galvanized/powder coated mounting profile for device installation
- EAVE design roof, bottom panel cable entry, can be perfectly fix to floor
- Inner body is designed to fix with 19" telecom devices
- Varies specification upon customers' special requirements
- peripheral is optional [ lighting system,smoke alarm,temperature sensor etc..]
MAKE TO ORDER service. below size is suggested for choose.
Width: 600, 800 mm
Depth: 600, 800 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U
Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or Zinc-plated plate or stainless steel
Thickness:Mounting profile:2.0mm,others: 1.20~1.50 mm
IP degree: IP-55 or IP-65
Body color:RAL5012(Top cover and base);RAL7035(The others)
Environment conditions:
Temperature: -40°C ~+ 60°C
Relative Humidity: ≤95% (at 40°C)
Atmospheric pressure : 70kPa ~ 106kPa
Technical Specifications:
The protection grade reaches IP55.
Working with wavelength of 850nm, 1310nm and 1550nm.
Pressurization between the frame high voltage protection earth device and the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.
Insulation resistance between the frame high voltage protection earth device and the frame: ≥20,000M Ω/ 500V (DC).
Each surface of the cabinet can bear a vertical pressure over 980N.
The outermost part of the door can bear a vertical pressure over 200N when the door is open.
The fixing position of cable can bear an axial tensile force 1000N, as well as three times of recyclable torsion of ±90°.
Mechanical durability: No damage for all connectors and adaptors after 500 mating times.
| Materials | Galvanized Sheet , stainless steel(201/304/316) |
| Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available to be designed for the material used |
| Processing | Laser cutting, CNC punching, CNC bending, welding, stamping, etc |
| Surface treatment | Painting, Plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc |
| Certification | CE, ROHS, SGS, ISO, REACH |
| Deliver time | 30 days after deposit received |
| Files available | Solid works, Auto CAD, PDF |
| Brand | WebiTelecomms |
| IP | IP55,65&66 |
| Water-proof | 0.2Mpa,10mm/min,30min,Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) No leakage inside |
| Main customers | Domestic , Middle East , North European, Africa |
| Application fields | Used for installing storage battery and 19inch, 21inch, 23inch and etc equipment. |
| Type | AC cooling Fan | Heat-exchanger | Air-conditioner | TEC |
| Structure | The structure can be designed to satisfied the customers' requirements |
| Insulation Resistance | >1000MV/500VDC |
| Withstand Voltage | >3000VDC/min and no breakdown fly arc |
| Package | Package with hard paper box, Plywood box, wooden box, Fumigation wooden box sealed free from insects, Neutral packing,Bubble wrap inside package, PE,EPE carton, pallet and etc.And all of our package forms are upon customer's requests |
| Contract Manufacturing | OEM Service, Design Service, Buyer Label Offered |
| Rev. Stop temp. of air-con, fan/heat-ex | All the temp. could be designed to satisfied the customers' requirements |
| Installation Method | Complete module installation(Overhead laying, piper laying, direct burying) |
| Item Number | Wide(MM) | Deep(MM) | High(U) |
| WB-OD-G 6822 | 600 | 800 | 22 |
| WB-OD-G 8822 | 800 | 800 | 22 |
| WB-OD-G 6827 | 600 | 800 | 27 |
| WB-OD-G 8827 | 800 | 800 | 27 |
| WB-OD-G 6832 | 600 | 800 | 32 |
| WB-OD-G 8832 | 800 | 800 | 32 |
| WB-OD-G 6837 | 600 | 800 | 37 |
| WB-OD-G 8837 | 800 | 800 | 37 |
| WB-OD-G 6842 | 600 | 800 | 42 |
OPERATION CONDITIONS
• Must be protected against:
– Mechanical damage
– Improper handling
– A different usage than the cabinet is intended for
• Improper handling is especially:
– Overloading (maximum recommended load exceeding)
– Device installation that can influence negatively operation and function of the cabinet or the installed equipment
– Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET
• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be purchased from us).
ENVIRONMENTAL PROTECTION
• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.
CERTIFICATE AND CONFORMITY
• This product is fully in accordance with CE & RoHS.
