WB-OD-D follows the IEC's standardized International Protection Code system for measuing capabilities.

The IP Code reflects the degree of protection as "IP" followed by two numbers;
the first digit shows the extent to which enclosures are protected against particles/dust, and protection to others from enclosed hazards.
The second digit indicates the extent of protection against water.

We carry IP66 enclosures which offers complete protection against particles/dust, and a strict control of protection against water. Because all of our enclosures strictly observe the standards, you can expect first-rate and competitively-priced outdoor enclosures.

IP66= Enclosures' Characteristics:

• Complete protection from dust, oil, and other non-corrosive material


• Complete protection from contacting with enclosed equipment

• Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.

• Available in wall-mounted, free standing, trough, and telegraph pole mounting


• Silk-screening logo, anodizing, or engraving services are available


• Custom with cutouts,insulation, hinges, latches or locks

Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.

• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP66)
• Cost saving - designed for quick and easy installation.
• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)
                            - w/ removable inner door are formed from sheet steel, depth adjustable
                            - Removable inner panel is formed from 14 or 16 gauge galvanized sheet
                            - Grounding and panel mounting hardware provided.

Features
- Lockable full metal door with earthing bar - waterproof lock
- welding framework body
- Galvanized/powder coated mounting panel for device installation

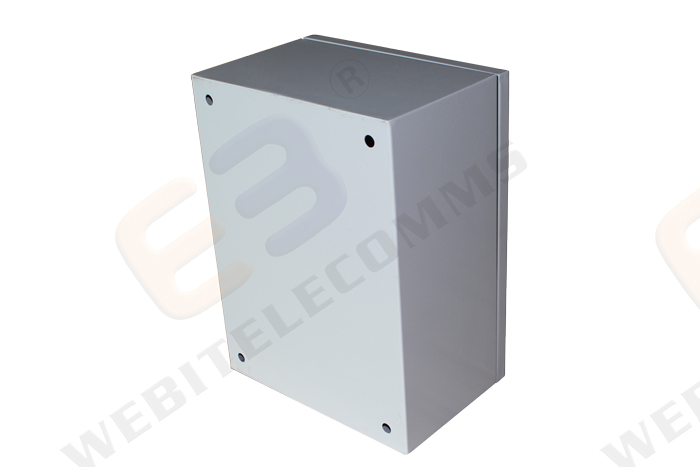

- Back wall mounting design (with anchoring bolts) , using water-proofing glue for sealing

- Bottom cable entrance , sealing via metal flange
- Varies specification upon customers' special requirements
- peripheral is optional [ lighting system,smoke alarm,temperature sensor etc..

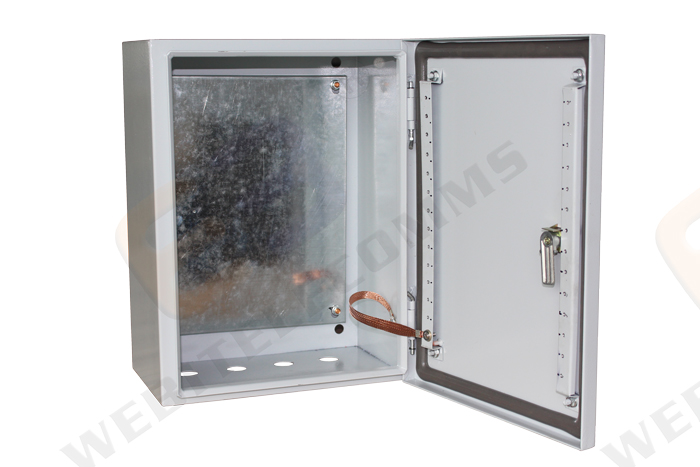

Details # inner view

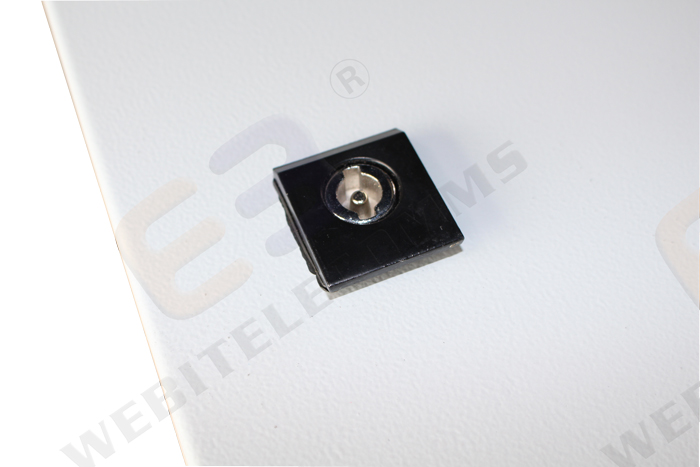

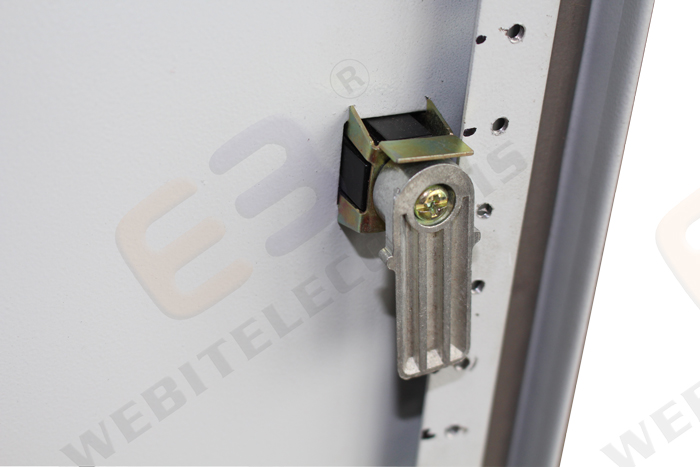

Details # waterproof lock

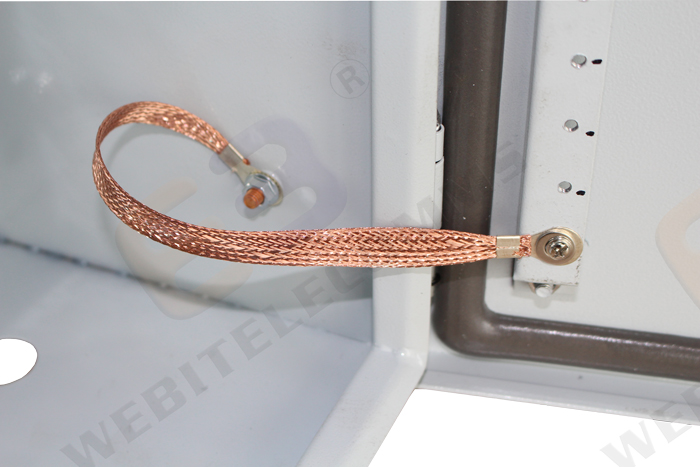

Details # Earthing cable

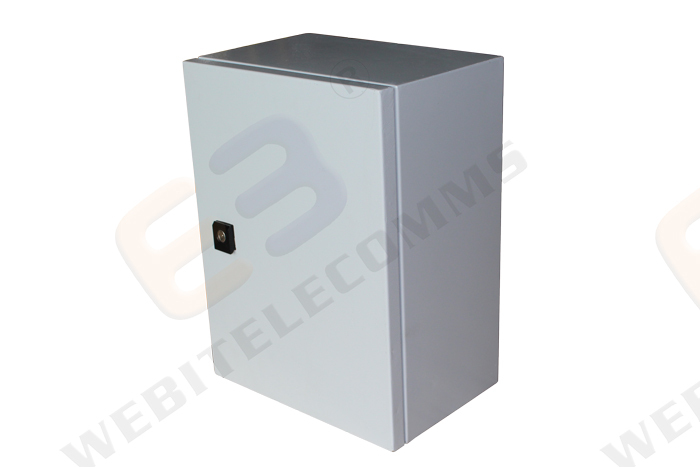

Sample size as 300 x 200 x 400 mm, Customized size is acceptable for OEM processing

Width: 300 mm
Depth:  200 mm
Height: 400 mm

Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Material: SPCC cold rolled steel or zinc-plated plate or stainless steel

Thickness:Mounting panel :2.0 mm, others: 1.20 mm

IP degree: IP-66 or IP65

Body color: RAL7035(The others) or customized

Environment conditions:
    Temperature:                           -40°C ~+ 60°C
    Relative Humidity:                     ≤95% (at 40°C)
    Atmospheric pressure :             70kPa ~ 106kPa

Technical Specifications:
 -The protection grade reaches IP66.
 -Working with wavelength of 850nm, 1310nm and 1550nm.
 -Pressurization between the frame high voltage protection earth device and the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.
 -Insulation resistance between the frame high voltage protection earth device and the frame: ≥20,000M Ω/ 500V (DC).
 -Each surface of the cabinet can bear a vertical pressure over 980N.
 -The outermost part of the door can bear a vertical pressure over 200N when the door is open.
 -The fixing position of cable can bear an axial tensile force 1000N, as well as three times of recyclable torsion of ±90°.
 -Mechanical durability: No damage for all connectors and adaptors after 500 mating times.

# Size list

OPERATION CONDITIONS

• Must be protected against:
– Mechanical damage
– Improper handling
– A different usage than the cabinet is intended for

• Improper handling is especially:
– Overloading (maximum recommended load exceeding)
– Device installation that can influence negatively operation and function of the cabinet or the installed equipment
– Change of the construction or design of the cabinet

INSTALLATION OF THE CABINET

• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be purchased from us).

ENVIRONMENTAL PROTECTION

• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

CERTIFICATE AND CONFORMITY

• This product is fully in accordance with CE & RoHS
