WB-SSxxxx4NG
| Model: | WB-SSxxxx4NG |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Function: | Used in Home or Office |
| Material: | spcc cold rolled steel |
| Thickness: | Mounting profiel 1.5mm others 1.0mm |
| Installation: | assembled |
| Static loading: | 45kgs |
| Sruface: | Frosting or wrinkle |
| Color: | Grey or Black |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 50.0 USD | Production Capacity: | 8000 unit per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartom |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 28 days |
| MOQ: | 20 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
19" SOHO Wall mounting Cabinet for data cabling
Features
This cabinet is made for data and telecommunication equipment storage their distribution systems.
19" rack mountable, full glass series - possible of max the load capacity up to 45KG.
Special stainless steel hinge.
545 mm width cabinet fit for special project.
Widely used for Data cabling devices.
Doors
Front full smoky grey glass door - cylinder key lock.
Rear solid metal panel (N/A).
Removable side panel , quick-open latch.
Accessories
4× 1.50 mm Position-adjustable 19" mounting rail.
2× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 200×50mm rectangle cable entrance
Bottom - 1* 200×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 66% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
Size suggestions
Width: 545,600mm
Depth: 600,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM
Customized size is available
Industry Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:
Mounting profile:1.5mm
others:1.00mm to 1.20mm
IP degree: IP-20
Loading capacity: Max Static loading---45 KG
Body color:RAL9005(black);RAL7035(grey),etc
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.0-1.2mm SPCC steel | Powder coating | |
2 | Front Door | 1 | Piece | 5mm smoky-grey glass | Powder coating | full glass |
3 | Side Door | 2 | Piece | 1.0-1.2mm SPCC steel | Powder coating | Plastic fastener |
4 | Back Paenl | 1 | Piece | 1.0-1.2mm SPCC steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.0-1.2mm SPCC steel | Powder coating | |
6 | Top | 1 | Piece | 1.0-1.2mm SPCC steel | Powder coating | Knock-off hole |
7 | Mounting Profile | 4 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Small lock | 1 | Piece | \ | \ | Front door |
9 | Earthing Bolt | 1 | Piece | \ | \ | |
10 | Cable entrance | 2 | Piece | 1.0-1.2mm SPCC cold rolled steel | Powder coating | metal panel |
11 | M4＆M5 cage | 20 | Set | Stainless steel | Powder coating | |
12 | M6 Screw | 20 | Set | Stainless steel | Powder coating | 10sets for extra |
13 | Quick open latcg | 4 | piece | Plastic | Powder coating | On side doors |

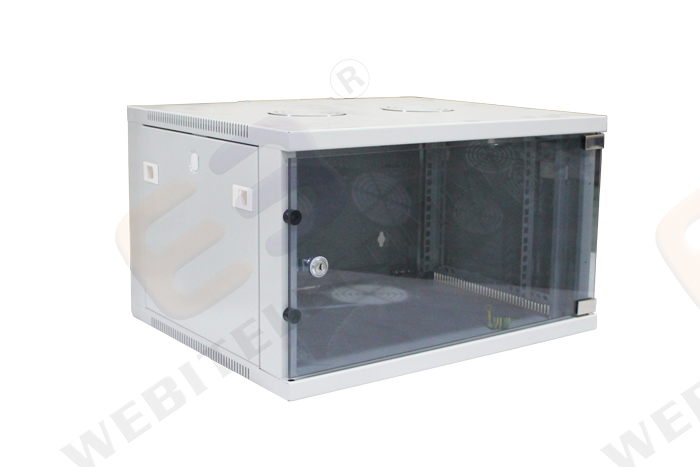

Front view

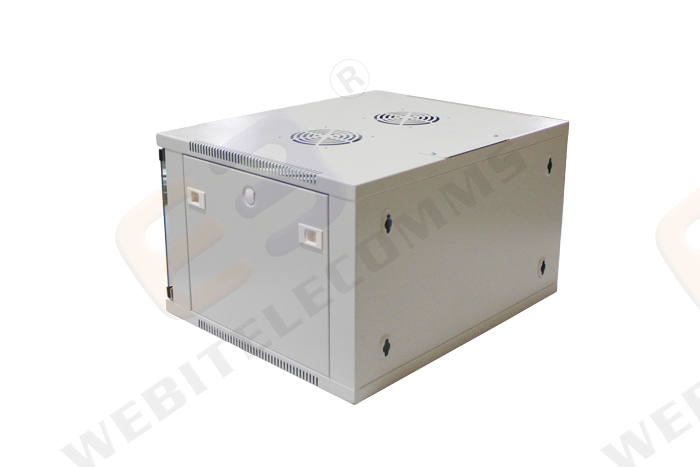

Back view

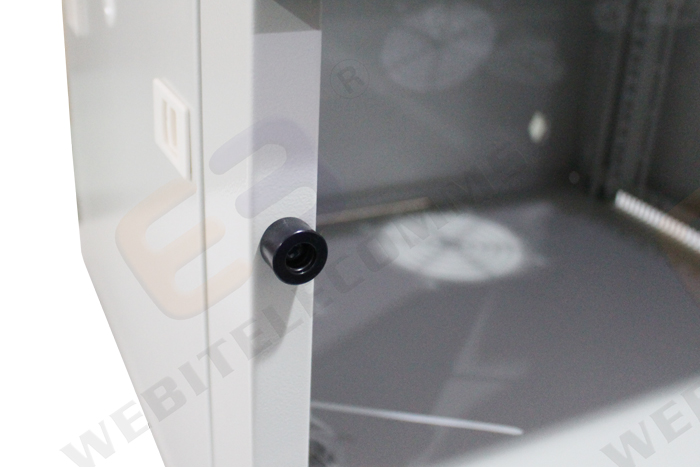

Door knob

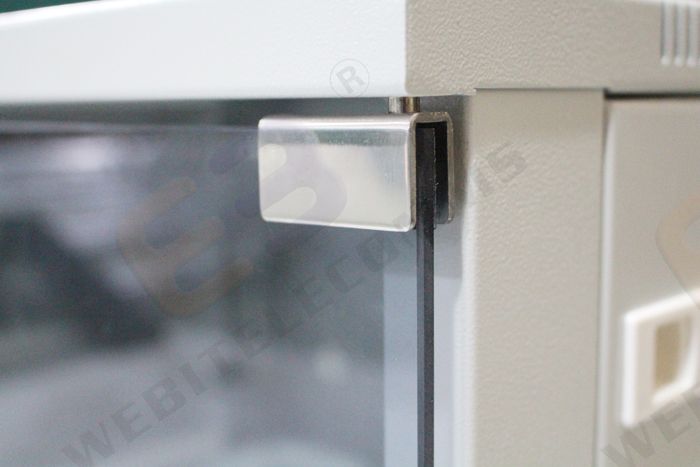

Stainless steel hinge

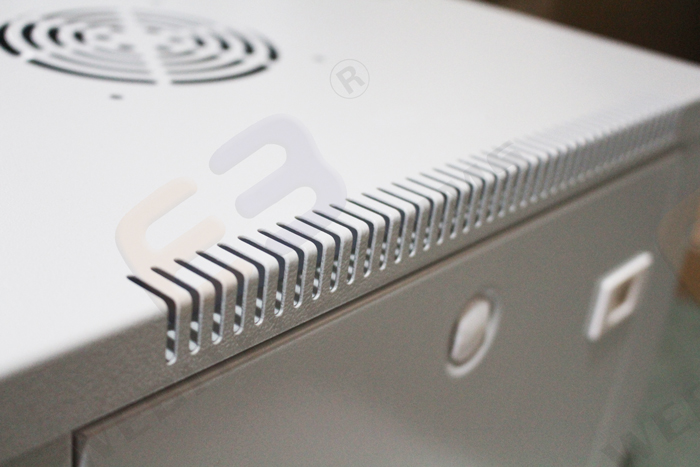

Cabinet edge

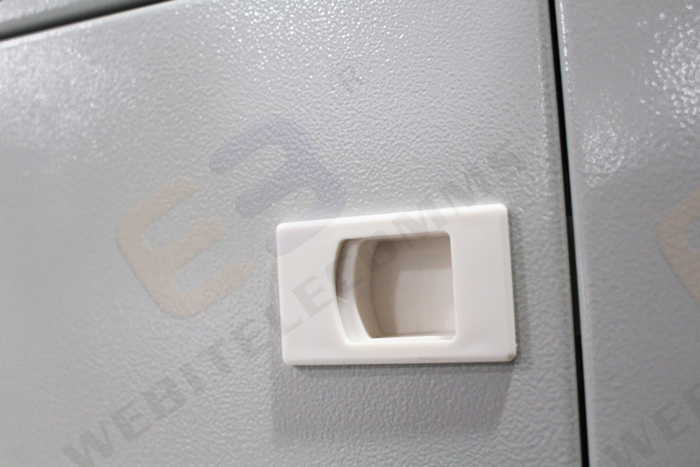

Quick open latch

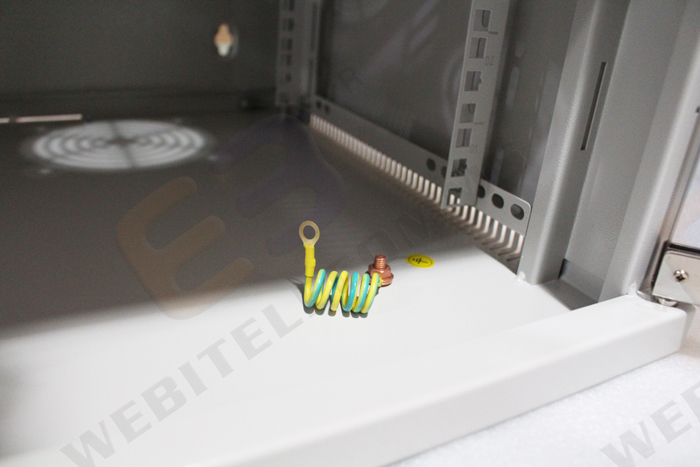

Inside earthing & U marked rail
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Model Number | Width×Depth×Height | U | Model Number | Width×Depth×Height | U |
WB-SS64064NG | 600×450×367 mm | 6U | WB-SS66064NG | 600×600×367 mm | 6U |
WB-SS64094NG | 600×450×500 mm | 9U | WB-SS66094NG | 600×600×500 mm | 9U |
WB-SS64124NG | 600×450×634 mm | 12U | WB-SS66124NG | 600×600×634 mm | 12U |
WB-SS64154NG | 600×450×767 mm | 15U | WB-SS66154NG | 600×600×767 mm | 15U |
WB-SS64184NG | 600×450×900 mm | 18U | WB-SS66184NG | 600×600×900 mm | 18U |
WB-SS64224NG | 600×450×1078 mm | 22U | WB-SS66224NG | 600×600×1078 mm | 22U |
WB-SS64274NG | 600×450×1300 mm | 27U | WB-SS66274NG | 600×600×1300 mm | 27U |
