WB-XGxxxx3NG
| Model: | WB-XGxxxx3NG |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | WebiTelecomms |
| Certificate: | CE,ISO, ROSH,SGS |
| Export area: | Europe,America,Middle east |
| Static Loading: | 60KG |
| Materials: | SPCC cold rolled steel or EG steel |
| Thickness: | Mounting profiel 1.8 mm, others 1.2~1.5mm |
| Structure: | Single section |
| Surface: | Wrinkle or frosting |
| Color: | Grey or Black |
| Package: | Aeembled or Dis-assembled |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 50.0 USD | Production Capacity: | 20000 Pieces annually |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | carton/wooden... |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 25-day |
| MOQ: | 10 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
19" S rails strong type wall mounted cabinets
Features
WB-XGxxxx3NG cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, Strong rail structure - possible of max the load capacity up to 60KG.
Front & back door earthing.
Right side opened front door
Widely used for Data cabling devices.
Doors
Front windows type glass door with solid frame - cylinder key lock.
Rear wall mounting ,knock-out cable entrance.
Removable side panel comes with 1 x lock . ( vented)
Accessories
2× Position-adjustable 19" S type mounting rail.
2× Position-adjustable 19" L type mounting rail.
1× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 100×50mm knock-out cable entrance
Bottom - 2* 100×50mm knock-out cable entrance
Rear -1* 200×200mm knock-out cable entrance
Can ask for more...
Package
Disassembled packing save 66% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600 mm
Depth: 600,550,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM
Customized size is available
Flexible packing methods allows for convenient stocking and end user delivery.
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:1.8mm,others:1.20 mm
IP degree: IP-20
Loading capacity:
-Static loading: 60KG
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
2 | Front Door | 1 | Piece | 5mm Temper transparent glass 1.2mm SPCC cold rolled steel | Powder coating | |
3 | Side Door | 2 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
4 | Back Door | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
6 | Top | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
7 | Mounting Profile | 4 | Piece | 1.8mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Small lock | 3 | Piece | \ | \ | Front&side door |
9 | Earthing Bolt | 1 | Piece | \ | \ | |
10 | Fan hole cover | 2 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | dust proof |
11 | M4&M5 cage | 20 | Set | Stainless steel | Powder coating | |
12 | M6 Screw | 20 | Set | Stainless steel | Powder coating | 10sets for extra |
13 | Quick open latch | N/A | piece | Plastic | Powder coating | On side doors |
=Sample show=

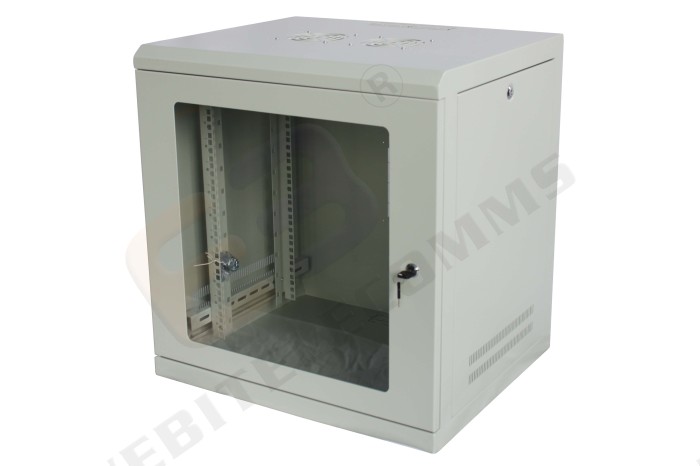

Front-Side view
Back view
Inside view

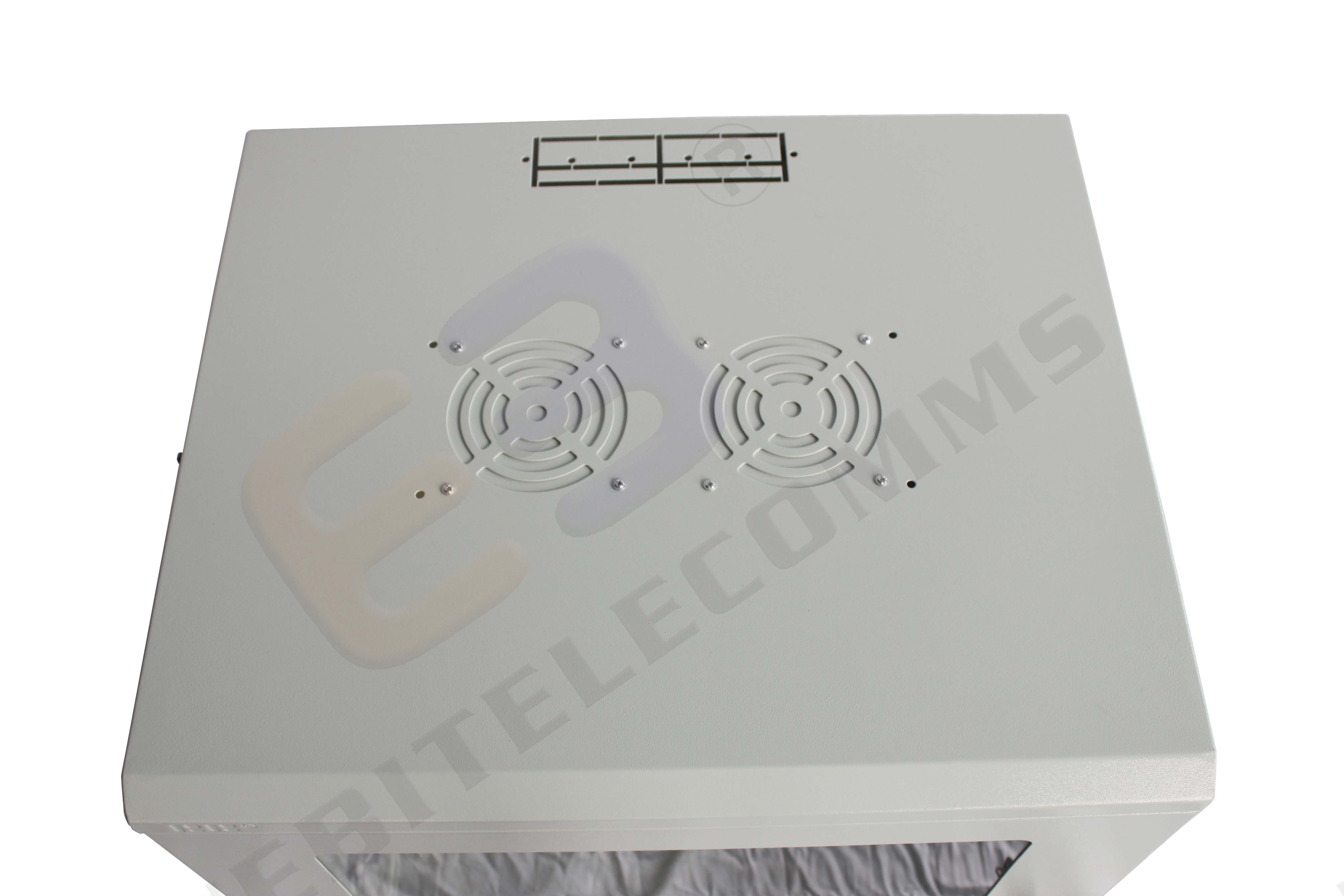

Top cable entrance and fan cover
Earthing bolt at door
1.8mm "S" series mounting rails
Removable side panel, lockable

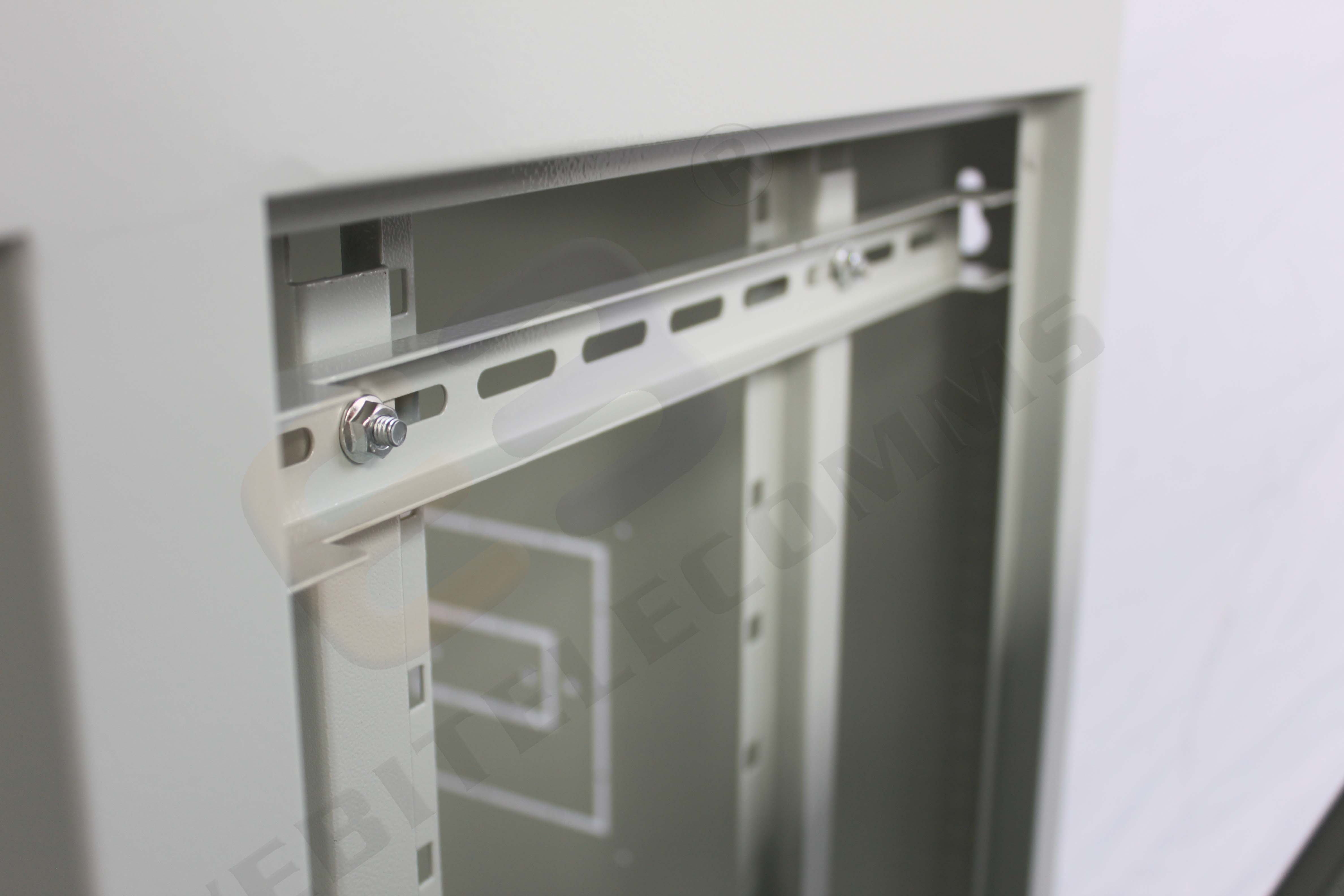

Mounting angle
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Size list
Model Number | Width×Depth×Height | U | Model Number | Width×Depth×Height | U |
WB-XG65043NG | 600×550×278 mm | 4U | WB-XG66043NG | 600×600×278 mm | 4U |
WB-XG65063NG | 600×550×367 mm | 6U | WB-XG66063NG | 600×600×367 mm | 6U |
WB-XG65083NG | 600×550×456 mm | 8U | WB-XG66083NG | 600×600×456 mm | 8U |
WB-XG65093NG | 600×550×500 mm | 9U | WB-XG66093NG | 600×600×500 mm | 9U |
WB-XG65123NG | 600×550×634 mm | 12U | WB-XG66123NG | 600×600×634 mm | 12U |
WB-XG65153NG | 600×550×767 mm | 15U | WB-XG66153NG | 600×600×767 mm | 15U |
WB-XG65183NG | 600×550×900 mm | 18U | WB-XG66183NG | 600×600×900 mm | 18U |
WB-XG65223NG | 600×550×1078 mm | 22U | WB-XG66223NG | 600×600×1078 mm | 22U |
Made to order...
