| Model: | WB-YSxxxx3NB |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Export Area: | Europe,Australia,Middle east,South America |
| Thickness: | Mounting profile:1.8 mm, others 1.0~1.2 mm |
| Material: | SPCC cold rolled steel or EG steel |
| Installation: | Assembled or flat packing |
| Structure: | Single section |
| Static Loading: | 45 KGS |
| IP rate: | IP20 |
| Surface: | Frosting or wrinkle |
| Color: | Black / Grey /White |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,EXW | Production Capacity: | 5000 units per month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | cartons, pallet,... |
| MOQ: | 5 Piece/Pieces | Delivery Date: | 25 days |
| Means of Transport: | Land, Ocean, Air | ||
19" ARC edge glass door wall mounting cabinet
Feature
WB-YSxxxx3NB cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, Single section structure - possible of max the load capacity up to 45KG.
Side panel can be opened like a door.
Top and bottom panel can be exchanged.
Full of operating.
Cabinet brings a complete full-view appearance and its strong structure [as strong as welded structure]
Doors
Front frame-design glass door without glue - cylinder key lock.
Rear Solid metal panel (N/A).
Spindle side panel , opened from inside.
Accessories
4× 1.80 mm Position-adjustable 19" mounting rail.
2× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 200×50mm rectangle cable entrance
Bottom - 2* 200×50mm rectangle cable entrance
Back -2* 200×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 66% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
Standards
Width: 540 mm
Depth: 600,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM
Customized size is available
Industry Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or EG steel
Thickness:
Mounting profile:1.8mm
others:1.00mm to 1.20mm
IP degree: IP-20
Loading capacity: Max Static loading---45 KG
Body color:RAL9005(black);RAL7035(grey),etc
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Special Hinge | 1 | Set | 1.2mm SPCC cold rolled steel | Powder coating | For Front |
2 | Front Door | 1 | Piece | 5mm Tempered transparent glass 1.2mm SPCC cold rolled steel | Powder coating | |
3 | Side Door | 2 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | screwed |
4 | Rear panel | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
6 | Top | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
7 | Mounting Profile | 4 | Piece | 1.8mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Small pad lock | 1 | Piece | \ | \ | Front door |
9 | Earthing Bolt | 1 | Piece | Earthing cable | \ | 30 cm |
10 | M4＆M5 cage | 20 | Set | Stainless steel | Powder coating | |
11 | M6 Screw | 20 | Set | Stainless steel | Galvanized | 10 sets extra |
REF SAMPLE SIZE: 540*600*6U

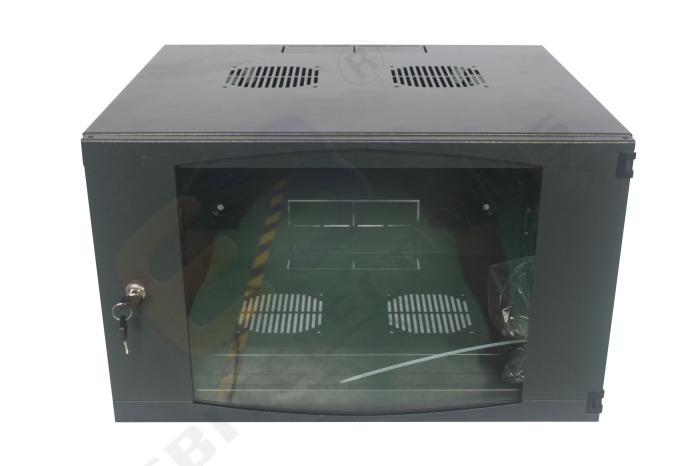

Front overview
Opened front side
Side view
Rear overview
Inner corner[screwed side panel& earthing cable]
Special made hinges
Mounting rails
Glass door connected kit[no glue]
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Standard size list
Moderl Number | Width×Depth×Height | U | Moderl Number | Width×Depth×Height | U |
WB-YS54063NB | 540×450×367 mm | 6U | WB-YS56063NB | 540×600×367 mm | 6U |
WB-YS54093NB | 540×450×500 mm | 9U | WB-YS56093NB | 540×600×500 mm | 9U |
WB-YS54123NB | 540×450×634 mm | 12U | WB-YS56123NB | 540×600×634 mm | 12U |
WB-YS54153NB | 540×450×767 mm | 15U | WB-YS56153NB | 540×600×767 mm | 15U |
WB-YS54183NB | 540×450×900 mm | 18U | WB-YS56183NB | 540×600×900 mm | 18U |
WB-YS54223NB | 540×450×1078 mm | 22U | WB-YS56223NB | 540×600×1078 mm | 22U |
WB-YS54273NB | 540×450×1300 mm | 27U | WB-YS56273NB | 540×600×1300 mm | 27U |
Made-to-order is available!
