| Model: | WB-PTxxxx5NB |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Dimensions: | 540*350*380 mm |
| Materials: | SPCC cold rolled steel |
| Thickness: | Body 1.2mm , Mounting rail 2.0mm |
| Lock: | Small bolt lock |
| Accessories: | Alarm, screws& cage nuts,rubber cable entry |
| Surface: | Frosting or wrinkle |
| Color: | Black or Grey |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 100.0 USD | Production Capacity: | 5000 pcs/month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | EPE+cargo for assemble... |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 35 days |
| MOQ: | 50 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
Customized 19" wall mounting cabinet with 2 rails
Feature
WB-PTxxxx5NB cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, welding structure - possible of max the load capacity up to 60KG.
Unique design - alarming when door opened.
Widely used for Data cabling devices.
Doors
Front metal perforated door - cylinder key lock.
Wall mounting ,without cover panel .
Unremovable side panel comes with louver perforated.
Accessories
2 × 2.0 mm Position-adjustable 19" mounting rail.
1× Earthing cable
1× Warning alarm
2× Special hinges
10 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 65 mm and 1*30 mm rounded cable entrance ,rubber covered
Bottom - 3 * 30 mm rounded cable entrance ,rubber covered
Can ask for more...
Package
Assembled packing only, welded.
Webitelecomms neutral carton box packed
Plywood pallet for options
Usual size
Width: 540 mm
Depth: 350 mm without rear door
Height: 380 mm (6U),OEM
Customized size is available
Industry Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:
Mounting profile:2.0 mm
others:1.20 mm
IP degree: IP-20
Loading capacity: Max Static loading---60 KG
Body color: RAL1001(Beige;)RAL9004(black);RAL7035(grey),etc
G.W. : 10.8 KG
N.W. : 10 KG
| NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
| 1 | Frame | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
| 2 | Front Door | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | Perforated metal |
| 3 | Side Door | 2 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | Welding Bending plate |
| Vented | ||||||
| 4 | Back Door | 0 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | no door |
| 5 | Bottom | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
| 6 | Top | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
| 7 | Mounting Profile | 2 | Piece | 2.0mm SPCC cold rolled steel | Powder coating | Can GE treated |
| 8 | Small lock | 1 | Piece | \ | \ | Front door |
| 9 | Switch | 1 | Piece | RJ45 B& W/G line | \ | 20 cm cable |
| 10 | Insert tongue | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | on front door |
| 11 | Rubber strip | 1 | piece | 2.0 cm thickness | Powder coating | |
| 12 | M6 Screw | 20 | Set | Mn56 steel | Zinc plated | 10sets for extra |
| 13 | Rubber | 6 | piece | 2*65 mm 4*30 mm | \ | for cable entrance |
Front side
Front top
Opened Front side
Rear
Side louver&rubber strip

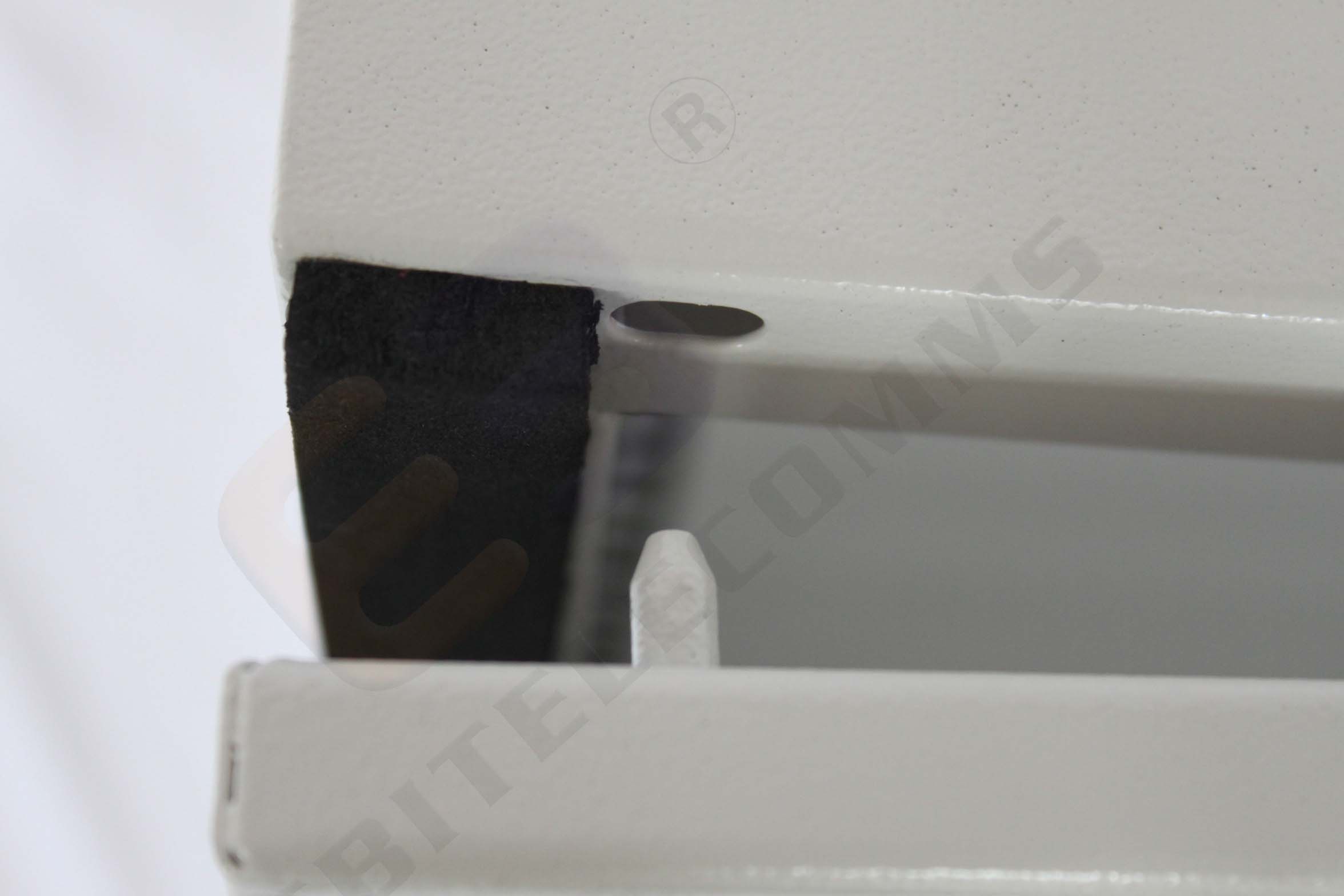

Rubber strip to make front door steady and opening silently
Inner adjustable mounting rail
Warning switch
Handle operated hinge
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
| Model | Width | Depth | Height | U | Capacity |
| WB-PTxxxx5NG | 540 | 350 | 380 | 6 | 60KG |
