| Model: | WB-VDxxxx7NG |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Export Area: | Europe,America,Middle east |
| Thickness: | Mounting profiel:1.5mm, others 1.0~1.2 mm |
| Material: | SPCC cold rolled steel or EG steel |
| Installation: | Assemble |
| Structure: | Vertical mounting |
| Static Loading: | 30KGS |
| IP rate: | IP20 |
| Color: | Black or Grey ; Customized |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
| Unit Price: | 50.0 USD | Production Capacity: | 5000 units per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartons, pallet,... |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 35 days |
| Shipment: | By SEA/AIR/LAND | MOQ: | 10 Piece/Pieces |
19" vertical mounting DVR rack cabinet
Introduction
With the increasing demand for surveillance systems in various industries, it has become essential to have a reliable and efficient storage solution for DVRs.
WB-VDxxxx7NG offers the perfect solution by allowing you to conveniently mount your DVR on any wall, saving valuable floor space and ensuring easy access for maintenance and monitoring.
19" rack design, vertical mounting structure - possible of max the load capacity up to 30KG.
Full metal materials.
Structure
Front vertical opened solid metal door - 2 of cylinder key locks.
Rear wall mounting panel (N/A).
Internal VESA mounting holes.
Solid side panel , with vents and fan-cut.
Accessories
2 × Position-adjustable 19" mounting rail.
10 sets of extra M6 caged screws.
Cable entrance
Top - top 2 knock down cable entrance
Side - each side pre-punch with knock down cable entrance
Can ask for more...
Package
Assemble structure , unpack to use directly.
Webitelecomms neutral carton box packed
Plywood pallet for options
Size suggestions
Width: 457 or 600 mm
Depth: 457 or 635 mm
Height: 2U,3U, 4U, 6U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Treatment options : Frosting | Wrinkle
Thickness:Mounting profile:1.5mm,others:1.00mm to 1.20mm
IP degree: IP-20
Loading capacity:
-Max. Static loading: 30KG
Body color:RAL9004(black);RAL7035(grey),etc
| NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
| 1 | Frame | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 2 | Front Door | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | solid |
| 3 | Side panel | 2 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 4 | Back Door | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 5 | Bottom | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 6 | Top | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 7 | Mounting Rails | 2 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | |
| 8 | Small lock | 2 | Piece | - | - | Front door |
| 9 | PDU mounting kit | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
| 10 | M6 Screw | 10 | Set | Mn56 steel, zinc plated | Powder coating |
=Photo gallery=

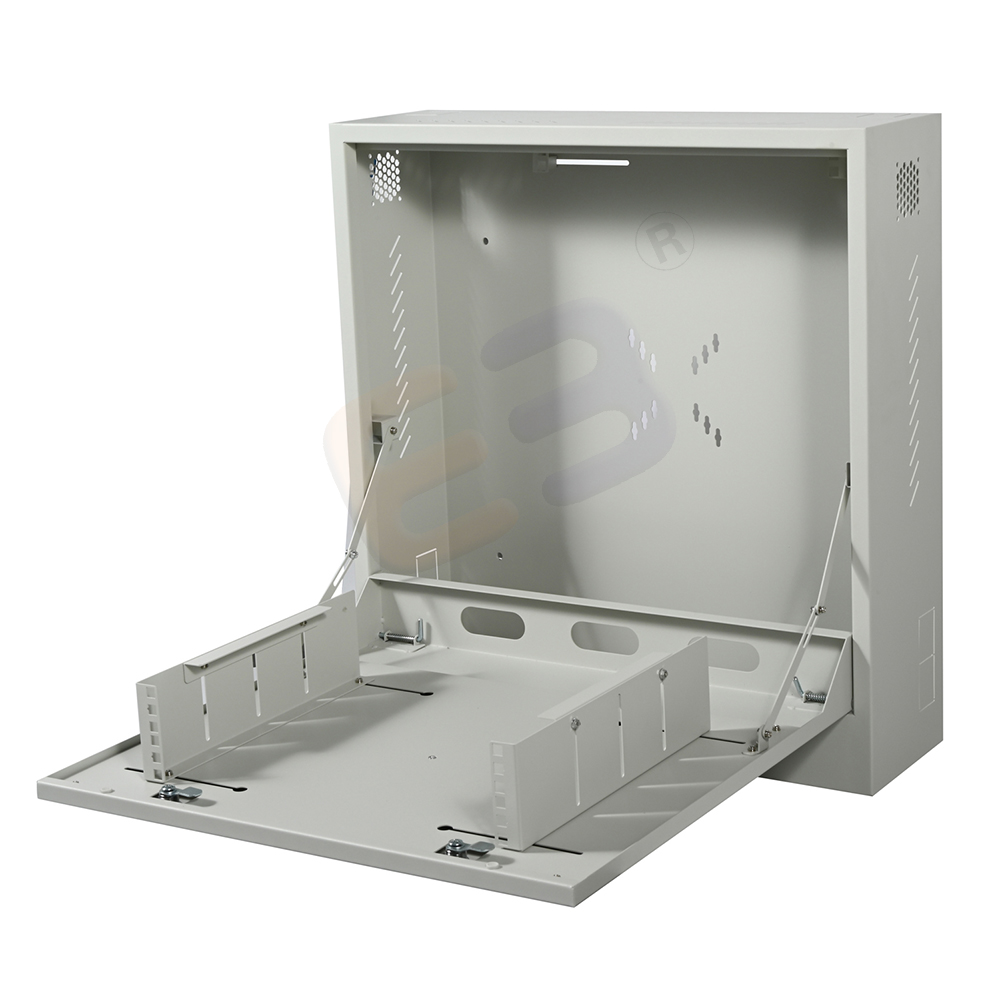

Front View

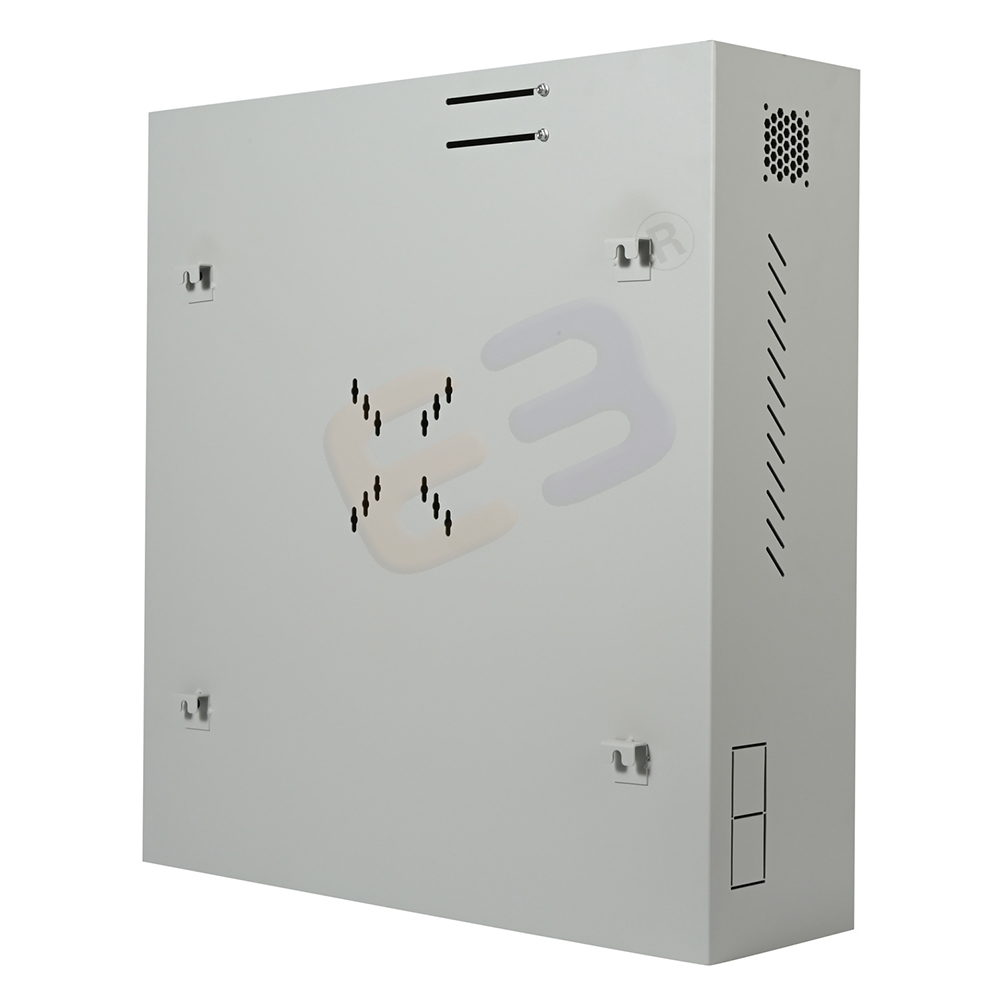

Rear panel

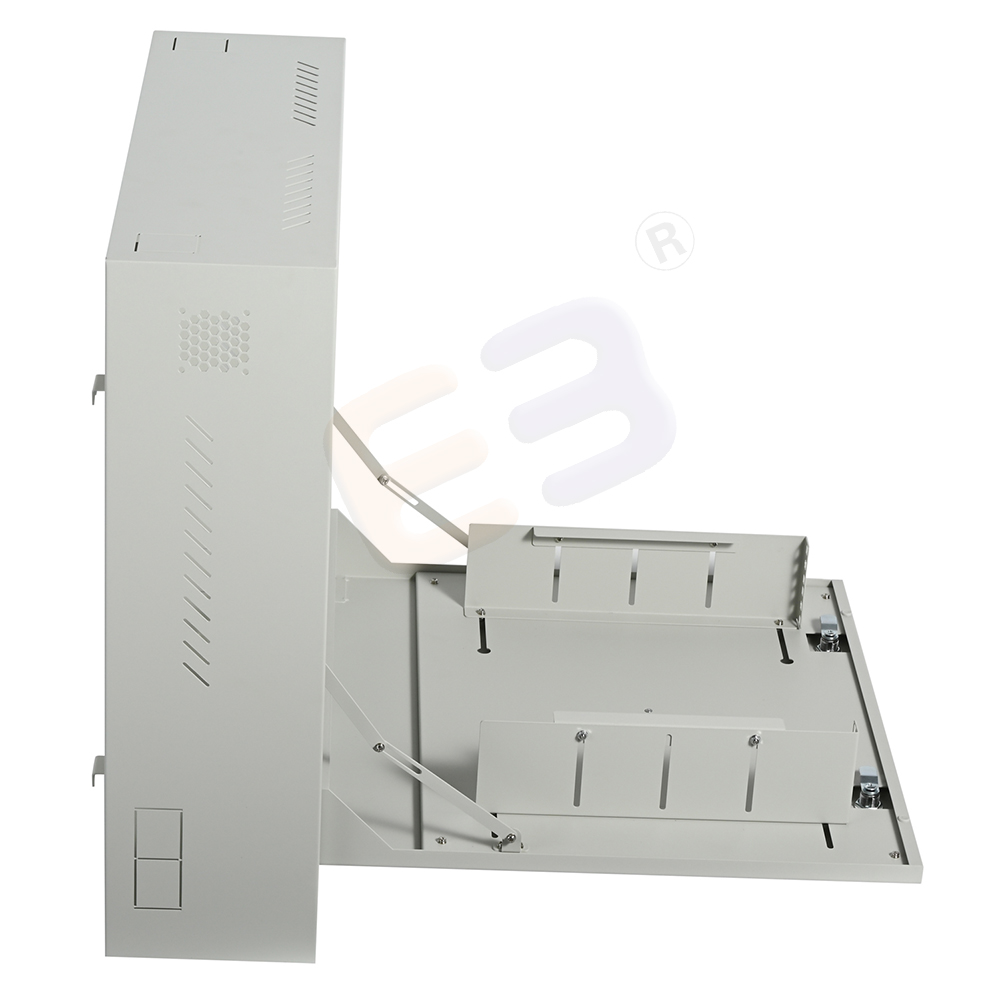

Side panel

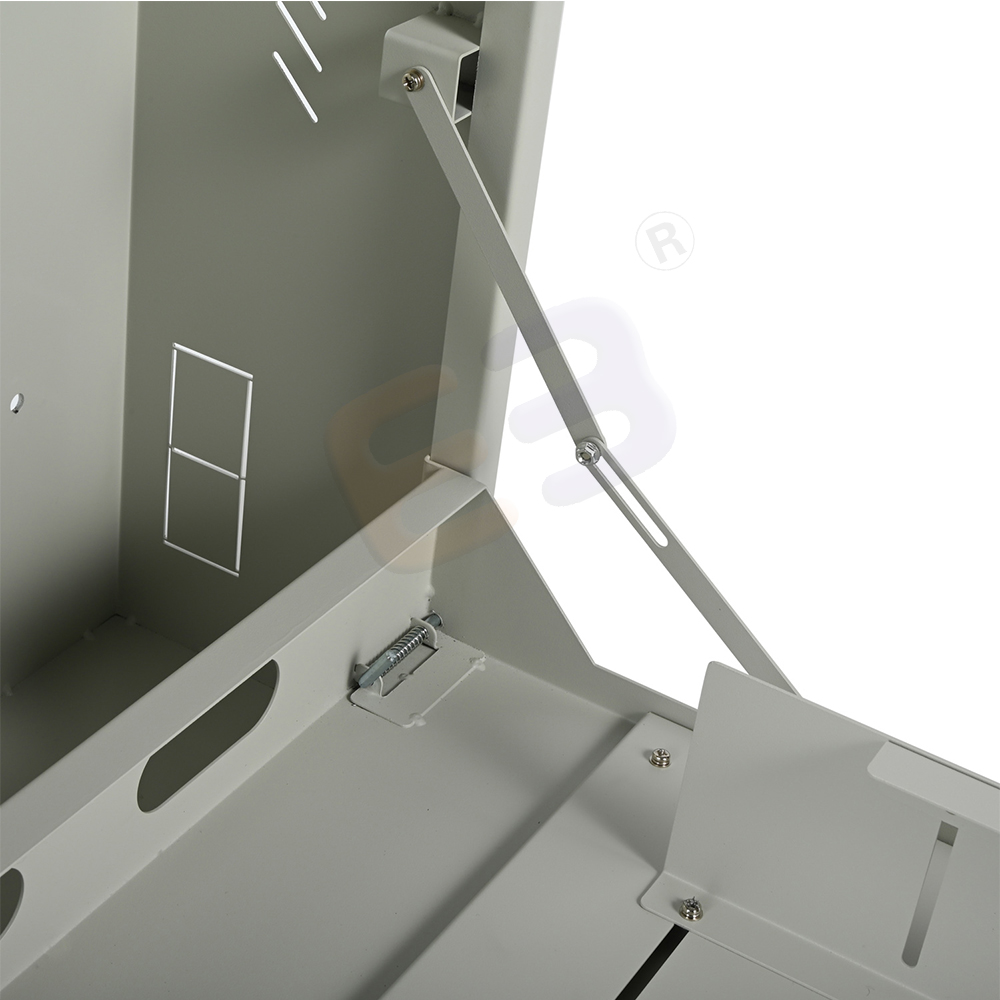

Hinges
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
