| Model: | WB-SSxxxx1NG |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Export Area: | Europe,America,Middle east |
| Thickness: | Mounting profiel:1.5mm, others 1.0~1.2 mm |
| Material: | SPCC cold rolled steel or EG steel |
| Installation: | Assembled or flat packing |
| Structure: | single section |
| Static Loading: | 60KGS |
| IP rate: | IP20 |
| Color: | Black or Grey ; Customized |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 30.0 USD | Production Capacity: | 5000 units per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartons, pallet,... |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 25 days |
| MOQ: | 10 Piece/Pieces | MOQ: | 10 Piece/Pieces |
19" single section glass door wall mounted cabinet
Features
WB-SSxxxx1NG cabinet is intended to protect telecommunication and network devices from mechanical damage .
19" rack mountable, Single section structure - possible of max the load capacity up to 60KG.
Common type cabinet.
Doors
Front glass door with vented door frame - cylinder key lock.
*BLUE COLOR rubber strip decoration ( any other color is ok )
Rear solid metal panel (N/A).
Removable side panel , optional lock.
Accessories
4× Position-adjustable 19" mounting rail.
1× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 2* 200×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 66% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600 mm
Depth: 600,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Treatment options : Polish | Orange peal (Fine grained / Open frained )
Thickness:Mounting profile:1.5mm,others:1.00mm to 1.20mm
IP degree: IP-20
Loading capacity:
-Max. Static loading: 60KG
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
2 | Front Door | 1 | Piece | 5mm Tempered transparent glass 1.0mm SPCC cold rolled steel | Powder coating | vented |
3 | Side Door | 2 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
4 | Back Door | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
6 | Top | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
7 | Mounting Profile | 4 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Small lock | 1 | Piece | \ | \ | Front door |
9 | Earthing Bolt | 1 | Piece | \ | \ | |
10 | Wiring Panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | Screw M4 |
11 | M4＆M5 cage | 20 | Set | Mn56 steel, zinc plated | Powder coating | |
12 | M6 Screw | 10 | Set | Mn56 steel,zinc plated | Powder coating | |
13 | Quick open latch | 4 | piece | Plastic | Powder coating | On side doors |
-Accessories matching-:
PDU | - eg. 6-way country-spec series PDU |
Patch panels | - eg. 24-port Cat6 UTP patch panel |
Shelves | -eg. 1 x fixed shelf [ as per Depth ] |
UPS | -eg. 1KVA rack mountable UPS |
Switch | -eg. 19" 8-port PoE switch |
Others | etc.. |
=Photo gallery=

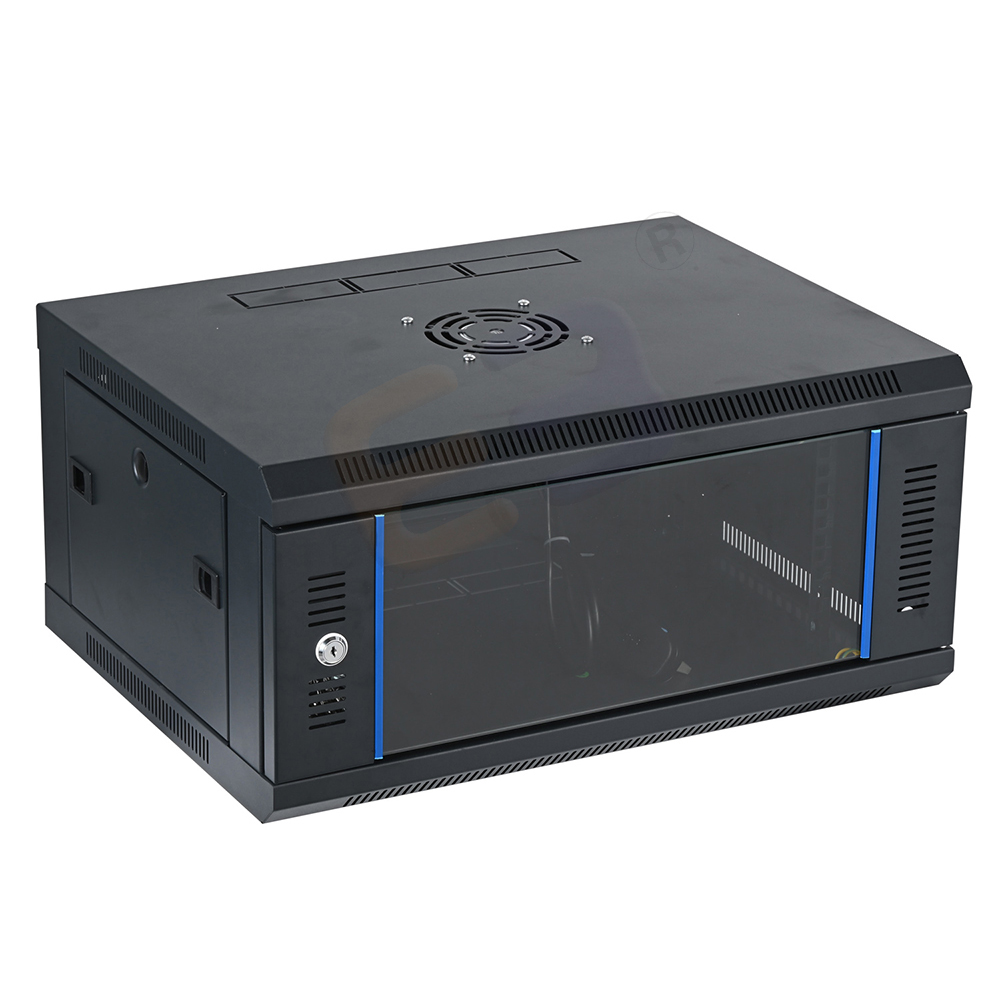

Front View

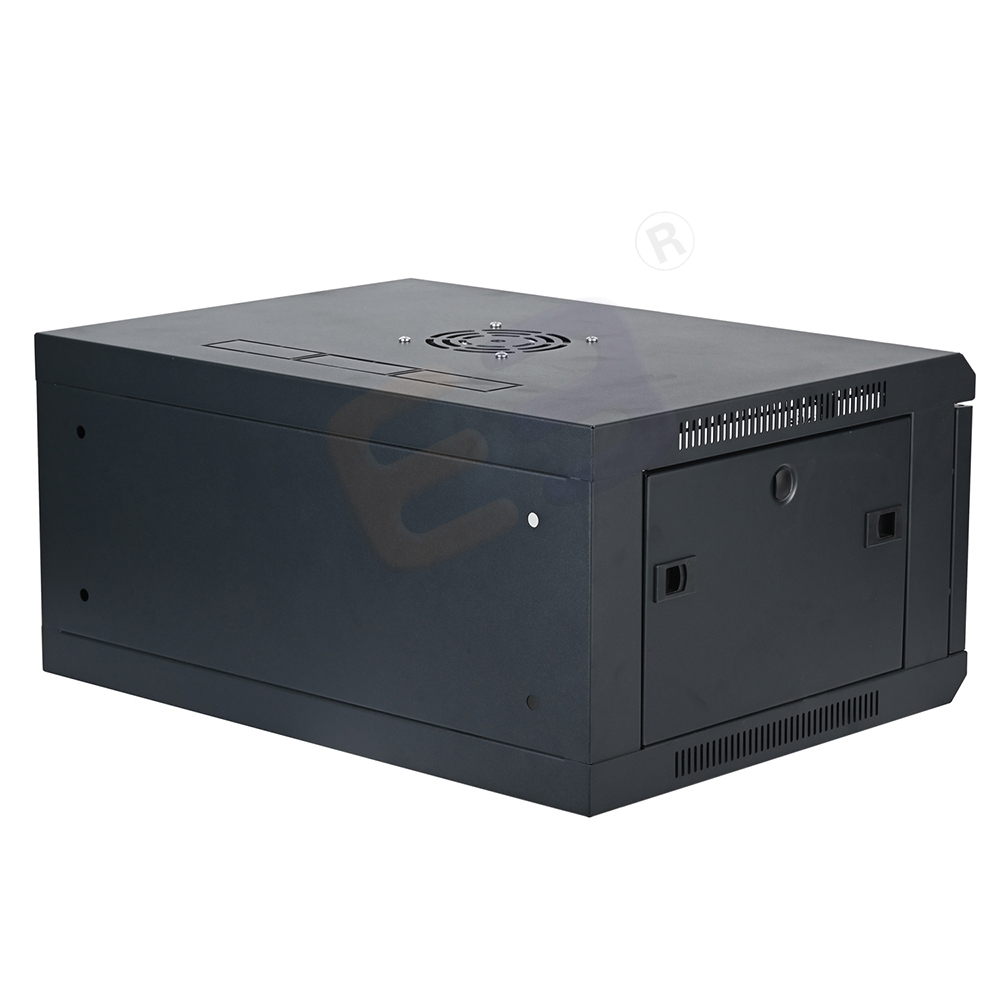

Rear panel
Side panel
Door frame
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Model Number | Width×Depth×Height | U | Model Number | Width×Depth×Height | U |
WB-SS64061NG | 600×450×367 mm | 6U | WB-SS66061NG | 600×600×367 mm | 6U |
WB-SS64091NG | 600×450×500 mm | 9U | WB-SS66091NG | 600×600×500 mm | 9U |
WB-SS64121NG | 600×450×634 mm | 12U | WB-SS66121NG | 600×600×634 mm | 12U |
WB-SS64151NG | 600×450×767 mm | 15U | WB-SS66151NG | 600×600×767 mm | 15U |
WB-SS64181NG | 600×450×900 mm | 18U | WB-SS66181NG | 600×600×900 mm | 18U |
WB-SS64221NG | 600×450×1078 mm | 22U | WB-SS66221NG | 600×600×1078 mm | 22U |
WB-SS64271NG | 600×450×1300 mm | 27U | WB-SS66271NG | 600×600×1300 mm | 27U |
