WB-TXSxxxx3NB

Model:WB-TXSxxxx3NB
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Materials:SPCC steel or EG steel
Height:4U,6U,9U,12U,15U,18U,21U,OEM
Dimensions:600×600×H or 600×450×H
Door:Frame type glass door
Cable entrance:top&bottom
Color:RAL7035 or RAL9005
Thickness:Mounting profile:1.5mm,others:1.0mm to 1.2mm
Surface:Frosting or Matt
Package:Flat / Assemble package

Product Description

Payment & Shipping TermsSupply Capacity
Unit Price:50.0 USDProduction Capacity:8000 unit per month
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWPacking:cartons
Payment Terms:L/C, WU, T/T, PaypalDelivery Date:28 days
MOQ:20 Piece/PiecesMeans of Transport:Land, Ocean, Air


19”Glass door wall mounted data cabinet enclosure , frame type.


Features


This cabinet is made for data and telecommunication equipment storage their distribution systems.

19" rack mountable, full glass series - possible of max the load capacity up to 60KG.

Metal frame for glass door.

Special deisgn with Front&Back frame ( usual is Left&right)

600 mm width cabinet equipped with glass door ( can be smoky color).

Widely used for Data cabling devices.


Doors

Front tempered glass door , frame type - cylinder key lock.

Rear solid metal panel (N/A).

Removable side panel , quick-open latch, lock for optional.


Accessories

4× 1.50 mm Position-adjustable 19" US&EIA amphibious rails.

1× Earthing cable

10 sets of extra M6 caged screws.


Cable entrance

Top  - 1 * 200×50mm rectangle knock-off cable entrance

Bottom - 1* 200×50mm rectangle knock-off cable entrance

Can ask for more...


Package

Disassembled packing save 66% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options


Size suggestions

Width: 600mm

Depth: 600,450 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM

Customized size is available


Industry Standard and Materials:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.



Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating


Materials:SPCC cold rolled steel or EG steel



Thickness:

Mounting profile:1.5mm

others:1.00mm to 1.20mm


IP degree: IP-20


Loading capacity: Max Static loading---60 KG


Body color:RAL9005(black);RAL7035(grey),etc



NO.

Part Name

QTY

Unit

Materials

Treatment

Note

1

Frame

1

Piece

1.0-1.2mm SPCC steel

Powder coating

Front&Back

2

Front Door

1

Piece

5mm tempered glass

1.0-1.2mm SPCC steel door frame

Powder coating


3

Side Door

2

Piece

1.0-1.2mm SPCC steel

Powder coating

Plastic fastener

4

Back Paenl

1

Piece

1.0-1.2mm SPCC steel

Powder coating


5

Bottom

1

Piece

1.0-1.2mm SPCC steel

Powder coating


6

Top

1

Piece

1.0-1.2mm SPCC steel

Powder coating

Knock-off ent

7

Mounting Profile

4

Piece

1.5mm SPCC steel

Powder coating

Can be amphibious

8

Small lock

3

Piece

Zinc alloy

-


9

Earthing Bolt

1

Piece

Y/G cable

-

25cm

10

Cable entrance

2

Piece

1.0-1.2mm SPCC cold rolled steel

Powder coating

metal panel

11

M4&M5 cage

20

Set

Stainless steel

Powder coating


12

M6 Screw

20

Set

Stainless steel

Powder coating

10sets for extra

13

Quick open latcg

4

piece

Plastic

Powder coating

On side doors

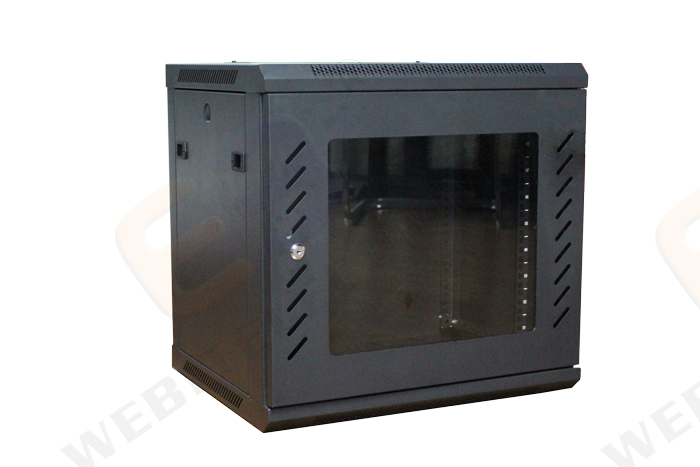

Front view

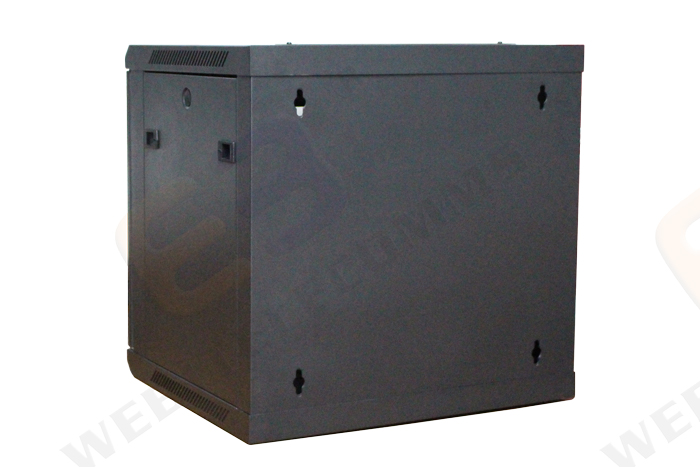

  • Back view

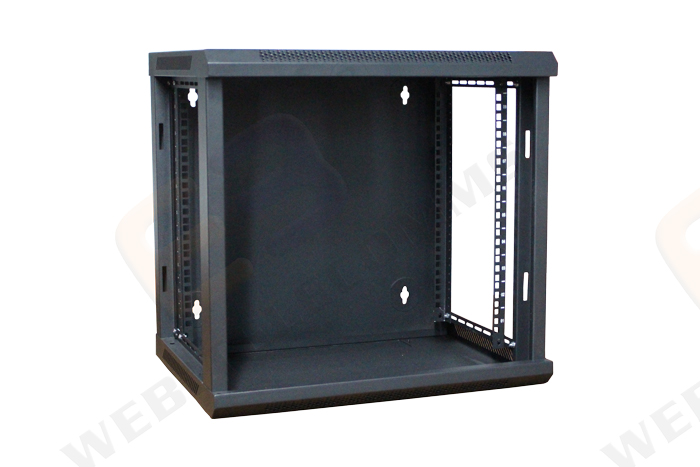

Back view Special design frame - Front & Back

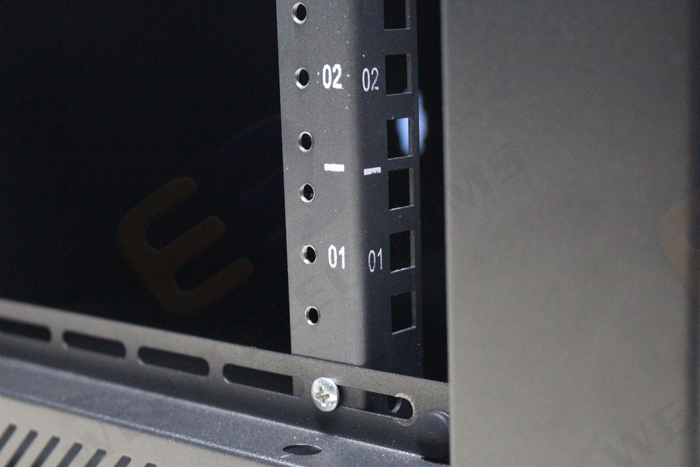

Special rails amphibious for US & Euro market - Adjustable




Flat design screw - to avoid scratch




Standard packing


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 20pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.


Model Number

Width×Depth×Height

U

Model Number

Width×Depth×Height

U

WB-TXS64063NB

600×450×367 mm

6U

WB-TXS66063NB

600×600×367 mm

6U

WB-TXS64093NB

600×450×500 mm

9U

WB-TXS66093NB

600×600×500 mm

9U

WB-TXS64123NB

600×450×634 mm

12U

WB-TXS66123NB

600×600×634 mm

12U

WB-TXS64153NB

600×450×767 mm

15U

WB-TXS66153NB

600×600×767 mm

15U

WB-TXS64183NB

600×450×900 mm

18U

WB-TXS66183NB

600×600×900 mm

18U

WB-TXS64223NB

600×450×1078 mm

22U

WB-TXS66223NB

600×600×1078 mm

22U

WB-TXS64273NB

600×450×1300 mm

27U

WB-TXS66273NB

600×600×1300 mm

27U
