WB-EZxxxx7NB

Model:WB-EZxxxx7NB
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Materials:SPCC steel or EG steel
Height:4U,6U,9U,12U,15U,18U,21U,OEM
Dimensions:550×550×H or 550×450×H
Door:Solid metal door
Cable entrance:top&bottom
Color:RAL7035 or RAL9005
Thickness:Mounting profile:1.5mm, others:0.8mm~ 1.0mm
Surface:Frosting or smooth
Package:dis-assemble package

Product Description

Payment & Shipping TermsSupply Capacity
Unit Price:25.0 USDProduction Capacity:5000 pcs/month
Trade Term:FOB,CFR,DDP,FCA,EXW
Packing:EPE+cargo for assemble
Payment Terms:L/C, WU, T/T, PaypalDelivery Date:35 days
MOQ:50 Piece/PiecesTransport:Land, Ocean, Air


550 wide 19" wall cabinet with small combination lock


Feature


WB-EZxxxx7NB cabinet is intended for installation data and telecommunication devices and their distribution systems.

19" rack mountable, Easy using structure - possible of max the load capacity up to 45KG.

Whole cabinet comes with convenient assembling way.

Widely used for Data cabling devices.


Doors

Front solid metal door , fixed with combination lock.

Rear solid metal panel (N/A).

Removable side panel with cylinder lock.


Accessories

4× 1.50 mm Position-adjustable 19" mounting rail.

1× Earthing cable

10 sets of extra M6 caged screws.


Cable entrance

Top  - 2 * 150×50mm knock-down cable entrance

Bottom - 2* 150×50mm knock-down cable entrance

Can ask for more...


Package

Disassembled packing save 66% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options


Usually size

Width: 550 , 600 mm

Depth: 450, 550, 600 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM

Customized size is available


Industry Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.



Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Materials:SPCC cold rolled steel or EG steel

Thickness:
Mounting profile:1.5mm
others:0.8mm ~1.0 mm


IP degree: IP-20

Loading capacity: Max Static loading---45 KG

Body color :RAL9005(black);RAL7035(grey),etc


NO.

Part Name

QTY

Unit

Materials

Treatment

Note

1

Frame

1

Piece

0.8-1.0 mm SPCC steel

Powder coating


2

Front Door

1

Piece

Solid metal door

0.8-1.0mm SPCC steel

Powder coating


3

Side Door

2

Piece

0.8-1.0mm SPCC steel

Powder coating

Plastic fastener

4

Back Panel

1

Piece

0.8-1.0mm SPCC steel

Powder coating


5

Bottom

1

Piece

0.8-1.0mm SPCC steel

Powder coating


6

Top

1

Piece

0.8-1.0mm SPCC steel

Powder coating

Knock-off hole

7

Mounting Profile

4

Piece

1.5mm SPCC cold rolled steel

Powder coating

Can GE treated

8

Small lock

2

Piece

Zinc alloy

\

Side doors

9

Earthing Bolt

1

Piece

Y/G 30 cm cable

\


10

Cable entrance

1

Piece

0.8-1.0mm SPCC cold rolled steel

Powder coating

Knock-off

11

M4&M5 cage

20

Set

Mn56 steel

Zinc plated


12

M6 Screw

20

Set

Mn56 steel

Zinc plated

10sets for extra

13

Combination lock

1

piece

Zinc alloy

Powder coating

On front door

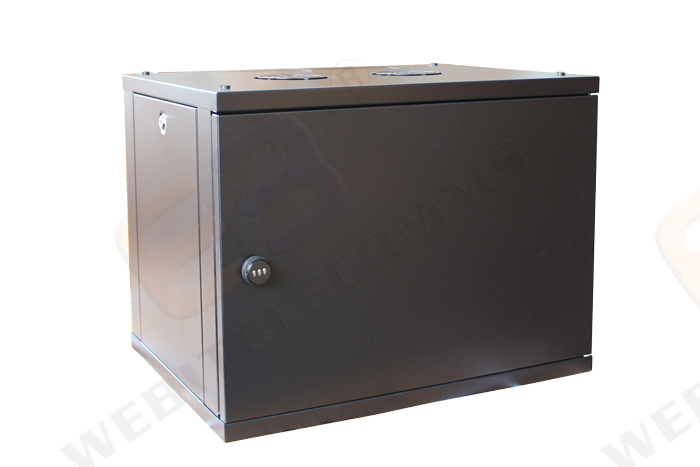

Integrated outline design--comply to modern telecom level

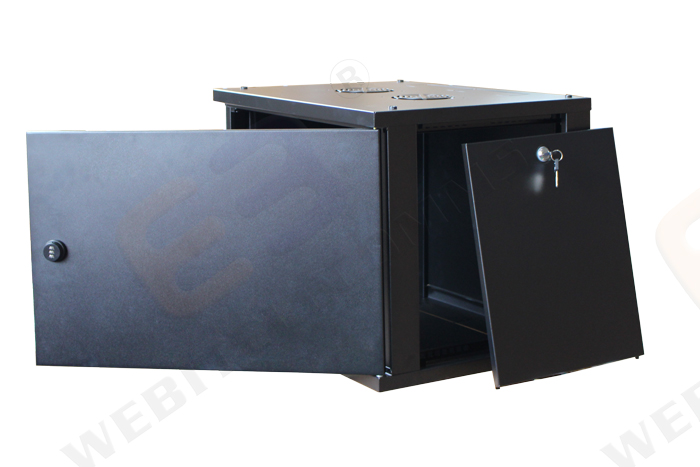

  • Opened view, Easy operating

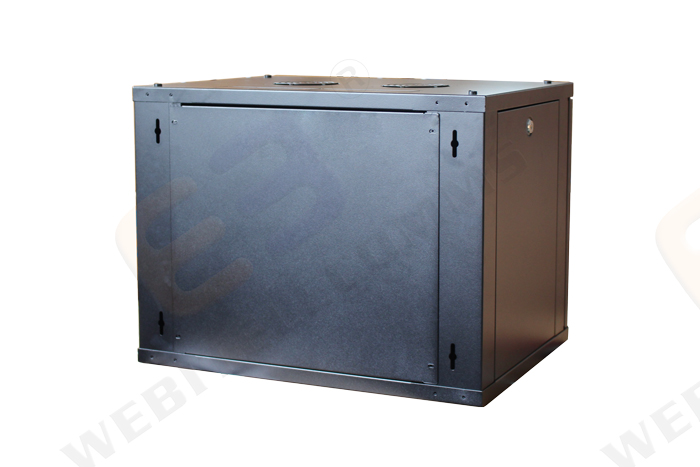

  • Back view

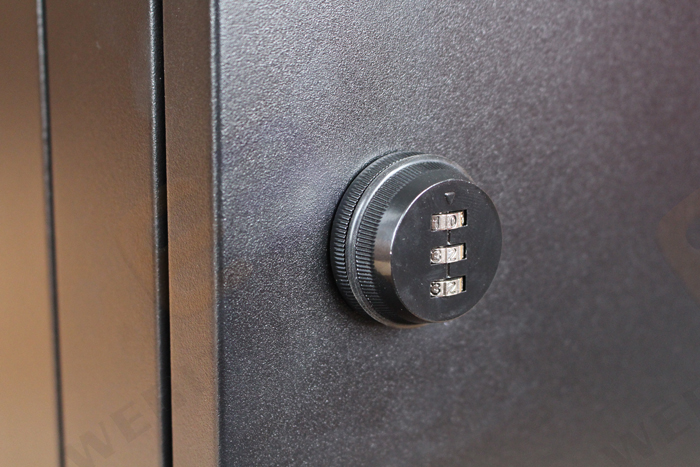

  • Locking system on front door

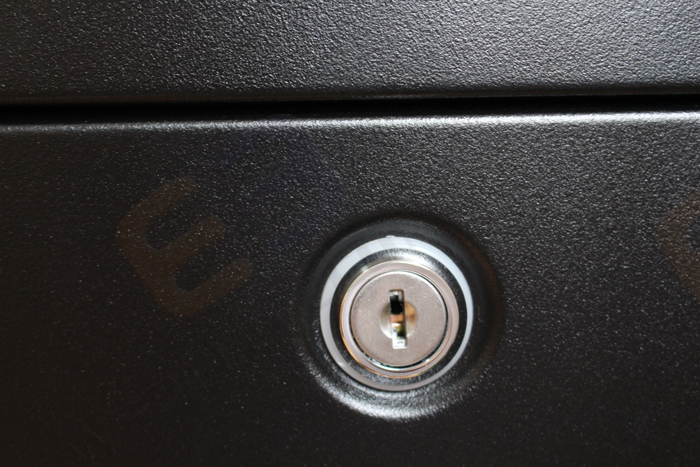

  • Side panel lock

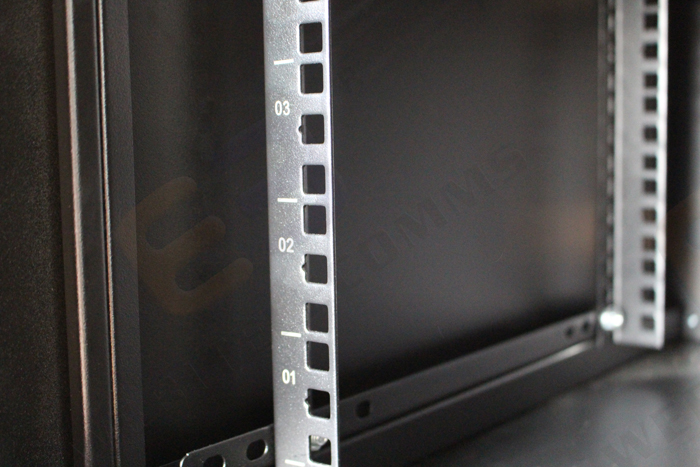

  • Position-adjustable and RU marked rails



Standard packing



=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


Usual size list


Model Number

Width×Depth×Height

Capacity

Model Number

Width×Depth×Height

Capacity

WB-EZ54067NB

550×450×367 mm

6U

WB-EZ55067NB

550×550×367 mm

6U

WB-EZ54097NB

550×450×500 mm

9U

WB-EZ55097NB

550×550×500 mm

9U

WB-EZ54127NB

550×450×634 mm

12U

WB-EZ55127NB

550×550×634 mm

12U

WB-EZ54157NB

550×450×767 mm

15U

WB-EZ55157NB

550×550×767 mm

15U

WB-EZ54187NB

550×450×900 mm

18U

WB-EZ55187NB

550×550×900 mm

18U

WB-EZ54227NB

550×450×1078 mm

22U

WB-EZ55227NB

550×550×1078 mm

22U

Make to order ...
