WB-TXxxxx8NB

Model:WB-TXxxxx8NB
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Certificate:CE,ISO, ROHS,SGS
Function:Used in DATA ROOM
Material:spcc cold rolled steel
Thickness:Mounting profiel 1.5mm others 1.0mm
Installation:assembled
Static loading:60kgs
Sruface:Frosting or wrinkle
Color:Grey or Black

Product Description

Payment & Shipping TermsSupply Capacity
Unit Price:50.0 USDProduction Capacity:8000 unit per month
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWPacking:cartons
Payment Terms:L/C, WU, T/T, PaypalDelivery Date:28 days
MOQ:20 Piece/PiecesTransportationLand, Ocean, Air

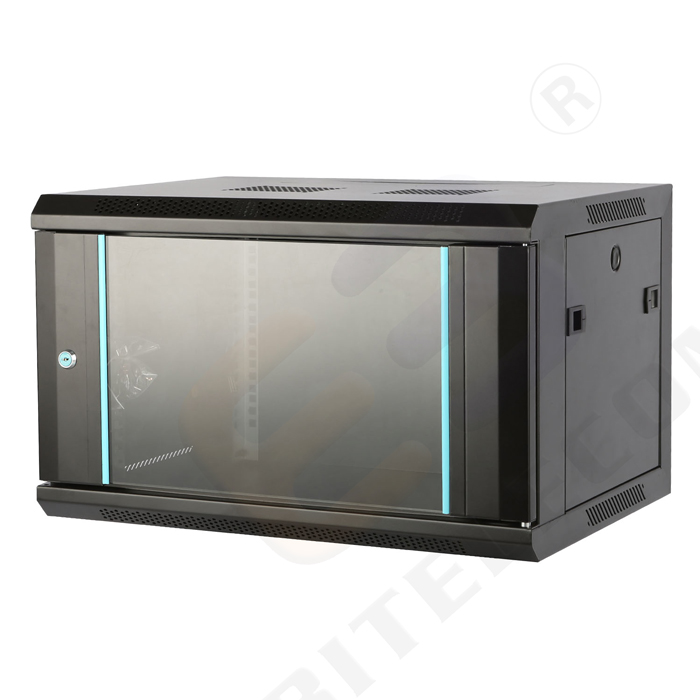

19”Wall mounted data rack cabinet with bevel edge.


Features


This cabinet is made for data and telecommunication equipment storage their distribution systems.

19" rack mountable, full glass series - possible of max the load capacity up to 60KG.

Bevel frame egde.

600 mm width cabinet equipped with glass door ( can be smoky color).

Widely used for Data cabling devices.


Doors

Front tempered glass door , Bevel edge frame - cylinder key lock.

Light blue colored rubber beading decoration.

Rear solid metal panel (N/A).

Removable side panel , quick-open latch, lock for optional.


Accessories

4× 1.50 mm Position-adjustable 19" galvanized mounting rail.

1× Earthing cable

10 sets of extra M6 caged screws.


Cable entrance

Top  - 1 * 200×50mm rectangle cable entrance

Bottom - 1* 200×50mm rectangle cable entrance

Can ask for more...


Package

Disassembled packing save 66% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options


Size suggestions

Width: 600mm

Depth: 600,450 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM

Customized size is available


Industry Standard and Materials:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.



Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating


Materials:SPCC cold rolled steel or EG steel



Thickness:

Mounting profile:1.5mm

others:1.00mm to 1.20mm


IP degree: IP-20


Loading capacity: Max Static loading---60 KG


Body color:RAL9005(black);RAL7035(grey),etc



NO.

Part Name

QTY

Unit

Materials

Treatment

Note

1

Frame

1

Piece

1.0-1.2mm SPCC steel

Powder coating


2

Front Door

1

Piece

5mm glass door , black spots decoration

Powder coating

windows door

3

Side Door

2

Piece

1.0-1.2mm SPCC steel

Powder coating

Plastic fastener

4

Back Paenl

1

Piece

1.0-1.2mm SPCC steel

Powder coating


5

Bottom

1

Piece

1.0-1.2mm SPCC steel

Powder coating


6

Top

1

Piece

1.0-1.2mm SPCC steel

Powder coating

Knock-off hole

7

Mounting Profile

4

Piece

1.5mm galvanized steel

Powder coating

Can be coated

8

Small lock

3

Piece

\

\


9

Earthing Bolt

1

Piece

\

\


10

Cable entrance

2

Piece

1.0-1.2mm SPCC cold rolled steel

Powder coating

metal panel

11

M4&M5 cage

20

Set

Stainless steel

Powder coating


12

M6 Screw

20

Set

Stainless steel

Powder coating

10sets for extra

13

Quick open latcg

4

piece

Plastic

Powder coating

On side doors


Front view

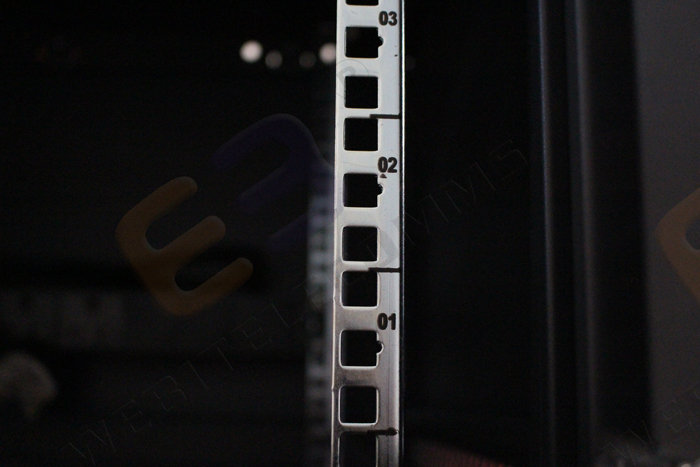

Galvanized steel rails



  • Top view



Standard packing


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 20pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.


Model Number

Width×Depth×Height

U

Model Number

Width×Depth×Height

U

WB-TX64068NB

600×450×367 mm

6U

WB-TX66068NB

600×600×367 mm

6U

WB-TX64098NB

600×450×500 mm

9U

WB-TX66098NB

600×600×500 mm

9U

WB-TX64128NB

600×450×634 mm

12U

WB-TX66128NB

600×600×634 mm

12U

WB-TX64158NB

600×450×767 mm

15U

WB-TX66158NB

600×600×767 mm

15U

WB-TX64188NB

600×450×900 mm

18U

WB-TX66188NB

600×600×900 mm

18U

WB-TX64228NB

600×450×1078 mm

22U

WB-TX66228NB

600×600×1078 mm

22U

WB-TX64278NB

600×450×1300 mm

27U

WB-TX66278NB

600×600×1300 mm

27U
