WB-ODF-IW24
Model: | WB-ODF-IW24 |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Dimensions: | 405W*382H *85D |
Color: | Grey |
Installation: | Slim type / wall mounting |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | - USD | Production Capacity: | 8000 pcs/month |
Trade Term: | FOB,CFR,DDU,FCA | Packing: | Standard cargo packing |
Payment Terms: | L/C, WU, T/T | Delivery Date: | 35 days |
MOQ: | 50 Piece/Pieces | Delivery way | Land, Ocean, Air |
Network Wall Mount 24 Ports SC Simplex Fiber Optic Distribution Frame
About:
Indoor Wall-mount Fiber Optic Distribution Frame can manage both single fiber and ribbon & bundle fiber cables for indoor using.
There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.
Top & Bottom cable entry with rubber sealing
Features
• With cold-roll steel box, splicing unit, distribution unit and panel
• Various panel plate to fit different adapter interface
• Adapters can be installed: FC, SC, ST, LC
• Suitable for single fiber and ribbon & bundle fiber cables
• Special design ensures the excess fiber cords and pigtails in good order
• No interval and easy for management and operation
Technical Parameters
Materials | SPCC steel, stainless steel, ABS |
Finished product | Frosting black appearance |
Cassette (splices trays) | 1 |
Cable input | Top&Bottom |
Adapters | 24 ports , fit for most of adaptors |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 300N |
Resistance | 750N |
Ordering Information
Model | Fibre quantity | Dimensions | Weight |
| WB-ODF-IW24 | 24 | 405x382x85 mm | 4.5kg |
WB-ODF-IW12 | 12 | 300x300x85 mm | 3kg |

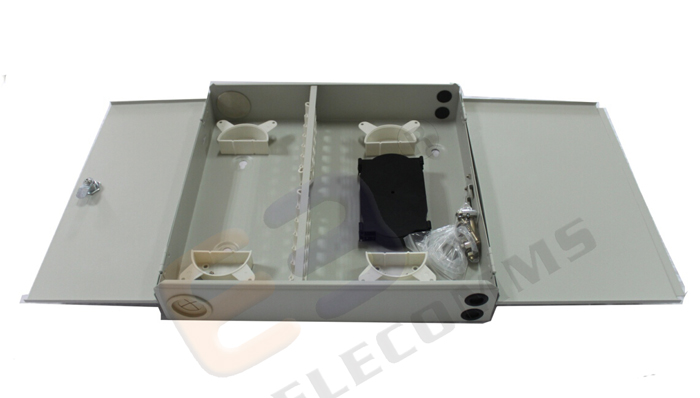

Inside:

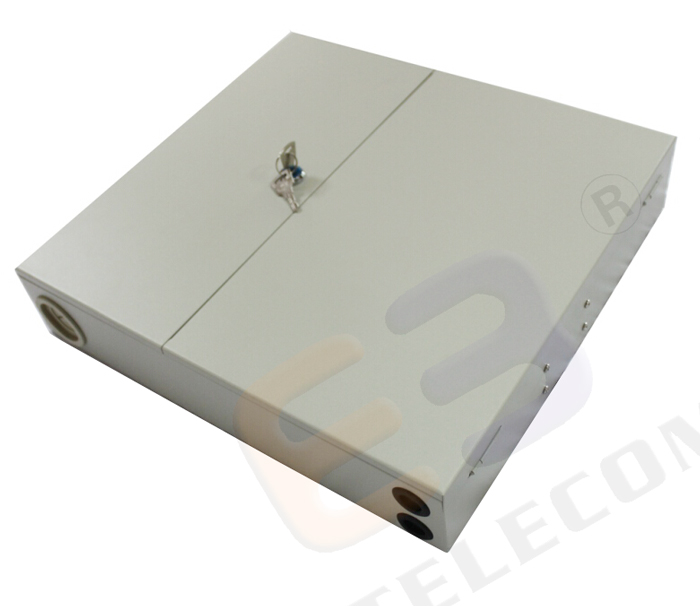

Front:

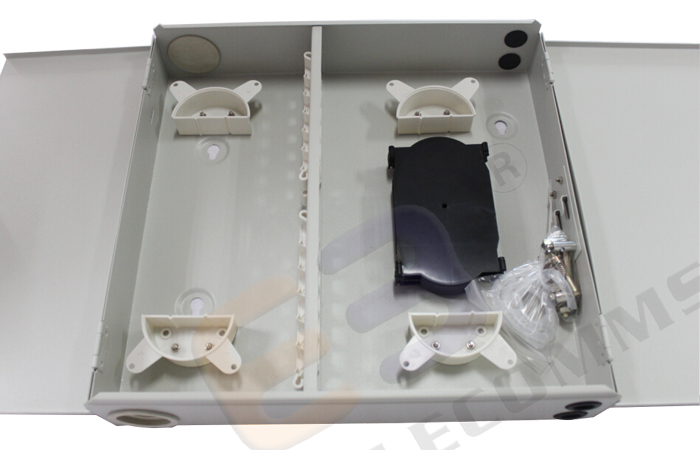

Inside cable splice

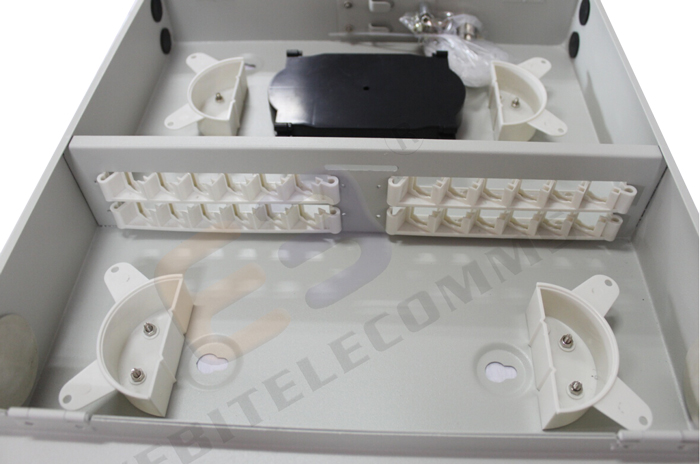

30 degree adapter panel
Package:
1 pcs / pe bag +foam +box +carton
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
