WB-FPP-09RO

Model:

WB-FPP-09RO

Place of Origin:

Zhejiang,China (Mainland)

Brand Name:

Webitelecomms

Dimensions:

L 483*W 350*H 44.5

Color:

Polishing black

Installation:

19" rackmountable

Port:

24 port for SC Simplex


Product Description

Payment & Shipping Terms

Supply Capacity

Trade Term:

FOB,CFR,CIF,DDP,FCA,EXW

Production Capacity:

10000 pcs/month

Payment Terms:

L/C, WU, T/T, Paypal

Packing:

standard cargo packing

MOQ:

50 Piece/Pieces

Delivery Date:

15 days

Means of Transport:

Land, Ocean, Air




New design 24 port blank fiber patch panel


About:

FPP Series is Drawer Type rack Mount Slide Fiber Patch Panel, which is ranging from 24 ports to 48 ports.

It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.

The rack mount patch panel with 4 cable entry ports on the back maximum is designed in sliding structure.

Inside the panel, there is a 375px nut for fixing the splice tray.



Features

• 19" Rack cabinet mountable;
• 3 x front adapter panel design;
• Tightness and durable ;
• 4 x cable entrance at back;
• Adapter output: 24 ports for FC and LC simplex, up to 48 ports for LC duplex;
• Fiber pigtail can provide reliable, perfect protection;
• The core and casing is insulation
• Easily operating and mounting
• FC/SC/LC/ST/Others adapters for options


Application
Local Area Network
CATV Network
FTTx System
Wide Area Network
Test Instruments


Technical Parameters

Material

 Steel and ABS plastic

Finished product

black appearance

Cassette (splices trays)

1-cassettes

Cable input

4 cable entry ports

Adapters

Available for the installation of LC/FC/SC/ST/Others Adapters

Working temperature

-40℃  ~  + 60℃

Design standard

TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1

Curvature radius

≥40mm

Extra loss in the splice tray

none

Lateral pressure-resistance

500N

Resistance

750N



Ordering Information

Model

Description

WB-FPP-09RO

1U 24 port Fiber Optical Patch Panel



Available accessories:

• SC/ LC/FC/ST Simplex, LC Duplex adapters;

• 12 core bundle colored FC/SC/LC/ ST pigtails, 1.5 metre length;

• 12 core optical splice tray;

• Heat shrink tube.



Ordering example :

WB-FPP-09RO 24 port Fiber optical patch panel, with 24 pieces SC Simplex adapters, 2 piece 12 core bundle colored pigtails with SC connectors, 1.5m, 2 pieces 12 core optical splice trays and 24 pieces heat shrink tubes.

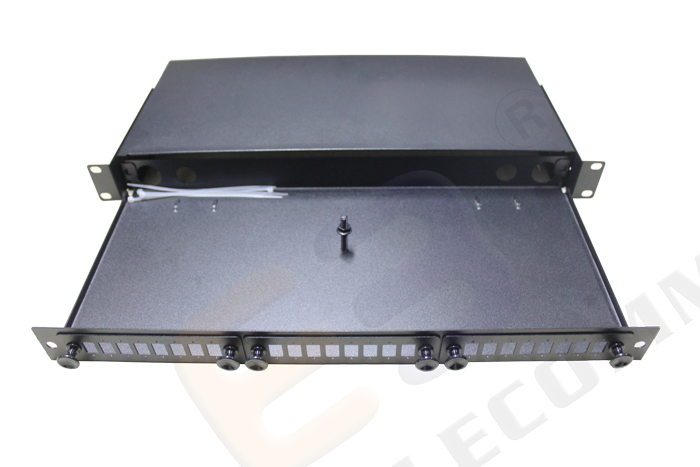

Product photo

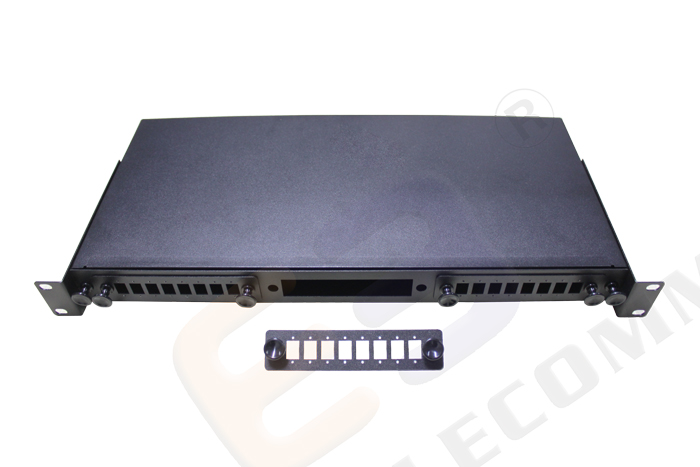

With 3 pcs removable adapter panels in front,

Each panel can maximum splice 24 port SC/ LC Simplex adapters or 24 port LC Duplex adapters.

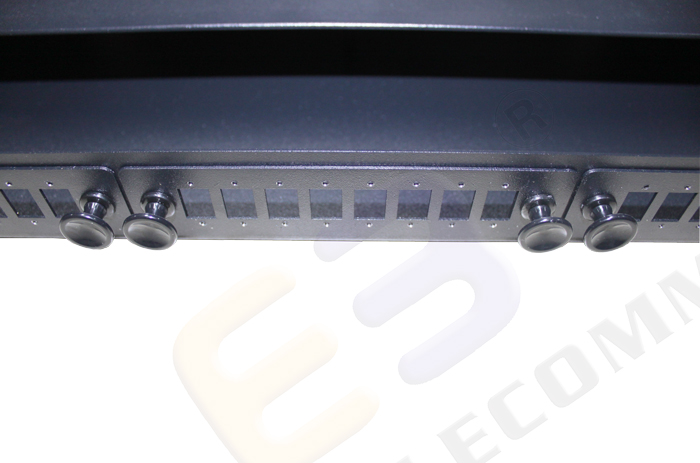

Tool free latch for front panel

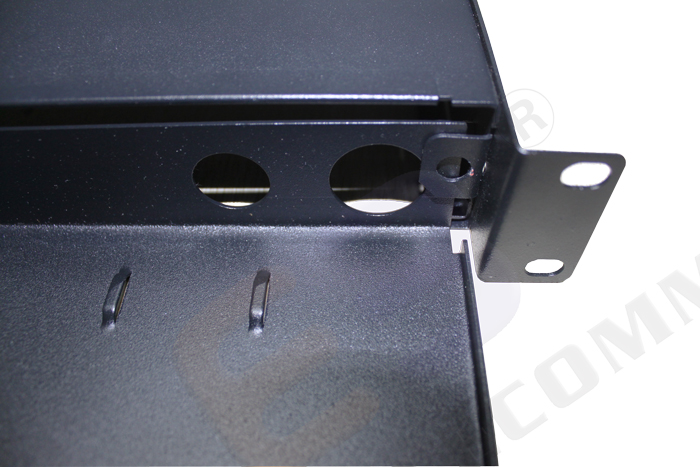

4 cable entrance in rear side

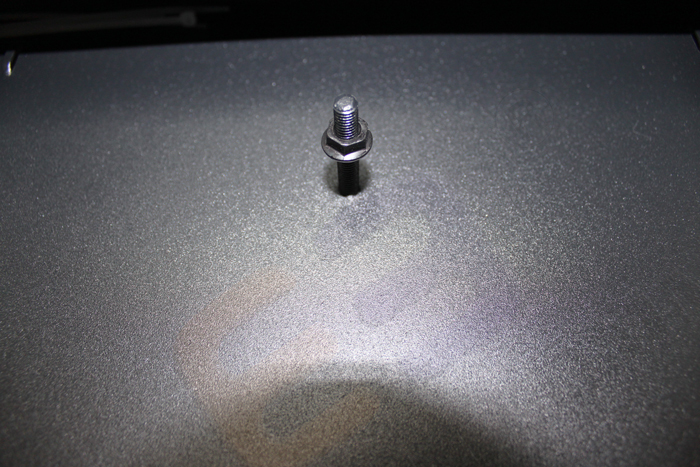

A 15cm nut with bolt used for fixing splice trays



=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available,usually FOB NINGBO.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---Webitelecomms fiber panel box sold with 50 pcs MOQ, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
