Model: | WB-FPP-24LC-30D |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Dimensions: | L 483*W 350*H 44.5 |
Color: | Matte black |
Installation: | 19" rack mountable |
Port: | 24 for LC SM DX, angled |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | - | Production Capacity: | 10000 pcs/month |
Trade Term: | FOB,CFR,CIF,DDP,EXW | Packing: | standard cargo packing |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 15 days |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||

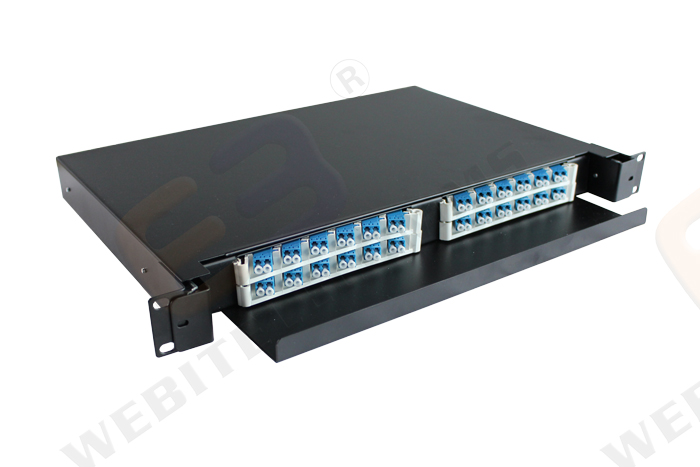

24 port LC duplex Single-mode Sliding Fiber Patch panel
About:
FPP Series is Drawer Type of Rack Mount Fiber Patch Panel is ranging from 12 ports to 48 ports.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.
The rack mount patch panel with 4 cable entry ports on the back maximum is design in sliding structure.
At the back of the box, there are 2 cable fixing bayonets.
The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.
Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
Features
• 19" server rack , cabinet mountable
• Excellent sliding drawer design
• Tightness and durable
• Optical fiber input: 4 ports
• Adapter output: up to 48 ports
• Fiber pigtail can provide reliable, perfect protection
• The core and casing is insulation
• Operate and install easily
• FC/SC/ST/Others Adapters for Option, available.
Application
Local Area Network
CATV Network
FTTx System
Wide Area Network
Test Instruments
Specification
Technical Parameters
Material | Steel and ABS plastic |
Finished product | black appearance |
Cassette (splices trays) | 1-cassettes |
Cable input | 4 cable entry ports |
Adapters | 24 x LC duplex |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 500N |
Resistance | 750N |
Ordering Information
Model | Description |
WB-FPP-24LC-30D | 1U 24 Fiber LC Patch Panel - 24 Duplex LC SM Adaptors , Angled |
Other related products:
Model | Description |
WB-FPG-LCS-12 | LC SM OS2 9/125 12-colored Fiber pigtails,PVC/LSZH Jacket, 1.5m |
WB-FD-LCSD-01 | LC Single-mode Duplex Fiber adapter,Ceramic Sleeve, Plastic housing with flange |
Products picture:
For example :

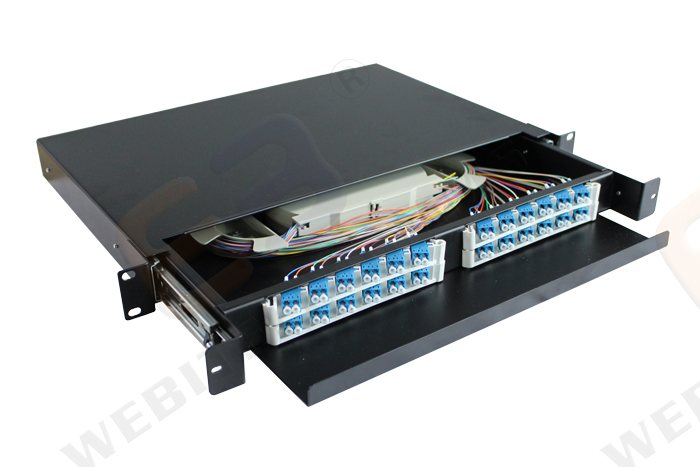

24 ports LC SM Duplex Sliding Fiber patch panel with 30 degree angled , with 24 pcs of LC Dx blank adapter , with 2x12 colored LC SM OS2 Fiber pigtails ,1.5m.

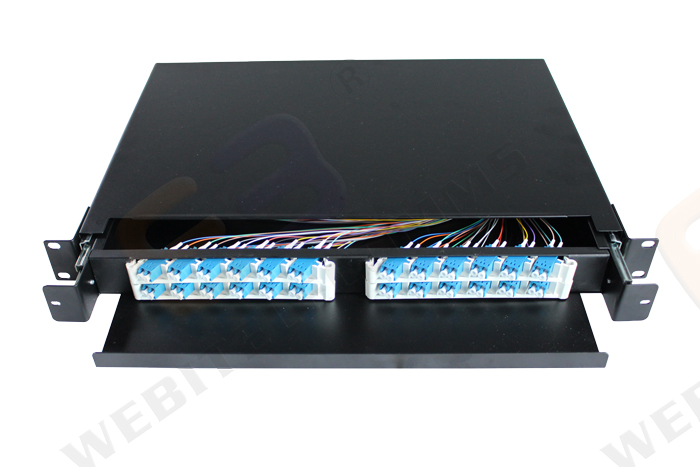

Front :

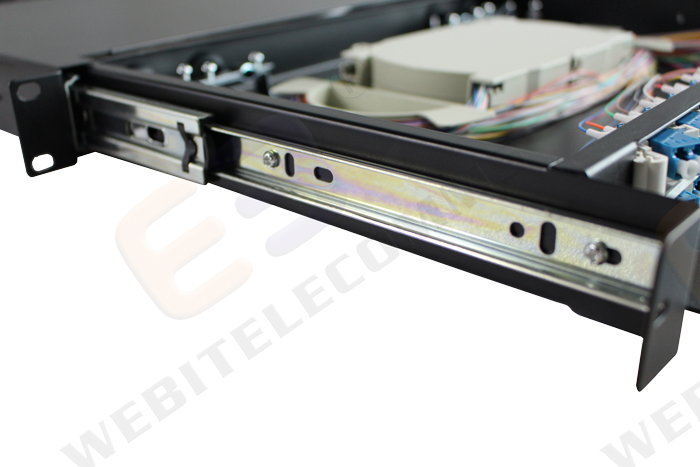

Side panel:

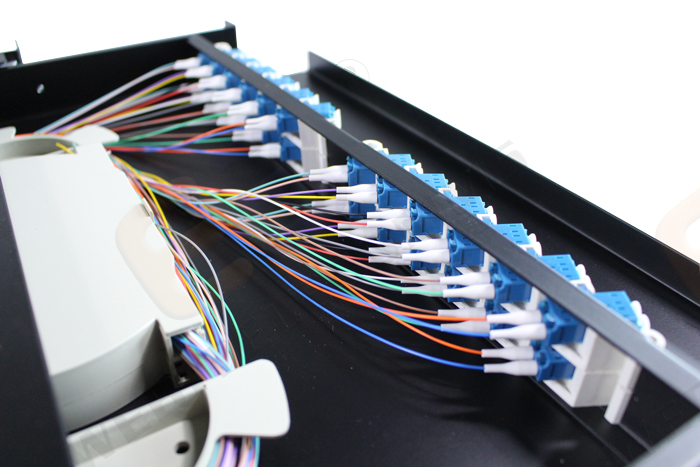

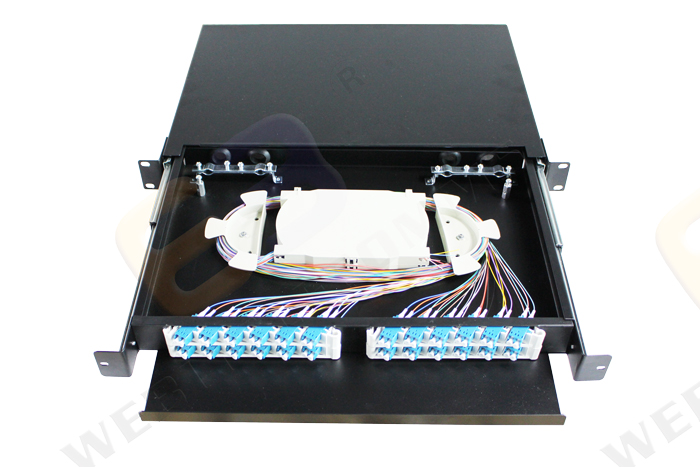

Inside :
Brand: OEM/ ODM/ WEBITELECOMMS are all available:
Packaging:
1 pcs / pe bag +foam +box +carton
Packing list: Each Carton
QTY: 6PCS
G.W.: 31.5KGS
N.W.: 27.0KGS
MEAS:39X57X34.5CM
CBM:0.077CBM/CTN
Delivery date: 7-15 days
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---Webitelecomms
fiber panel box MOQ is 50
pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
