Model: | WB-FPP-12FC-30 |
Place of Origin: | Zhejiang,China (Mainland) |
color: | black,grey,etc |
material: | spcc cold rolled steel |
thickness: | 1.2mm |
Packaging Details: | cartons,wooden pallets,wooden cases |
Delivery Detail: | Shipped in 7 days after payment |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 35.0 USD | Production Capacity: | 10000 Piece/Pieces per... |
Trade Term: | FOB,CIF,EXW | Packing: | cartons,wooden... |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 7 working days after... |
MOQ: | 10 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||
30 degree FC simplex single mode fiber patch panel
Specifications
1. SPCC cold rolled sheet
2. 19 inch standard rack mountable structure
3. ST LC FC SC adapter for options
WB-FPP-12FC series Fiber Optic Terminal Box

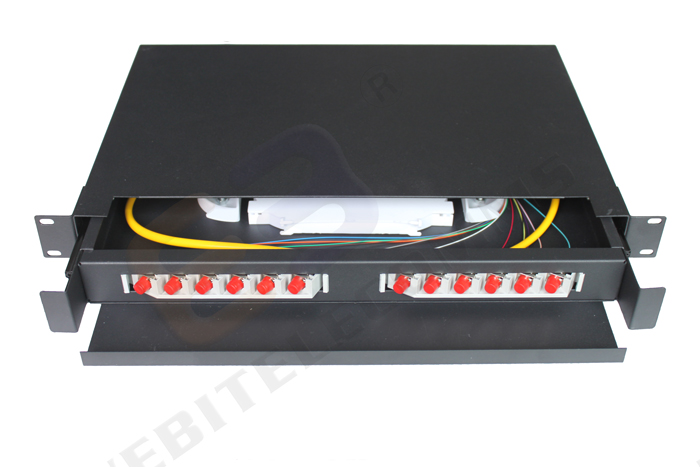

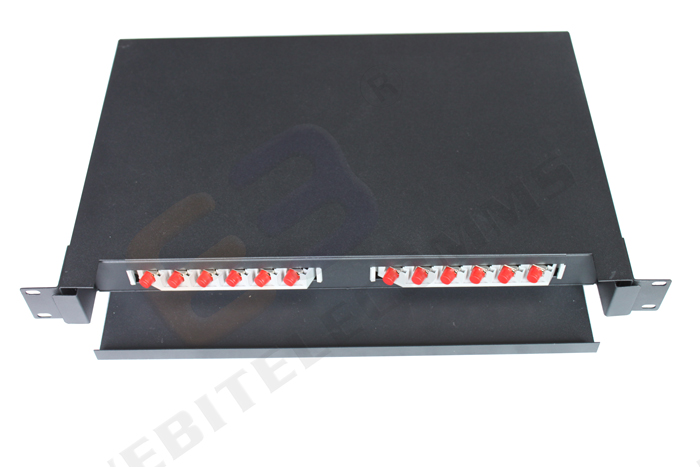

Angled FPP 12 port FC fiber panel s is Slide type box is ranging from 12 ports to 48 ports.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.

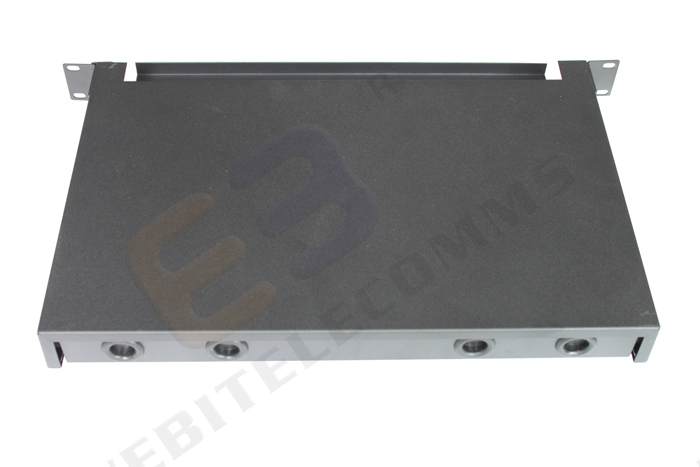

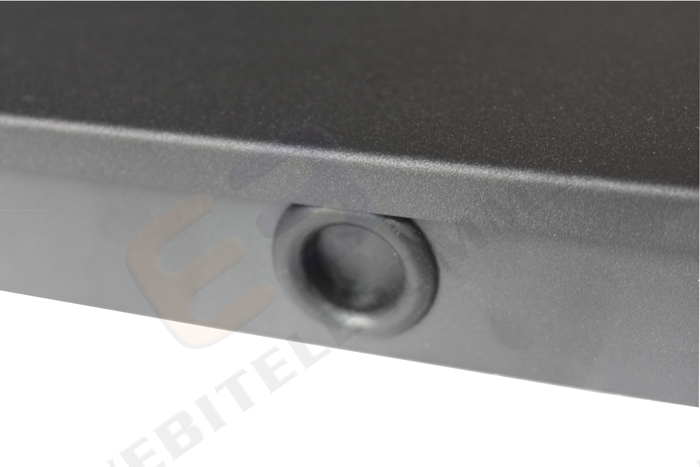

The rack mount patch panel with 4 cable entry ports on the back maximum is design in sliding structure.
At the back of the box, there are 2 cable fixing bayonets.

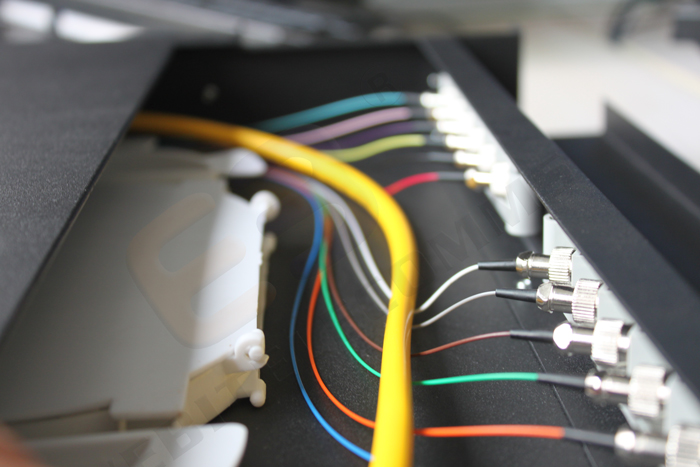

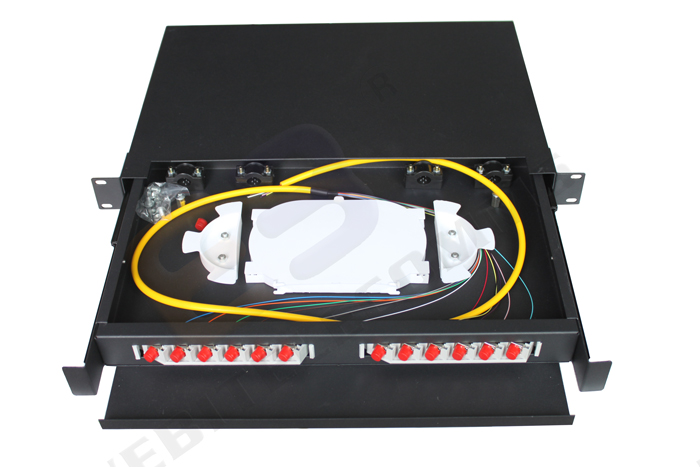

The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.
Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
Technical Parameters
Material | Steel and ABS plastic |
Finished product | black appearance |
Cassette (splices trays) | 1-cassettes |
Cable input | 4 cable entry ports |

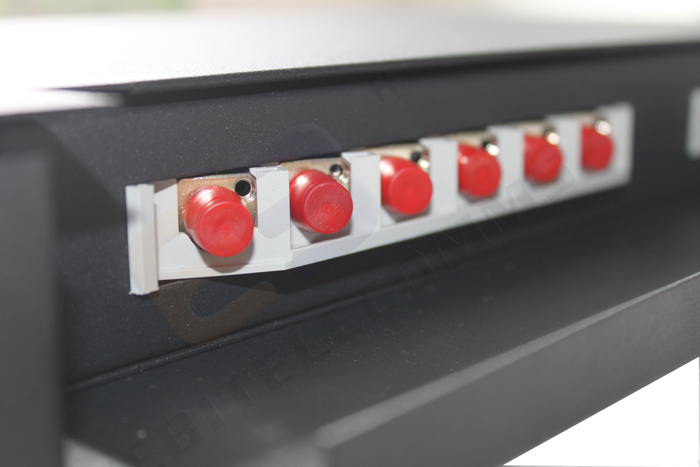

Adapters | 30 degree FC , others available |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 500N |
Resistance | 750N |
Ordering Information
Model | Description |
WB-FPP-12FC-30 | 1U Fiber FC Patch Panel - 12 Simplex FC SM Adaptors |
Details
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---Webitelecomms
fiber panel box MOQ is 50
pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
