Model: | WB-FFP-A |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Dimensions: | L 483*W 350*H 44.5 |
Color: | Polishing black |
Installation: | 19" rackmountable |
Port: | 24 for LC SM DX |
Materials: | SPCC |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 20.0 USD | Production Capacity: | 10000 pcs/month |
Trade Term: | FOB,CFR,DDP,EXW | Packing: | standard cargo packing |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 15 days |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||
About:
FPP Series is Drawer Type of Rack Mount Slide Fiber Patch Panel ,which is ranging from 12 ports to 48 ports.
It is suitable for the application in telecommunication network, central office optical cable system and premise fiber network.
The rack mount patch panel with 4 cable entry ports on the back maximum is design in sliding structure.
At the back of the box, there are 2 cable fixing bayonets. The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.
Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
Features
• 19" Rack, cabinet mountable
• Excellent design with matte powder coating surface
• Tightness and durable
• Optical fiber input: 4 ports
• Adapter output: up to 48 ports
• Provide Fiber pigtail with a reliable, perfect protection
• The core and casing is insulation
• Operate and install easily
• LC/SC/ST panels[contained accessories] can be used as per your willing.
Application
Local Area Network
CATV Network
FTTx System
Wide Area Network
Test Instruments
Technical Parameters
Material | SPCC Steel and ABS plastic |
Finished product | black appearance |
Cassette (splices trays) | 1-cassettes |
Cable input | 4 cable entry ports |
Adapters | Available for the installation of LC/FC/SC/ST/Others Adapters |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 500N |
Resistance | 750N |
Ordering Information
Model | Description |
WB-FPP-A | Blank fiber termination box can be fit for LC SC ST adaptor
3×different adaptors panels can be used as per your need |

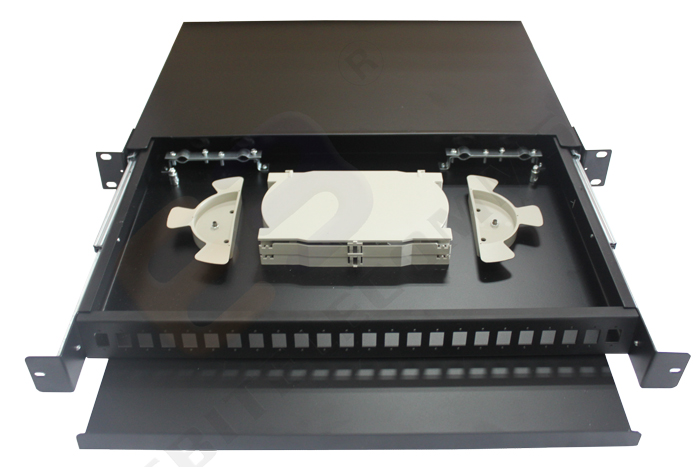

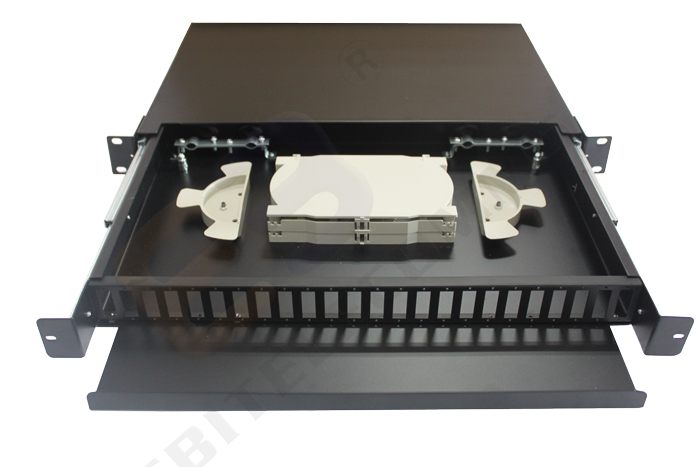

Products picture

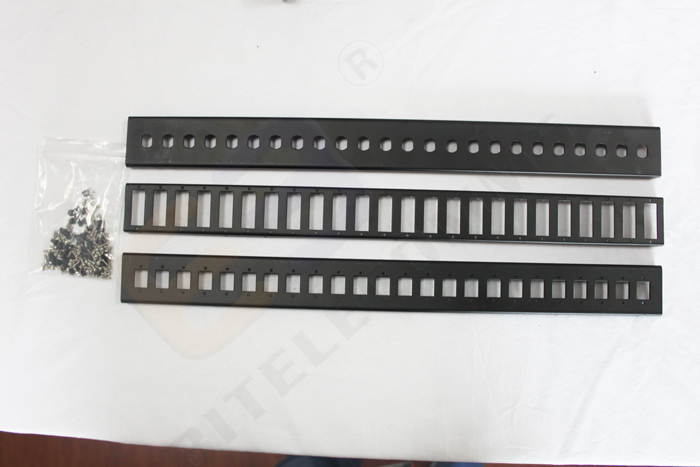

Above 3 x differen front panels

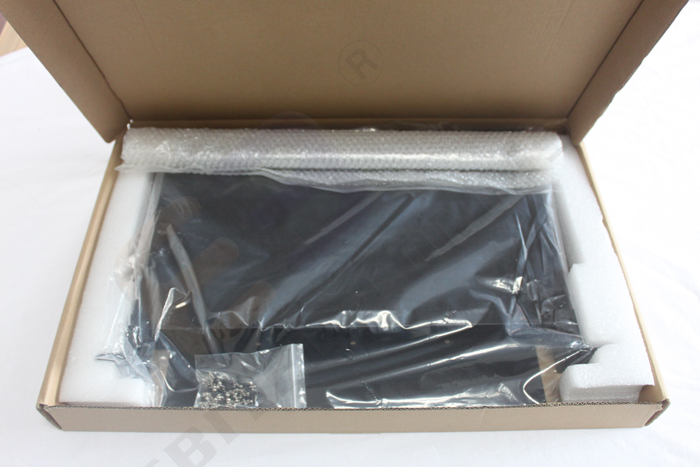

Package
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF are all available .
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
