Model: | WB-FPP-HS-24A |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Dimensions: | L 483*W 242*H 44.5 |
Color: | Gloss grey |
Installation: | 19" rack mountable |
Port: | 24 for SC SM DX |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | - USD | Production Capacity: | 8000 pcs/month |
Trade Term: | FOB,CFR,DDU,FCA | Packing: | Standard cargo packing |
Payment Terms: | L/C, WU, T/T | Delivery Date: | 35 days |
MOQ: | 50 Piece/Pieces | Delivery way | Land, Ocean, Air |
1U 24 port 30 degree Fiber Patch panel fit for varies of adaptors
About:
The HS Series fiber panel box is fixed type of Rack Mount Fiber Patch Panel is ranging from 12 ports to 48 ports.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.
The rack mount patch panel with 2 cable entry ports at the back , 2 cable entry ports at front side.
At the back of the box, there are 2 cable fixing bayonets.
The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.
Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
Features
• 19" server rack/cabinet mountable
• Fixed type design, locked by plastic kit
• Front PERSPEX panel
• 24 fiber port fit for all adaptors using - 30 degree
• Fiber pigtail can provide reliable, perfect protection
• The core and casing is insulation
• Operate and install easily
Technical Parameters
Materials | SPCC steel, stainless steel, PERSPEX, ABS |
Finished product | Frosting black appearance |
Cassette (splices trays) | 1 |
Cable input | Rear & panel side |
Adapters | 24 ports , fit for most of adaptors |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 300N |
Resistance | 750N |
Ordering Information
Model | Description |

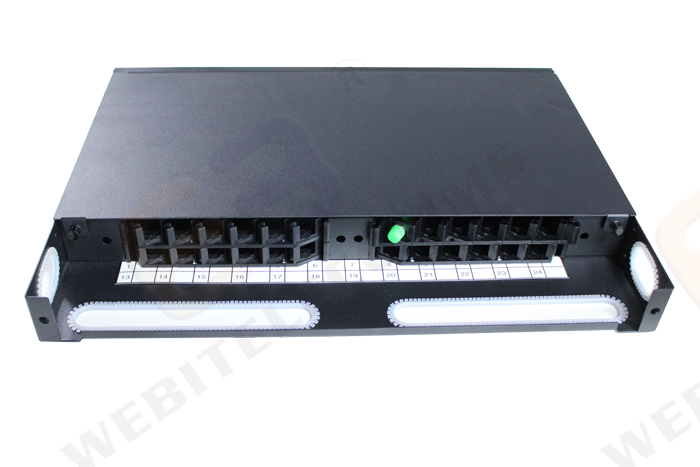

WB-FPP-HS-24A | 1U 24 Fiber Patch Panel - 30 degree with PERSPEX covering |

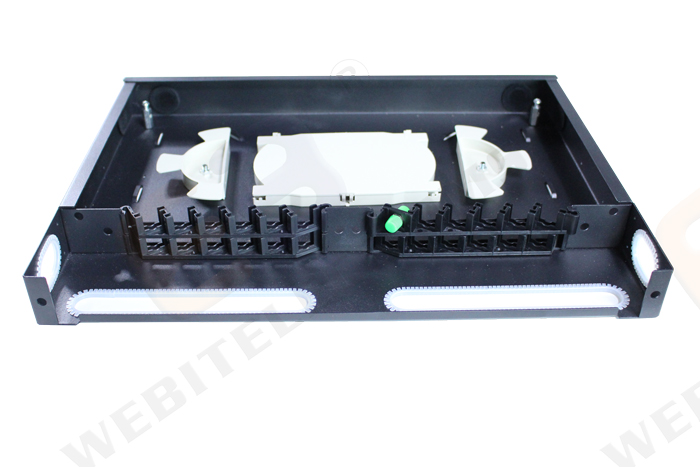

Inside:

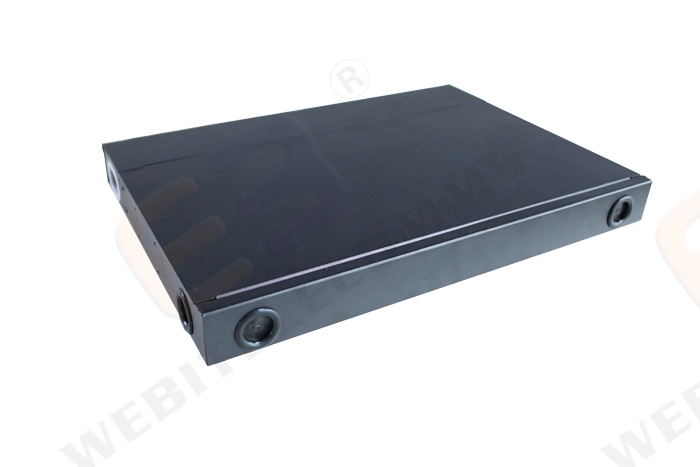

Back:

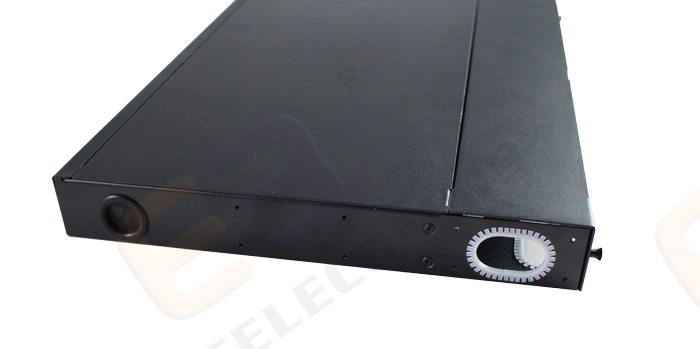

Aluminum body and front locking kit
Package:
1 pcs / pe bag +foam +box +carton
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---The Webitelecomms aluminum fiber panel MOQ is 500
pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
