Model: | WB-FPP-AL-24SCD |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Dimensions: | L 483*W 242*H 44.5 |
Color: | Gloss grey |
Installation: | 19" rack mountable |
Port: | 24 for SC SM DX |
Contact NowProduct Description
24 port SC duplex aluminum Fiber Patch panel
About:
FPP Series is Drawer Type of Rack Mount Fiber Patch Panel is ranging from 12 ports to 48 ports.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.
The rack mount patch panel with 4 cable entry ports on the back maximum is design in sliding structure.
At the back of the box, there are 2 cable fixing bayonets.
The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.
Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
Features
• 19" server rack , cabinet mountable
• Excellent sliding drawer design
• Ultralight aluminum body
• Adapter output: up to 96 ports
• Fiber pigtail can provide reliable, perfect protection
• The core and casing is insulation
• Operate and install easily
• FC/LC/ST/Others Adapters for Option, available.
Application
Interconnects
Cross-connects
Independent service providing
CATV networks
Main distributions
Intermediate distributions
Specification
Technical Parameters
Material | Aluminum |
Finished product | Grey appearance |
Cassette (splices trays) | - |
Cable input | Rear left & right |
Adapters | 24 x SC duplex |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 300N |
Resistance | 750N |
Ordering Information
Model | Description |
WB-FPP-AL-24SCD | 1U 24 Fiber SC Patch Panel - 24 Duplex SC Adaptors ,Aluminum body |

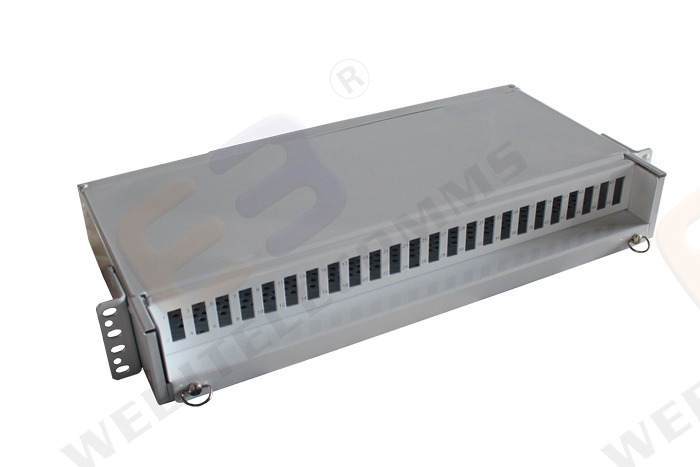

Closed:

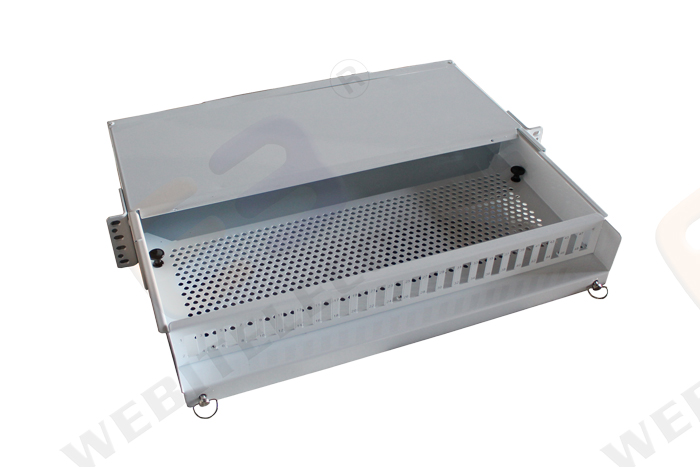

Inside:

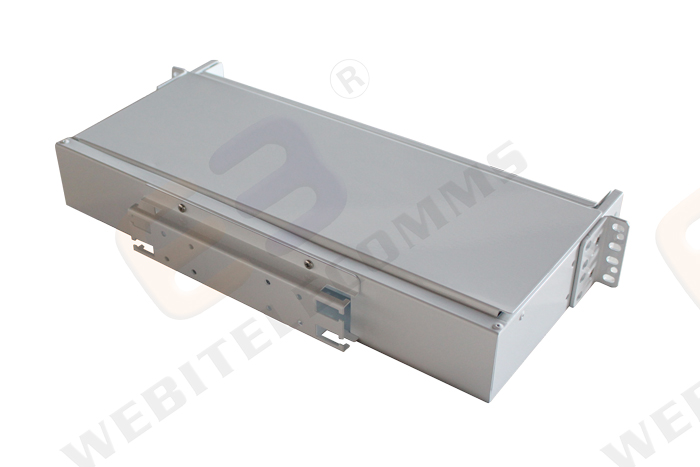

Back:

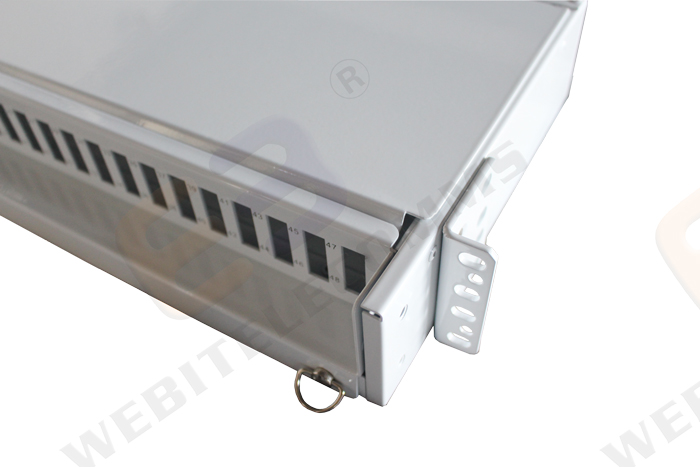

Aluminum body and front locking kit
Brand: OEM/ ODM/ WEBITELECOMMS are all available:
Packaging:
1 pcs / pe bag +foam +box +carton
Packing list: Each Carton
QTY: 5PCS
G.W.: 9.5KGS
N.W.: 7.5KGS
MEAS:57X32X28.5CM
CBM:0.051CBM/CTN
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---The Webitelecomms aluminum fiber panel MOQ is 500
pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
