| Model: | WB-SSxxxx7NW |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Export Area: | Europe,America, Middle east |
| Height: | 4,6,9,12,15,18U |
| Width: | 545 mm |
| Depth: | 400 mm |
| Loading capacity: | 45 kg |
| surface: | Frosting or wrinkle |
| Color: | White , Black , Grey |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 8000 units per month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Ctns |
| MOQ: | 30 Piece/Pieces | Delivery Date: | 30 days |
| Means of Transport: | Land, Ocean, Air | ||
19 inch wall mounted cabinet with metal door
Feature
WB-SSxxxx7NW cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, Light duty structure - possible of max the load capacity up to 45KG.
Whole cabinet comes with convenient assembling way.
Widely used for Data cabling devices.
Doors

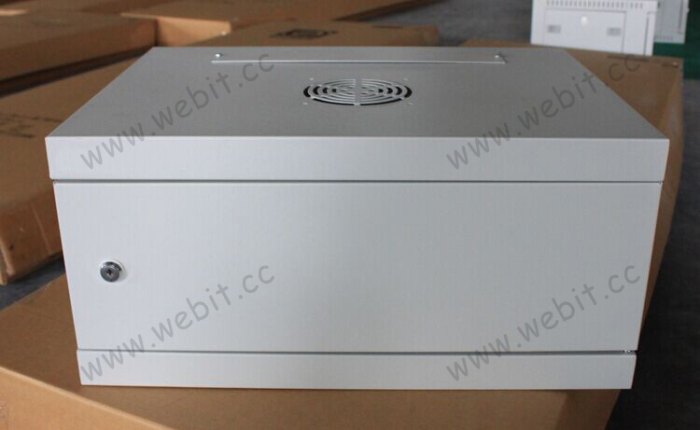

Front solid metal door - cylinder key lock.
Rear solid metal panel (N/A).
Removable side panel with quick open latch, lockable.
Accessories

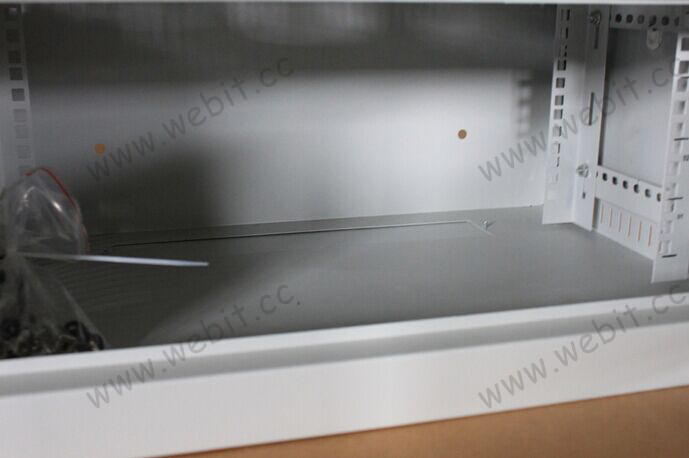

4× 1.50 mm Position-adjustable 19" mounting rail.
1× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance

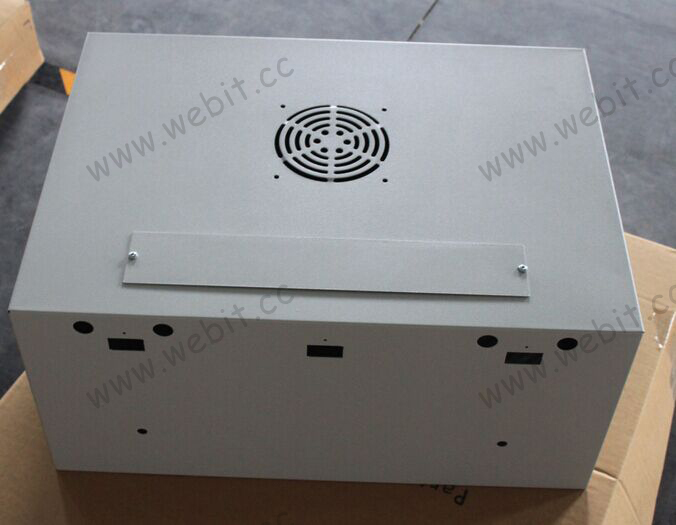

Top - 1 * 380×50mm cable entrance
Bottom - 1* 380×50mm cable entrance
Can ask for more...
Package
Disassembled packing save 66% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
Size suggestion
Width: 545 , 600 mm
Depth: 400, 450, 600 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM
Customized size is available
Industry Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:
Mounting profile:1.5mm
others:1.00mm to 1.20mm
IP degree: IP-20
Loading capacity: Max Static loading---45 KG
Body color: White , Grey , Black
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
2 | Front Door | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | Solid metal |
3 | Side panel | 2 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
4 | Back panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
6 | Top | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
7 | Mounting Profile | 4 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Small lock | 1 | Piece | \ | \ | Front door |
9 | Earthing Bolt | 1 | Piece | \ | \ | |
10 | Wiring Panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | Screw M4 |
11 | M4＆M5 cage | 10 | Set | Stainless steel | Powder coating | |
12 | M6 Screw | 20 | Set | Stainless steel | Powder coating | 10sets for extra |
13 | Quick open latch | 4 | piece | Plastic | Powder coating | On side doors |
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Size list
Model NO. | Width×Depth×Height | U | Model NO. | Width×Depth×Height | U |
WB-SS5A067NW | 550×400×367 mm | 6U | WB-SS56067NW | 550×600×367 mm | 6U |
WB-SS5A097NW | 550×400×500 mm | 9U | WB-SS56097NW | 550×600×500 mm | 9U |
WB-SS5A127NW | 550×400×634 mm | 12U | WB-SS56127NW | 550×600×634 mm | 12U |
WB-SS5A157NW | 550×400×767 mm | 15U | WB-SS56157NW | 550×600×767 mm | 15U |
WB-SS5A187NW | 550×400×900 mm | 18U | WB-SS56187NW | 550×600×900 mm | 18U |
WB-SS5A227NW | 550×400×1078 mm | 22U | WB-SS56227NW | 550×600×1078 mm | 22U |
WB-SS5A277NW | 550×400×1300 mm | 27U | WB-SS56277NW | 550×600×1300 mm | 27U |
