| Model: | WB-KHxxxx7NW |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Structure: | 10" installation |
| Materials: | SPCC cold rolled steel |
| Thickness: | 1.0mm before painting |
| Dimensions: | 275*150*380 |
| Accessories: | small tray |
| Color: | white |
| Surface: | Wrinkle |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 10000 pcs per month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Cartons |
| MOQ: | 10 Piece/Pieces | Delivery Date: | 30 days |
| Means of Transport: | Land, Ocean, Air | ||
8U 10inch slim wall mounted cabinet
Features
WB-KHxxxx7NW cabinet is intended for installation TV and rideo devices and their distribution systems.
10" rack mountable, MINI series - possible of max the load capacity up to 20KG.
Welding structure. ( 120-150mm Depth)
Usually used for TV cabling.
Doors
Front solid metal door - cylinder key lock.
Rear wall mounting panel.
Unremovable side panel.
Accessories
2× 10" mounting rail. ( )
1× TV bracket
1× accessories pallet
10 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 50mm rounded cable entrance
Bottom - 2 * 50mm rounded cable entrance
Can ask for more...
Package
Assembled structure , unpack to use directly.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width : 275 mm
Heights - 4U ,5U ,6U, 7U, 8U
depth for demands: 120,150 mm , or customization
Standard and Materials:
Comply with ANSI/EIA;RS-310-D;IEC297-2; DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;
compatible with 19" international standard, metric systemand ETSI standard.
Surface Finish:Degreasing,pickling,phosphating,powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:1.5mm;others:0.8-1.0mm
IP degree: IP-20
Loading capacity:
-Static loading: 20KG
Color: White , Black
ref sample photo

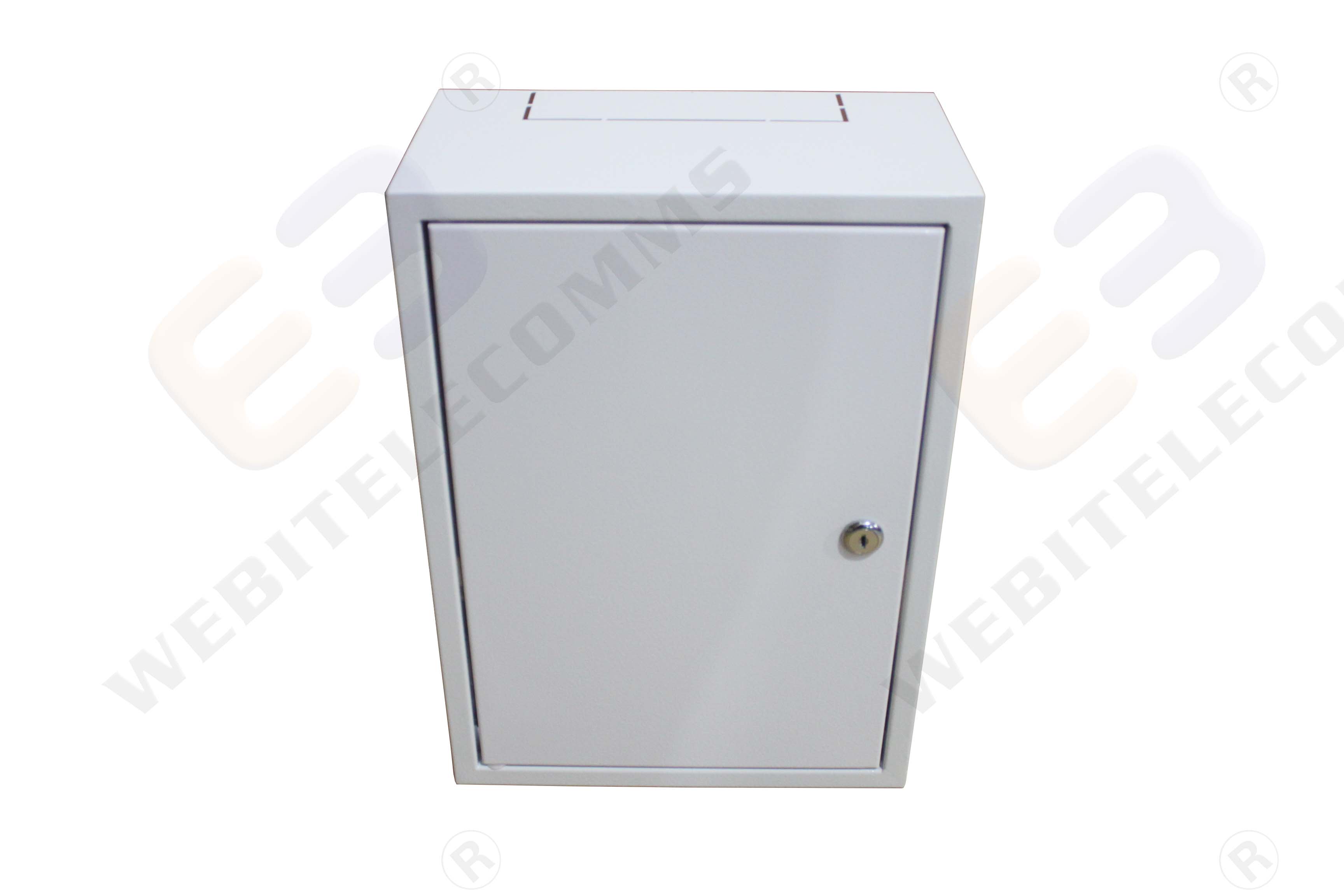

Front
Back side

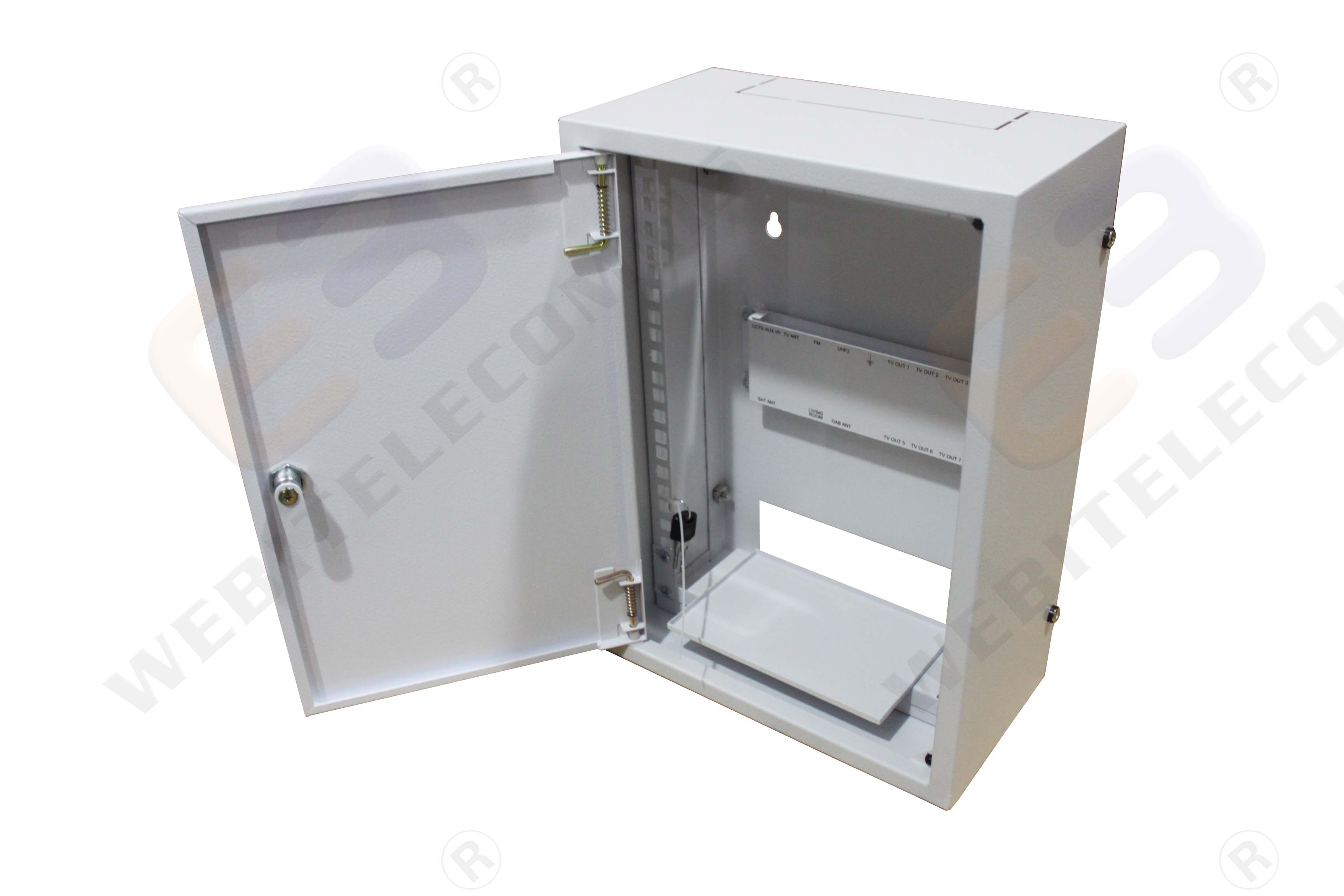

Front opened

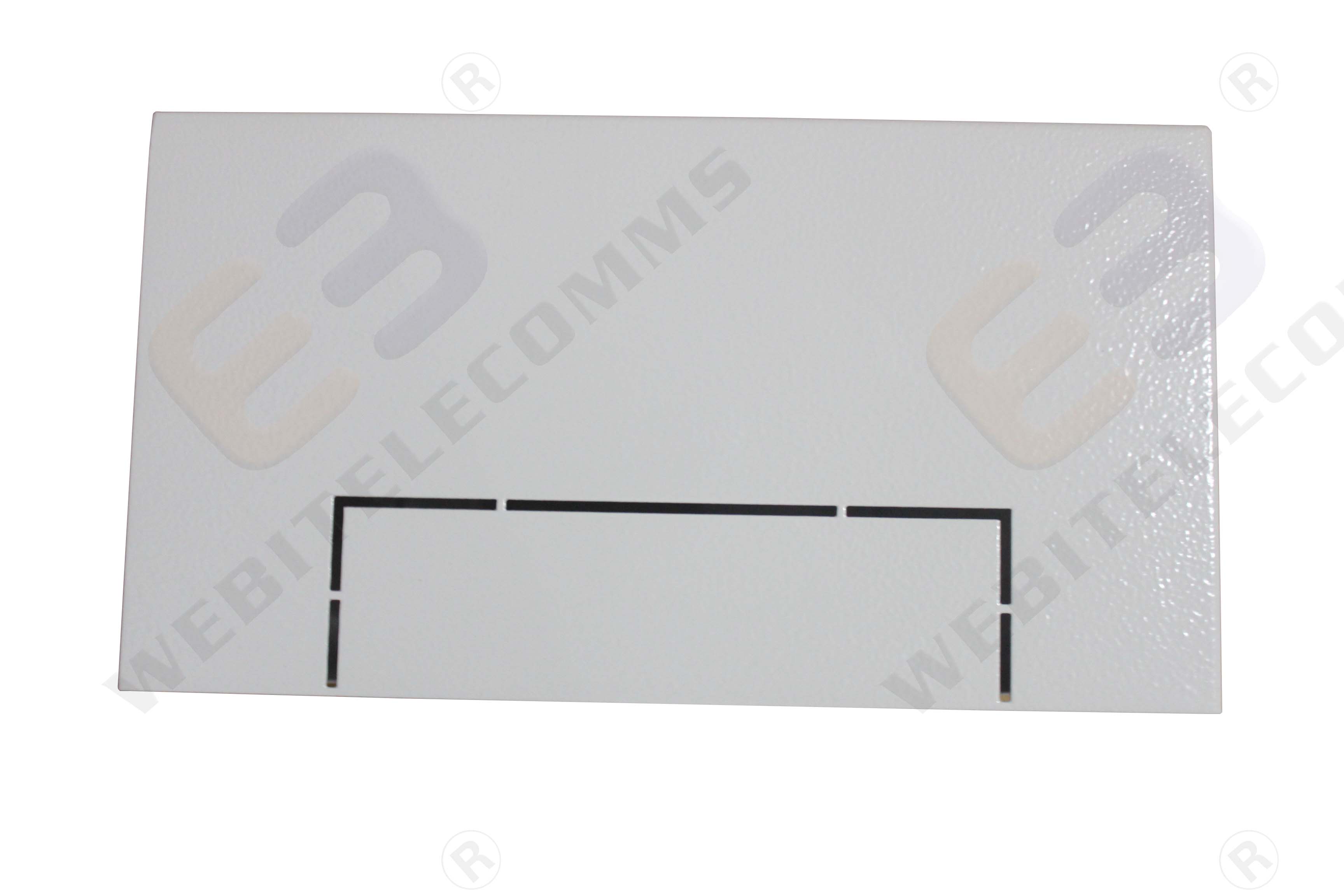

Top view

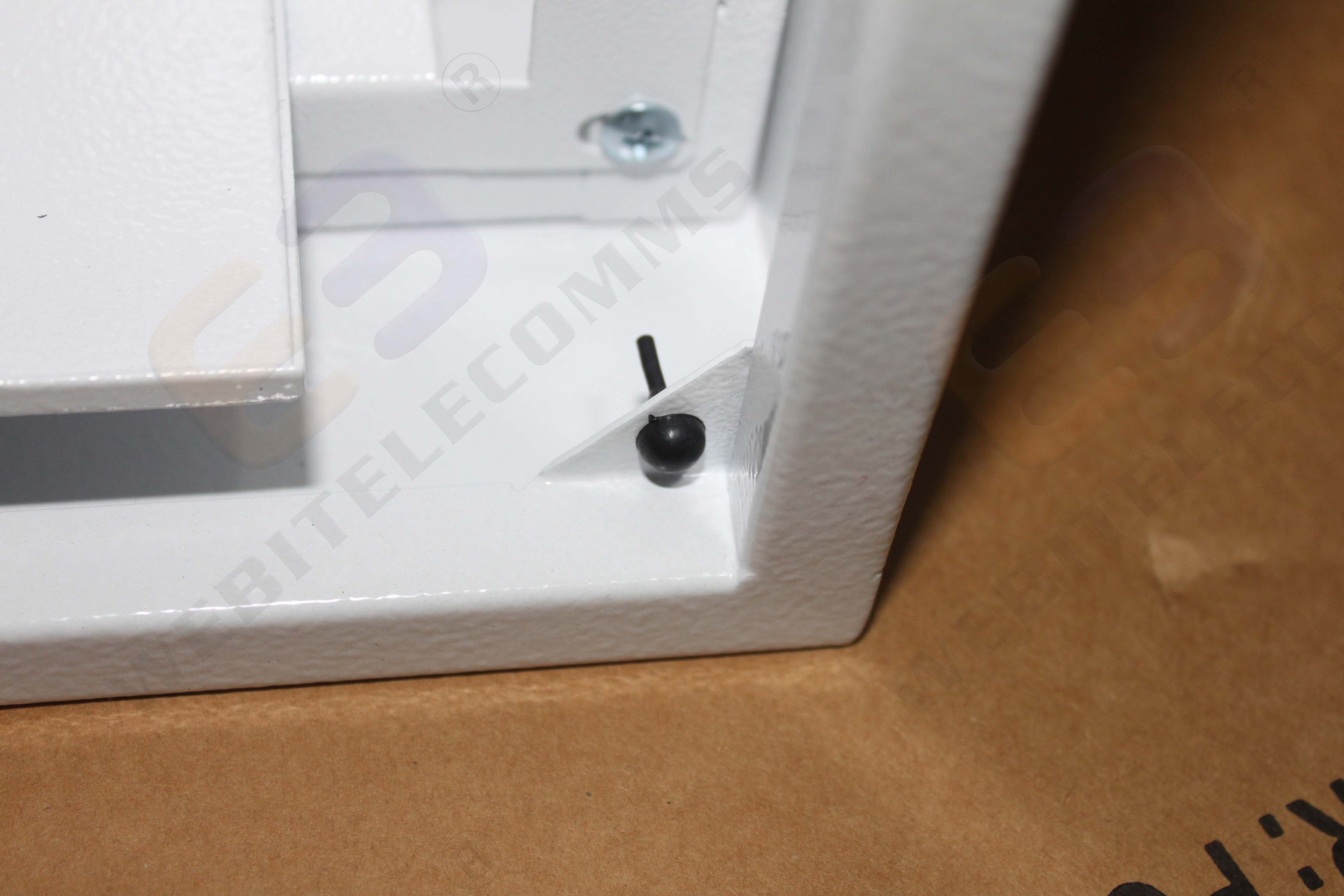

Door knob
TV unit mounting bracket

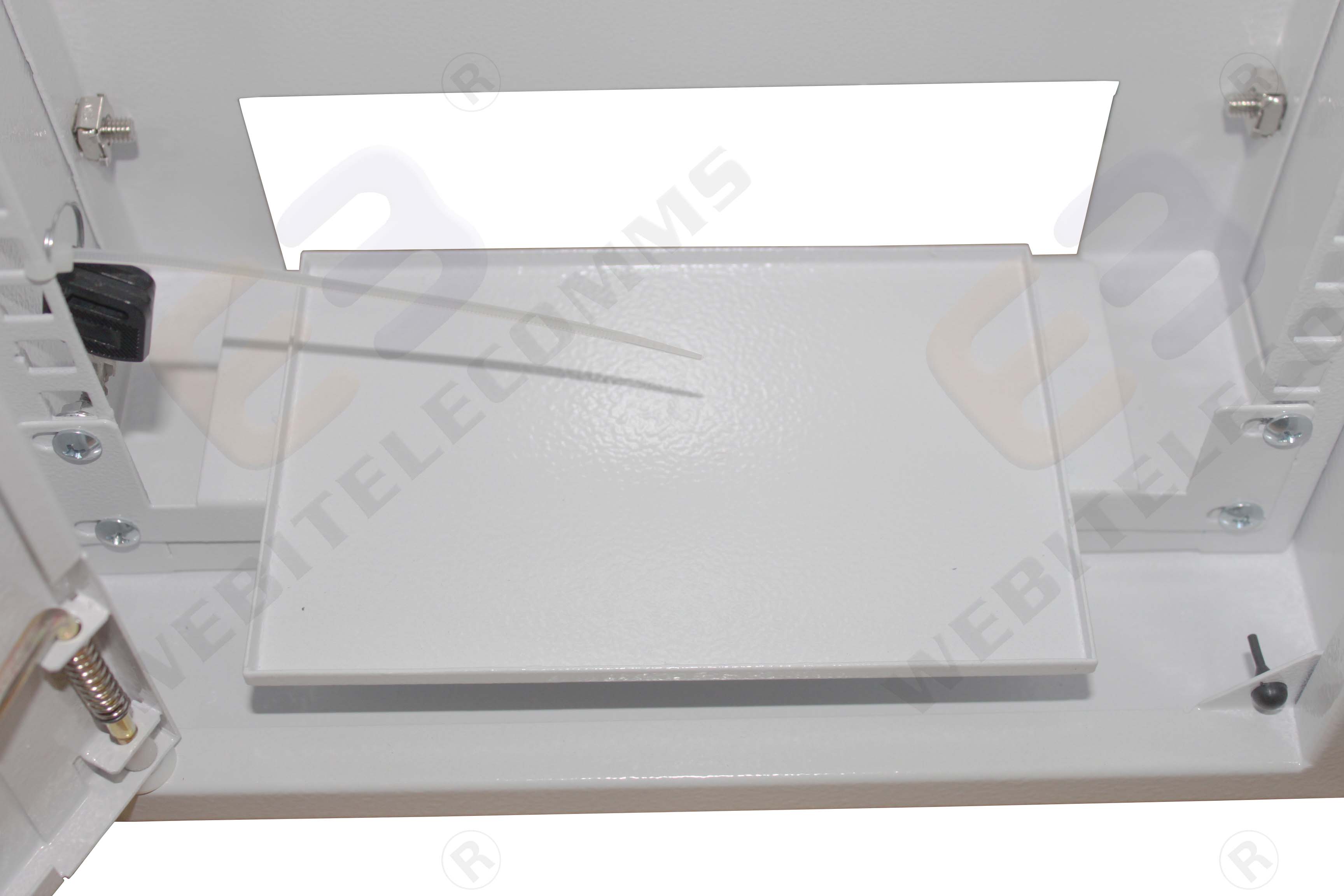

Bracket tray at bottom
| Model | Width | Depth | Height | U | Capacity |
| WB-KHxxxx7NW-8U | 275 | 150 | 380 | 8 | 20KG |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
