WB-GSxxxx7NG
| Model: | WB-GSxxxx7NG |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Function: | Used in Home or Office |
| Material: | SPCC cold rolled steel or EG steel |
| Thickness: | Mounting profiel 1.5mm others 1.0mm |
| Installation: | assembled only |
| Static loading: | 20kgs |
| IP degree: | IP20 |
| Dimensions: | 450x130xH |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 25.0 USD | Production Capacity: | 10000 unit per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartom |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 25 days |
| MOQ: | 50 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
WB-GSxxxx7NG cabinet is intended for installation fiber and network devices and their distribution systems.
19" rack mountable, Flat series- possible of max the load capacity up to 20KG.
Welding structure. ( 120-150mm Depth)
Widely used for FTTH.
Doors
Front solid metal door - cylinder key lock.
Rear wall mounting panel.
Unremovable side panel.
Accessories
2× 19" mounting rail. ( Horizontal welding )
1× Earthing cable
4× rubber cover
10 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 50mm rounded cable entrance
Bottom - 2 * 50mm rounded cable entrance
Can ask for more...
Package
Welding structure , unpack to use directly.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Heights - 4U ,5U ,6U, 7U, 8U
depth for demands: 130,150 mm , or customization
Standard and Materials:
Comply with ANSI/EIA;RS-310-D;IEC297-2; DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;
compatible with 19" international standard, metric systemand ETSI standard.
Surface Finish:Degreasing,pickling,phosphating,powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:1.5mm;others:0.8-1.0mm
IP degree: IP-20
Loading capacity:
-Static loading: 20KG
Color:RAL9004 (black);RAL7035 (grey)
Main parts List---
NO. | Part Name | QTY | Unit | Materials | Surface | Note |
1 | Body | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
2 | Front door | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
3 | Mounting rail | 2 | Piece | 1.5mm SPCC steel | Powder coating | Can be Galvanzed |
4 | small lock | 1 | Set | Zinc-alloy | - | |
5 | Earthing Bolt | 1 | Piece | 30 cm y/g cable | - | |
6 | Cable gland | 4 | Piece | Rubber | - | |
7 | M6 Screw | 10 | Piece | - | Powder coating |
Front view
side view
back view
inside view

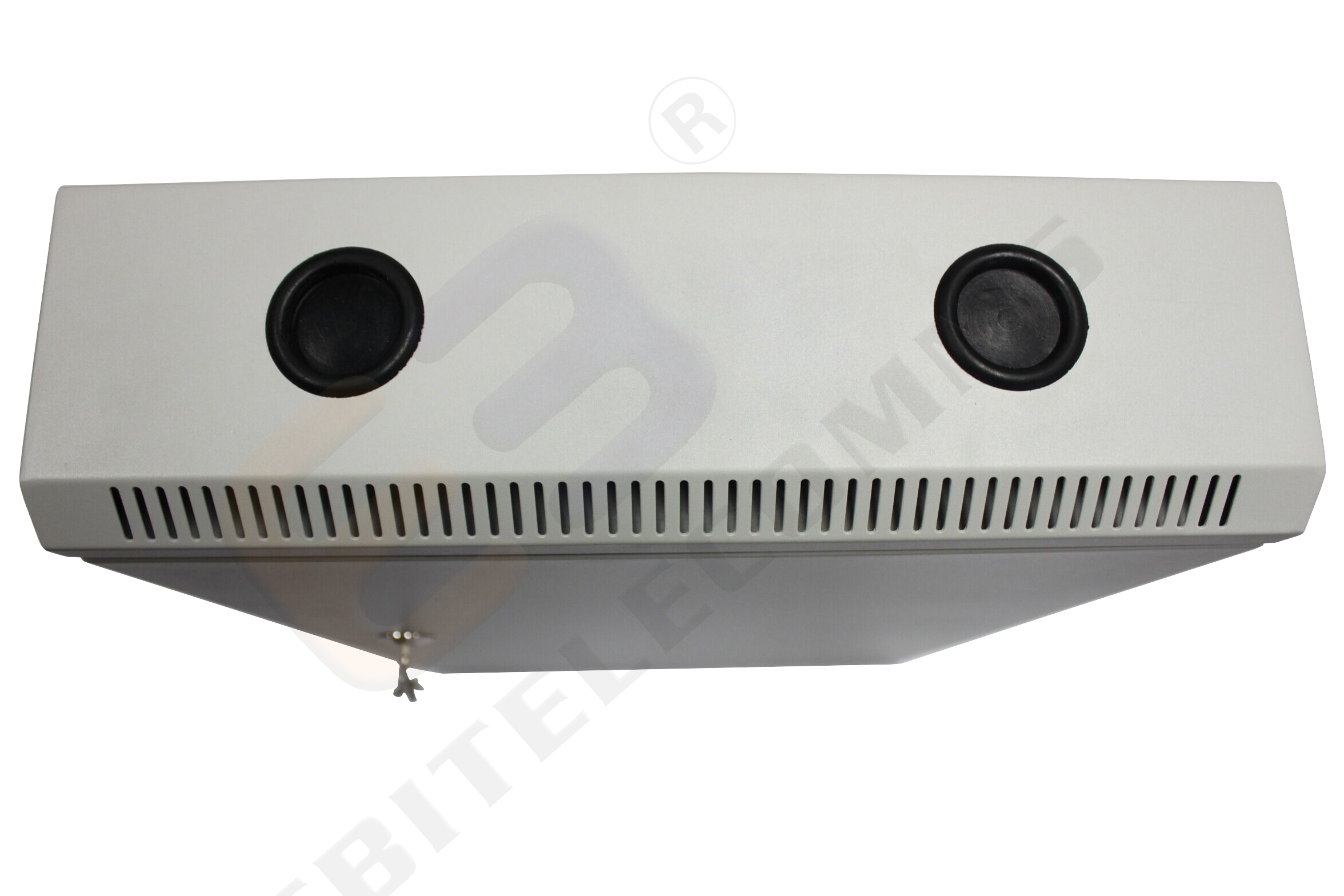

Top view

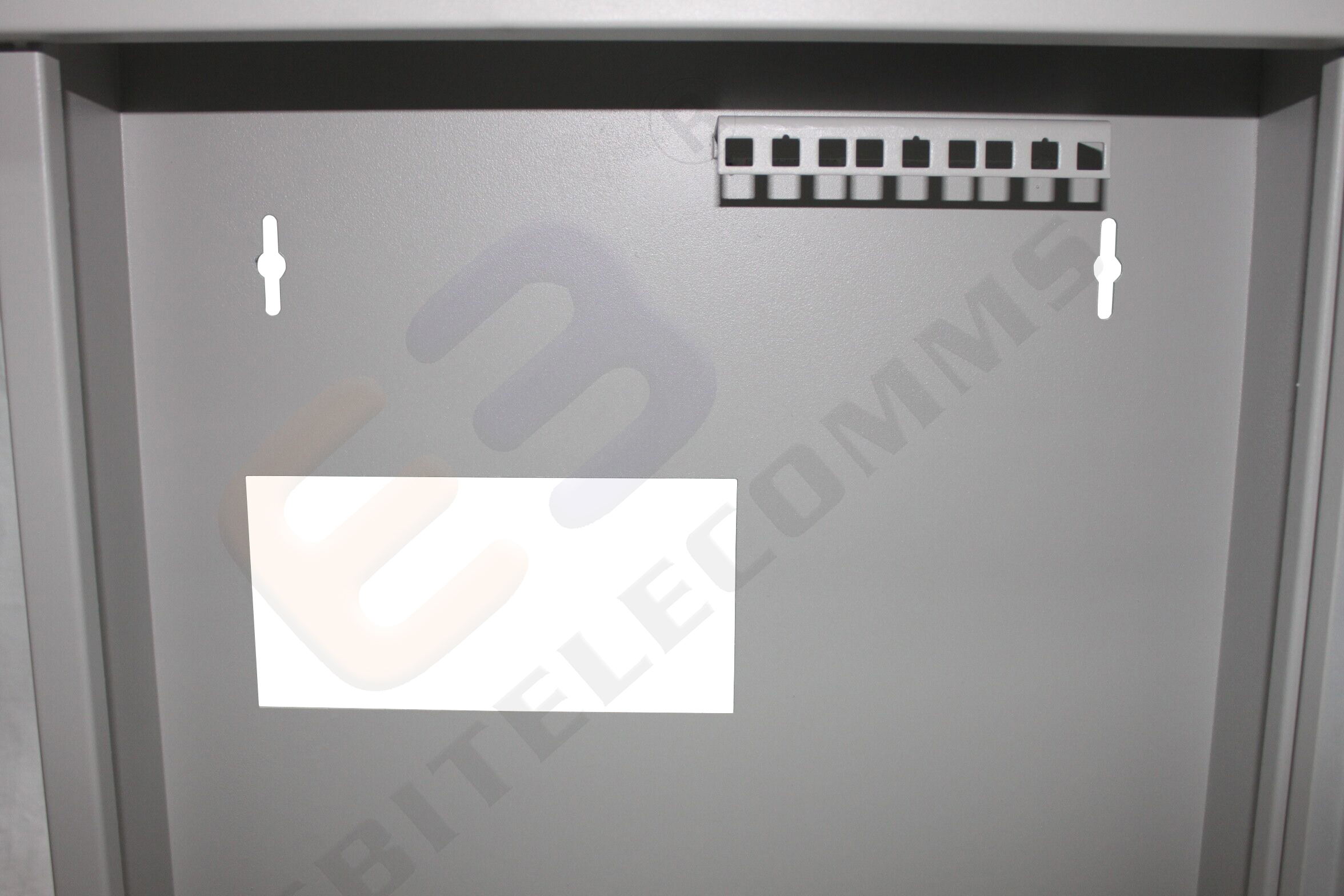

Horizontal welding mounting rail

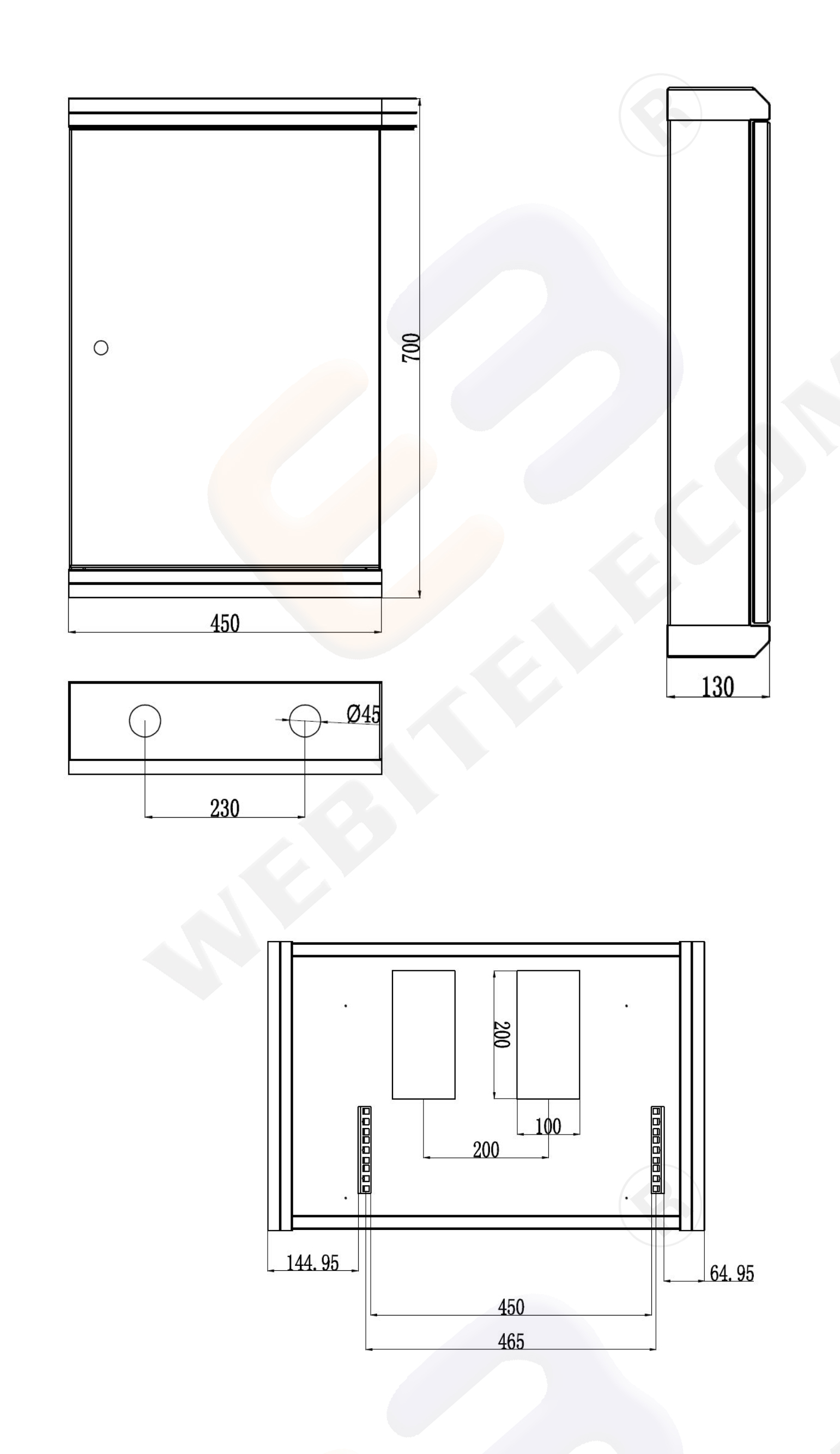

Drawing view
Standard packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
| Model | Width | Depth | Height | U | Capacity |
| WB-GSxxxx7NG | 450 | 130 | 700 | 3 | 20KG |
