| Model: | WB-SSxxxx2NB |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Material: | SPCC cold rolled steel or EG steel |
| Thickness: | Mounting profile 1.5 mm, others 1.0-1.2 mm |
| Static loading: | 60kgs |
| Fan hole: | 1 or 2 |
| Structure: | Assembled or flat packing |
| Surface: | Frosting or wrinkle |
| Color: | Black or grey |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 45.0 USD | Production Capacity: | 8000pcs/month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartons, wooden case |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 25-30 days. |
| MOQ: | 5 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
Dis-assembled glass door wall mounting cabinet with blue strip
Features
This cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, ARC perforated structure - possible of max the load capacity up to 60KG.
Glass door cabinet.
Usually used for data cabling devices
Doors
Front glass door with arc perforated door frame - handle lock.
Rear solid metal panel (N/A).
Removable side panel , quick opened latch.
Accessories
4× Position-adjustable 19" mounting rail. ( powder coated or galvanized)
1× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 1* 400×50mm rectangle cable entrance
Can ask for more...
Package

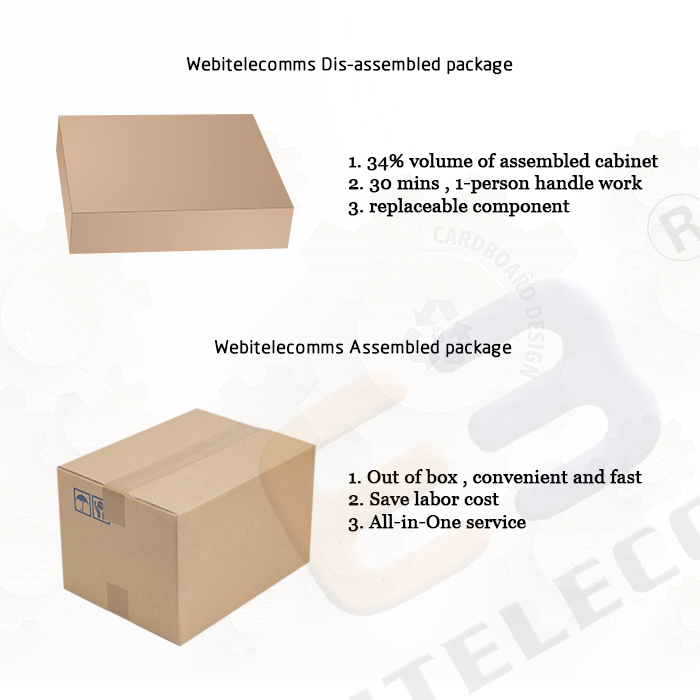

Disassembled packing save 66% volume , allows for convenient stocking.
Neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Wgoods_idth: 600 mm
Depth: 600,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Treatment options : Polish | Orange peal (Fine grained / Open frained )
Thickness:Mounting profile:1.5mm,others:1.20mm to 1.50mm
IP rate : IP-20
Max. Loading capacity:
-Static loading: 60KG
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.2mm SPCC cold rolled steel | Powder coating | |
2 | Front Door | 1 | Piece | 5mm Tempered transparent glass 1.0mm SPCC cold rolled steel | Powder coating | arc perforated border |
3 | Side Door | 2 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | Plastic fastener |
4 | Back panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
6 | Top | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
7 | Mounting Profile | 4 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Moon lock | 1 | Piece | Zinc alloy | - | Front door |
9 | Earthing Bolt | 1 | Piece | Y/G cable | - | |
10 | Wiring Panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | Screw M4 |
11 | M4＆M5 cage | 20 | Set | Stainless steel | Powder coating | |
12 | M6 Screw | 20 | Set | Stainless steel | Powder coating | 10sets for extra |
13 | Quick open latch | 4 | piece | Plastic | Powder coating | On side doors |

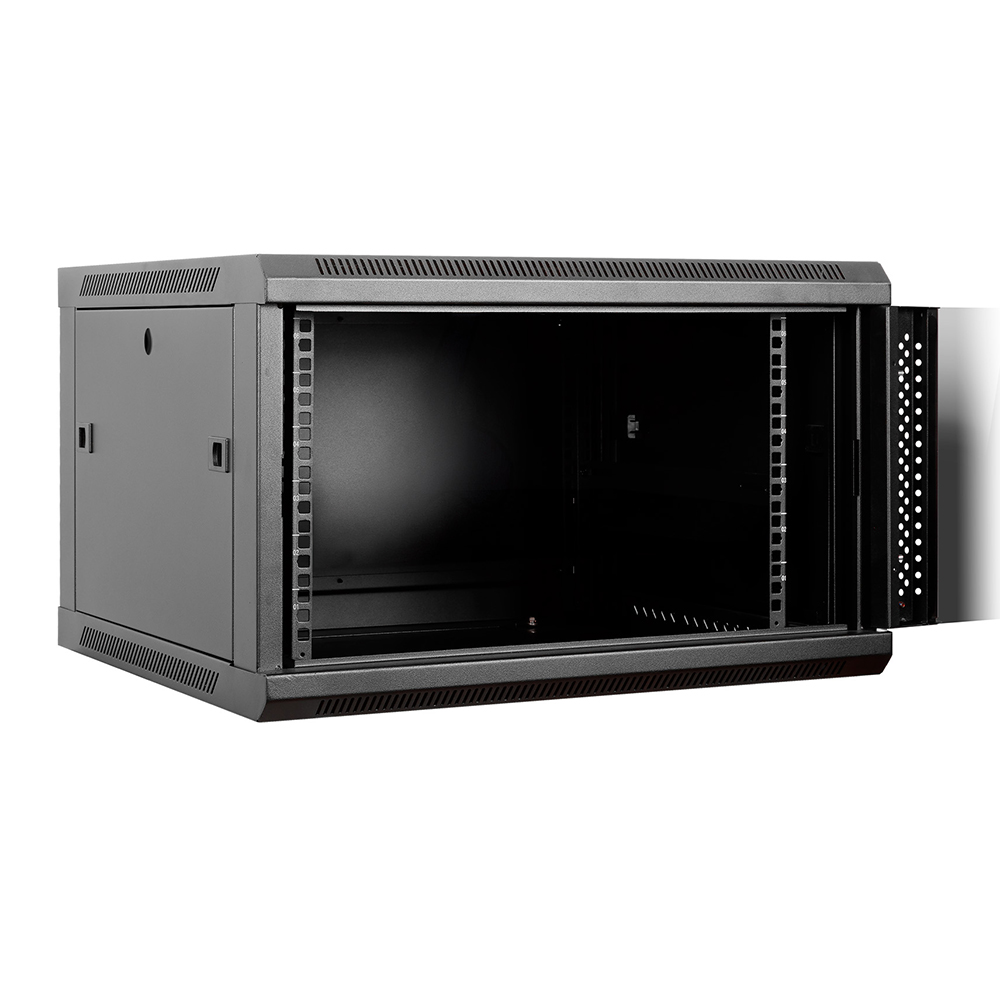

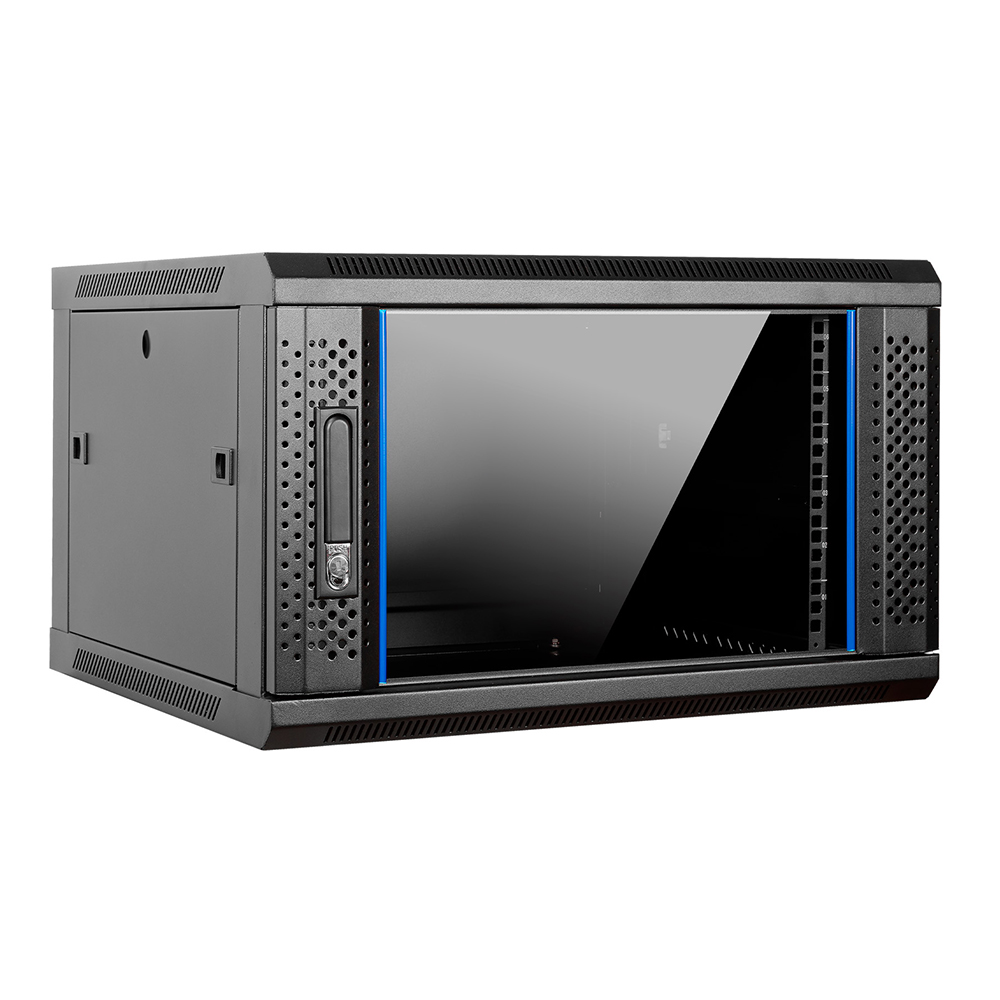

Front view
Side view
Back view
Border - arc perforated

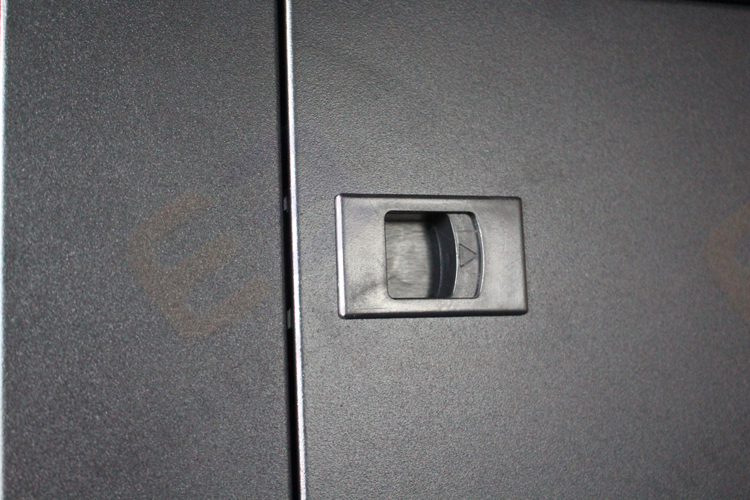

Quick open latch

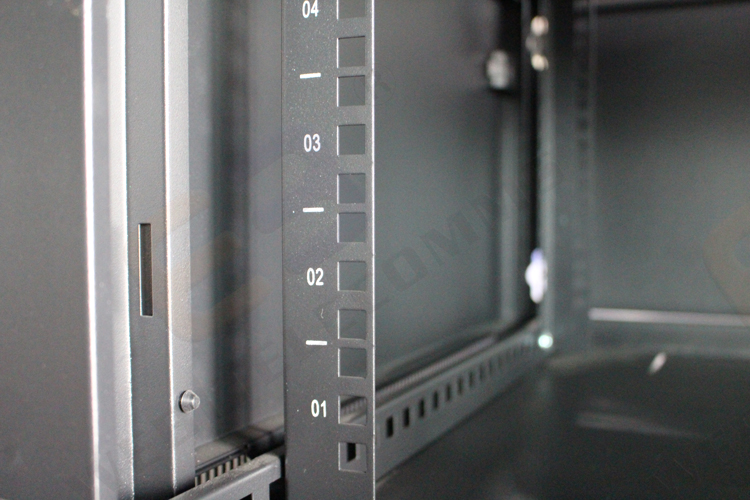

Inner rails ( can be galvanized)

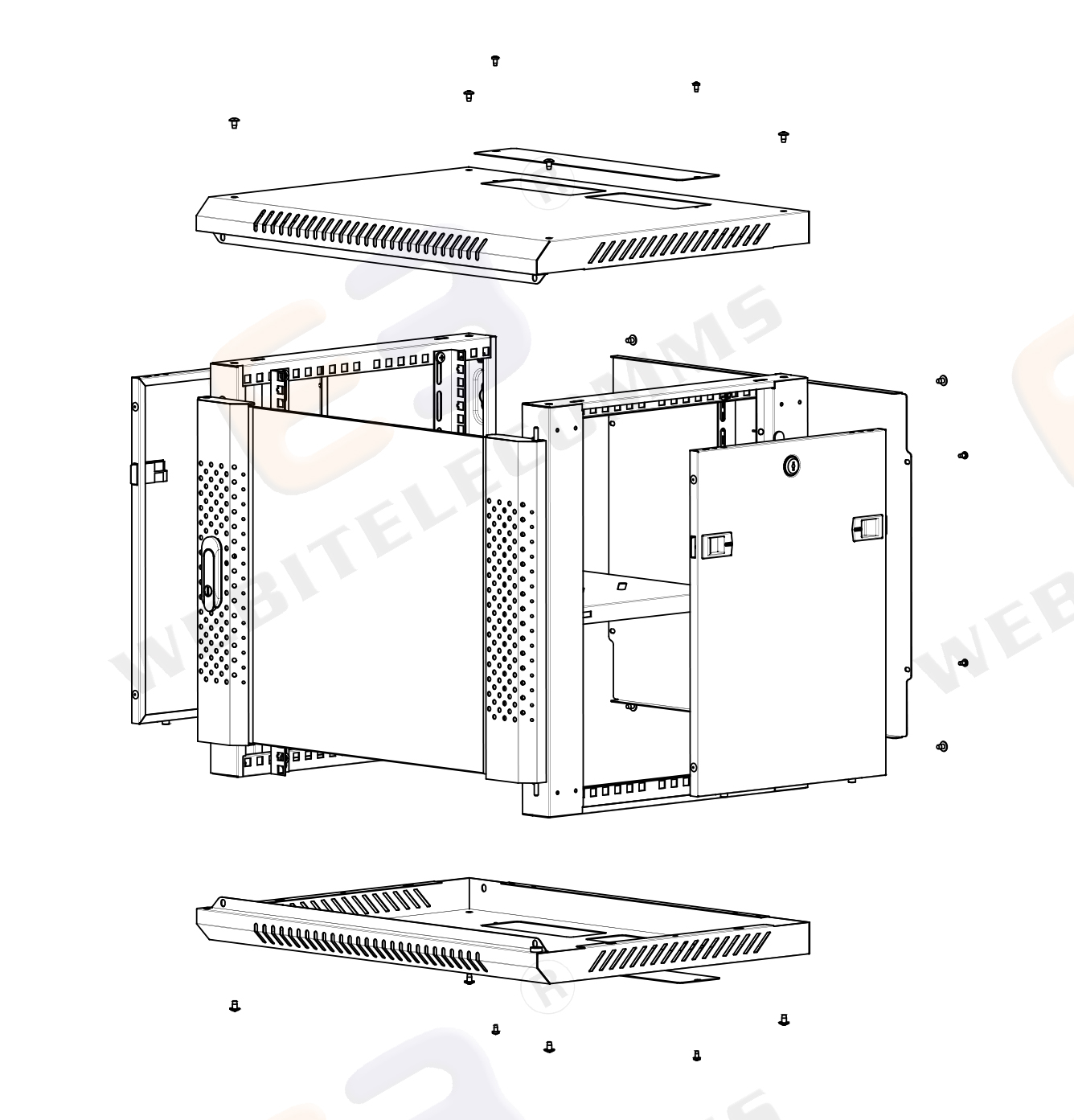

Structure
Standard packing

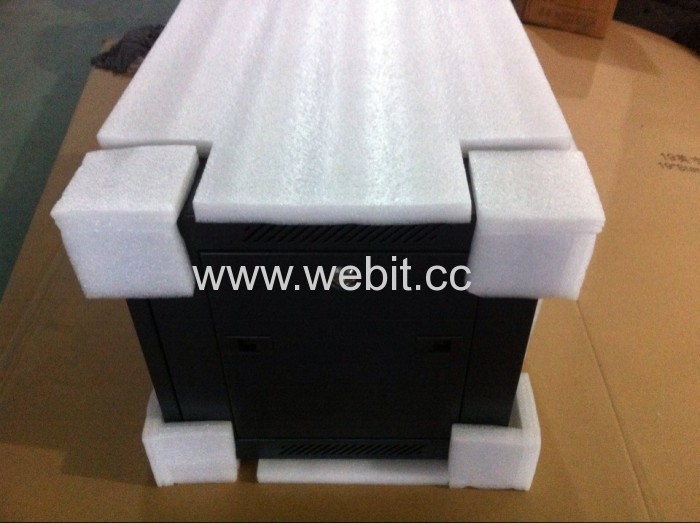

EPE packing [optional]
Wooden pallet[optional]
Size sheet
Model Number | Width×Depth×Height | U | Model Number | Width×Depth×Height | U |
WB-SS64062NB | 600×450×367 mm | 6U | WB-SS66062NB | 600×600×367 mm | 6U |
WB-SS64092NB | 600×450×500 mm | 9U | WB-SS66092NB | 600×600×500 mm | 9U |
WB-SS64122NB | 600×450×634 mm | 12U | WB-SS66122NB | 600×600×634 mm | 12U |
WB-SS64152NB | 600×450×767 mm | 15U | WB-SS66152NB | 600×600×767 mm | 15U |
WB-SS64182NB | 600×450×900 mm | 18U | WB-SS66182NB | 600×600×900 mm | 18U |
WB-SS64222NB | 600×450×1078 mm | 22U | WB-SS66222NB | 600×600×1078 mm | 22U |
WB-SS64272NB | 600×450×1300 mm | 27U | WB-SS66272NB | 600×600×1300 mm | 27U |
