| Model: | WB-MIxxxx4NB |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Function: | Used in Home or Office |
| Material: | SPCC cold rolled steel or EG steel |
| Thickness: | Mounting profiel 1.5mm others 1.0mm |
| Installation: | assembled only |
| Static loading: | 20kgs |
| IP degree: | IP20 |
| Surface: | Frosting or wrinkle |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 25.0 USD | Production Capacity: | 10000 unit per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartom |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 25 days |
| MOQ: | 50 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
10" SOHO wall mounted cabinets
Feature
WB-MIxxxx4NB is a cabinet is intended for installation CCTV devices and network distribution systems.
10" rack mountable,Mini structure - possible of max the load capacity up to 20KG.
Welding body SOHO cabinet .
Doors
Front smoky gray glass door - cylinder key lock.
Rear non full-covered solid metal panel (N/A).
Unremovable side panel with louver area.
Accessories
2× 1.50 mm Position-adjustable 10" mounting rail.
1× Earthing cable
10 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 100×40mm cable entrance
Bottom - 1* 100×40mm cable entrance
Can ask for more...
Package
Assembled packing.
Webitelecomms neutral carton box packed
Plywood pallet for options
Usually size
Width: 300 , 350 mm
Depth: 250, 300, 350 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM
Customized size is available
Industry Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:
Mounting profile:1.5mm
Body:1.00mm
IP degree: IP-20
Loading capacity: Max Static loading---20 KG
Body color:RAL9005(black);RAL7035(grey),etc
Main parts List---
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Main Body | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
2 | Front Door | 1 | Piece | 5mm Tempered transparent glass 1.0mm SPCC cold rolled steel | Powder coating | |
3 | Back panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | |
4 | Mounting Profile | 2 | Piece | 1.5mm SPCC cold rolled steel | Powder coating | Can GE treated |
8 | Small lock | 1 | Piece | \ | \ | Front door |
9 | Earthing Bolt | 1 | Piece | \ | \ | |
10 | Wiring Panel | 1 | Piece | 1.0mm SPCC cold rolled steel | Powder coating | Screw M4 |
11 | Fan cover | 1 | Set | 1.0mm SPCC cold rolled steel | Powder coating | |
12 | M6 Screw | 20 | Set | Mn56 steel | Zinc plated | for extra |
13 | Hinge | 2 | piece | Stainless steel | \ | Front door |
-Accessories matching-:
PDU | - eg. 10" 3-way country-spec series PDU |
Patch panels | - eg. 10" 8-port Cat6 UTP patch panel |
Shelves | -eg. 10" cantilever shelf [ as per Depth ] |
Router | -eg. Desktop / 10" one |
Others | etc.. |

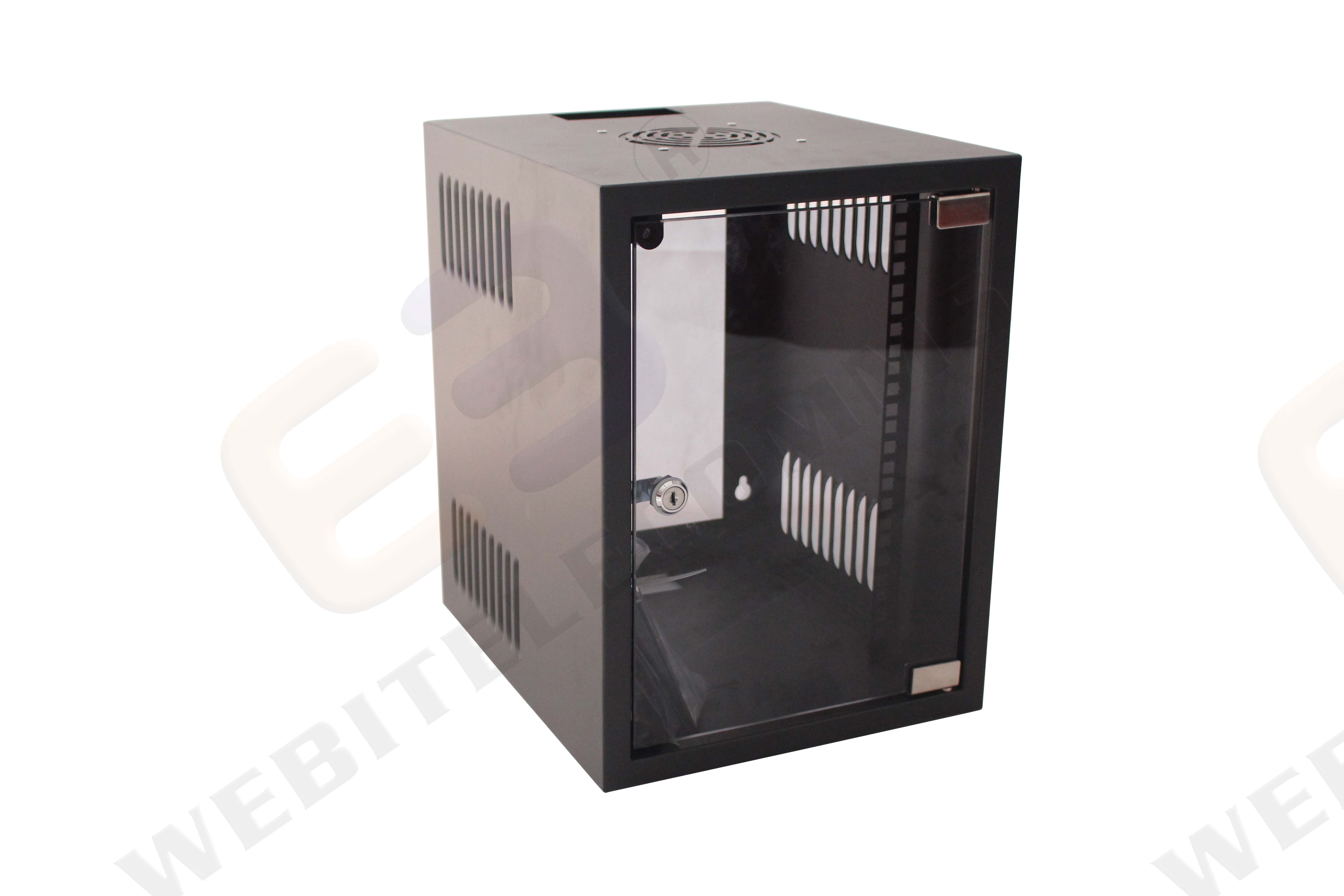

Front view

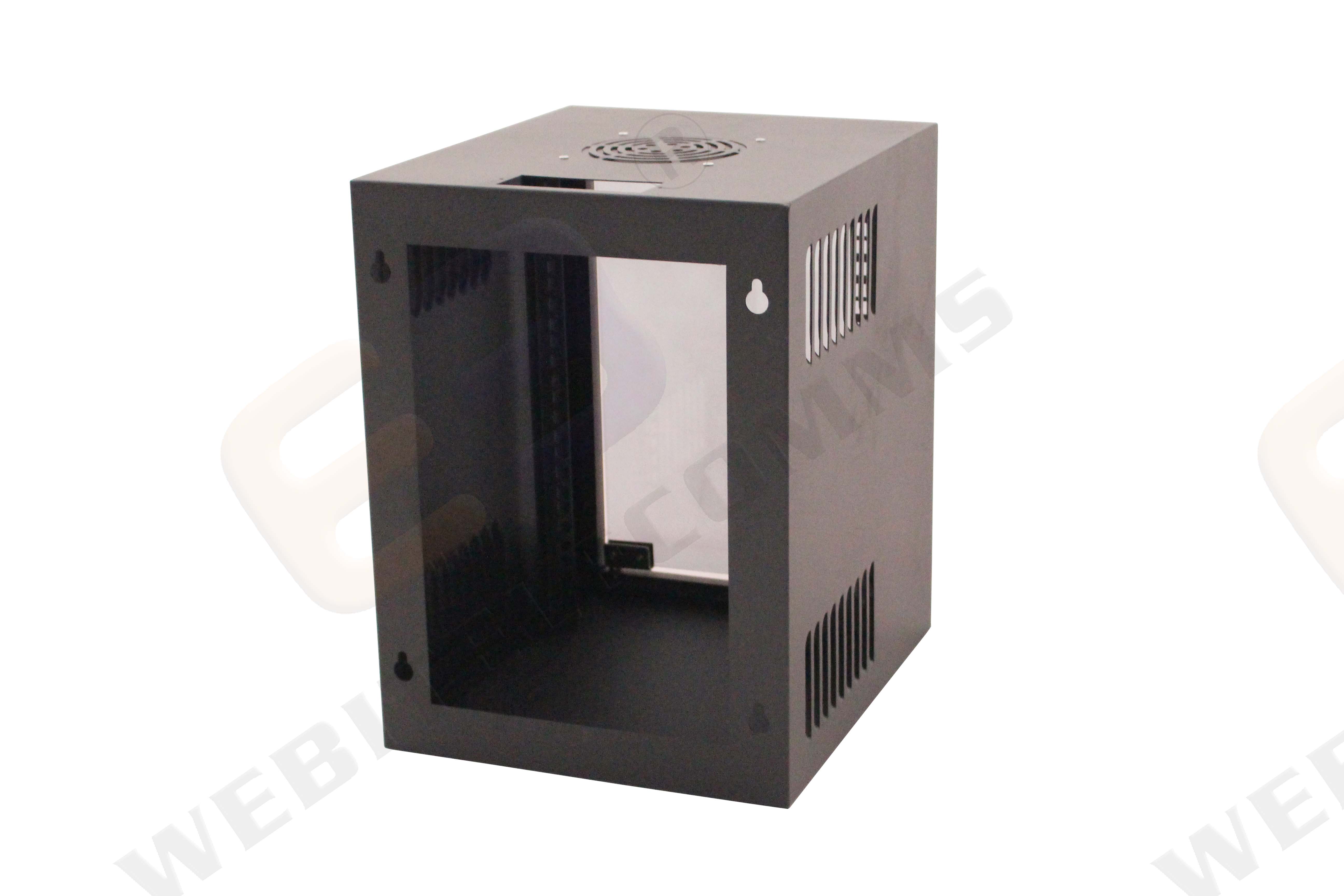

Rear view

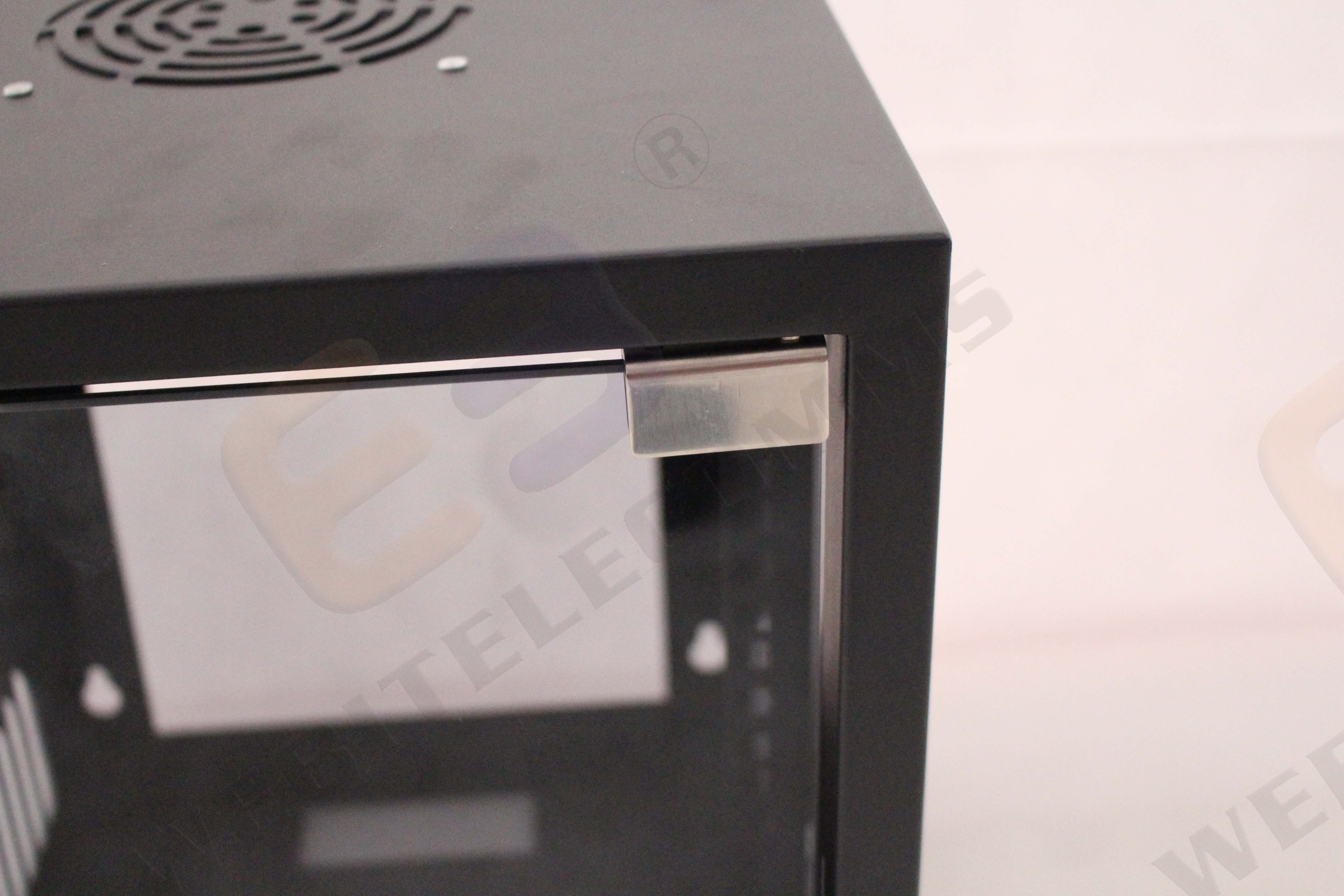

Top Fan cover panel & Front stainless steel hinge

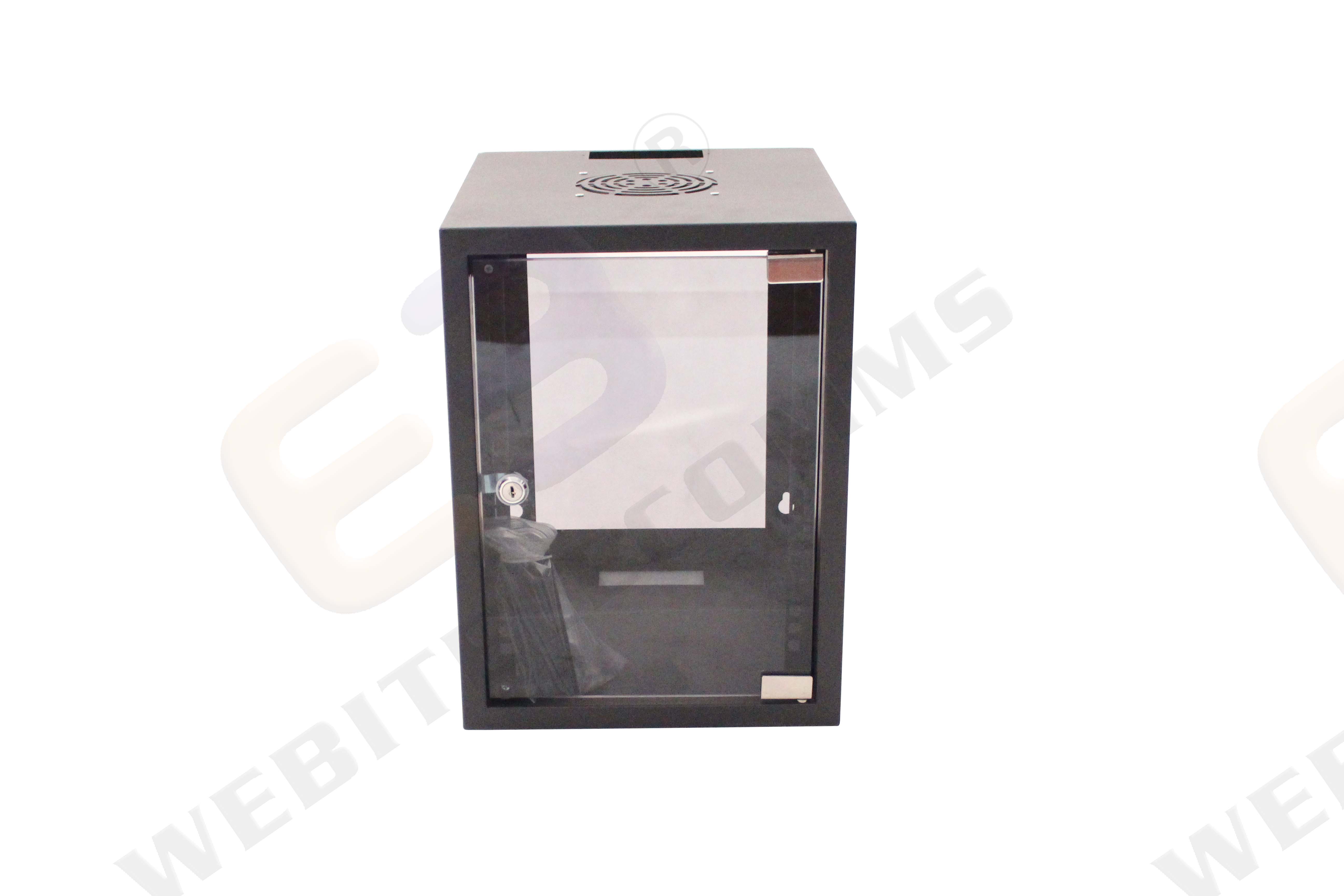

Front 5mm SMOKY GREAY glass door [ can be transparant]

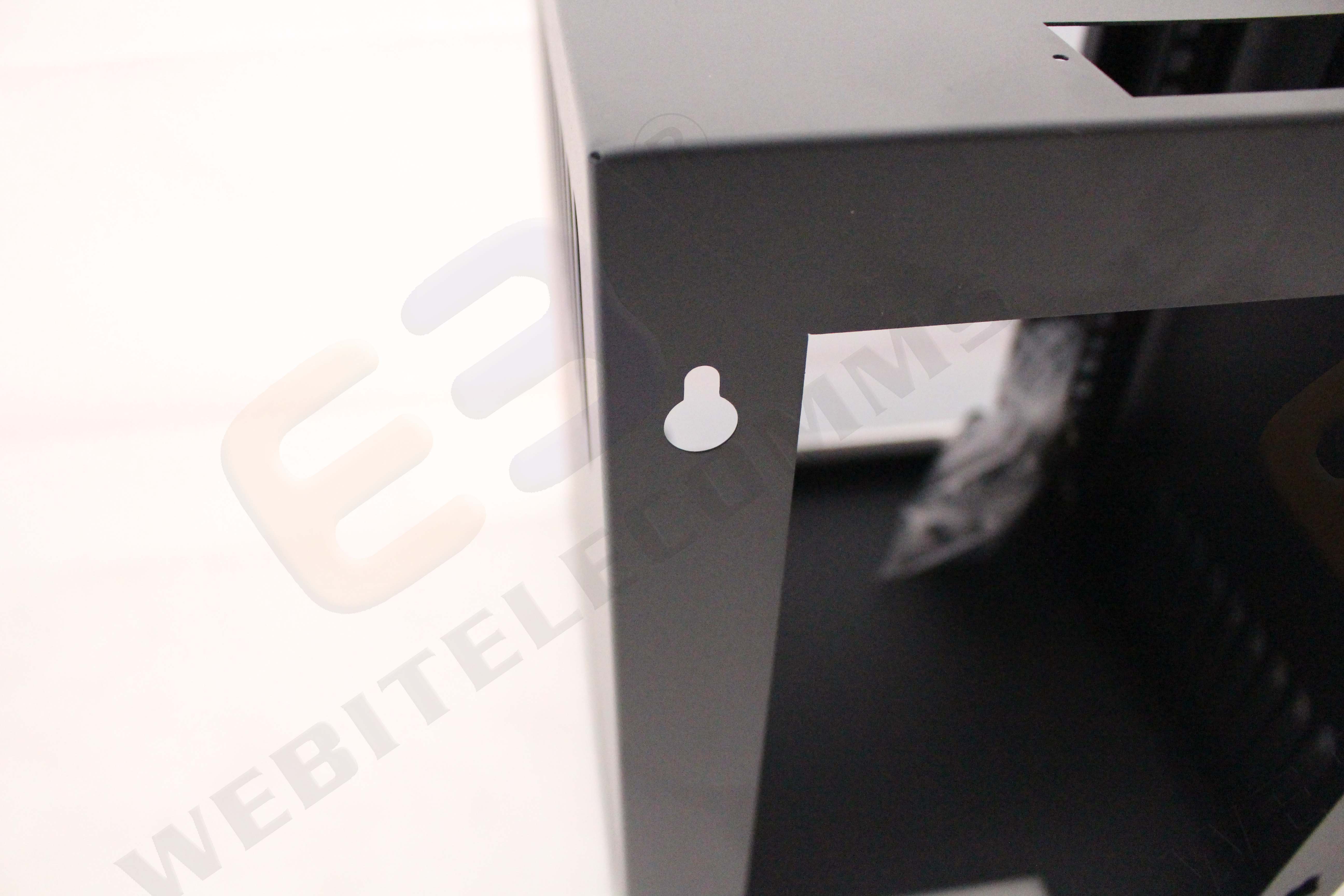

Rear mounting hole & cable entry

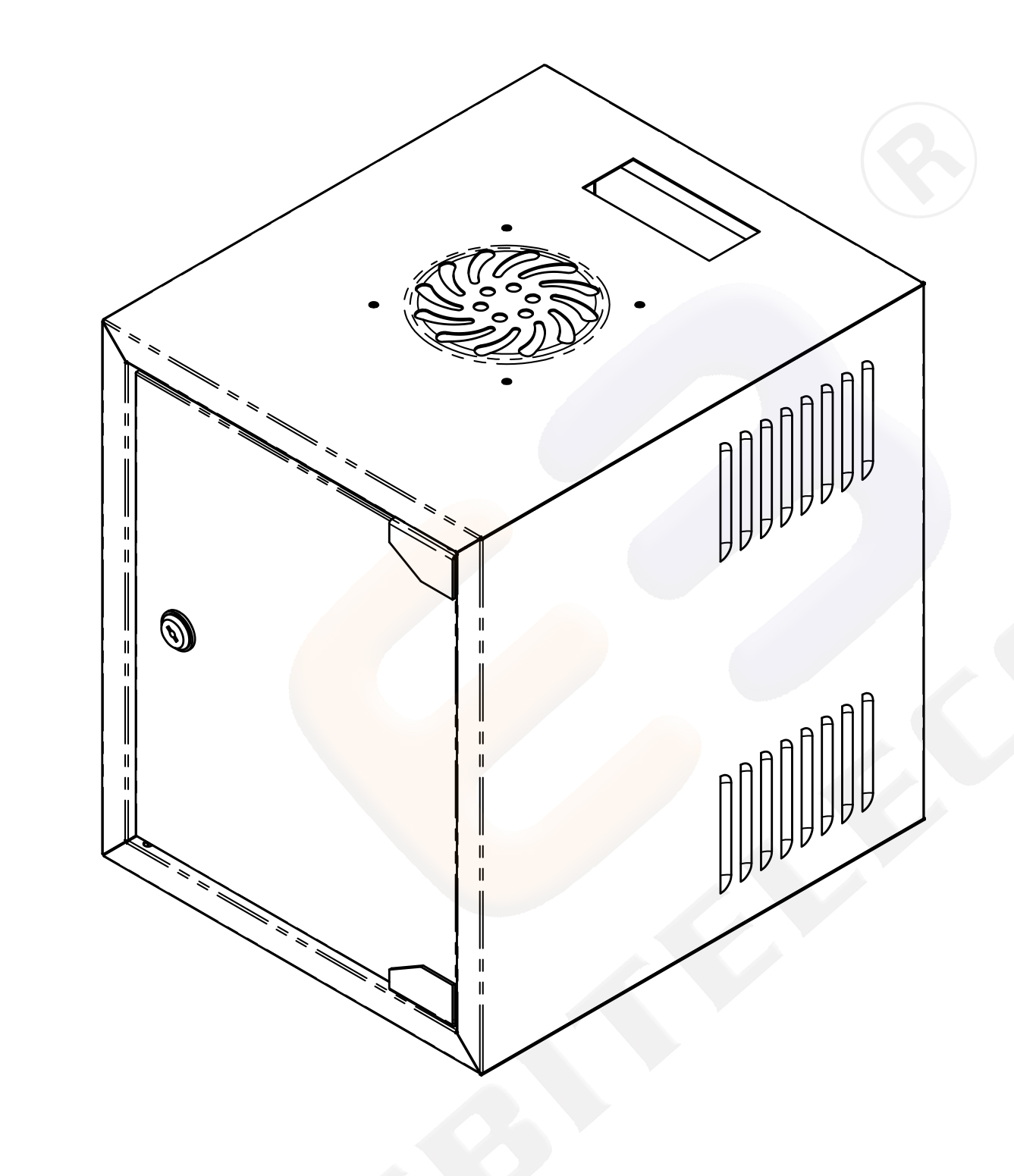

Drawing
=Shipment & Delivery =
Shipment
Note
Express
Door to door, very convenient, don't need to clearance or pick-up
By air
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
By sea
Port to port and you need to do the customs clearance and pick-up the goods at your local port
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Common size list
Model Number | Width×Depth×Height | Height | Volume(M3) | G.W.(kg) | Capacity |
WB-MI35044NB | 300×350×278 mm | 4U | 0.033 | 6.50 kg | 20 KG
(44 lbs) |
WB-MI35064NB | 300×350×367 mm | 6U | 0.047 | 7.50 kg | |
WB-MI35094NB | 300×350×500 mm | 9U | 0.062 | 9.00 kg | |
WB-MI35124NB | 300×350×634 mm | 12U | 0.078 | 10.5 kg | |
WB-MI35154NB | 300×350×767 mm | 15U | 0.095 | 12.0 kg | |
WB-MI35184NB | 300×350×900 mm | 18U | 0.109 | 13.5 kg | |
WB-MI35224NB | 300×350×1078 mm | 22U | 0.130 | 15.0 kg |
