Sliding Door

Model:Sliding door
Place of Origin:Zhejiang,China (Mainland)
Brand Name:webitelecomms
Data Center part:Auto sliding door
Dimensions:As per rack size
Aisle wgoods_idth:1200 mm or customized


Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOBProduction Capacity:3000 pcs per month
Payment Terms:L/C, WU, T/T, PaypalPacking:Cartons
MOQ:2 Piece/PiecesDelivery Date:30 days


Features:

1.data center using
2.Inner 19" installation server rack
3.server rack connected as data center
4.heavy duty racks used for telecomms

Details:

For HEAVY DUTY enclosures, raised floors are installed, rack rows are aligned face to face and the aisles between them are fitted with ceilings and sliding doors to enclose the cold aisle.

The cold air fed in through the raised floor is exclusively released into cold aisles.

Enclosure of the cold/warm aisles facilitates the targeted routing of cold air from the raised floor to the hotspots in the cabinets .

and the warm air back into the cooling cycle via the rear of the racks by effectively preventing warm and cold in the data centre from mixing.



Model600*1200 42U or other sizes
ColdGrey RAL7035 or Black RAL904,
AdditionalZ-brackets for roof support to be ordered separately


  • Glass top & front top

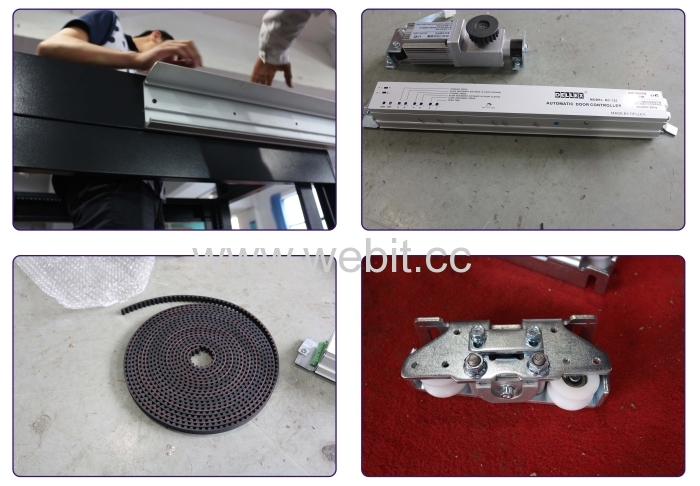

  • Auto sliding door parts


  • Drive chain for doors

  • Card series access system [Fingerprint type for optional]
