WB-PDU-09-3*9C13+4C19*32A3P
-
WB-PDU-09*2*8LC13*216A2P
-
WB-PDU-09-4C196C13-N2010W10KB10B-B19A
-
WB-PDU-09-8IEC16A1P
-
WB-PS-0104
WB-PDU-09-1UD*8C13*EK*FS
Model: | WB-PDU-09-1UD*8C13*EK*FS |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | Industrial |
Grounding: | Standard Grounding |
Brand Name: | Webitelecomms |
Rated Voltage: | 250V |
Rated Current: | 10A |
Materials: | Aluminum shell+ ABS model |
Height: | 0RU |
Input: | C14 plug |
Output: | 8 IEC320 C13 |
Voltage: | 250V |
Current: | 10Amp |
Max watt: | 2550W |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 10000 pcs/month |
Trade Term: | FOB,CFR,DDP,FCA,EXW | Packing: | netrual package,... |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 7~15 Days |
MOQ: | 50 Piece/Pieces | Means of Transport: | Land, Ocean, Air |
1U double side 8-way IEC C13 power socket strip, 10A fused with surge protector
Horizontal mounted industrial PDU socket, with leak-current protector
Aluminum-alloy shell,made from block burn PC , 3G*1.5mm² power lead
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect.
Braker protection, and fused.
PDU optional function
| Protection | On/off switch (defaulted) |
| 3-lights protection | |
| 1-light indictor | |
| Surge protection | |
| Fuse | |
| Current Meter | |
| Circuit breaker | |
| Locking | |
| Overload protector | |
| NEON Light | |
| Cables | PVC (defaulted) |
| RUBBER | |
| LSZH | |
| Shell | Alu-alloy (defaulted) |
| Plastic | |
| SPCC | |
| Mounting | 1U ears (defaulted) |
| Revolving ears | |
| Hook | |
| Desktop |
Specifications
Rated current | 10A Max |
Rated load | 2550W Max |
Rated voltage | 250V |
Household voltage | 230V |
Number of sockets | 3 to 8 ways |
Size | 19" 1U double side |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm²*2m |
Type of plug | IEC C14 plug; others for optional |
IP rate | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |

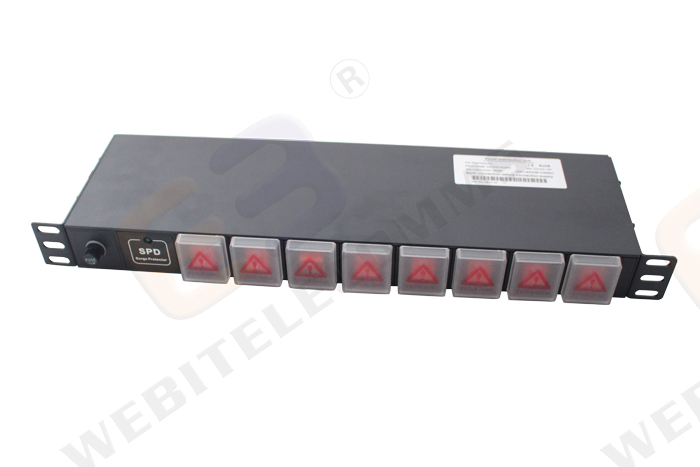

Front view

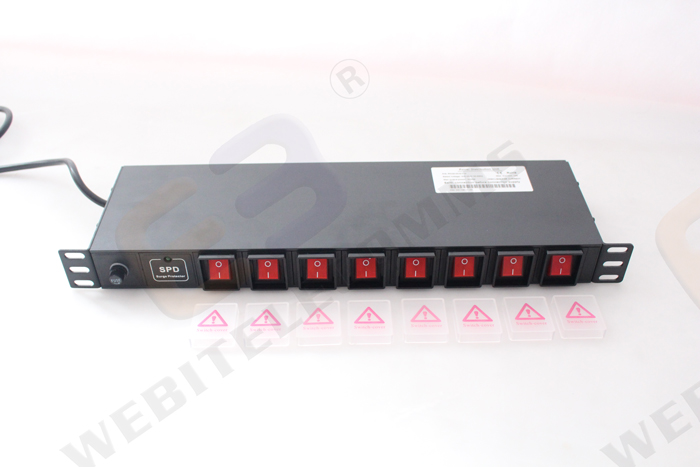

Each socket with switch

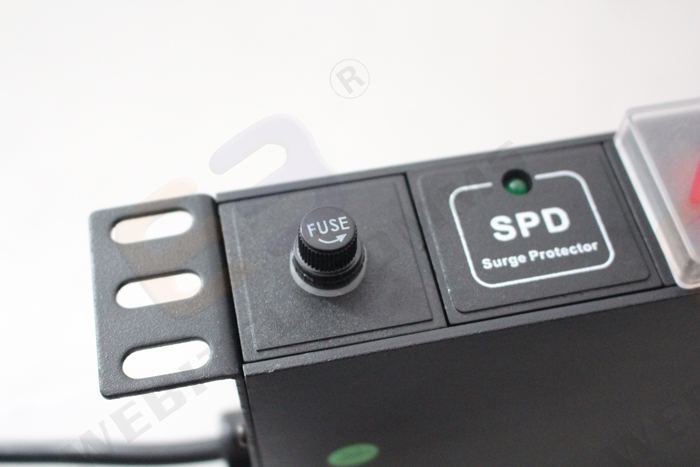

10A fused for circuit , Surge protector

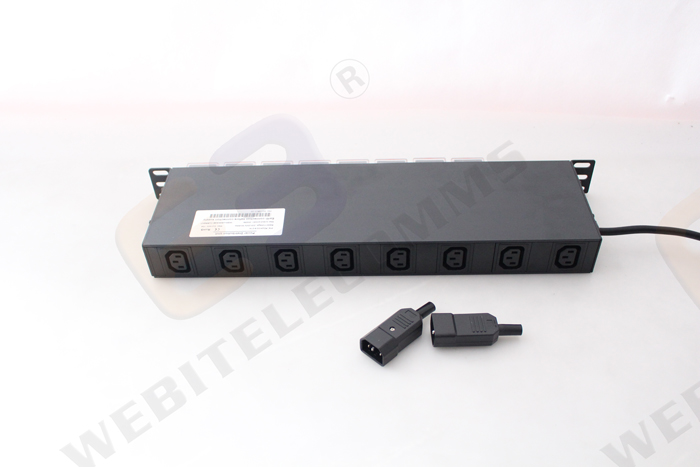

8 x C14 plug in package
Packing information
Carton size | 55x30x35cm |
Product box size | 52*14*7 cm |
Quantity in one carton | 10 pcs |
Metal enclosure | |
Gross weight for one carton | 14kg |
Net Weight for one carton | 12kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF are all available as per needs.
3) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
4) What is your MOQ?
---Most
of Webitelecomms PDU sold with 50 pcs
MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
