WB-PDU-09-4C196C13-N2010W10KB10B-B19A
Model: | WB-PDU-09-4C196C13-N2010W10KB10B-B19A |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | WEBITELECOMMS |
Material: | SPCC shell |
Size:: | 19" 2U |
Grounding: | Standard |
Socket: | 6xC13 + 4xC19 |
Plug: | 32A Commando Plug |
Switch: | GREEN switched |
Fuse rate: | 5A for C13 ,10A for C19 |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 80.0 USD | Production Capacity: | 50000pcs per month |
Trade Term: | FOB,CFR,CIF,FCA,EXW | Packing: | carton |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 15-day |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air |

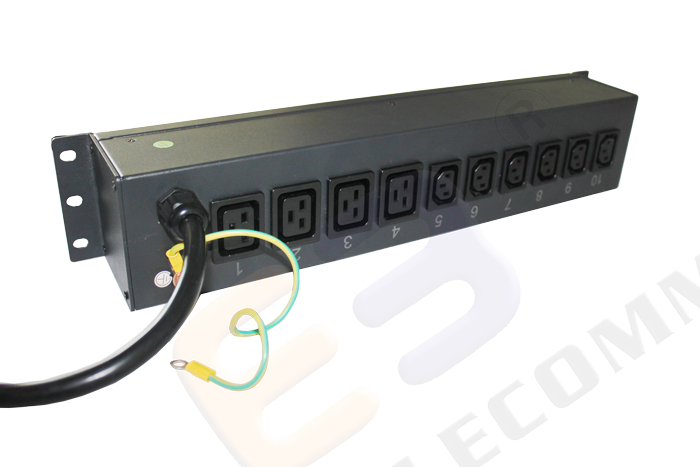

19 horizontal 2U C13 & C19 PDU, each switched
Size: 19" 2U 80mm
Sockets: 6xC13 + 4xC19 with 5A & 10A fuse
Switch: GREEN switches
Plug: 16A/32A IEC60309
Main cable: 2~3 m x 3G x 2.5mm²/4mm²/6mm²
Depth : 80mm excluding the earthing cable
LOGO : Laser printing
Optional Funtion: Digital AM meter
PDU optional function
Protection | On/off switch (defaulted) |
3-lights protection | |
1-light indictor | |
Surge protection | |
Fuse | |
Current Meter | |
Circuit breaker | |
Locking | |
Overload protector | |
NEON Light | |
Cables | PVC (defaulted) |
RUBBER | |
LSZH | |
Shell | Alu-alloy (defaulted) |
Plastic | |
SPCC | |
Mounting | 1U ears (defaulted) |
Revolving ears | |
Hook | |
Desktop |

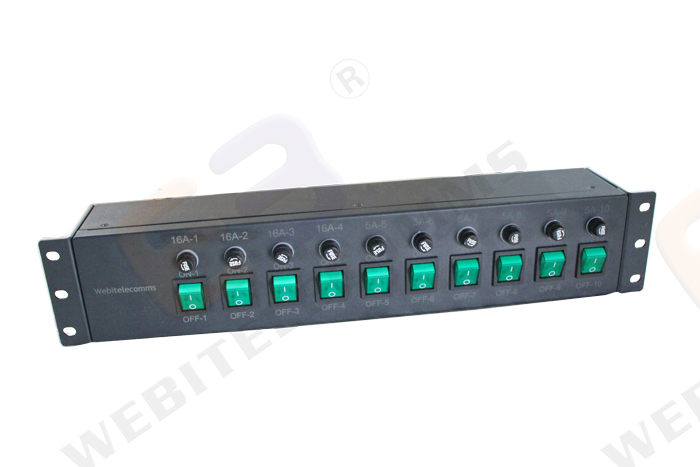

Sample Show

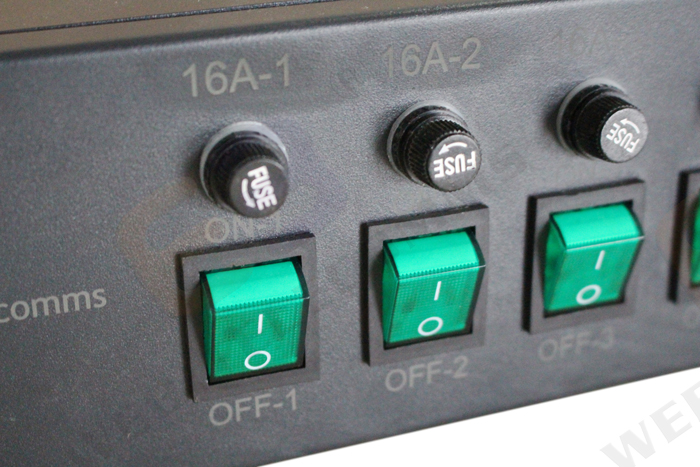

Fuse & switch

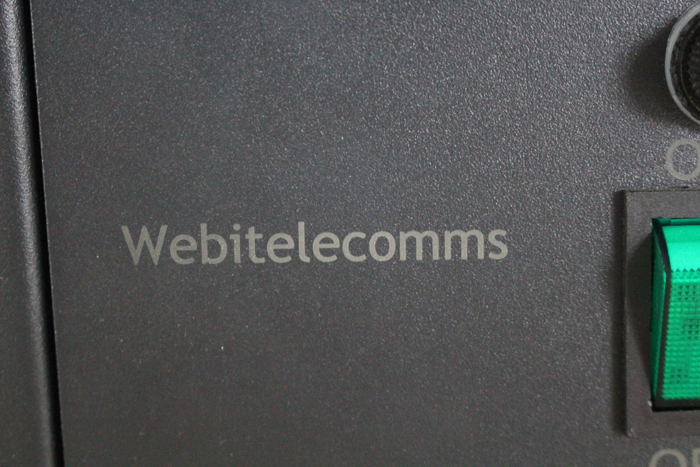

Laser printing LOGO

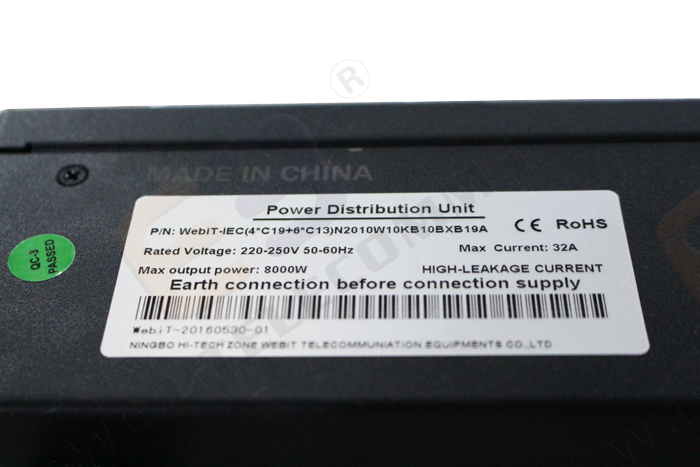

Labelling

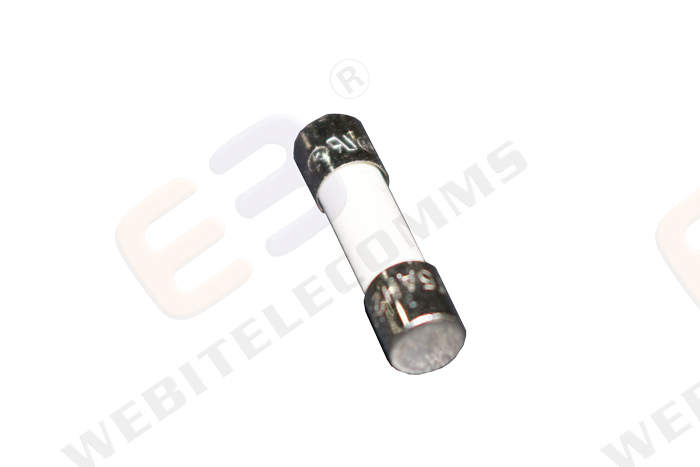

Fuse
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---Webitelecomms PDU sold with is 50
pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
