WB-PDU-09-3*9C13+4C19*32A3P

Model:

WB-PDU-09-3*9C13+4C19*32A3P

Place of Origin:

Zhejiang,China (Mainland)

Brand Name:

webitelecomms

Material:

Aluminum

Plug:

IEC60309 plug (32A 3P+N+E)

Main cable:

5G * 6MM2 * 3M

Socket type:

IEC320


Product Description

Payment & Shipping Terms

Supply Capacity

Unit Price:

150.0 USD

Production Capacity:

20000PCS per month

Trade Term:

FOB,EXW

Packing:

carton

Payment Terms:

L/C, WU, T/T, Paypal

Delivery Date:

15-day

MOQ:

5 Piece/Pieces

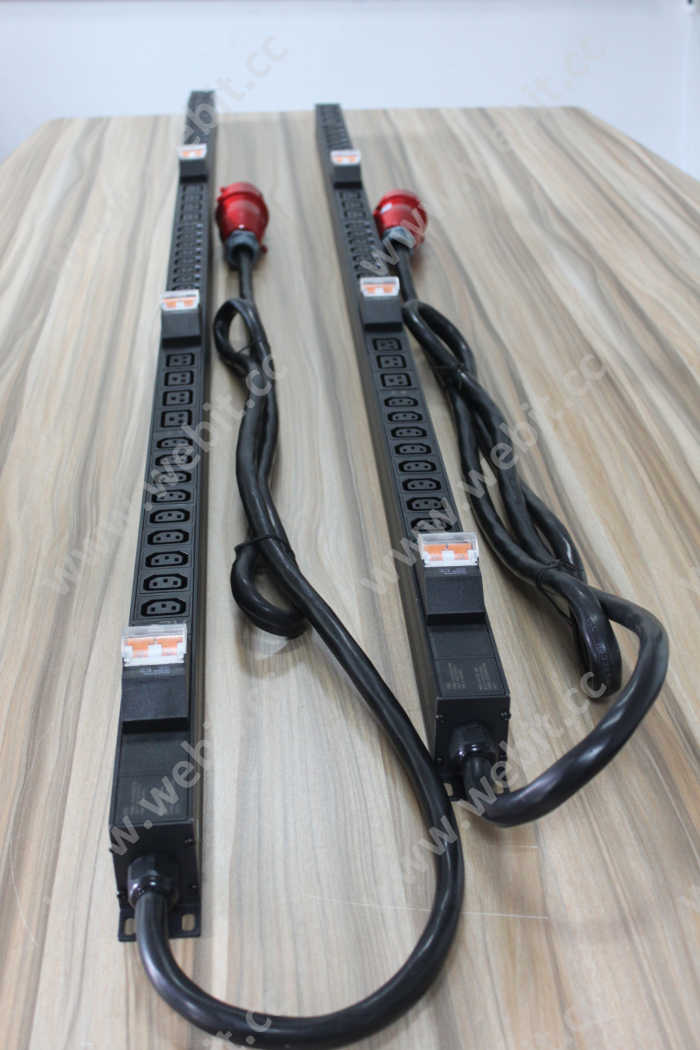

0U vertical installation 3-PHASE IEC PDU


Specifications:

Shell Material

Aluminum shell

Product series

IEC industrial series

Socket

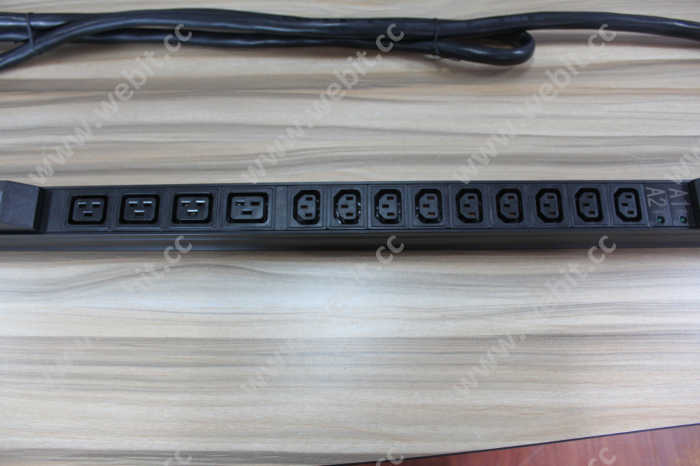

IEC320 C13[27-way] + IEC320 C19[12-way]

Output unit

IEC320

Power supply

Surface connecting, Left input

Installation

19'' vertical installation

Plug

IEC60309 plug [32A 3P+N+E]

Power Control

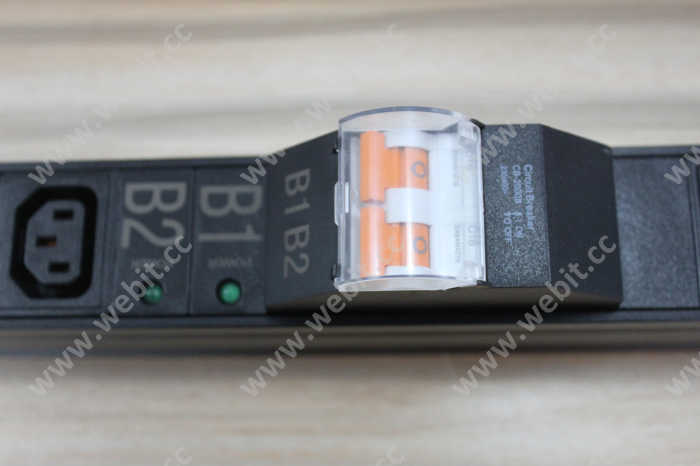

6PCS 16A 1P breaker + 6PCS power indicator

Protection

Non

Shell color

Black

Main Cable

5G×6mm2×3m

Internal cable

1.5mm2 for C13; 2.5mm2 for C19

Dimensions

L×W×H=2073×45×98mm


Product name

Designated Power Distribution Unit for Cabinet

Model NO.

WB-PDU-09-3*9C13+4C19*32A3P

Rated voltage

380V 3-PHASE

220-250VAC each phase  50-60Hz

Max current

32A

Max Watts

8000W

Safety certificate

CE,ROHS

Marks

Non

Manufacturer

Ningbo Hi-tech zone webit telecommunication equipments Co.,Ltd
