WB-PDU-09-8IEC16A1P

Model:

WB-PDU-09-8IEC16A1P

Place of Origin:

Zhejiang,China (Mainland)

Application:

Industrial

Grounding:

Standard Grounding

Type:

Plug with Socket

Brand Name:

Webitelecomms

Rated Voltage:

250V

Rated Current:

16A

Materials:

Aluminum shell+ ABS model

Height:

0RU

Input:

16A/32A industril plug

Output:

8 IEC320 locking C13

Voltage:

250V

Current:

16Amp

Max watt:

4000W for industrial

Certificate:

CE,ISO, ROHS

Product Description

Payment & Shipping Terms

Supply Capacity

Unit Price:

1.0 USD

Production Capacity:

10000 pcs/month

Trade Term:

FOB,CFR,DDP,FCA,EXW

Packing:

netrual package,...

Payment Terms:

L/C, WU, T/T, Paypal

Delivery Date:

7~15 Days

MOQ:

50 Piece/Pieces



Means of Transport:

Land, Ocean, Air

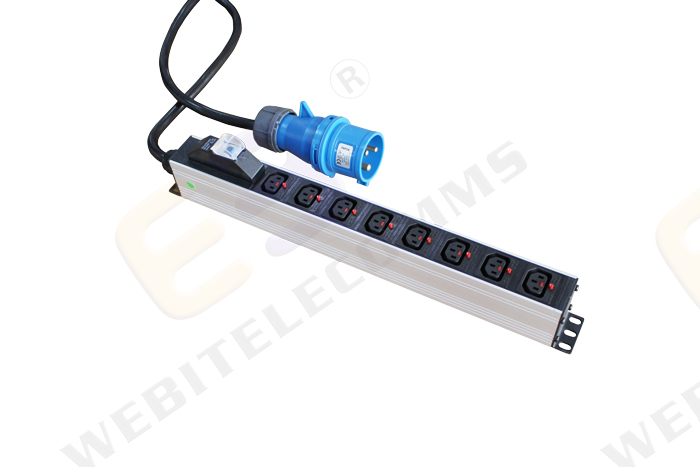

8-way 0RU vertical IEC C13 locking PDU with 16A Commando plug


  • Vertical mounted industrial PDU socket, with leak-current protector

  • Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+UL plug

  • According to customer request, we could add AC or DC display

  • Color: Black or silver

  • Children safty protect.

  • Braker protection, and fused.


PDU optional function

ProtectionOn/off switch (defaulted)
3-lights protection
1-light indictor
Surge protection
Fuse
Current Meter
Circuit breaker
Locking
Overload protector
NEON Light
CablesPVC (defaulted)
RUBBER
LSZH
ShellAlu-alloy (defaulted)
Plastic
SPCC
Mounting1U ears (defaulted)
Revolving ears
Hook
Desktop


Specifications

Rated current

16A Max

Rated load

4000W Max

Rated voltage

250V

Household voltage

230V

Number of sockets

3 to 48 ways

Size

19" 1U

Shell material

Uninflammable PC module, Aluminium alloy shell

Type of cable

3G*4mm²*2m

Type of plug

Industrial 16A plug; 32A for optional

Degree of protection against electric shock

IP20

Provision for earthing

With earting contact

Method of connecting the cable

Non-rewirable

Type of connections

Welded-solder

Degree of protection against electric shock

Normal protection

Existence of shutters

With shutters

Method of application-mounting

Portable type



Front view

Industrial plug

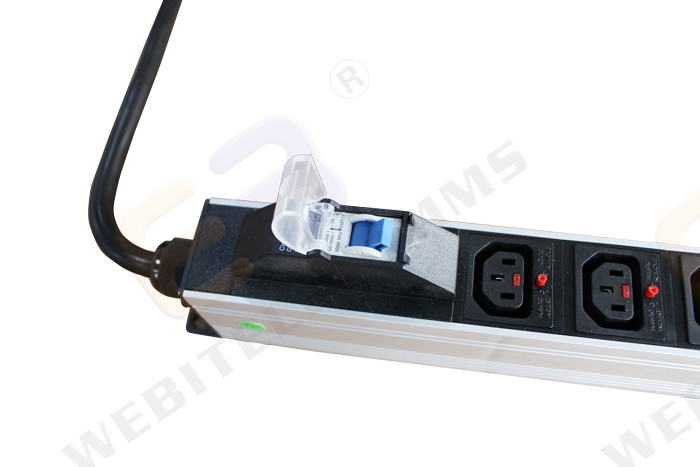

Circuit breaker

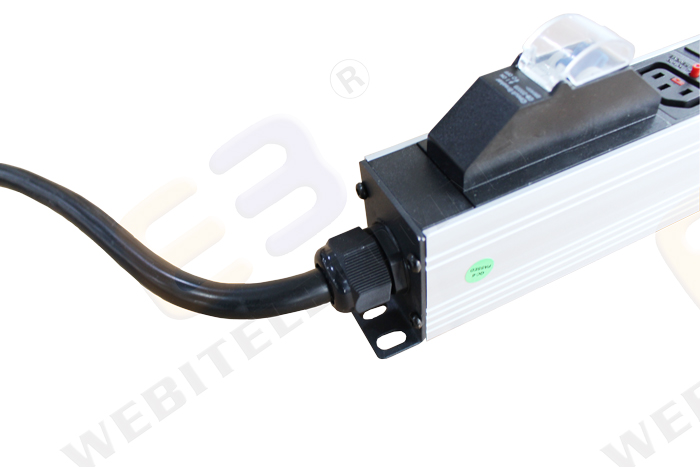

Cable gland

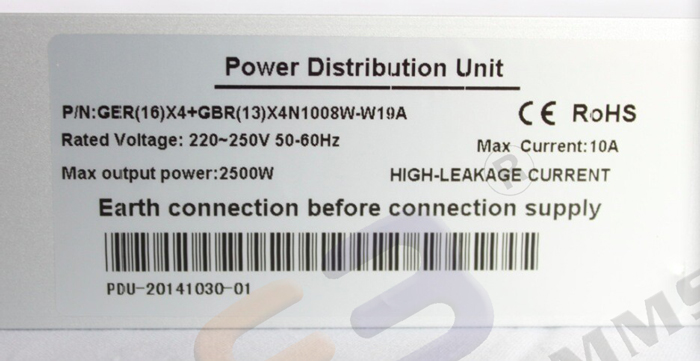

Silver tag



Packing information

Carton size

72x30x37cm

Product box size

70*14*7 cm

Quantity in one carton

10 pcs

Metal enclosure

Gross weight for one carton

21kg

Net Weight for one carton

19kg

Plastic enclosure

Gross weight for one carton

19kg

Net Weight for one carton

17kg

=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF are all available as per needs.

3)    What is the Loading Port?
--- Usually Ningbo or Shanghai port.

4)    What is your MOQ?
---Most of Webitelecomms PDU sold with 50 pcs MOQ, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
