19 " Glass door NETWORK CABINET with vented door frame

Features

WB-NCxxxx36B cabinet is intended for installation data and telecommunication devices and their distribution systems.

19" rack mountable, Universal type - possible of max the load capacity up to 800KG.

Front & back door earthing.

Widely used for Data cabling and monitoring aids.

Doors

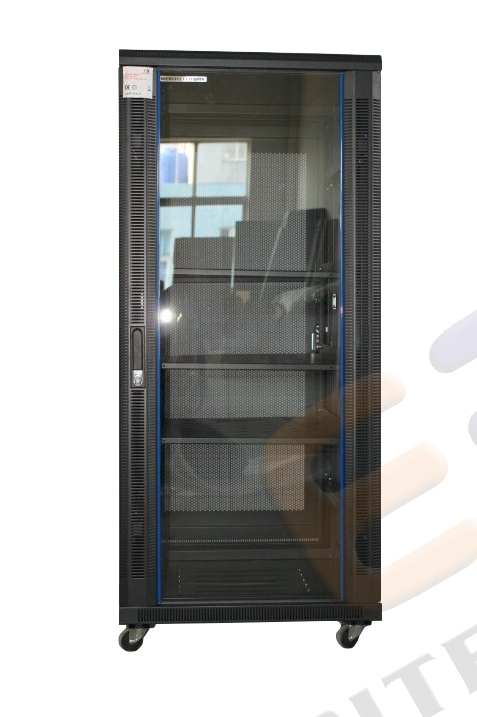

Front glass door with arc perforated door frame - swing handle lock.

Back single perforated door with swing handle lock.

Removable side panel , optional lock.

Accessories

AC Fan-tray (2 or 4 fans) - as per depth

4× position-adjustable 19 " mounting rail.

Colorful rubber beading decoration.

300KG capacity wheels and adjustable feet.

20 sets of extra M6 caged screws.

Cable entrance

Top  - 1 * 400×50mm rectangle cable entrance

Bottom - 4* 350×50mm rectangle cable entrance

Can ask for more...

Package

Disassembled packing save 60% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options

= Varies specification upon customers' special requirements=

Size suggestions

Width: 600,800 mm

Depth: 600,800,1000,1200 mm

Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U

Customized size is available

Standard and Materials:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Materials:SPCC cold rolled steel or EG steel

Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm

Cabinet Bearing capacity: 600-800KG

IP degree: IP-20

Body color:RAL9004(black);RAL7035(grey),etc

=Main parts=

-Accessories matching-:

• Tempered glass with LOGO plate or silk print logo for options

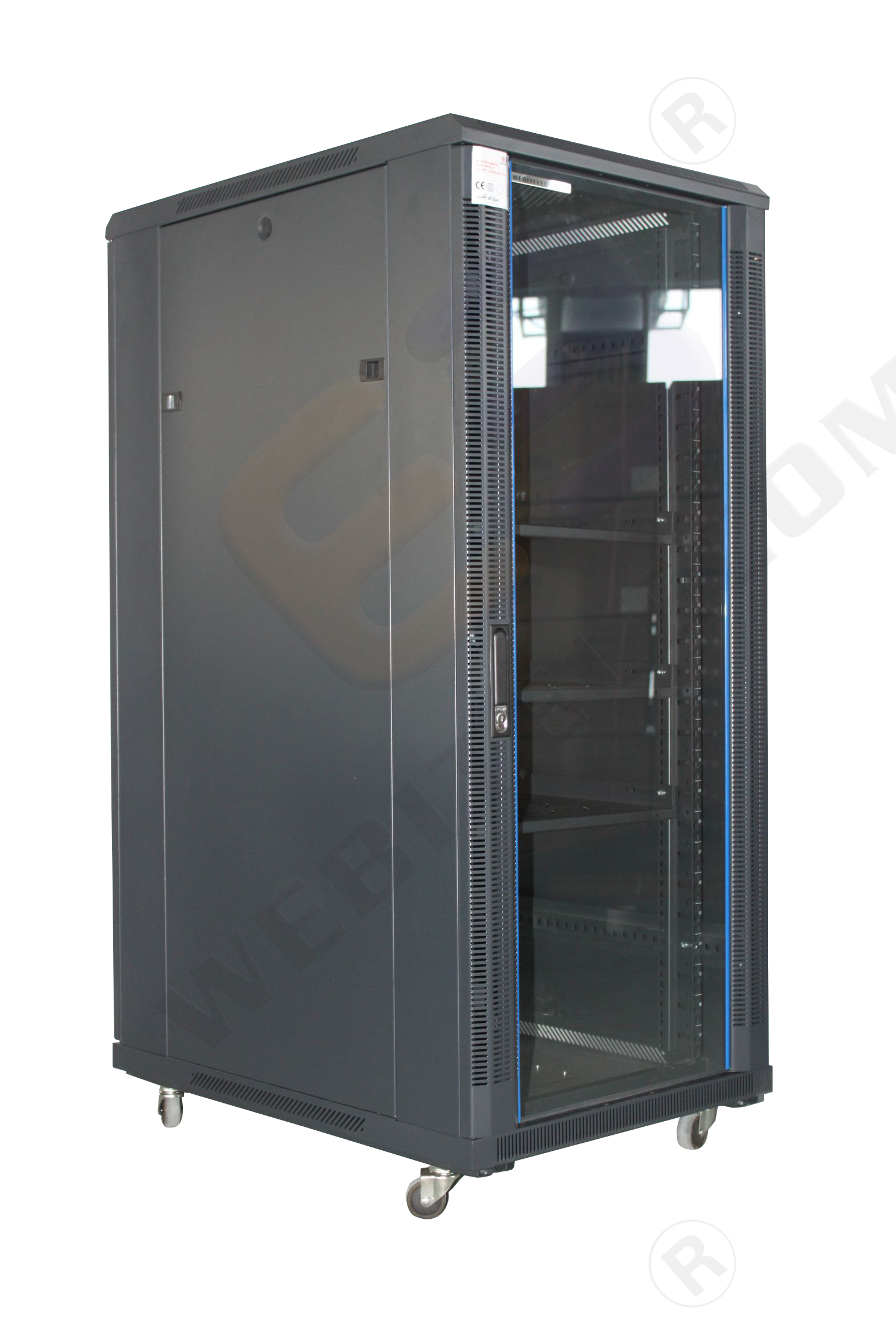

• Side view

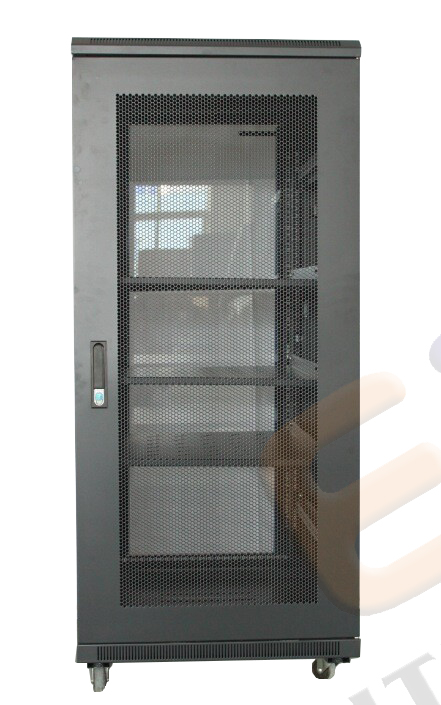

• Back Hex mesh door with handle lock for operating

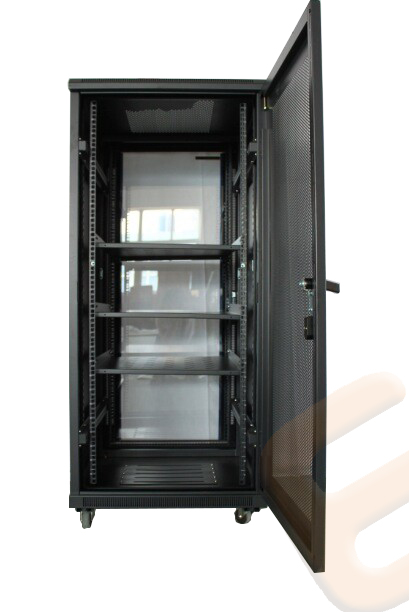

• Back view after door opening

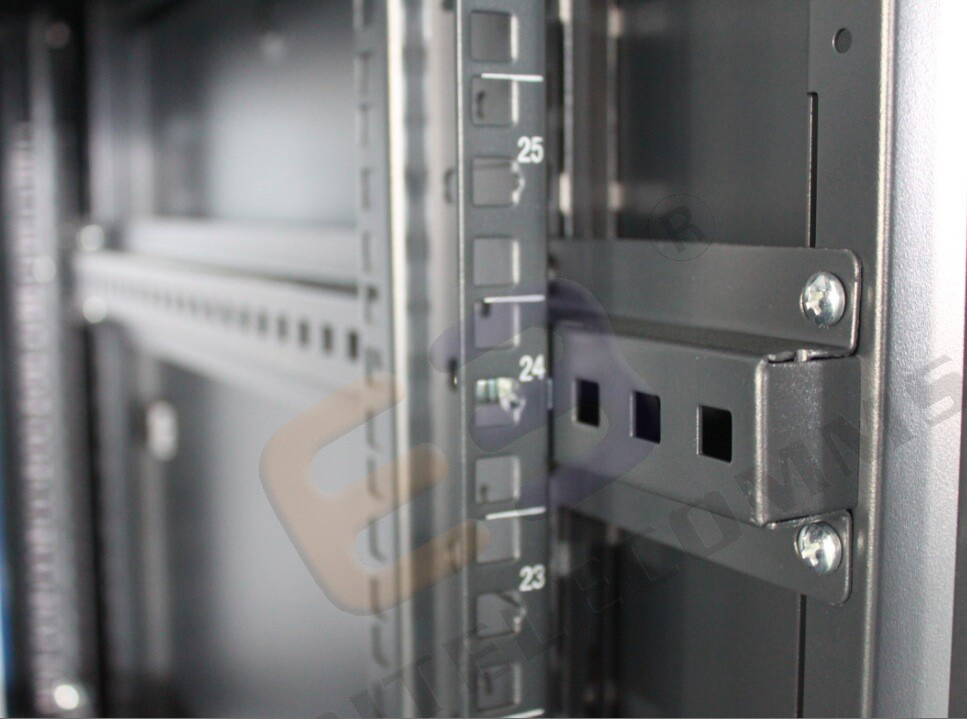

• Support beam(telecom level) & RU marked mounting rails

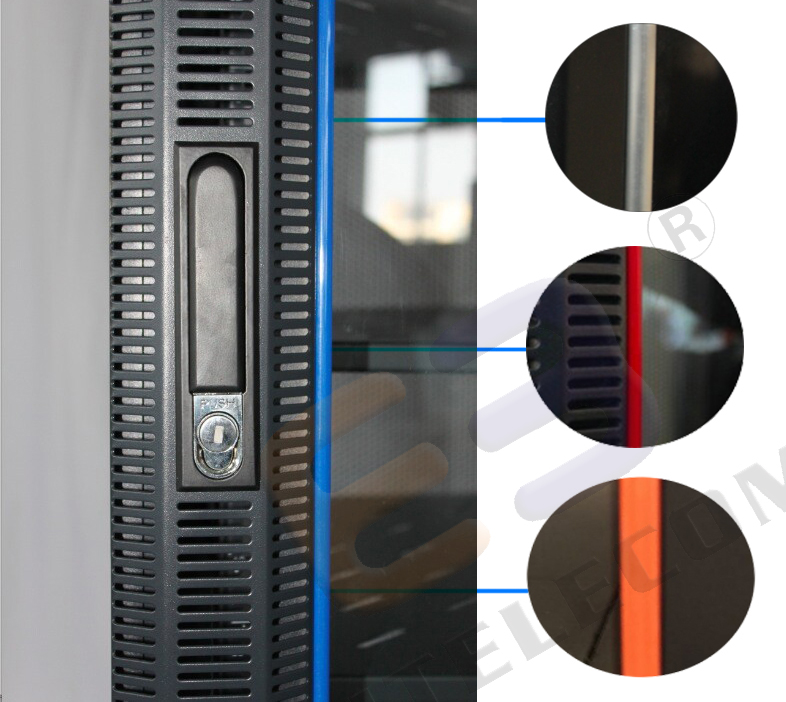

Lock & colorful strip options

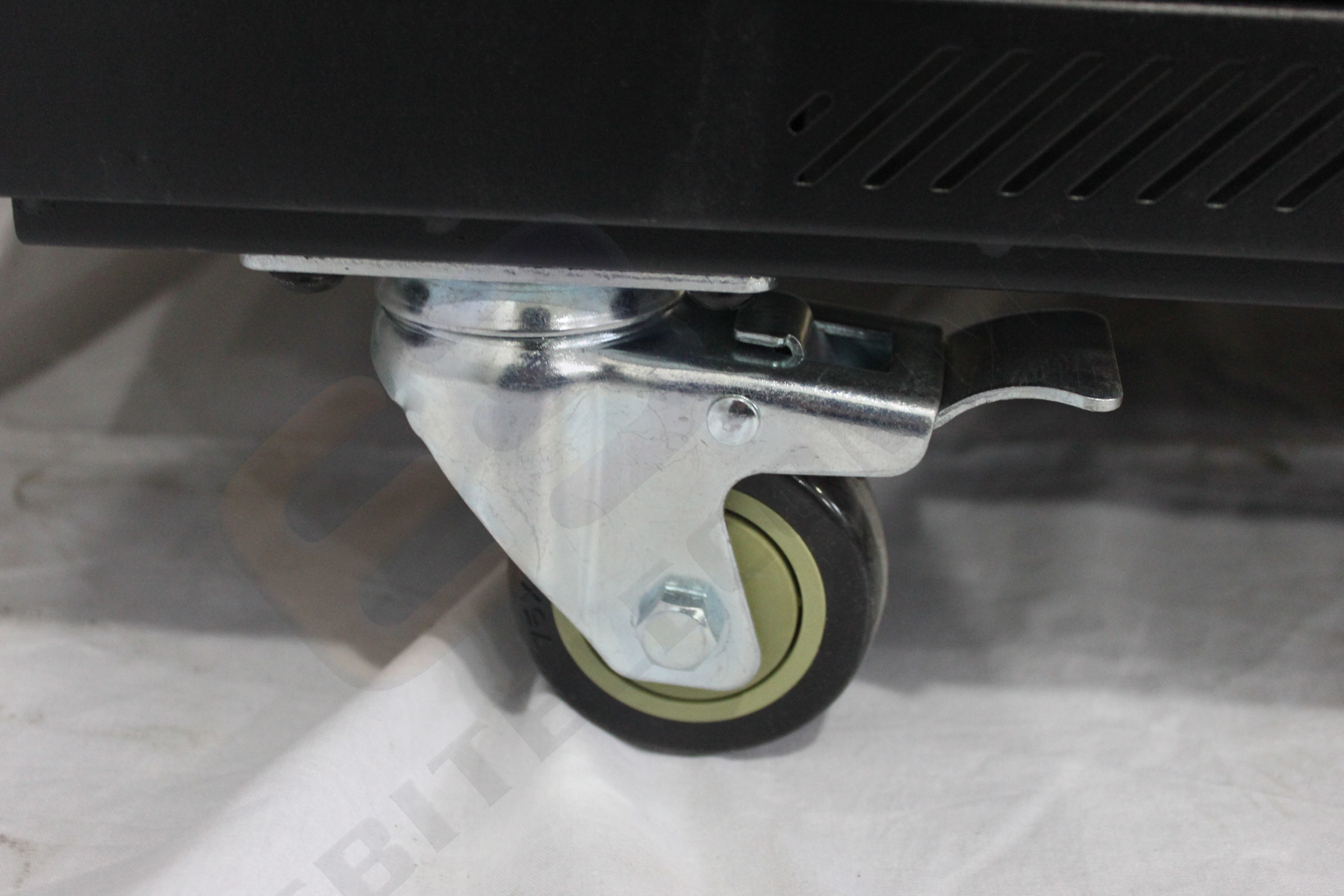

• Castors

•

=Webtielecomms packing=

=Shipment & Delivery =

Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.

OPERATION CONDITIONS

• Operation environment:

– Office

– The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humgoods_id and wet surroundings).

• Must be protected against:
– Mechanical damage
– Improper handling
– A different usage than the cabinet is intended for

• Improper handling is especially:
– Overloading (maximum recommended load exceeding)
– Device installation that can influence negatively operation and function of the cabinet or the installed equipment
– Change of the construction or design of the cabinet

INSTALLATION OF THE CABINET

• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be bought from us).

ENVIRONMENTAL PROTECTION

• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

CERTIFICATE AND CONFORMITY

• This product is fully in accordance with CE & RoHS.
