| Model: | WB-9Fxxxx97B |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE, ISO, ROHS,SGS |
| Export Area: | Europe,America,Middle east |
| Static Loading: | 1000KGS |
| Structures: | 19" nine folds structures |
| Package: | Aeembled or Dis-assembled |
| Thickness: | Mounting profile: 2.0mm others 1.2~1.5mm |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 3000 units per month |
| Payment Terms: | L/C, WU, T/T | Packing: | Ctns |
| MOQ: | 5 Piece/Pieces | Delivery Date: | 25 days |
| Means of Transport: | Land, Ocean, Air | ||
Features
WB-9Fxxxx97B cabinet is a standardized enclosure for mounting data and telecommunication devices and their distribution systems.
19" rack mountable, 9 folds profile structure - possible of extending the load capacity up to 1000KG.
Front & back door earthing.
60% effective ventilation rate.
Widely used for Data Center rack group.
Doors
Front arc single perforated doors - moon lock.
Back double perforated door with 2-point handle lock.
Removable side panel , optional lock
Accessories
AC Fan-tray (2 ~6 fans) - as per depth
4× position-adjustable 19 " mounting r.ail.
Heavy duty wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 300×50mm rectangle cable entrance , 4 x 60 mm diameter rounded cable entrance
Bottom - without bottom panel
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
Cabinet Bearing capacity:1000KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | 9 folds |
2 | Front Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | flat vented |
3 | Side Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Flat vented |
5 | Lock | 2 | 2 | \ | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Fan unit | 1 | 1 | 0.8mm SPCC steel | Powder coating | |
8 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
9 | Fan power cord | 1 | 1 | \ | \ | L=1.5 to 2.0M |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | Optional |
11 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |
12 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
13 | Earthing bolts | 1 | 1 | \ | \ | L=20 cm |
14 | Castors | 4 | 4 | \ | \ | 3", W/O brake |
15 | M12 feet | 4 | 4 | Steel | Brass plated | |
16 | Extra screws | 20 | 20 | \ | \ |
-Accessories matching-:
PDU | - eg. 0RU vertical 16-way C13 PDU |
Patch panels | - eg. 24-port Cat6A FTP patch panel |
Shelves | -eg. 3 x fixed shelf [ as per Depth ] |
Cable managers | -eg. 1U brush panel |
KVM switch | -eg. 16-port VGA 19" KVM |
Others | etc.. |
Over view:
Details:

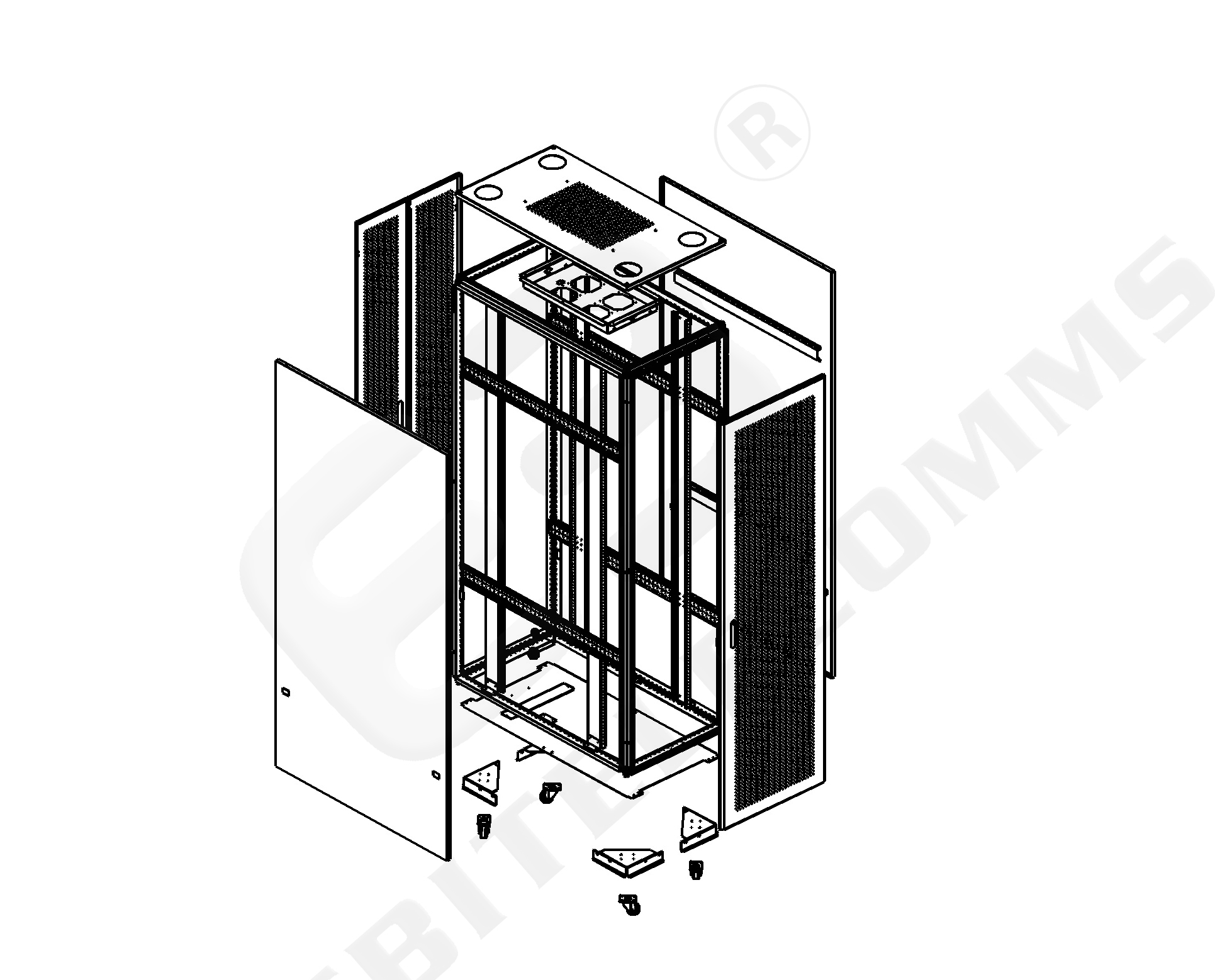

Drawing:
Size option:
| Model | W×D×H mm | Capacity | Model | W×D×H mm | Capacity |
| WB-9F662297B | 600×600×1078 | 22U | WB-9F663797B | 600×800×1745 | 37U |
| WB-9F682297B | 600×800×1078 | 22U | WB-9F683797B | 600×800×1745 | 37U |
| WB-9F602297B | 600×1000×1078 | 22U | WB-9F603797B | 600×1000×1745 | 37U |
| WB-9F882297B | 800×800×1078 | 22U | WB-9F883797B | 800×800×1745 | 37U |
| WB-9F662797B | 600×600×1300 | 27U | WB-9F664297B | 600×600×1965 | 42U |
| WB-9F682797B | 600×800×1300 | 27U | WB-9F684297B | 600×800×1965 | 42U |
| WB-9F602797B | 600×1000×1300 | 27U | WB-9F604297B | 600×1000×1965 | 42U |
| WB-9F882797B | 800×800×1300 | 27U | WB-9F884297B | 800×800×1965 | 42U |
| WB-9F663297B | 600×600×1523 | 32U | WB-9F664797B | 600×600×2184 | 47U |
| WB-9F683297B | 600×800×1523 | 32U | WB-9F684797B | 600×800×2184 | 47U |
| WB-9F603297B | 600×1000×1523 | 32U | WB-9F604797B | 600×1000×2184 | 47U |
| WB-9F883297B | 800×800×1523 | 32U | WB-9F884797B | 800×800×2184 | 47U |
