| Model: | WB-SAxxxx97B |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO,RoHS,SGS,REACH |
| Model: | Heavy duty type server rack |
| Static Loading: | 1300KGS |
| Thickness: | Mounting profiel: 2.0mm, others 1.2~1.5mm |
| Material: | SPCC cold rolled steel or EG steel |
| Installation: | Assembled or flat packing |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 400.0 USD | Production Capacity: | 3000 pcs per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | carton, wooden pallet |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 30 days |
| MOQ: | 2 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
Features
WB-SA-xxxx97B cabinet is a standardized enclosure for mounting data and telecommunication devices and their distribution systems.
19" rack mountable, Heavy duty structure - possible of extending the load capacity up to 1300KG.
Large draught area: over 4500 square cm draught area regarding 42U network cabinet.
Scaled mounting angle.
Each side earthed.
60% effective ventilation rate.
24 x screws to assemble the body , quick and convenient.
Usually for Data Center rack group.
Doors
Front arc perforated door , Swing handle lock
Back double perforated doors with 2-point lock
Each side panel was split into 2 parts , optional lock
Accessories
AC Fan-tray (2 ~6 fans) - as per depth
4× position-adjustable 19 " mounting rail
Heavy duty wheels and adjustable feet
2×vertical cable trays on front side .
20 sets of extra M6 caged screws.
4×"One-body" Mounting rails and vertical cable managements(800 Width rack only!)
Cable entrance
Top - 4×30mm rounded with rubber cover, 2~6 rectangle with seriated strip
Bottom - 4×30mm rounded with rubber cover,4×cabling entrance panel
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,750,800 mm
Depth: 670,870,1070,1270 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
Cabinet Bearing capacity: 1300KG Max.
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Item | 600 W | 800 W | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coated | |
2 | Front Door | 2 | 2 | 1.2mm SPCC steel | Powder coated | |
3 | Side Panels | 4 | 4 | 1.2mm SPCC steel | Powder coated | Removable |
4 | Back Door | 4 | 4 | 1.2mm SPCC steel | Powder coated | |
5 | Lock | 2 | 2 | \ | \ | Handle lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coated | |
7 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coated | |
8 | Ac fan | 2/4 | 2/4 | \ | \ | D>800,4 pcs |
9 | Quick-open latch | 8 | 8 | ABS | - | |
10 | Fan power cord | 1 | 1 | PVC cord with plug | \ | L=1.5 to 2.0M |
11 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coated | |
12 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coated | H≤27U, 4pcs |
13 | Mounting profile | 4 | 4 | SPCC T=2.0 | Powder coated | Zinc plated |
14 | Horizontal bracing | 6 | 6 | \ | \ | Webitelecomms |
15 | Castors | 4 | 4 | \ | \ | W.W/O brake |
16 | M12 feet | 4 | 4 | Steel | Brass plated | |
17 | Extra M6 screws | 20 | 20 | \ | \ |
-Accessories matching-:
PDU | - eg. 0RU vertical 16-way C13 PDU |
Patch panels | - eg. 24-port Cat6A FTP patch panel |
Shelves | -eg. 3 x fixed shelf [ as per Depth ] |
Cable managers | -eg. 1U brush panel |
KVM switch | -eg. 16-port VGA 19" KVM |
Others | etc.. |

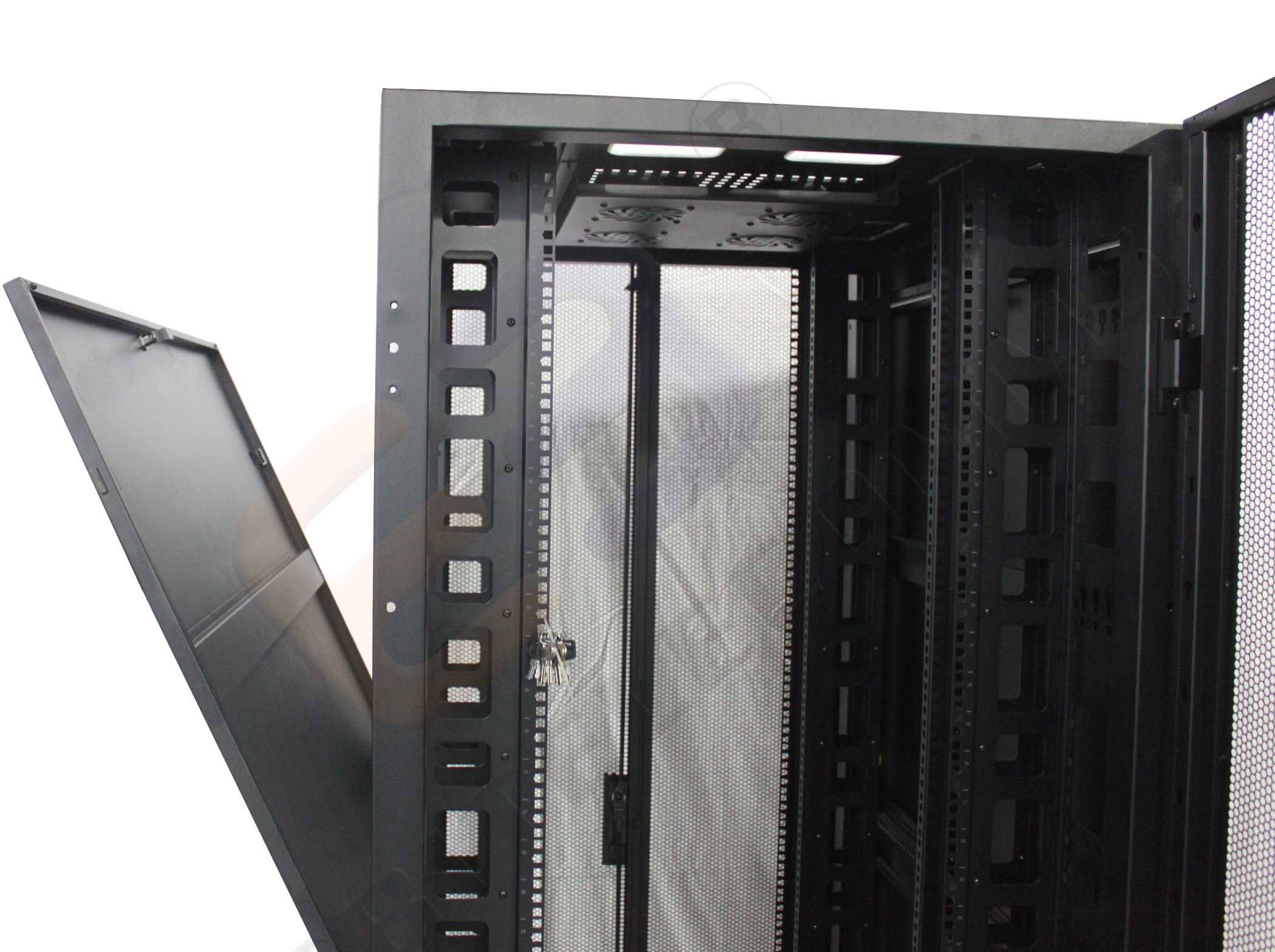

=Front view=
=Back view=
=Side panel-1=
=Side panel-2=
=800Width Mounting rail=
* with cable management
* Vertical cable tray
=Top square cable entrance with brush and seriated strip(Cable protection)=
=Top round cable entrance with rubber cover=
=Front ARC hexgonal mesh door=
=Pre-punched holes to install hinges at left or right side as per your need=
=tags=
Explosive view
Packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Size list
| Model Number | Width×Depth×Height | U | Model Number | Width×Depth×Height | U |
| WB-SA-662297B | 600×670×1081 mm | 22U | WB-SA-604297B | 600×1070×1970 mm | 42U |
| WB-SA-682297B | 600×870×1081 mm | 22U | WB-SA-884297B | 800×870×1970 mm | 42U |
| WB-SA-602297B | 600×1070×1081 mm | 22U | WB-SA-804297B | 800×1070×1970 mm | 42U |
| WB-SA-663797B | 600×670×1748 mm | 37U | WB-SA-8A4297B | 800×1170×1970 mm | 42U |
| WB-SA-683797B | 600×870×1748 mm | 37U | WB-SA-604797B | 600×1070×2192 mm | 47U |
| WB-SA-603797B | 600×1070×1748 mm | 37U | WB-SA-684797B | 600×870×2192 mm | 47U |
| WB-SA-664297B | 600×670×1970 mm | 42U | WB-SA-884797B | 800x870x2192 mm | 47U |
| WB-SA-684297B | 600×870×1970 mm | 42U | WB-SA-804797B | 800x1070x2192 mm | 47U |
