| Model: | WB-9FxxxxM5B |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Thickness: | Mounting profiel :2.0mm,others 1.5mm |
| Material: | SPCC cold rolled steel |
| Static loading: | 1000kgs |
| Package: | Assembled or Dis-assembled |
| Surface: | Frosting / Wrinkle |
| Color: | Black / Grey |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,FCA,EXW | Production Capacity: | 3000 pcs per month |
| Payment Terms: | L/C, WU, T/T | Packing: | carton |
| MOQ: | 5 Piece/Pieces | Delivery Date: | 25-30days |
| Means of Transport: | Land, Ocean, Air | ||
Features
WB-9FxxxxM5B is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, 9 folds profile structure - possible of extending the load capacity up to 1000KG.

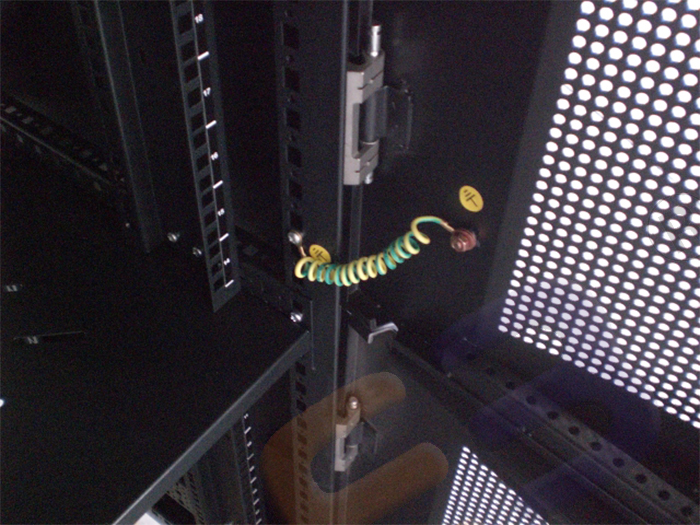

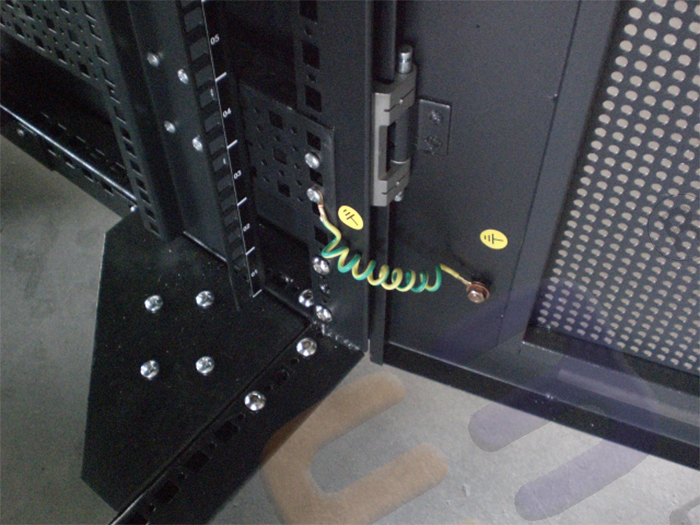

Front & back door earthing.
45% effective ventilation rate.
Doors
Front arc perforated doors - 3 section , moon lock.
Back flat perforated door with 2 point handle lock.
Removable side panel , optional lock
Accessories
AC Fan-tray (2 or 4 fans) - as per depth
4× position-adjustable 19 " mounting rail.
600KG dynamic capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 2 * 300×50mm rectangle cable entrance , 4 x 60 mm diameter rounded cable entrance
Bottom - without bottom panel
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
Cabinet Bearing capacity:1000KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
NO. | Item | 600 W | 800 W | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | 9 or 14 folds |
2 | Front Door | 3 | 3 | 1.2mm SPCC steel | Powder coating | arc vented |
| 3 | Side Panel | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
4 | Back Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | Flat vented |
5 | Lock | 4 | 4 | \ | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Fan unit | 1 | 1 | 0.8mm SPCC steel | Powder coating | |
8 | Ac fan | 2 / 4 | 2 / 4 | \ | \ | D>800,4 pcs |
9 | Fan power cord | 1 | 1 | \ | \ | L=1.5 to 2.0M |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | |
11 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |
12 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
13 | Earthing bolts | 4 | 4 | \ | \ | L=20 cm |
14 | Castors | 4 | 4 | \ | \ | 3", W/O brake |
15 | M12 feet | 4 | 4 | Steel | Brass plated | |
16 | Extra screws | 20 | 20 | \ | \ |
Cabinet component -1
Cabinet component -2

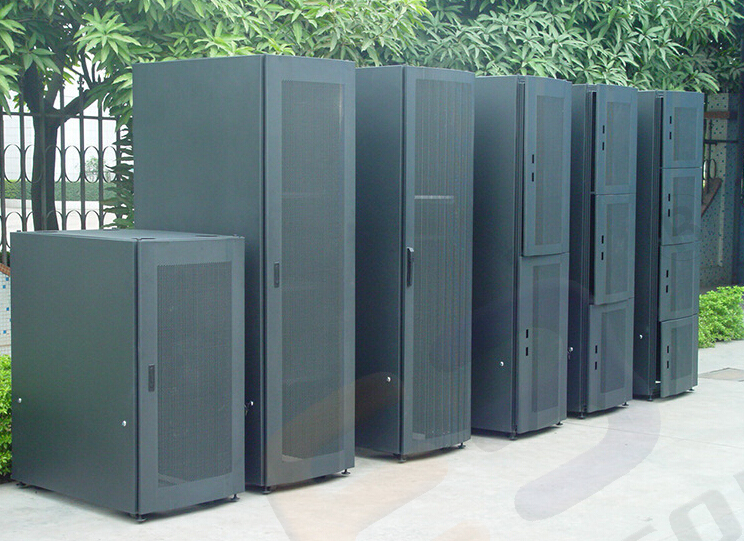

Outer view
=Webtielecomms packing=
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
#Size list#
| Model | Size ( mm) | U | Model | Size ( mm) | U |
| WB-9F6618M5B | 600x600x992 | 18U | WB-9F8618M5B | 800x600x992 | 18U |
| WB-9F6818M5B | 600x800x992 | WB-9F8818M5B | 800x800x992 | ||
| WB-9F6622M5B | 600x600x1081 | 22U | WB-9F8622M5B | 800x600x1081 | 22U |
| WB-9F6822M5B | 600x800x1081 | WB-9F8822M5B | 800x800x1081 | ||
| WB-9F6022M5B | 600x1000x1081 | WB-9F8022M5B | 800x1000x1081 | ||
| WB-9F6627M5B | 600x600x1303 | 27U | WB-9F8627M5B | 800x600x1303 | 27U |
| WB-9F6827M5B | 600x800x1303 | WB-9F8827M5B | 800x800x1303 | ||
| WB-9F6027M5B | 600x1000x1303 | WB-9F8027M5B | 800x1000x1303 | ||
| WB-9F6632M5B | 600x600x1525 | 32U | WB-9F8632M5B | 800x600x1525 | 32U |
| WB-9F6832M5B | 600x800x1525 | WB-9F8832M5B | 800x800x1525 | ||
| WB-9F6032M5B | 600x1000x1525 | WB-9F8032M5B | 800x1000x1525 | ||
| WB-9F6637M5B | 600x600x1748 | 37U | WB-9F8637M5B | 800x600x1748 | 37U |
| WB-9F6837M5B | 600x800x1748 | WB-9F8837M5B | 800x800x1748 | ||
| WB-9F6037M5B | 600x1000x1748 | WB-9F8037M5B | 800x1000x1748 | ||
| WB-9F6642M5B | 600x600x1970 | 42U | WB-9F8642M5B | 800x600x1970 | 42U |
| WB-9F6842M5B | 600x800x1970 | WB-9F8842M5B | 800x800x1970 | ||
| WB-9F6042M5B | 600x1000x1970 | WB-9F8042M5B | 800x1000x1970 | ||
| WB-9F6647M5B | 600x600x2189 | 47U | WB-9F8647M5B | 800x600x2189 | 47U |
| WB-9F6847M5B | 600x800x2189 | WB-9F8847M5B | 800x800x2189 | ||
| WB-9F6047M5B | 600x1000x2189 | WB-9F8047M5B | 800x1000x2189 |
