WB-NCxxxx15B
Model: | WB-NCxxxx15B |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Certificate: | CE, ISO, ROHS,SGS |
Export Area: | Europe, America,Middle east |
Static Loading: | 600~800KGS |
Structure: | assembled or dis-assembled |
Thickness:: | mounting profile 2.0mm, others 1.2 to 1.5mm |
Matreial:: | SPCC cold rolled steel or EG steel |
Fans: | 2 or 4 |
surface: | frosting or wrinkle |
Color: | Black or grey |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
---|---|---|---|
Unit Price: | 120.0 USD | Production Capacity: | 3000 units per month |
Trade Term: | FOB,CFR,DDP,FCA,EXW | Packing: | cartons or wooden case |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 30 days |
MOQ: | 10 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air |
Features
WB-NCxxxx15B cabinet is intended for installation data and telecommunication equipment and their distribution systems.
19" rack mountable, classic structure - possible of max the load capacity up to 800KG.
Front & back door earthing.
Widely used for CCTV & monitoring devices.
Doors
Front glass door with vented door frame - swing handle lock.
Back solid metal door with small cylinder lock.
Removable side panel , optional lock.
Accessories
AC Fan-tray (2 or 4 fans) - as per depth
4× position-adjustable 19 " mounting rail.
300KG dynamic capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 4* 350×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
Cabinet Bearing capacity: 600-800KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
=Main parts=
NO. | Item | 600W | 800W | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | 5.0 mm glass | \ | vented metal border |
3 | Side Panel | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | |
5 | Lock | 1 | 1 | Zinc alloy | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Cylinder lock | 1 | 1 | Zinc alloy | \ | |
8 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
9 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
10 | Bottom panel | 1 | 1 | 1.2mm SPCC steel | Powder coating | Optional parts |
11 | Earthing cable | 1 | 1 | Y/G cable | \ | 25 cm |
12 | Castors tray | 4 | 4 | SPCC T=2.5 | Powder coating | |
13 | Castors | 4 | 4 | \ | \ | |
14 | Adjustable feet | 4 | 4 | Steel | Brass plated | M12 |
15 | Mounting angle | 6 | 6 | SPCC T=1.2 | Powder coating | |
16 | 19inch rails | 4 | 4 | SPCC T=2.0 | Powder coating | |
17 | Vertical C/M | \ | 2 | SPCC T=1.2 | Powder coating | Only for 800 W |
-Accessories matching-:
PDU | - eg. 6-way country-spec series PDU |
Patch panels | - eg. 24-port Cat6 UTP patch panel |
Shelves | -eg. 3 x fixed shelf [ as per Depth ] |
Cable managers | -eg. 5-ring cable management |
KVM switch | -eg. 8-port VGA 17" KVM |
Others | etc.. |
SAMPLE show 600*800 27U

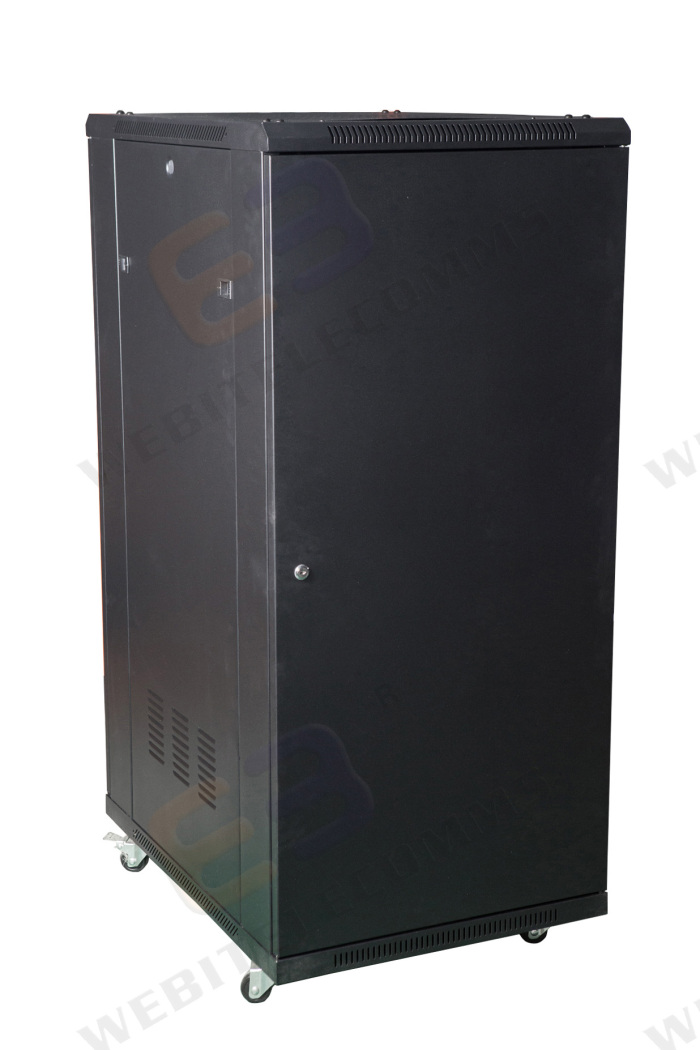

Back view with small lock

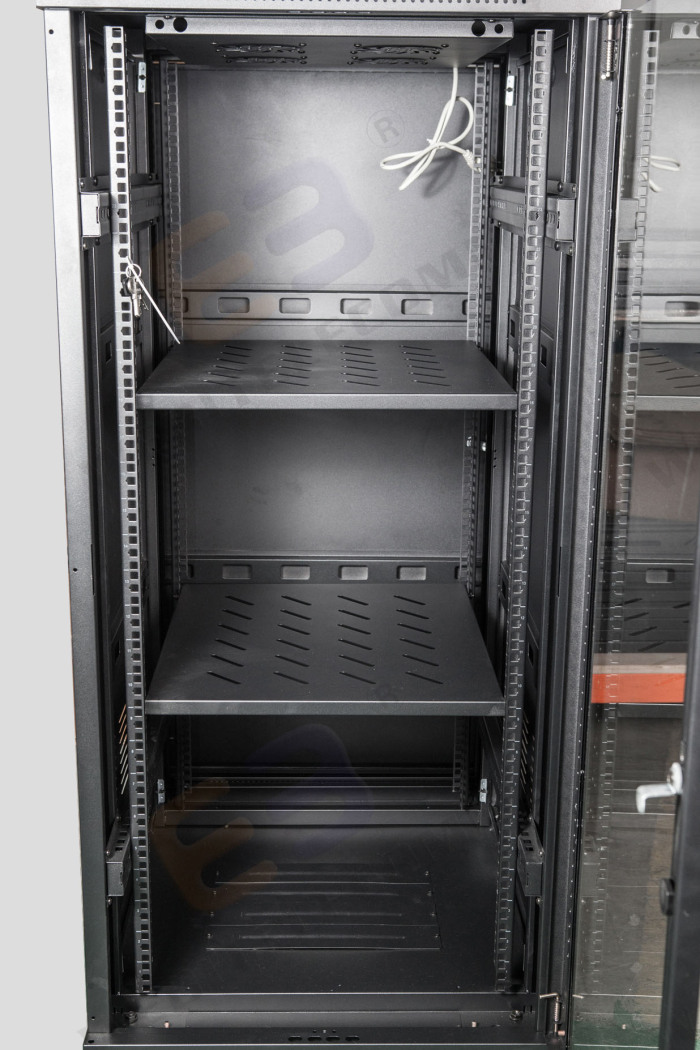

Inside overview
Door Frame ( vented)
Top fan tray with 2/4 fans
Handle lock as standard
- E-lock / fingerprint lock for options
Usual Castor & feet
Disassemble Packing
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
=Size list=
Model | W×D×H mm | Capacity | Model | W×D×H mm | Capacity |
WB-NC861815B | 800×600×903 | 18U | WB-NC863215B | 800×600×1525 | 32U |
WB-NC881815B | 800×800×903 | 18U | WB-NC883215B | 800×800×1525 | 32U |
WB-NC891815B | 800×900×903 | 18U | WB-NC893215B | 800×900×1525 | 32U |
WB-NC801815B | 800×1000×903 | 18U | WB-NC803215B | 800×1000×1525 | 32U |
WB-NC862215B | 800×600×1081 | 22U | WB-NC864215B | 800×600×1970 | 42U |
WB-NC882215B | 800×800×1081 | 22U | WB-NC884215B | 800×800×1970 | 42U |
WB-NC892215B | 800×900×1081 | 22U | WB-NC894215B | 800×900×1970 | 42U |
WB-NC802215B | 800×1000×1081 | 22U | WB-NC804215B | 800×1000×1970 | 42U |
WB-NC862715B | 800×600×1303 | 27U | WB-NC864715B | 800×600×2192 | 47U |
WB-NC882715B | 800x800x1303 | 27U | WB-NC884715B | 800x800x2192 | 47U |
