WB-USxxxxA5B
| Model: | WB-USxxxxA5B |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE. ISO, ROHS,SGS,REACH |
| Export Area: | Europe, America,Middle east |
| Static Loading: | 600~1000KGS |
| Structure: | assembled or disassembled |
| Matreial: | SPCC or EG steel |
| Thickness: | mounting profile 3.0mm, others 1.2~1.5mm |
| Surface: | Frosting or wrinkle |
| Color: | Black, Grey, White,etc |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 100.0 USD | Production Capacity: | 5000 units per month |
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | cartons or wooden case |
| Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 30 days |
| MOQ: | 10 Piece/Pieces | ||
| Means of Transport: | Land, Ocean, Air | ||
Features
WB-USxxxxA5B cabinet is intended for installation data and telecommunication devices and their distribution systems.
19" rack mountable, Reinforced structure - possible of max the load capacity up to 1000KG.
Front & back door earthing.
Widely used for Data cabbling devices.
Doors
Front smoky PERSPEX door with metal door frame - swing handle lock.
Inner stiffener make front door stronger and used without shaking.
Door edge with "Insert tongue" for door level keeping, make body more steady and exquite
Back solid metal door with small cylinder lock.
Removable side panel , optional lock.
Accessories
AC Fan-tray (2 or 4 fans) - as per depth, Cover with fan guard&filter for dust-proof
4× position-adjustable 3.0mm(11 gauge) 10-32 pre-threaded mounting profile.
1000KG capacity luxury wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 4* 350×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 18U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard :
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or EG steel
Thickness: Mounting profile:3.0mm, others: 1.20~1.50mm
Loading capacity:
600kg: 16U~27U
800kg: 27U~37U
1000kg:37U~42U
IP degree: IP-20
Body color:RAL9005(black);RAL7035(grey),etc
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | R.E type |
2 | Front Door | 1 | 1 | 1.2mm SPCC steel 4.0mm Perspex | Powder coating Smoky grey | Frame type |
3 | Side Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
4 | Back Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | Solid metal |
5 | Lock | 2 | 2 | Front handle lock | Back small lock | |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Fan tray | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
8 | Ac fan | 2 or 4 | 2 or 4 | - | - | D>800,4 pcs |
9 | Fan power cord | 1 | 1 | PVC power cord | - | L=1.5 to 2.0M |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | |
11 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |
12 | Mounting profile | 4 | 4 | SPCC T=3.0 | electro painting | US style |
13 | Earthing bolts | 1 | 1 | Y/G earthing cable | - | L=25 cm |
14 | Castors | 4 | 4 | Steel, PU | - | 3", brake |
15 | M12 feet | 4 | 4 | Steel | Brass plated | |
16 | Extra screws | 20 | 20 | 56Mn steel | Zinc plated |
-Accessories matching-:
PDU | - eg. 6-way country-spec series PDU |
Patch panels | - eg. 24-port Cat6 UTP patch panel |
Drawer | -eg. 1U-4U drawer , ref to below pictrure |
Cable managers | -eg. 5-ring cable management |
KVM switch | -eg. 8-port VGA 17" KVM |
Others | etc.. |
REF SAMPLE SIZE:600*600 16U
Front view with protective film

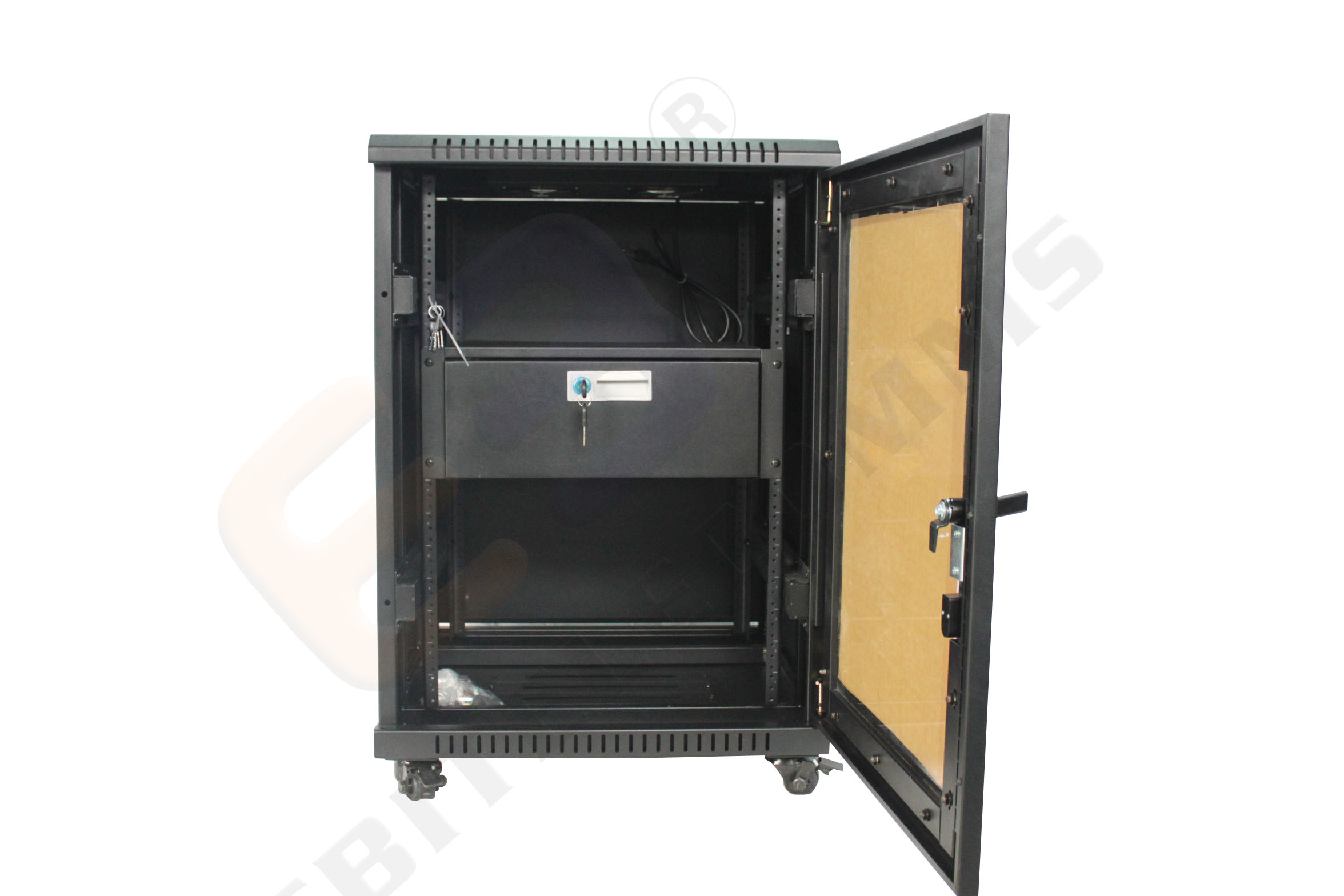

Opening view(4U drawer is not standard accessories, for ref only)

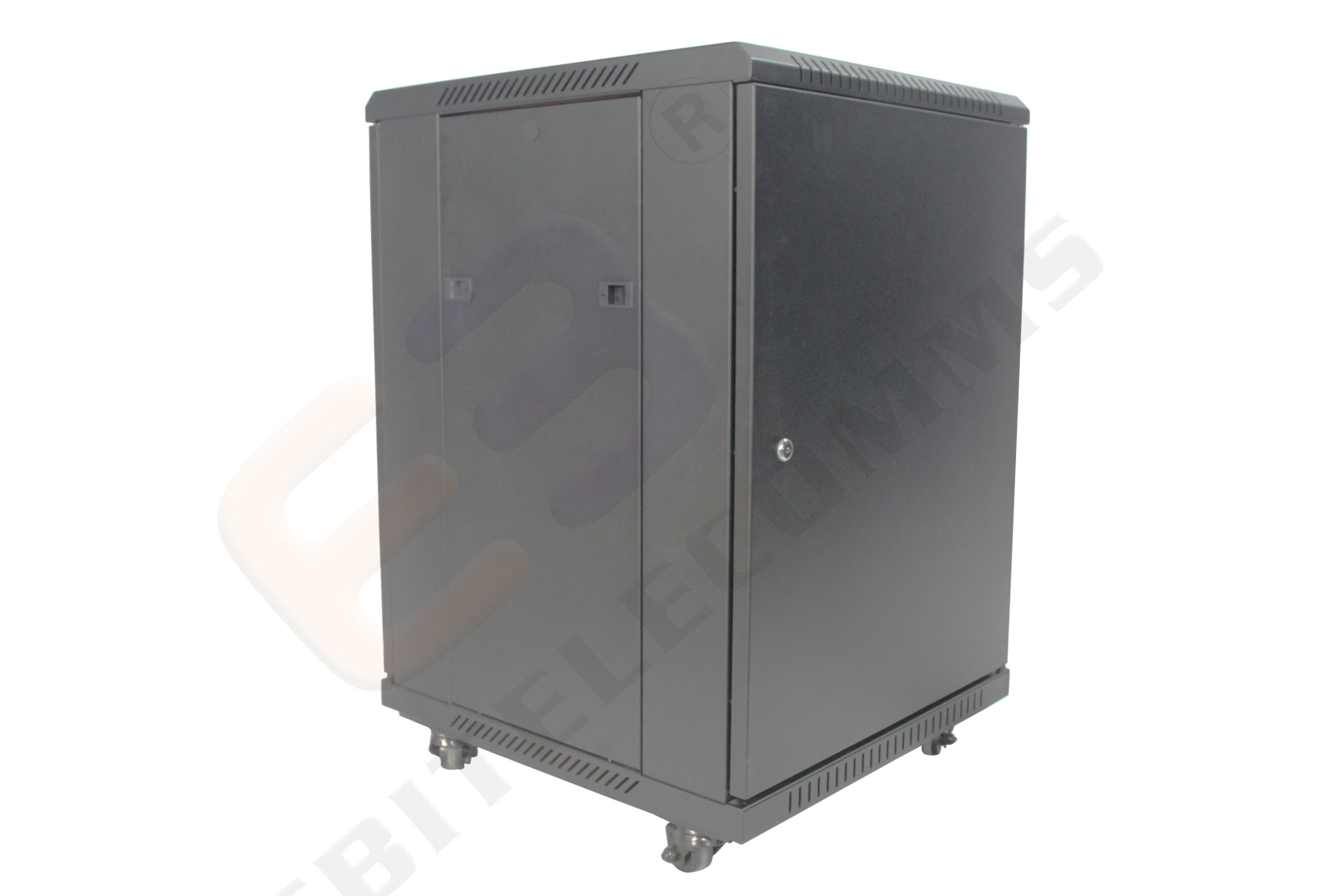

Rear-side view

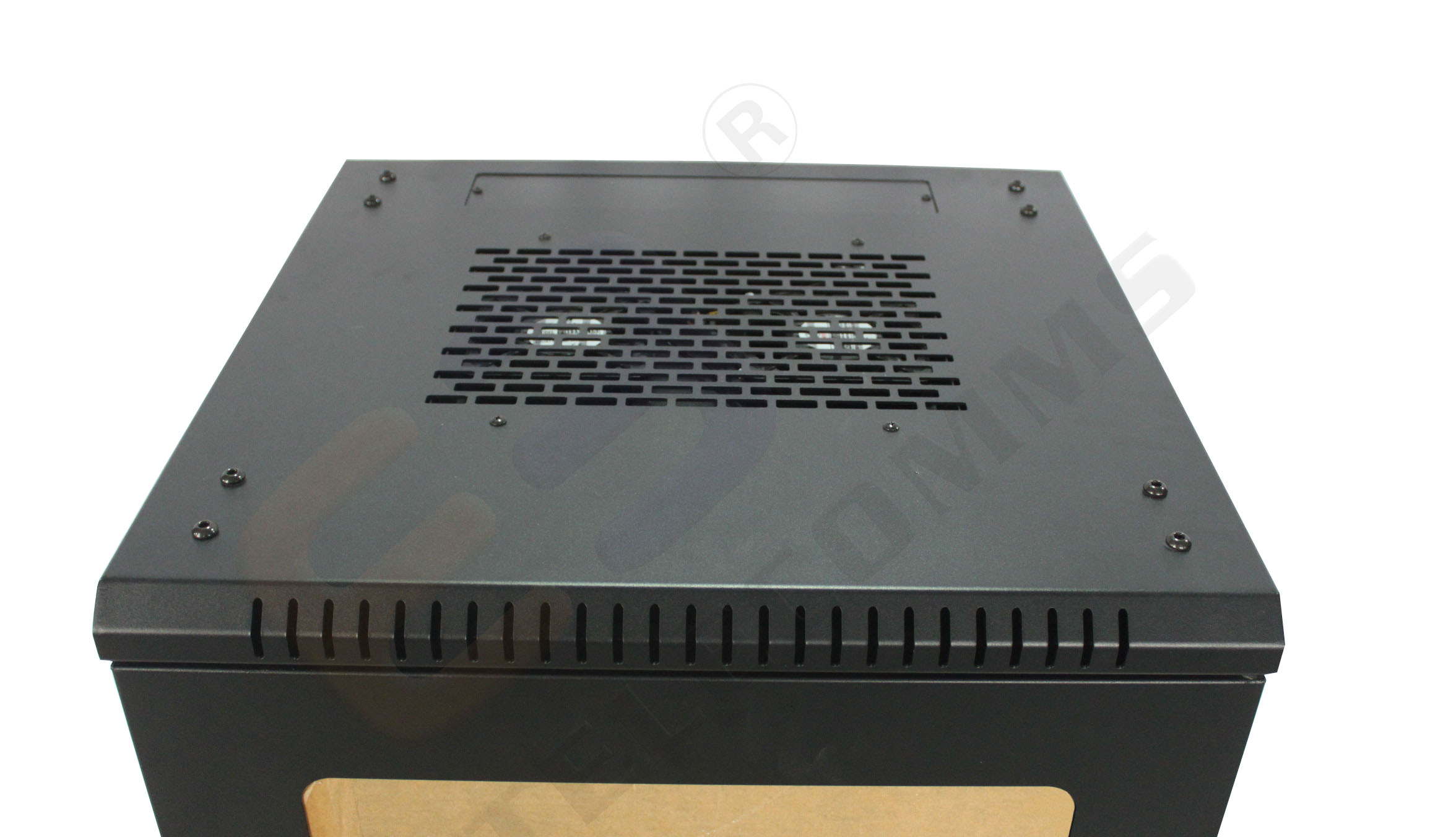

Outer top view

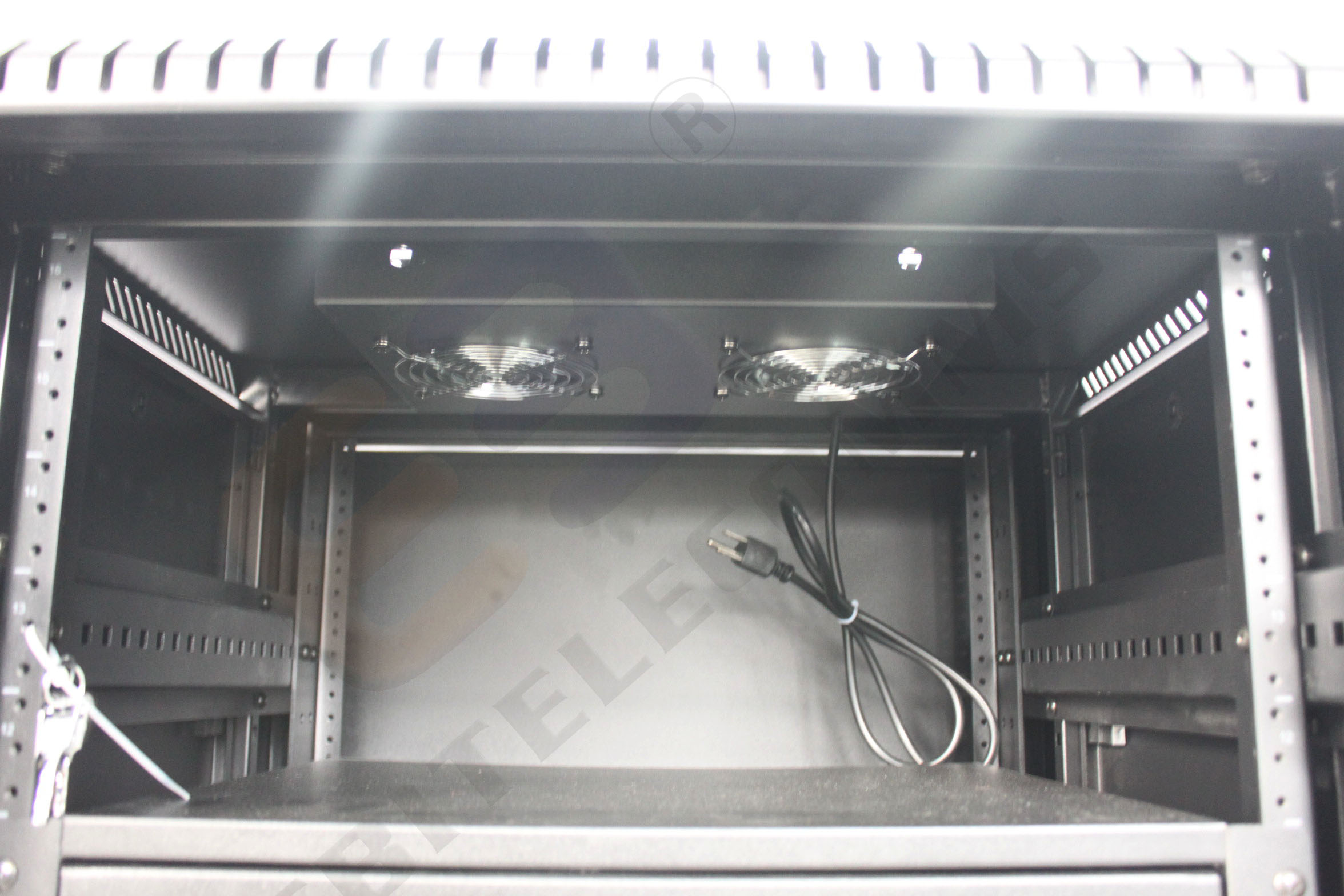

Inner top view(Fan guard&filter)

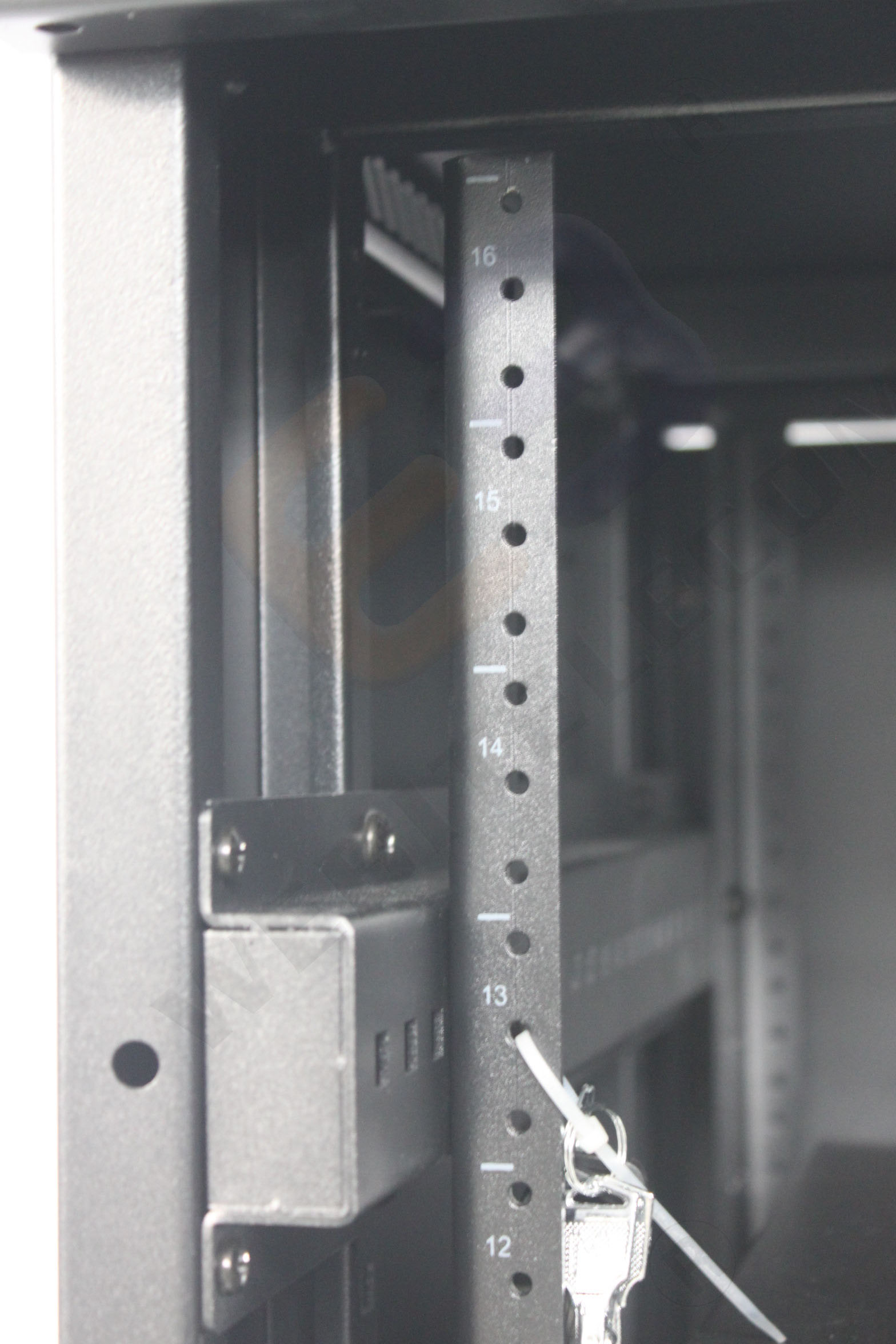

3.0 mm U.S type mounting profile

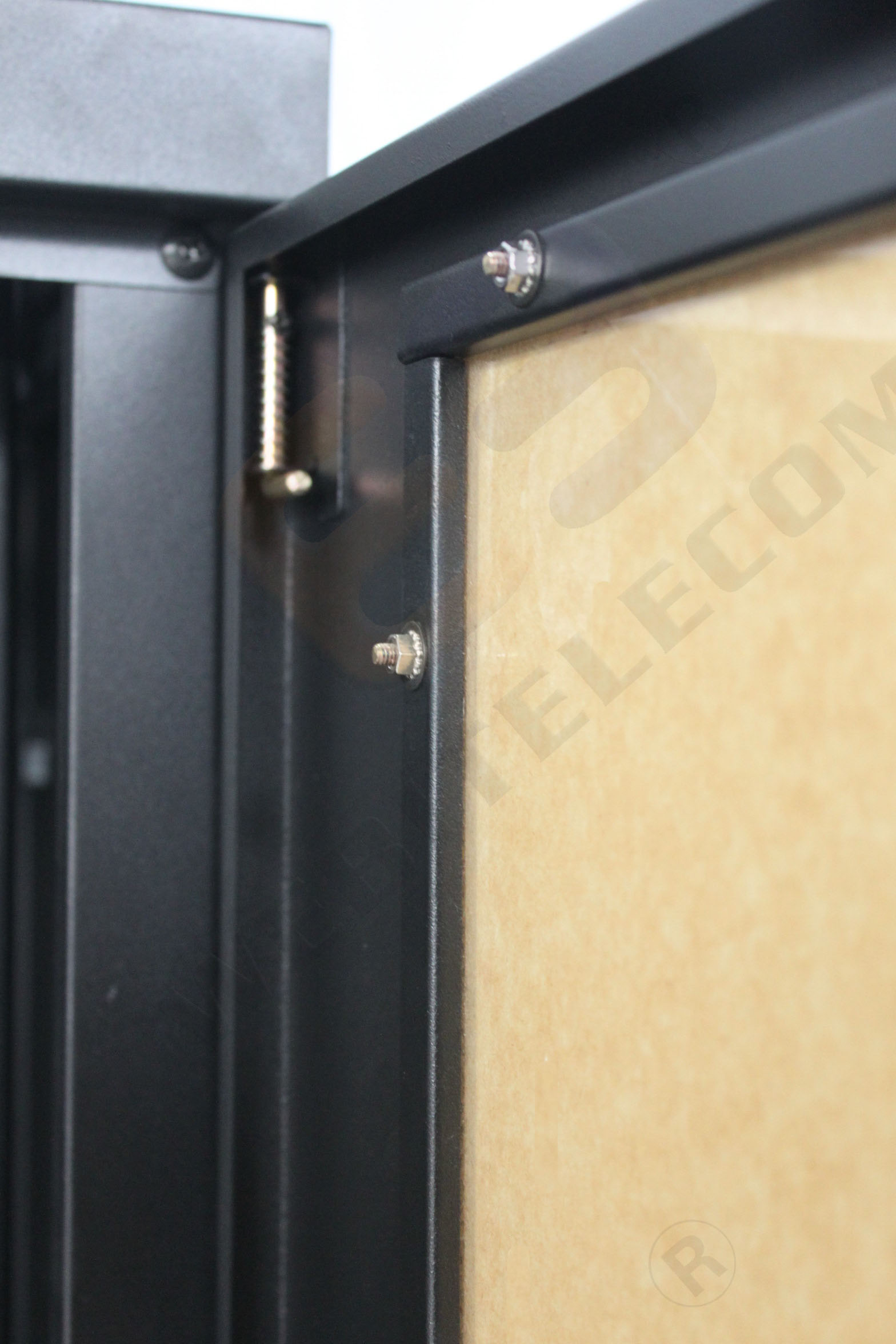

Door stiffener for perspex

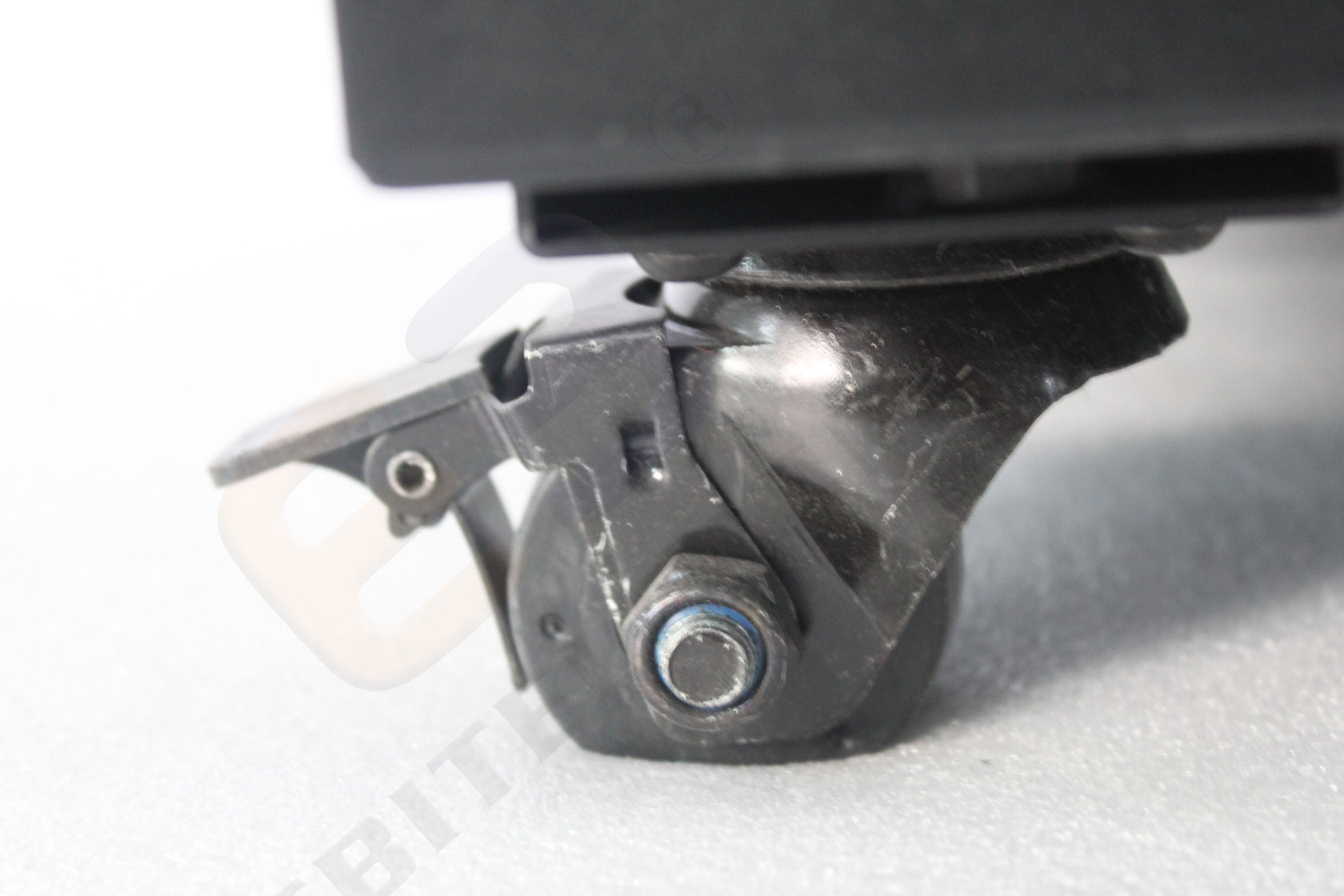

Heavy duty wheels with brake

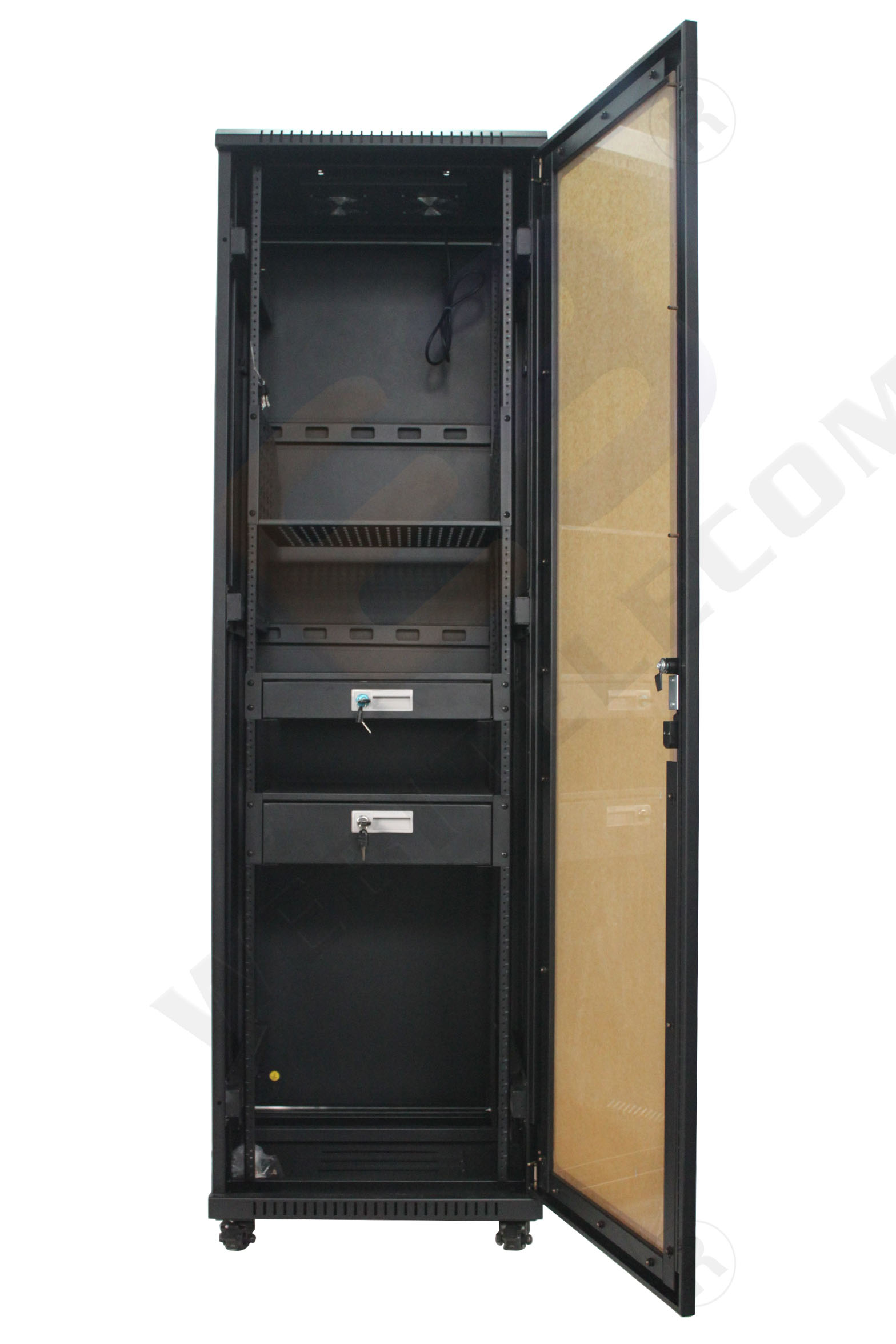

42U 600*600 SAMPLE show
=Webtielecomms packing=
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provgoods_ided.
800 Wide size list
| Model | W×D×H mm | Capacity | Model | W×D×H mm | Capacity |
| WB-US8618A5B | 800×600×903 | 18U | WB-US8632A5B | 800×600×1525 | 32U |
| WB-US8818A5B | 800×800×903 | 18U | WB-US8832A5B | 800×800×1525 | 32U |
| WB-US8918A5B | 800×900×903 | 18U | WB-US8932A5B | 800×900×1525 | 32U |
| WB-US8018A5B | 800×1000×903 | 18U | WB-US8032A5B | 800×1000×1525 | 32U |
| WB-US8622A5B | 800×600×1081 | 22U | WB-US8642A5B | 800×600×1970 | 42U |
| WB-US8822A5B | 800×800×1081 | 22U | WB-US8842A5B | 800×800×1970 | 42U |
| WB-US892215B | 800×900×1081 | 22U | WB-US8942A5B | 800×900×1970 | 42U |
| WB-US8022A5B | 800×1000×1081 | 22U | WB-US8042A5B | 800×1000×1970 | 42U |
| WB-US8627A5B | 800×600×1303 | 27U | WB-US8647A5B | 800×600×2192 | 47U |
| WB-US8827A5B | 800x800x1303 | 27U | WB-US8847A5B | 800x800x2192 | 47U |
