WB-SAxxxxMMB
-
WB-EZxxxx15B
-
WB-NCxxxx67B
-
WB-NCxxxx35B
-
WB-ECxxxx77G
-
WB-SAxxxx97B
-
WB-9Fxxxx97B
-
WB-NCxxxx87B
WB-SCxxxxPDG
| Model: | WB-SCxxxxPDG |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS |
| Package: | Assembled or Dis-assembled |
| Thickness: | Mounting profile :2.0mm,others 1.5mm |
| Material: | SPCC cold rolled steel |
| Static loading: | 1400kgs |
| Color: | Offwhite / Grey |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 3000 pcs per month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | carton |
| MOQ: | 5 Piece/Pieces | Delivery Date: | 25-30days |
| Means of Transport: | Land, Ocean, Air | ||
Features
WB-SCxxxxPDG cabinet is intended for installation ODF cabling , eletrical equipment and power distribution systems.
19" rack mountable, Heavy duty structure - possible of extending the load capacity up to 1400KG.
Connected with earthing cable .
Welding structure,Plinth for options
Usually taken as ODF rack.
Doors
Front windows type 5mm glass doors - frame-door.
Back split 2 × solid doors with louver area , 2-point coded lock
Unremovable side panel , louver vented
Accessories
AC Fan-tray (2 or 4 fans) - as per depth
4× position-adjustable 19 " mounting rail.
2× vertical cable managements.
Heavy duty frame , 6 x cabling circle rings at front side.
20 sets of extra M6 caged screws.
Cable entrance
Top - 10×30mm rounded with rubber cover, 2~6 rectangle with seriated strip
Bottom - 10×30mm rounded with rubber cover,4×cabling entrance panel
Can ask for more...
Package
Assembled packing only.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 750,800 mm
Depth: 670,870,1070,1270 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.50mm
Cabinet Bearing capacity:1400KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc

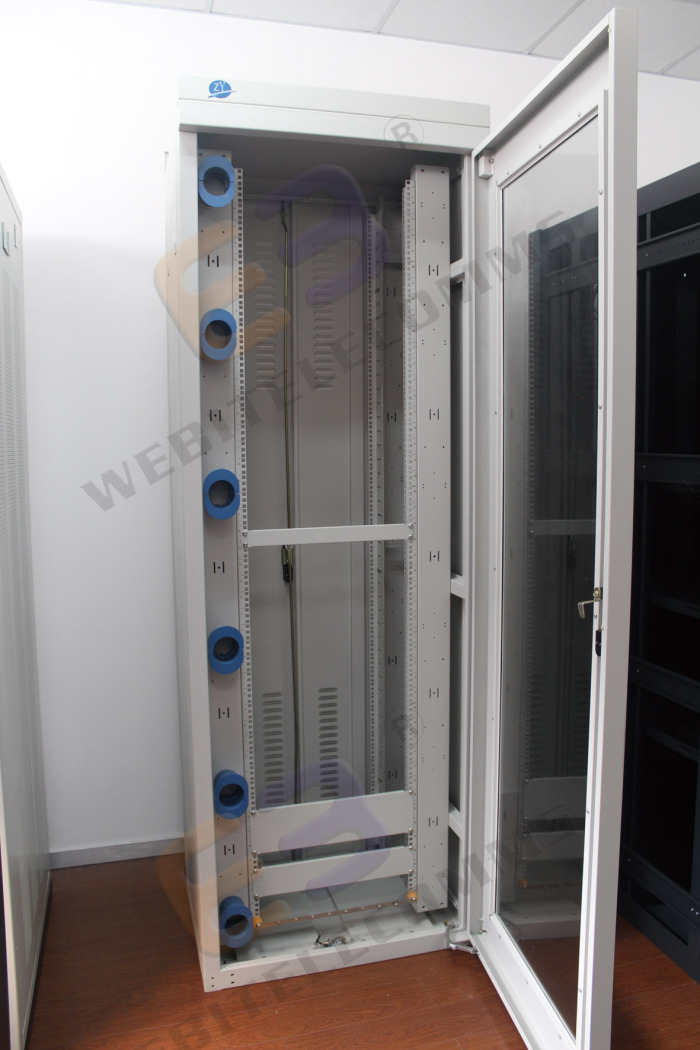

Front view
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | 1.5mm SPCC steel 5.0mm glass door | Powder coating | windows type |
3 | Sgoods_ide Door | 2 | 2 | 1.5mm SPCC steel | Powder coating | Unremovable |
4 | Back Door | 2 | 2 | 1.5mm SPCC steel | Powder coating | Louver |
5 | Lock | 2 | 2 | \ | \ | Hnadle Lock |
6 | Top cover | 1 | 1 | 1.5mm SPCC steel | Powder coating | |
7 | Fan unit | 1 | 1 | 1.5mm SPCC steel | Powder coating | Optional |
8 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
10 | Fan power cord | 1 | 1 | \ | \ | L=1.5 to 2.0M |
11 | Bottom panel | 1 | 1 | SPCC T=1.5 | Powder coating | |
12 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |
13 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
14 | Cabling ring | 6 | 6 | \ | \ | |
15 | Vertical C/M | N/A | 2 | \ | \ | |
17 | Extra screws | 20 | 20 | \ | \ |
-Accessories matching-:
PDU | - eg. 6-way country-spec series PDU |
Patch panels | - eg. 24-port Cat6 UTP patch panel |
Shelves | -eg. 3 x fixed shelf [ as per Depth ] |
Cable managers | -eg. 12/16 slot cable management |
KVM switch | -eg. 8-port VGA 17" KVM |
Others | etc.. |

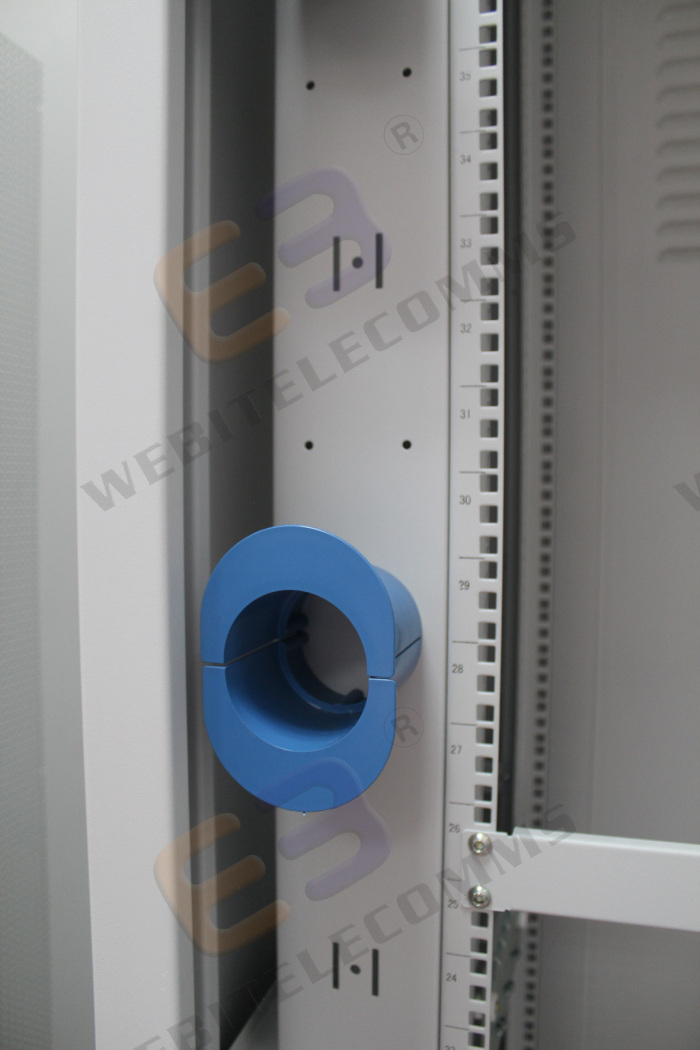

Front cable ringes for wiring

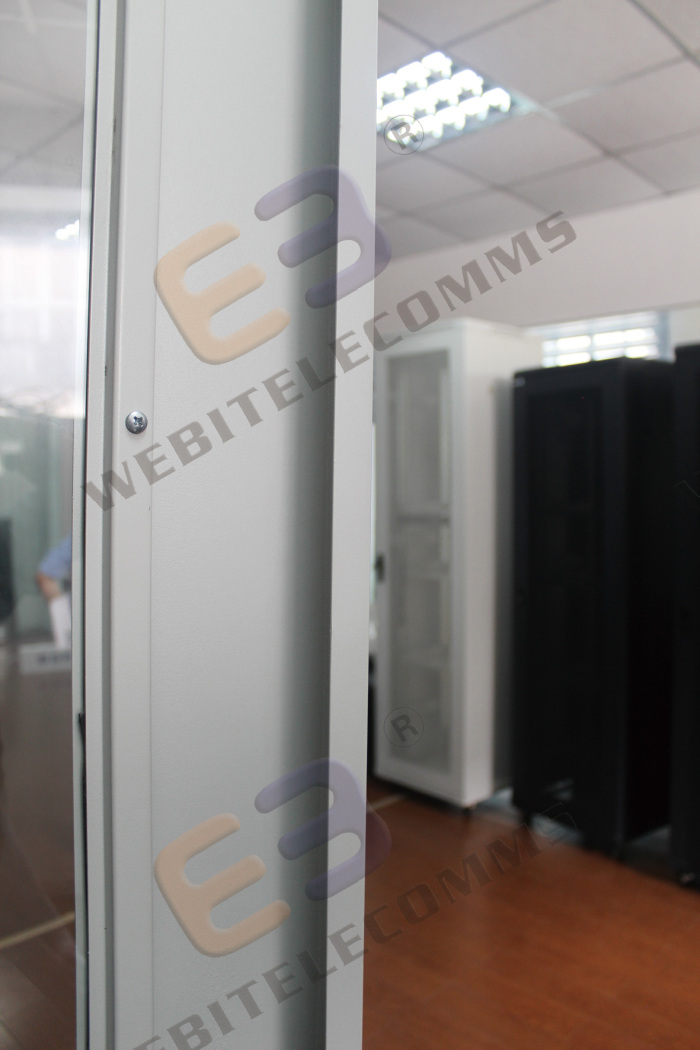

Front Heavy duty door

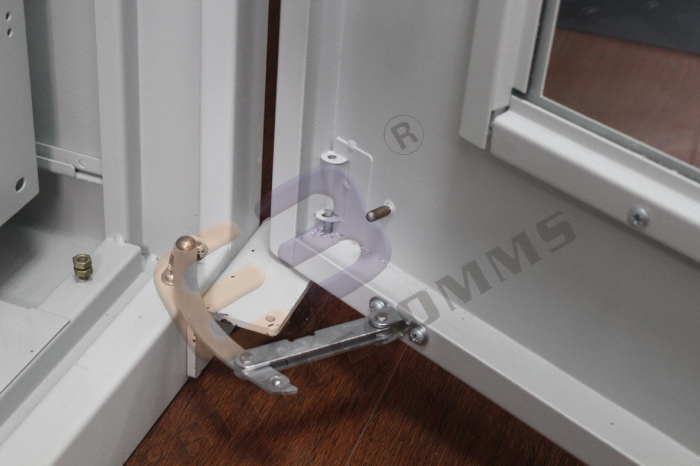

Door fix kit

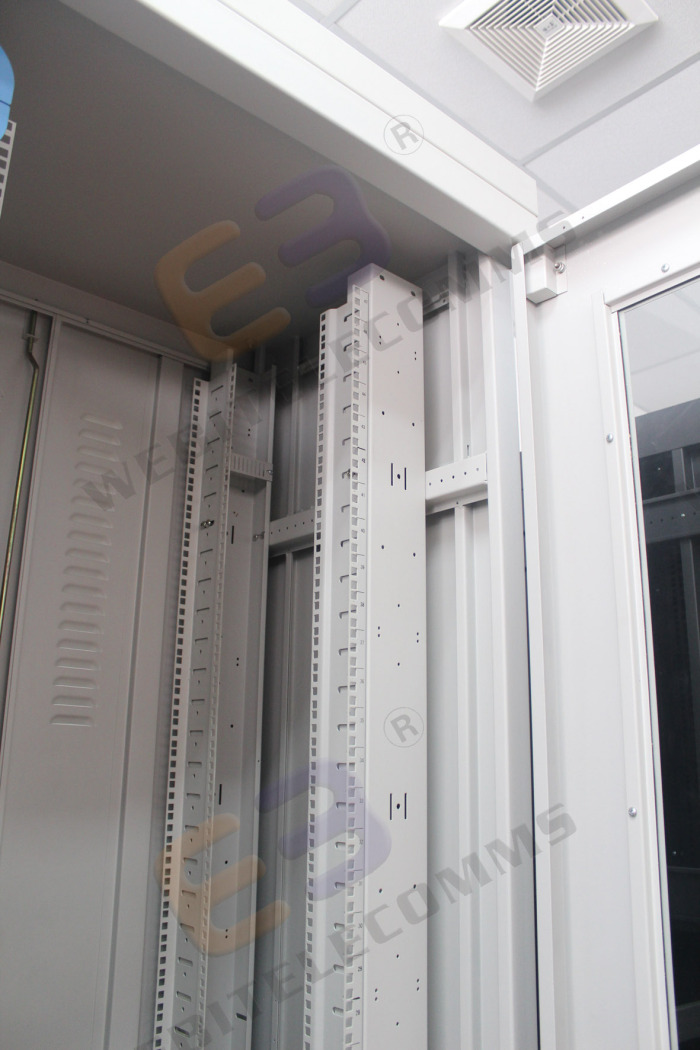

Heavy duty mounting rail
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
600 width cab size list
| Model | W(mm) | D (mm) | H(mm) | U | CBM (m3) |
| WB-SC-661835PDG | 600 | 600 | 1000 | 18U | 0.4957 |
| WB-SC-681835PDG | 800 | 0.6415 | |||
| WB-SC-662235PDG | 600 | 1178 | 22U | 0.5364 | |
| WB-SC-682235PDG | 800 | 0.6941 | |||
| WB-SC-602235PDG | 1000 | 0.8519 | |||
| WB-SC-662735PDG | 600 | 1400 | 27U | 0.6395 | |
| WB-SC-682735PDG | 800 | 0.8276 | |||
| WB-SC-602735PDG | 1000 | 1.0157 | |||
| WB-SC-663235PDG | 600 | 1622 | 32U | 0.7421 | |
| WB-SC-683235PDG | 800 | 0.9604 | |||
| WB-SC-603235PDG | 1000 | 1.1787 | |||
| WB-SC-663735PDG | 600 | 1845 | 37U | 0.8462 | |
| WB-SC-683735PDG | 800 | 1.0951 | |||
| WB-SC-603735PDG | 1000 | 1.3440 | |||
| WB-SC-664235PDG | 600 | 2067 | 42U | 0.9480 | |
| WB-SC-684235PDG | 800 | 1.2267 | |||
| WB-SC-604235PDG | 1000 | 1.5055 | |||
| WB-SC-664735PDG | 600 | 2289 | 47U | 1.0508 | |
| WB-SC-684735PDG | 800 | 1.3596 | |||
| WB-SC-604735PDG | 1000 | 1.6686 |
