WB-ECxxxx67G
Model: | WB-ECxxxx67G |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | Webitelecomms |
Materials: | SPCC |
plinth height: | 100 mm |
accessories: | PDU Vertical cable tray Keyboard tray Fixed tray Blank panel |
SAMPLE size: | 600*600 42U |
Treatment: | Galvanized and powder coated |
Cable tray: | Vertical wiring tray |
Top: | Electrical distribution unit |
Color: | Black/White |
Product Description
Payment & Shipping Terms | Supply Capacity | ||
---|---|---|---|
Unit Price: | 400.0 USD | Production capacity: | 5000 units per month |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | standard cargo packing |
Payment Terms: | L/C, WU, T/T, Paypal | Lead time: | 35 days |
MOQ: | 100 Piece/Pieces | Shipment | Land, Ocean, Air |
IP20 19" electrical cabinet with wiring cable tray
Features
WB-ECxxxx67G is intended for installation electrical distribution devices and protect the contents from the environment.
19" rack mountable, universal structure - possible of max the load capacity up to 1200KG.
Front & back door earthing.
45% effective ventilation rate.
Doors
Front double perforated (hexagonal) door - swing handle lock.
Back double perforated doors with 2-point lock.
Removable side panel , optional lock.
Accessories
AC Fan-tray (2 or 4 fans) - as per depth
4× position-adjustable 19 " galvanized mounting rail.
2× unique designed vertical cable tray.
2× fixed shelves ( galvanized)
Powder painting 100mm height plinth.
20 sets of extra M6 caged screws.
Cable entrance
Top - 8 * 50mm diameter rounded cable entrance -rubber covered
Bottom - 8 * 50mm diameter rounded cable entrance -rubber covered
Can ask for more...
Package
Assembled instructure only.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,700,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or EG steel
Thickness
Mounting profile:2.0mm -galvanized
others:1.20mm to 1.50mm
Cabinet Bearing capacity:1200KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc

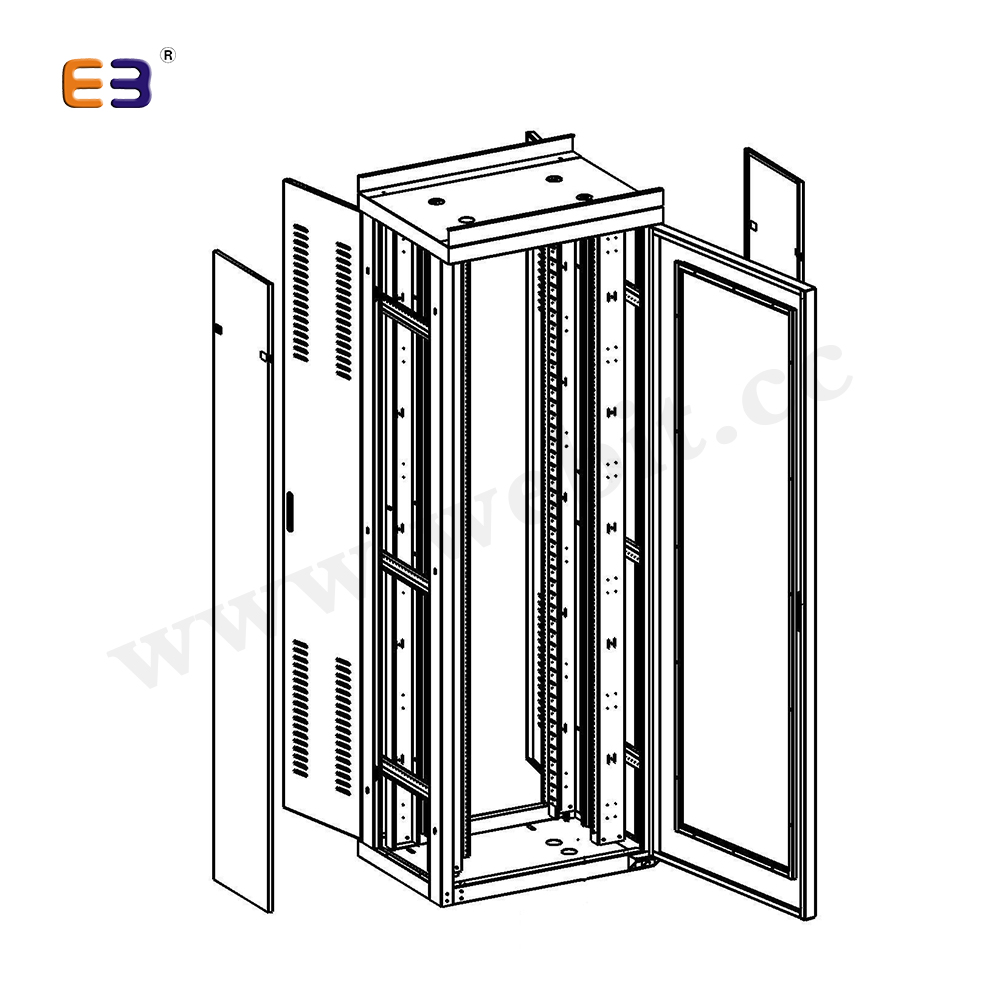

Over view

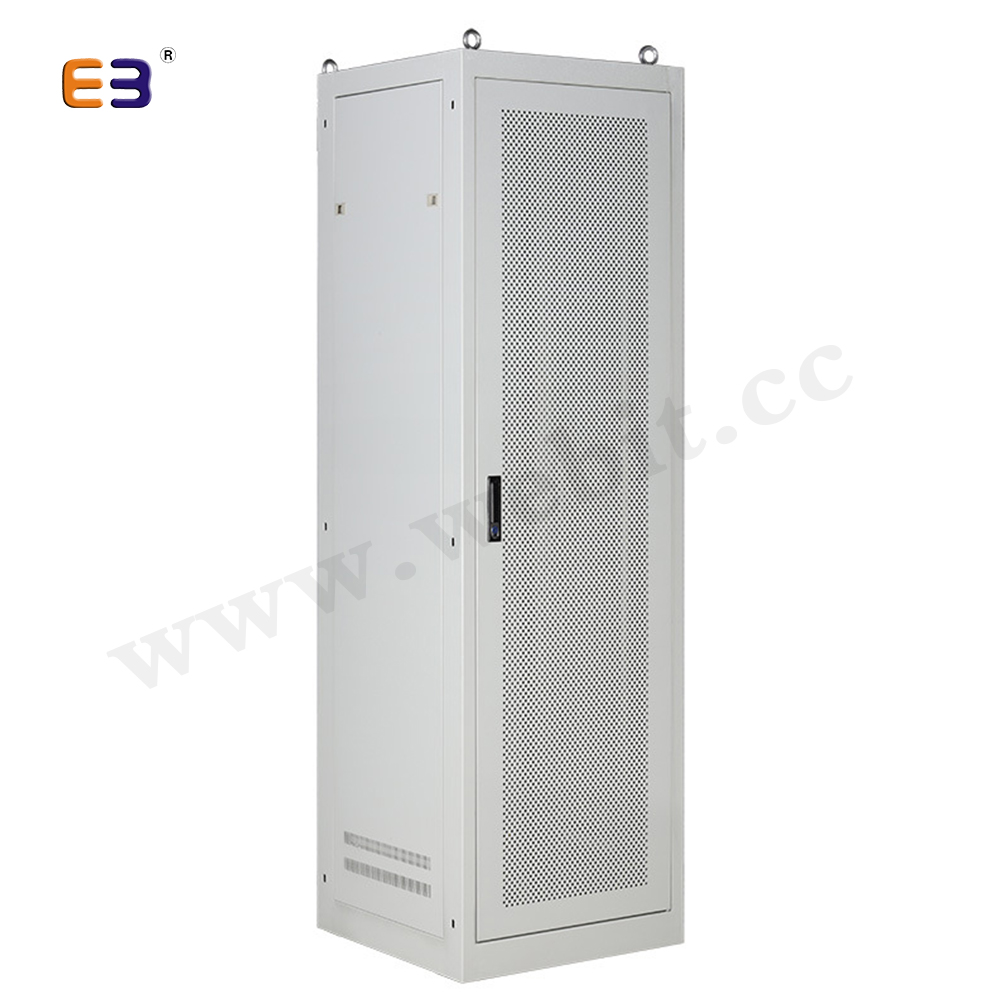

Front view ( with accessories )

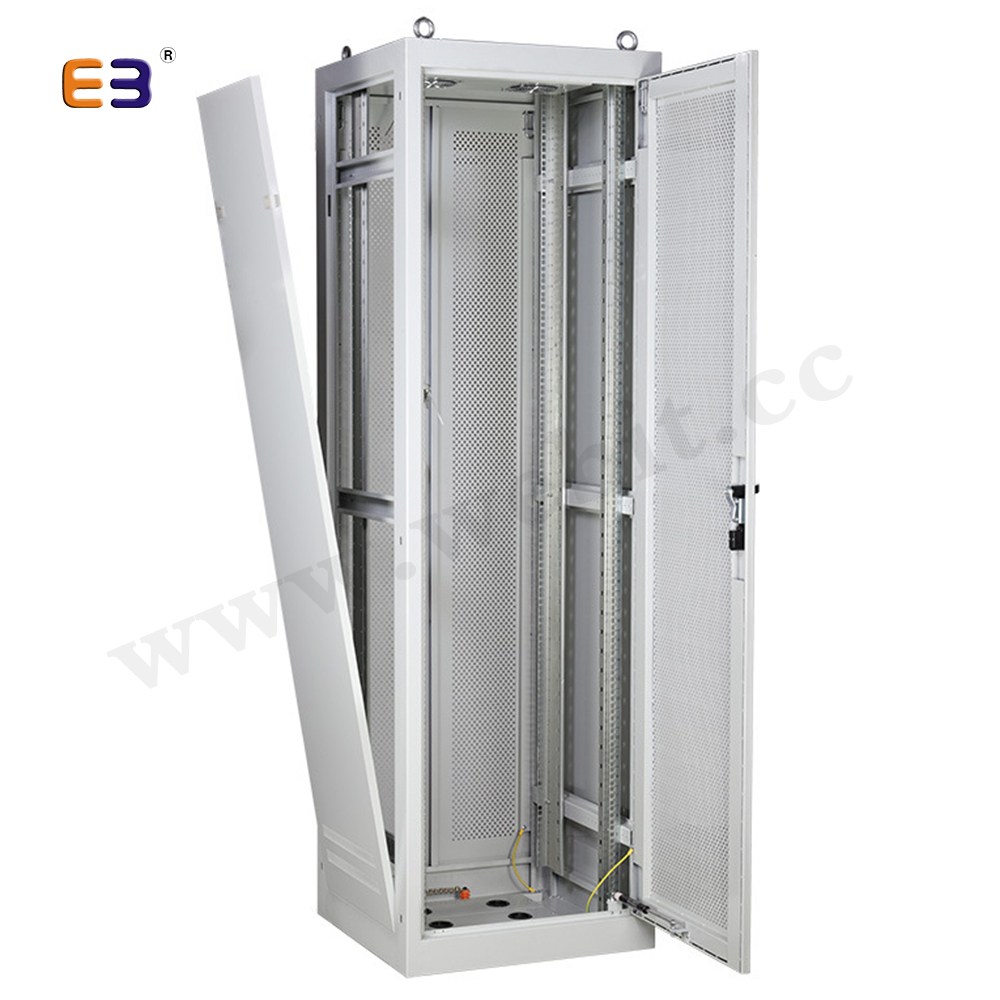

Opened front view ( empty )

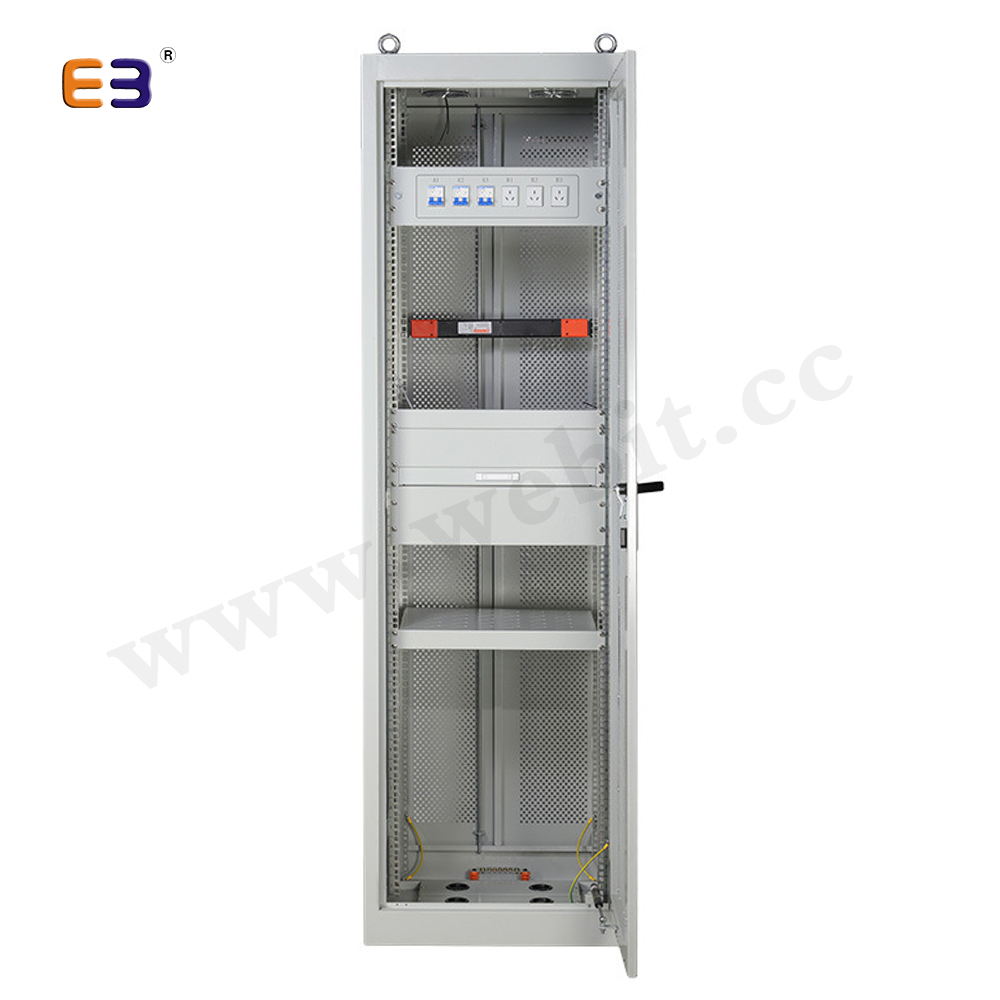

Top circuit distribution unit ( reference only )
Similar rack view
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | |
3 | Side Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | |
4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | |
5 | Lock | 2 | 2 | Zinc alloy | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
8 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
9 | plinth | 1 | 1 | 1.5mm SPCC steel | \ | |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | |
11 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |
12 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
13 | Vertical cable tray | 0 | 2 | 1.2mm SPCC steel | Powder coating | |
15 | fixed self | 3 | 3 | 1.2mm SPCC steel | Powder coating | zinc plated |
16 | M12 feet | 4 | 4 | Steel | Brass plated | |
17 | Extra screws | 20 | 20 | Mn56 steel | Zinc plated |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
#Size list#
Model | Size ( mm) | U | Model | Size ( mm) | U |
WB-EC-661867G | 600x600x1092 | 18U | WB-EC-861867G | 800x600x1092 | 18U |
WB-EC-681867G | 600x800x1092 | WB-EC-881867G | 800x800x1092 | ||
WB-EC-662267G | 600x600x1181 | 22U | WB-EC-862267G | 800x600x1181 | 22U |
WB-EC-682267G | 600x800x1181 | WB-EC-882267G | 800x800x1181 | ||
WB-EC-602267G | 600x1000x1181 | WB-EC-802267G | 800x1000x1181 | ||
WB-EC-662767G | 600x600x1403 | 27U | WB-EC-862767G | 800x600x1403 | 27U |
WB-EC-682767G | 600x800x1403 | WB-EC-882767G | 800x800x1403 | ||
WB-EC-602767G | 600x1000x1403 | WB-EC-802767G | 800x1000x1403 | ||
WB-EC-663267G | 600x600x1625 | 32U | WB-EC-863267G | 800x600x1625 | 32U |
WB-EC-683267G | 600x800x1625 | WB-EC-883267G | 800x800x1625 | ||
WB-EC-603267G | 600x1000x1625 | WB-EC-803267G | 800x1000x1625 | ||
WB-EC-663767G | 600x600x1848 | 37U | WB-EC-863767G | 800x600x1848 | 37U |
WB-EC-683767G | 600x800x1848 | WB-EC-883767G | 800x800x1848 | ||
WB-EC-603767G | 600x1000x1848 | WB-EC-803767G | 800x1000x1848 | ||
WB-EC-664267G | 600x600x2070 | 42U | WB-EC-864267G | 800x600x2070 | 42U |
WB-EC-684267G | 600x800x2070 | WB-EC-884267G | 800x800x2070 | ||
WB-EC-604267G | 600x1000x2070 | WB-EC-804267G | 800x1000x2070 | ||
WB-EC-664767G | 600x600x2289 | 47U | WB-EC-864767G | 800x600x2289 | 47U |
WB-EC-684767G | 600x800x2289 | WB-EC-884767G | 800x800x2289 | ||
WB-EC-604767G | 600x1000x2289 | WB-EC-804767G | 800x1000x2289 |
*above height including plinth
