| Model: | WB-SPxxxxA5G |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Webitelecomms |
| Certificate: | CE. ISO, ROHS |
| Export Area: | Europe,America, Middle east |
| Static Loading: | 800KGS |
| Package: | Aeembled |
| Material: | SPCC steel or EG steel |
| Thickness: | Mounting profile 2.0mm, others 1.2~1.5mm |
| Accessories: | Fan, Castor, feet, screw& caged nuts |
| Surface: | Frosting or wrinkle |
| Color: | Black /Grey |
Contact NowProduct Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 3000pcs/month |
| Payment Terms: | L/C, WU, T/T, Paypal | Packing: | Cartons, Wooden Cases |
| MOQ: | 5 Piece/Pieces | Delivery Date: | 30-35 days |
| Means of Transport: | Land, Ocean, Air | ||
19" Glass door SOUNDPROOF CABINET with sound insulation cotton
Features
This cabinet is intended for installation data and telecommunication devices and restrain the sound environment down to whisper level .
#by 30dB from 60dB
19" rack mountable structure - possible of max the load capacity up to 800KG.
Front & back door earthing.
Widely used for Data cabling devices.
Doors
Front frame type glass door - swing handle lock , die-casting hinge.
Back solid metal door with lock.
Un-removable side panel , optional lock.
Accessories
Fan tray ( 2/4/6) - as per depth
4× position-adjustable 19 " mounting rail. [Galvanized]
300KG capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance ( optional )
Bottom - 2* 60mm round rubber cable entrance
Can ask for more...
Package
Weitelecomms Pre-build packing save labor cost , allows for directly using when received.
Neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm
Cabinet Bearing capacity: 600-800KG
IP degree: IP-20
Body color:RAL9004(black);RAL7035(grey),etc
Galvanized
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | 5.0 mm glass | \ | Solid frame |
3 | Side Panels | 2 | 2 | 1.0mm SPCC steel | Powder coating | Removable |
4 | Back Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | Solid |
5 | Lock | 2 | 2 | \ | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Cotton | 5 | 5 | 2.0mm soundproof cotton | \ | |
8 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
9 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | Optional parts |
11 | Earthing bolts | 1 | 1 | SPCC T=1.5 | \ | 25 cm |
12 | Castors tray | 4 | 4 | SPCC T=2.5 | Powder coating | |
13 | Castors | 4 | 4 | \ | \ | |
14 | Adjustable feet | 4 | 4 | Steel | Brass plated | M12 |
15 | Mounting angle | 2 | 2 | SPCC T=1.5 | Powder coating | |
16 | 19inch rails | 4 | 4 | SPCC T=2.0 | Powder coating | |
17 | Cable management | \ | 2 | SPCC T=1.2 | Powder coating | 800W only |

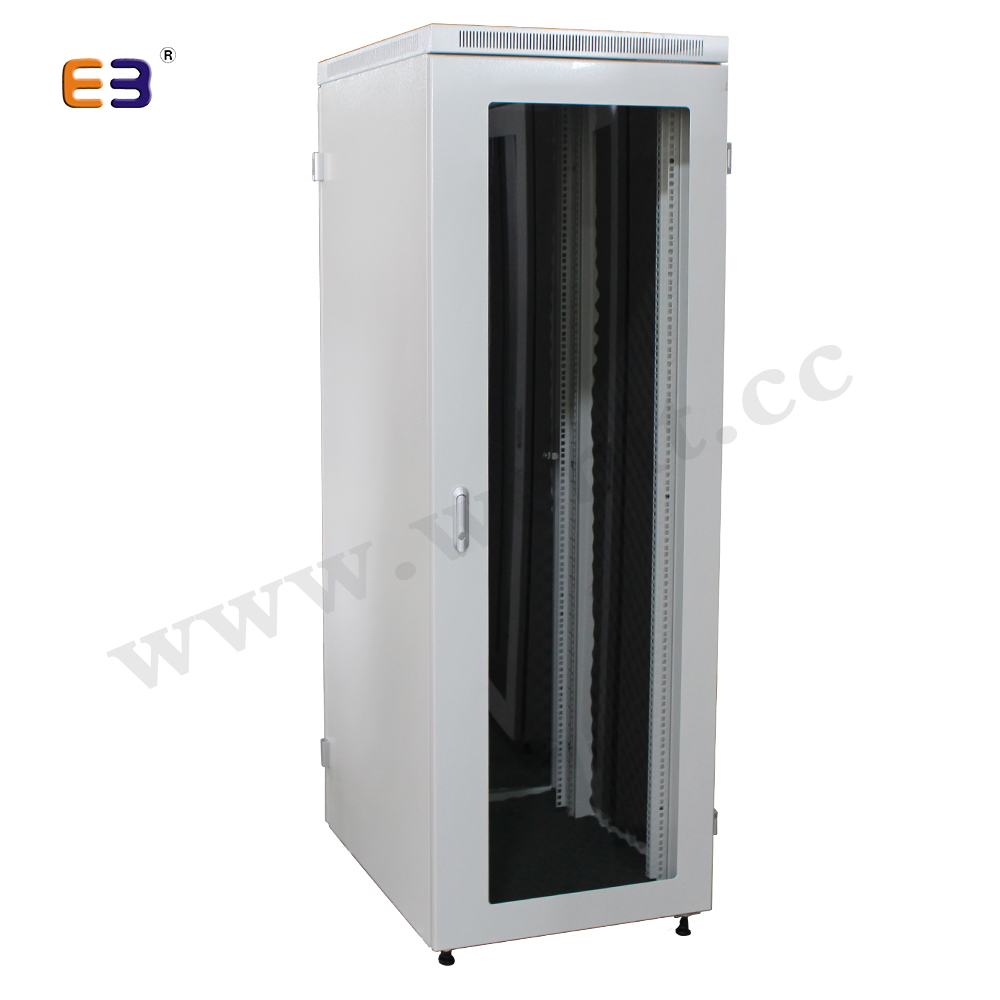

Front

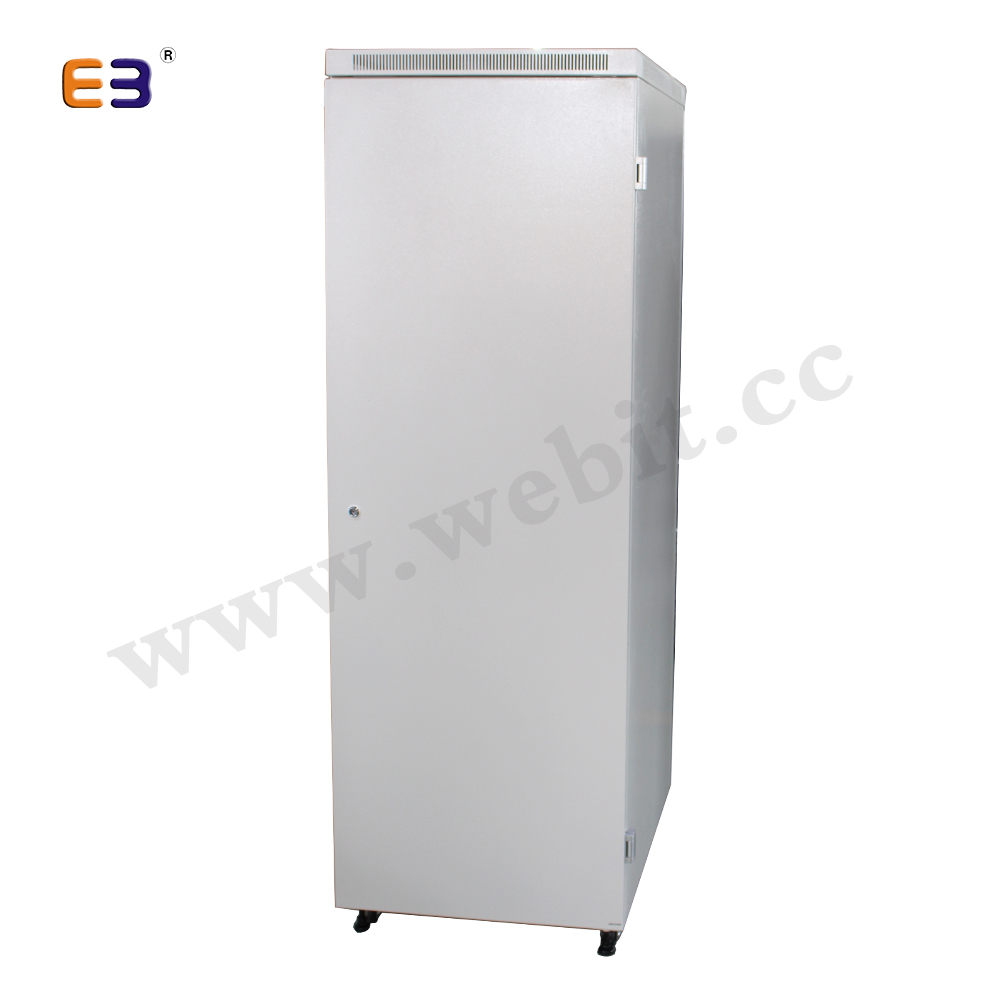

Back

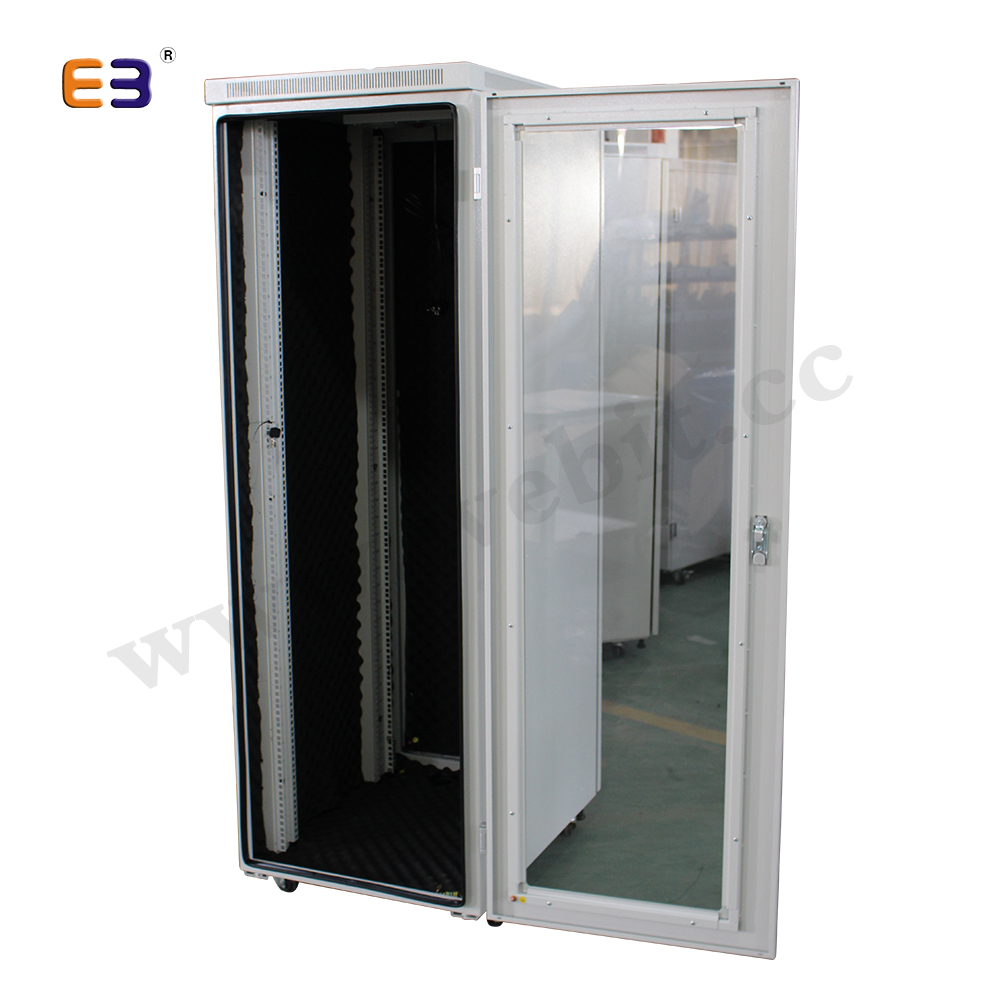

Opened inside

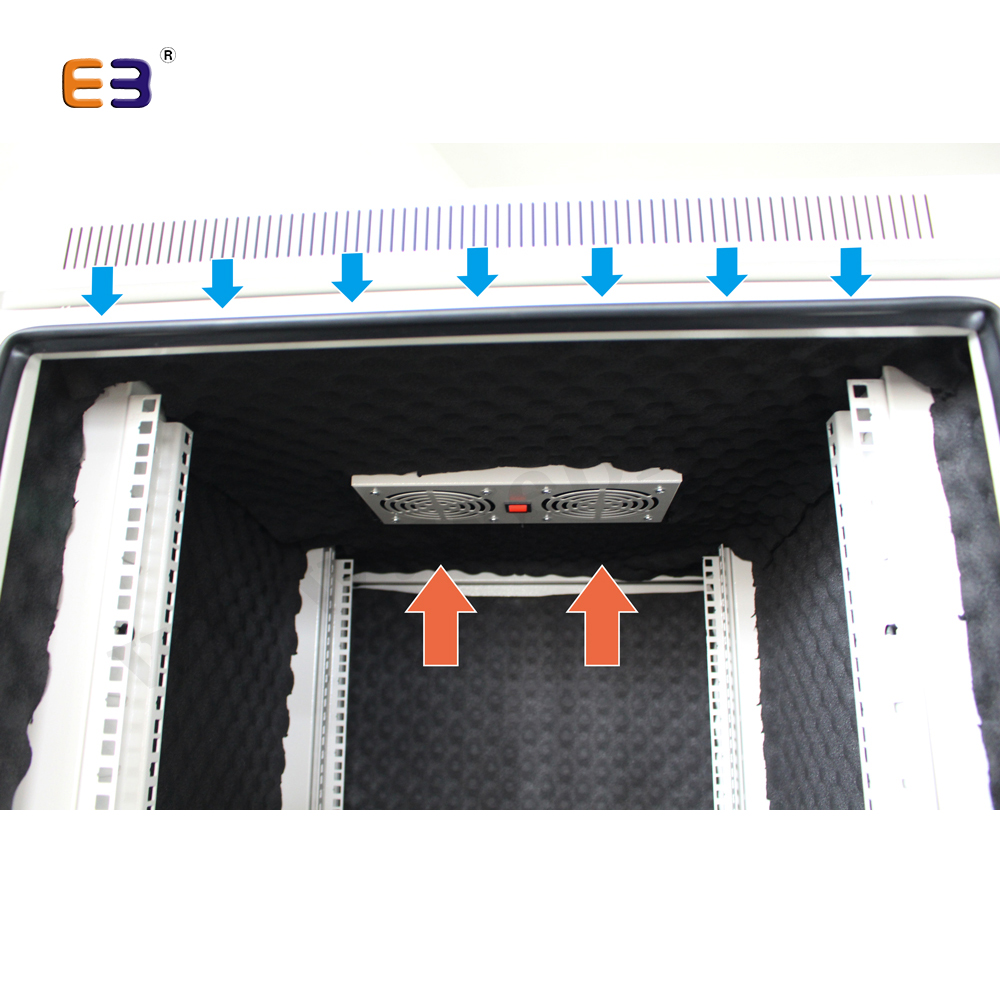

Airflow ( can ask for more fans )

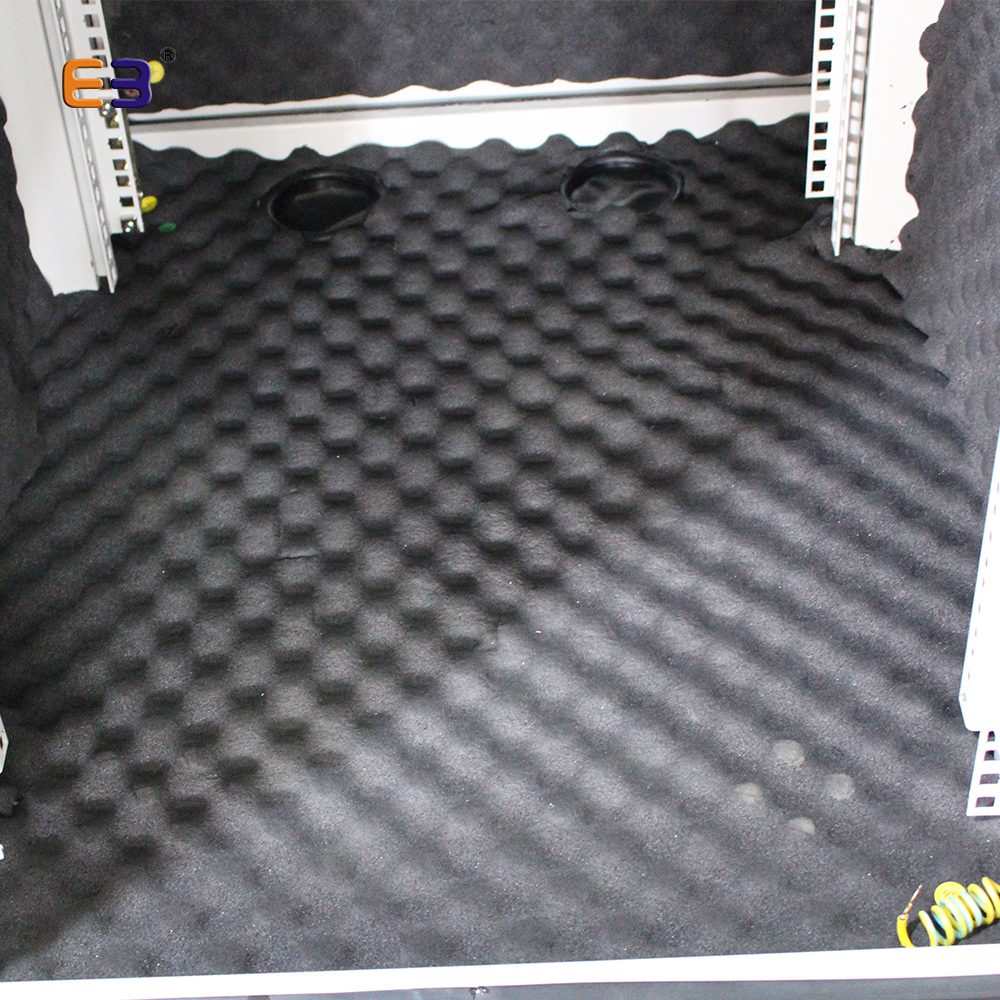

Bottom soundproof cotton

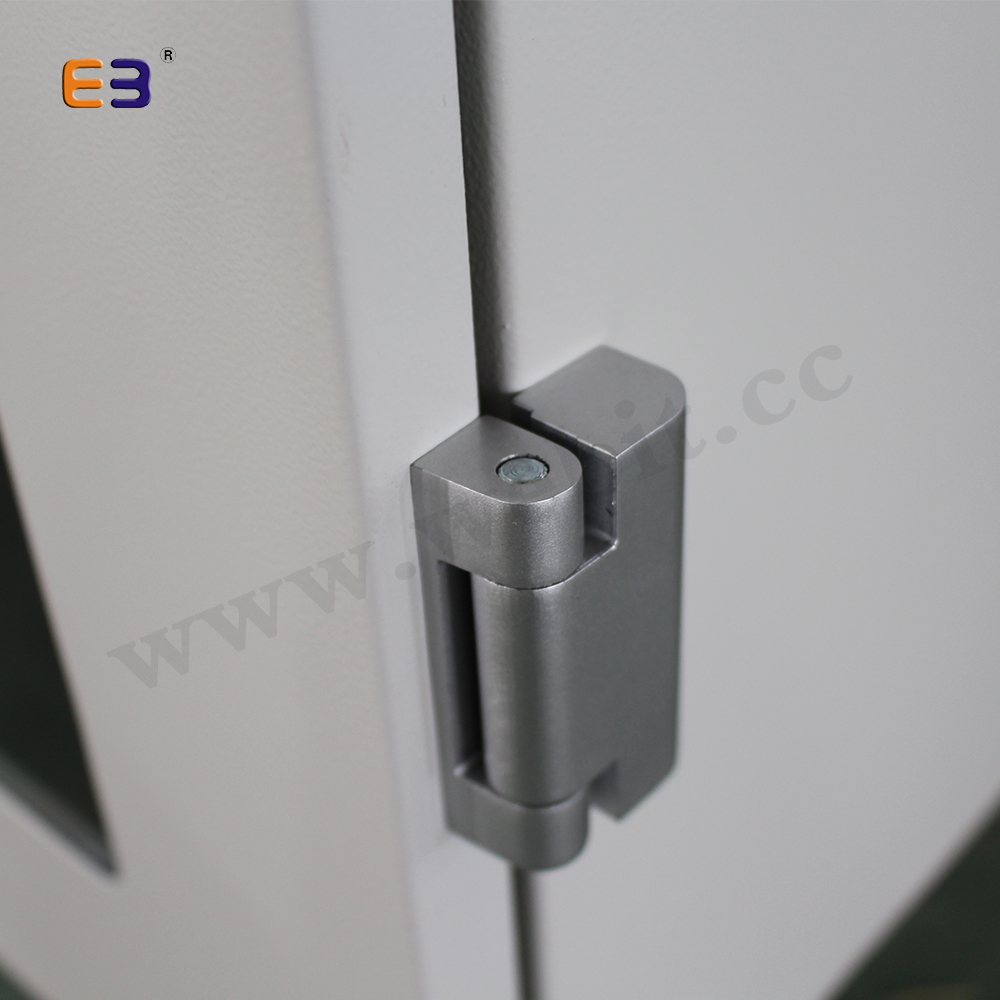

Die-casting hinges
We take great commitments to photograph products indeed without any cheating and plagiarism!
Special package
Webitelecomms Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
