WB-3SPDU5000

Model:

WB-3SPDU5000

Place of Origin:

Zhejiang,China (Mainland)

Application:

Industrial

Grounding:

Standard Grounding

Type:

Plug with Socket

Brand Name:

Webitelecomms

Rated Voltage:

380V

Rated Current:

10A

Materials:

Aluminum shell+ ABS model

Height:

1U or 1.5U

Output:

Chinese standard

Power cable:

6.0 mm²

Max watt:

12160W for industrial

Product Description

                                 Payment & Shipping Terms

Supply Capacity

Unit Price:

500.0 USD

Production Capacity:

5000 pcs/month

Trade Term:

FOB,CFR,CIF,FCA,EXW

Packing:

CARTONS

Payment Terms:

L/C, WU, T/T

Delivery Date:

25 DAYS

MOQ:

5 Piece/Pieces

Transporation
Land, Ocean, Air

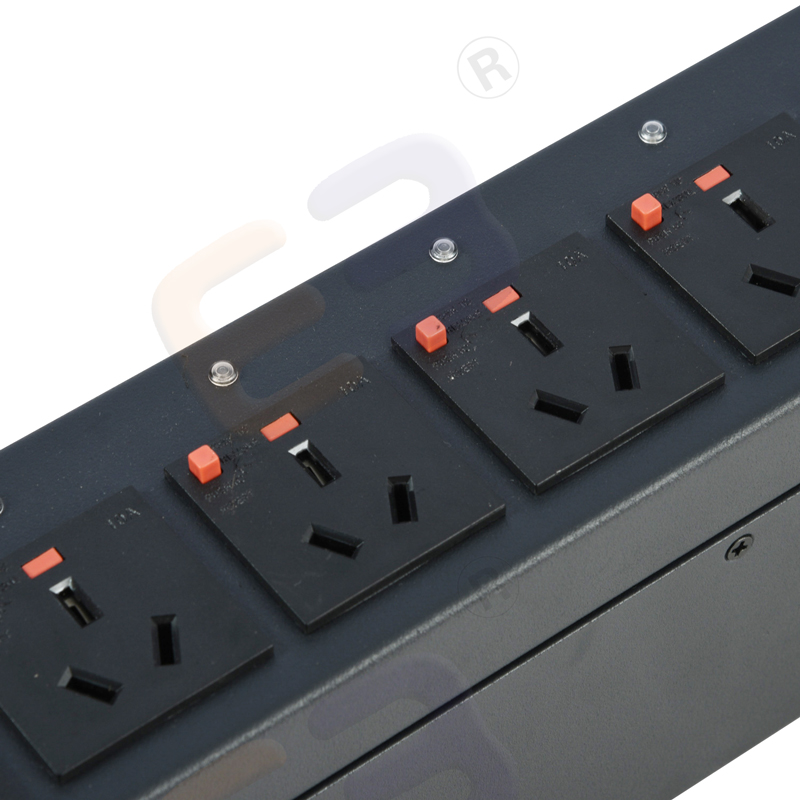

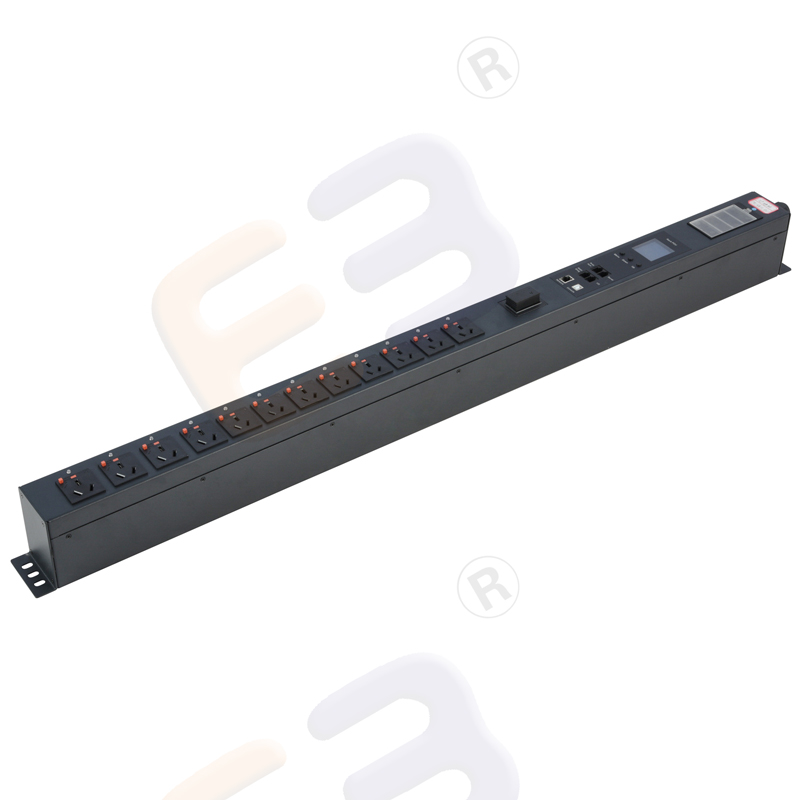

Three phase 12-way Rack mountable smart power distribution unit with remote control


19" customized metal PDU socket, with leak-current protector

Aluminum-alloy shell,made from block burn PC,Guage 6.0 mm²

According to customer request, we could add AC or DC display

Color: Black or White

Children safty protect.


Sample reference

#0U vertical metal black color China smart 3-phase PDU, 12-way with surge protector.

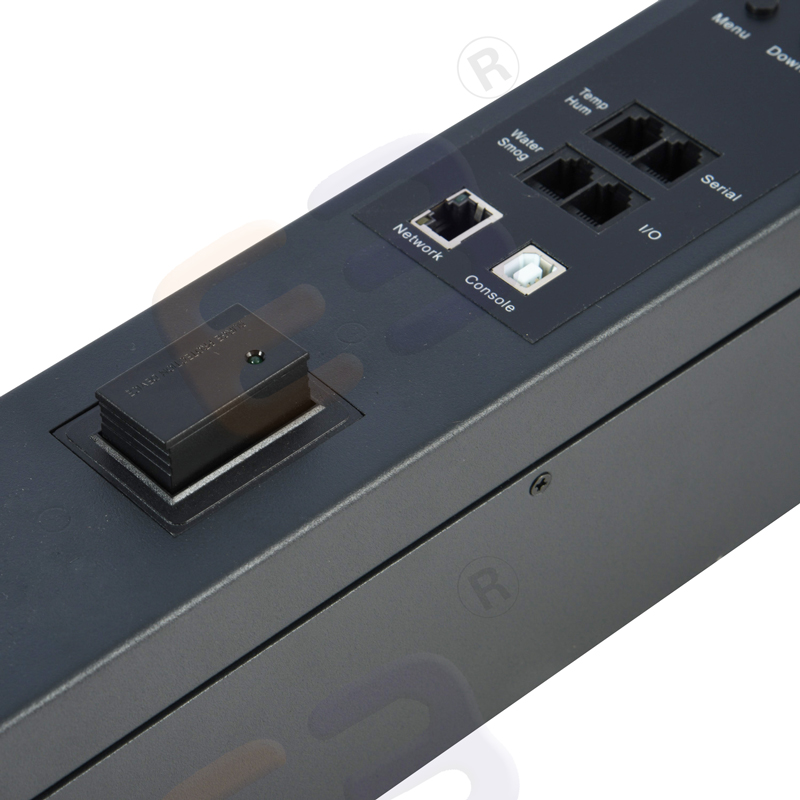

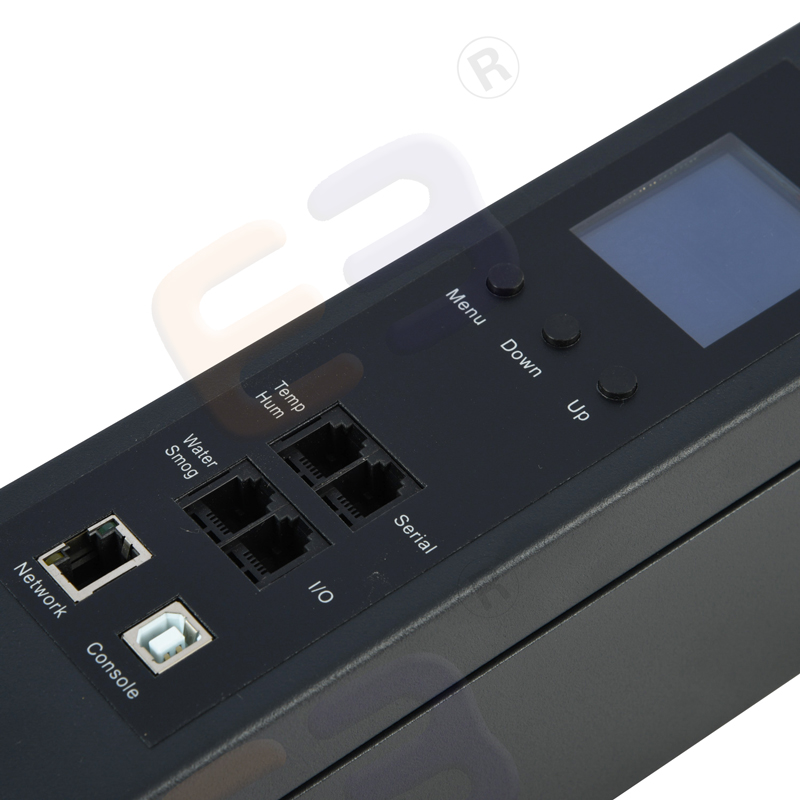

 * SNMP ,  monitor & control each outlet







Specifications

Rated current

10A

Rated load

12160W

Rated voltage

380V

Household voltage

380V

Number of sockets

3 to 48 ways

Size

19" 1.5U\1U

Shell material

Uninflammable PC module, Aluminium alloy shell

Type of cable

3G*6.0mm2*2m

Type of plug

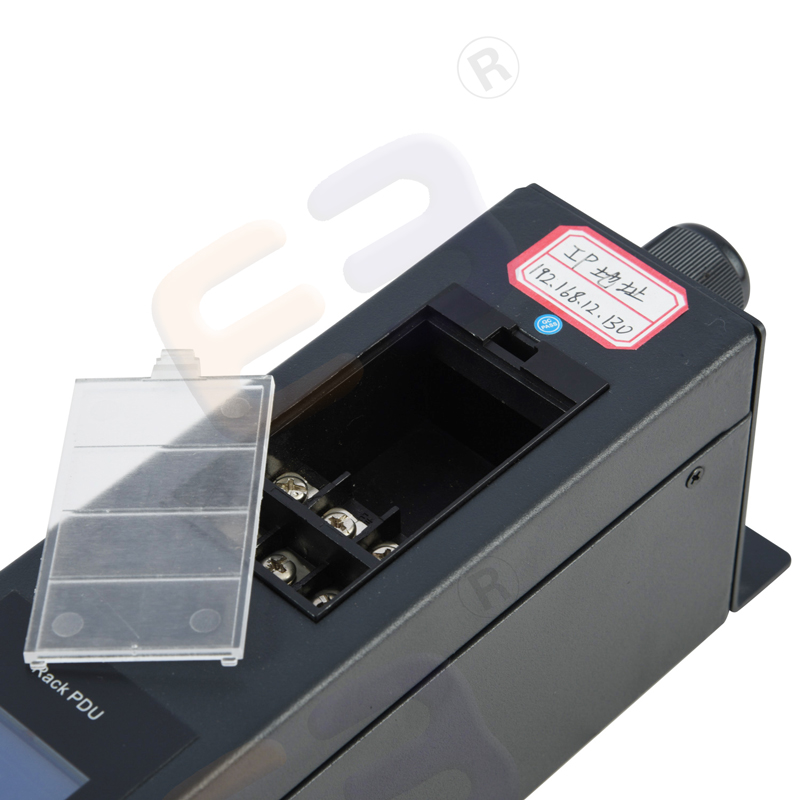

wiring termination

Degree of protection against electric shock

IP44

Provision for earthing

With earting contact

Method of connecting the cable

Non-rewirable

Type of connections

Welded-solder

Degree of protection against electric shock

Normal protection

Existence of shutters

With shutters

Method of application-mounting

Portable type

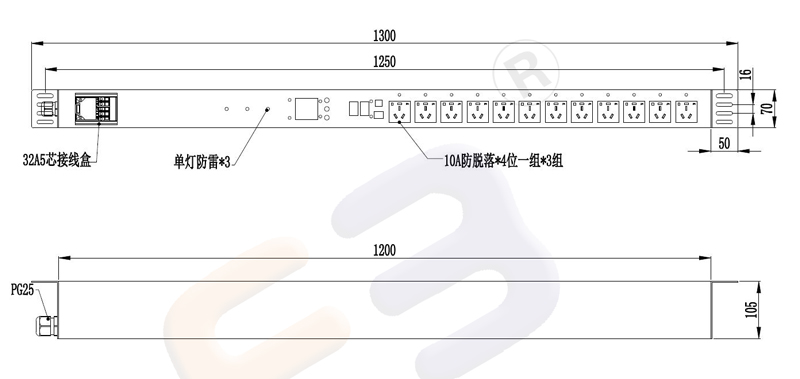

Drawing



Usual Webitelecomms PDU optional function

ProtectionOn/off switch (defaulted)
3-lights protection
1-light indictor
Surge protection
Fuse
Current Meter
Circuit breaker
Locking
Overload protector
NEON Light
CablesPVC (defaulted)
RUBBER
LSZH
ShellAlu-alloy (defaulted)
Plastic
SPCC
Mounting1U ears (defaulted)
Revolving ears
Hook
Desktop



Installation




Package details

Carton size

52*30*48.5cm

Product box size

52.5*7.5*5.5 cm

Quantity in one carton

25 pcs

Metal enclosure

Gross weight for one carton

23kg

Net Weight for one carton

21kg

Plastic enclosure

Gross weight for one carton

22kg

Net Weight for one carton

20kg


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.


FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF are all available as per needs.

3)    What is the Loading Port?
--- Usually Ningbo or Shanghai port.

4)    What is your MOQ?
---Most of Webitelecomms PDU sold with 50 pcs MOQ, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
