Model: | SPDU2000/5000 |
Place of Origin: | Zhejiang,China (Mainland) |
Application: | Industrial |
Grounding: | Standard Grounding |
Type: | Plug with Socket |
Brand Name: | Webitelecomms |
Rated Voltage: | 230VAC 50-60Hz |
Rated Current: | 16/32A |
Materials: | Aluminum shell+ ABS model |
Height: | 1U or 1.5U |
Input: | 16A/32A industril plug |
Output: | 8 Chinese used outlet |
Voltage: | 230VAC 50-60Hz |
Current: | 10A |
Max watt: | 4000W for industrial |
Certificate: | CE,ISO, ROHS |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 1.0 USD | Production Capacity: | 3000 pcs/month |
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Packing: | netrual package,... |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 15 Days |
MOQ: | 50 Piece/Pieces | ||
Means of Transport: | Land, Ocean, Air | ||
Intelligent Monitored smart PDU with remote control
Smart Power Distribution unit is the world-advanced new generation network power distribution and monitoring device.
Through LAN or WAN, the manager can monitor,control and manage the power of many equipment in the cabinet of the data room located all over the world.
WebiTelecomms SPDU contains two series:WB-SPDU2000(standard size),WB-SPDU5000(non standard size)
and each series include four levels:A,B,C and D which can meet the requirement of different environment and customers.
WebiTelecomms SPDU are widely applied to 19" standard and non-standard server rack or network cabinet.
through internet Webitelecomms SPDU can remotely monitor,control and manage :
Remote monitor -Total load current(A) -Working voltage(V) -Total Power(KW) -electric energy(KWH) -Frequency -load current of each outlet(A) -On/off state of each outlet -Temperature/Humidity state -Smog state -Water-logging -Door state
Remote control -Power on/off of the group. Power on/off of each outlet -Sequential power on/off of the each outlet -Timing power on/off of each outlet -Environment control
| Patameter · -The limiting range of tatal load current -The limiting range of work voltage -The limiting range of each outlet current -The limiting range of temperature -The limiting range of humidity Alarm -the total load current exceeds the limiting value -Temperature exceeds the limiting value -Humidity exceeds the limiting value -Smog -Water-logging -Door opening Alarm method -The buzzer on SPDU control panel alarms -Automatically send email to system administrator -Automatically send message through SMS to system administrator User management -Set user's password and device IP address
|
Communication Function
User can by means of the remote device via the WEB,SNMP to view,function configuration parameters and power control
Quickly and easily upgrade firmware via network download for future preduct enhancement liminates the need to replace products when new features are released
Photo view

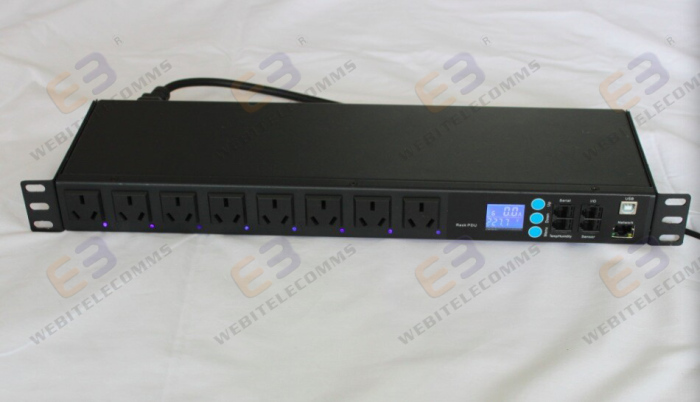

Front

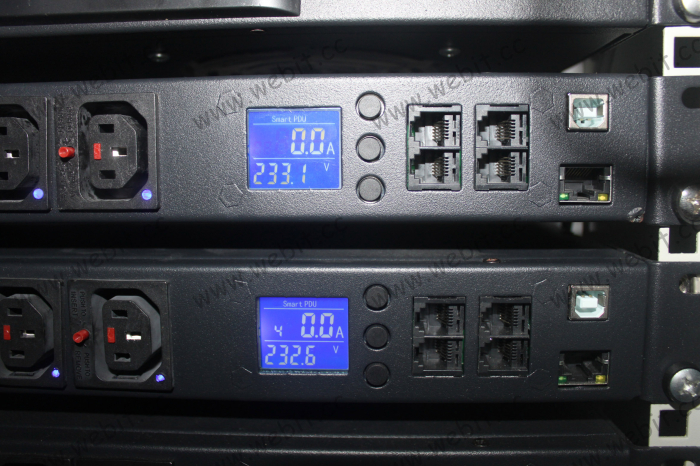

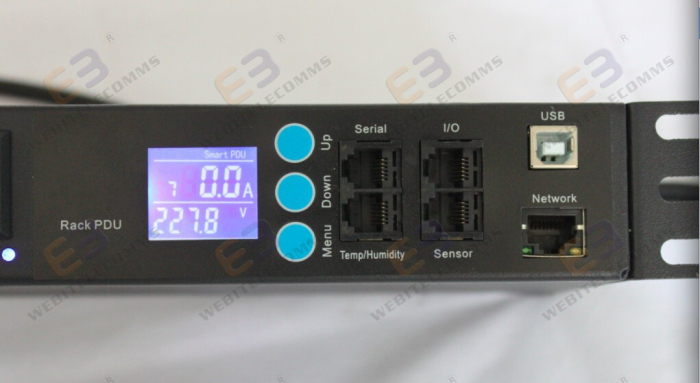

LCD screen current meter & RJ11, RJ45, USB2 port
(Control menu to display different factor: such as Temperature | Watts | IP address,etc..)

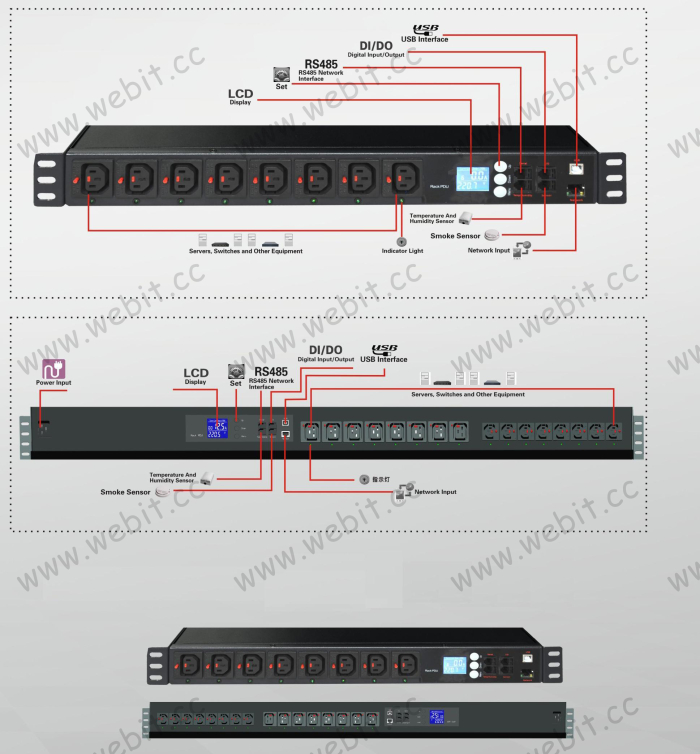

Intelligent function

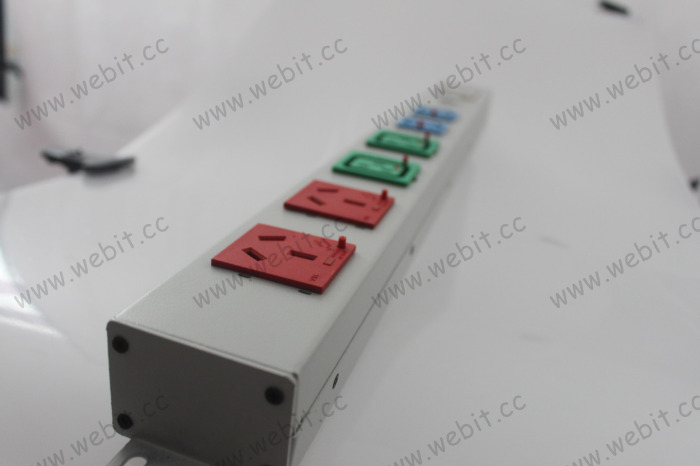

Differnet color socket for option
Package
