WB-STS-800
Model: | WB-STS-800 |
Place of Origin: | Zhejiang,China (Mainland) |
Brand Name: | WEBITELECOMMS |
Material: | SPCC |
Socket type: | IEC60320 C13 |
Input Plug: | IEC 60309 16Amp |
Power Lead Length: | 3 Metres |
Grounding: | External earth facility |
Size: | 19'' mounting |
Certificate: | CE ROHS |
Contact NowProduct Description
Payment & Shipping Terms | Supply Capacity | ||
Unit Price: | 180.0 USD | Production Capacity: | 50000pcs per month |
Trade Term: | FOB,CIF,EXW | Packing: | carton |
Payment Terms: | L/C, WU, T/T, Paypal | Delivery Date: | 15-day |
MOQ: | 10 Piece/Pieces | Means of Transport: | Land, Ocean, Air |
19 inch static power source switch PDU
Features:
C13 style sockets
LCD indicated unit power
19'' mounting
3 metre input lead terminated with 16 Amp IEC 60309 plug
High quality,cold rolled steel housing
Up to 12 sockets per unit
250 volt AC, 50/60Hz Rating
External earth facility
CE compliant, ROHS complaint
Specification:
Socket Type: IEC 60320 C13
Input Plug: IEC 60309 (16 Amp) *2 pcs
Power Lead Length: 3 Metres *2.5mm² PVC * 2 pcs
Maximum amperage : 16A
LCD display: real time current; A source / B source voltage
Switch Time: A source cut off - 7ms is needed, A source arc extinguished - 6 to 10 ms, B source start to work - 7ms is needed , Total no more than 25 ms
Using the ''Relay'' to switch from source A To source B
Rs232 port: Mintor via Computer
Product Overview:
The STS power distribution units are designed for installation and use within 19" networking cabinets and enclosures.
It has dual 16A input power cords supplying power to the connected load.

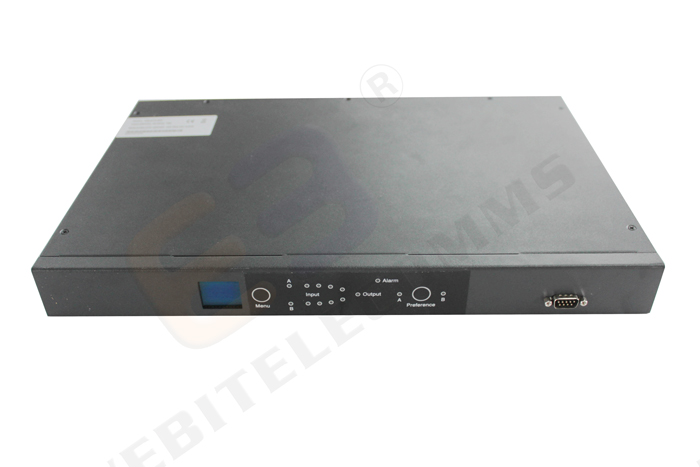

The button "preference" is to chose "source A" or "source B" work preferentially.
If the primary power source becomes unavailable, the rack STS will seamlessly source power from the secondary source without interrupting critical loads.

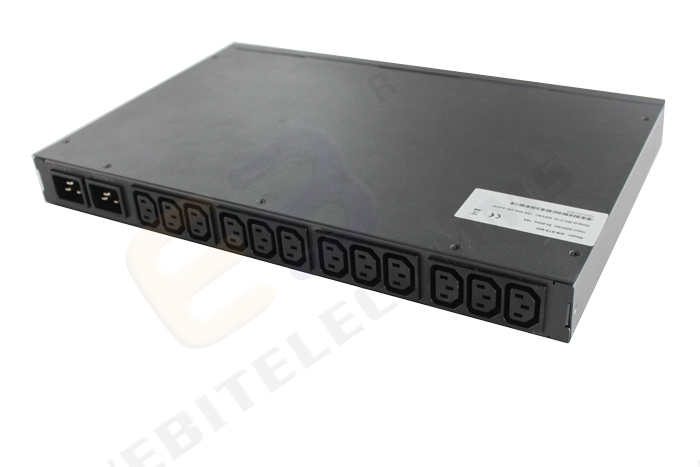

Sample Show:

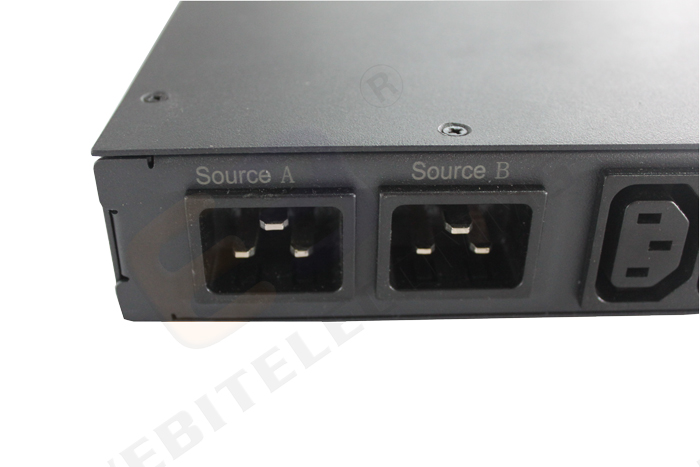

2 x C14 power input

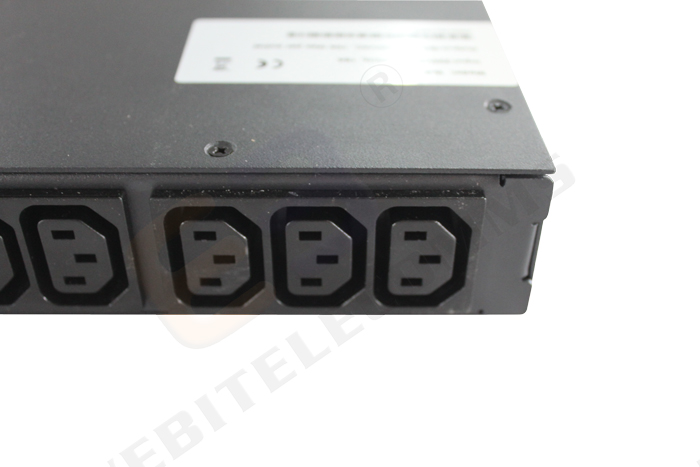

4 x triple IEC C13 power outlet

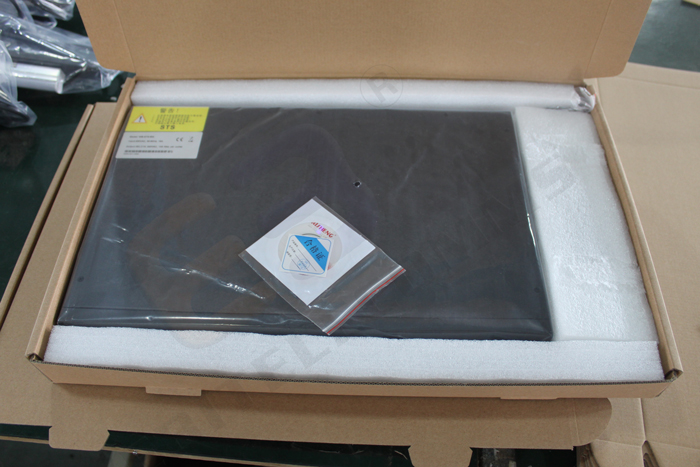

# Package
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF all are available.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most
webitelecomms products is usually
5pcs, different items will be different. the MOQ will be indicated
in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
