WB-TCxxxx77B

Model:WB-TCxxxx77B
Place of Origin:Zhejiang,China (Mainland)
Brand Name:Webitelecomms
Certificate:CE. ISO, ROHS
Export Area:Europe,America, Middle east
Static Loading:1000KGS
Package:Aeembled or Dis-assembled
Material:SPCC steel or EG steel
Thickness:Mounting profile 2.0mm, others 1.2~1.5mm
Accessories:Fan, Castor, feet, screw& caged nuts
Surface:Frosting or wrinkle
Color:Black


Product Description

Payment & Shipping TermsSupply Capacity
Trade Term:FOB,CFR,CIF,DDP,FCA,EXWProduction Capacity:3000 pcs per month
Payment Terms:L/C, WU, T/T, PaypalPacking:Cartons
MOQ:5 Piece/PiecesDelivery Date:30 days
Means of Transport:Land, Ocean, Air


19" dual mesh door SERVER RACK with vertical cable management (800W)

# Strength type


Features


WB-NCxxxx77B cabinet is a standardized enclosure for mounting data and telecommunication devices and their distribution systems.
19" rack mountable, Strength loading design  - possible of max the load capacity up to 1000KG.

Front & back door earthing.

45% effective ventilation rate.


Doors

Front double perforated (hexagonal) doors - swing handle lock.

Back double perforated door with 2-point lock.

Removable side panel , optional lock.

# One key - One lock ( unique unlocking )


Accessories

AC Fan-tray (2 or 4 fans) - as per depth
4× position-adjustable 19 " mounting rail, reach the bottom frame.

300/600KG capacity wheels and adjustable feet.

20 sets of extra M6 caged screws.


Cable entrance

Top  - 1 * 400×50mm rectangle cable entrance

Bottom - 4* 350×50mm rectangle cable entrance

Can ask for more...


Package

Disassembled packing save 60% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options


= Varies specification upon customers' special requirements=


Size suggestions

Width: 600,800 mm

Depth: 600,800,1000,1200 mm

Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U

Customized size is available


Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.



Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating


Material:SPCC cold rolled steel or EG steel



Thickness

Mounting profile:2.0mm

others:1.20mm to 1.50mm


Cabinet Bearing capacity: 800~1000 KG


IP degree: IP-20


Body color:RAL9004(black);RAL7035(grey),etc


=Main parts=

NO.

Item

600 wide

800wide

Materials

Treatment

Note

1

Frame

2

2

1.5mm SPCC steel

Powder coating


2

Front Door

2

2

1.2mm SPCC steel

Powder coating

Dual Mesh door

3

Side Door

2

2

1.2mm SPCC steel

Powder coating

Removable

4

Back Door

2

2

1.2mm SPCC steel

Powder coating

Dual Mesh door

5

Lock

2

2

Zinc-alloy

\

Handle Lock

6

Top cover

1

1

1.2mm SPCC steel

Powder coating


7

Bottom panel

1

1

1.2mm SPCC steel

Powder coating


8

Fan unit

1

1

1.2mm SPCC steel

Powder coating


9

Ac  fan

2 or 4

2 or 4

\

\

>27U 800D,4 pcs

10

Earthing bolts

1

1

SPCC T=1.5

\

25 cm

11

Castors tray

4

4

SPCC T=2.5

Powder coating


12

Castors

4

4

\

\


13

Adjustable feet

4

4

Steel

Brass plated

M12

14

Mounting angle

2

2

SPCC T=1.5

Powder coating

Webitelecomms

15

19inch rails

4

4

SPCC T=2.0

Powder coating

Reach bottom

16

Vertical C/M

\

2

SPCC T=1.2

Powder coating

Only for 800 W


-Accessories matching-:

PDU

- eg. 6-way country-spec series PDU

Patch panels

- eg. 24-port Cat6 UTP patch panel

Shelves

-eg. 3 x fixed shelf  [ as per Depth ]

Cable managers

-eg.  5-ring cable management

KVM switch

-eg. 8-port VGA 17" KVM

Others

etc..

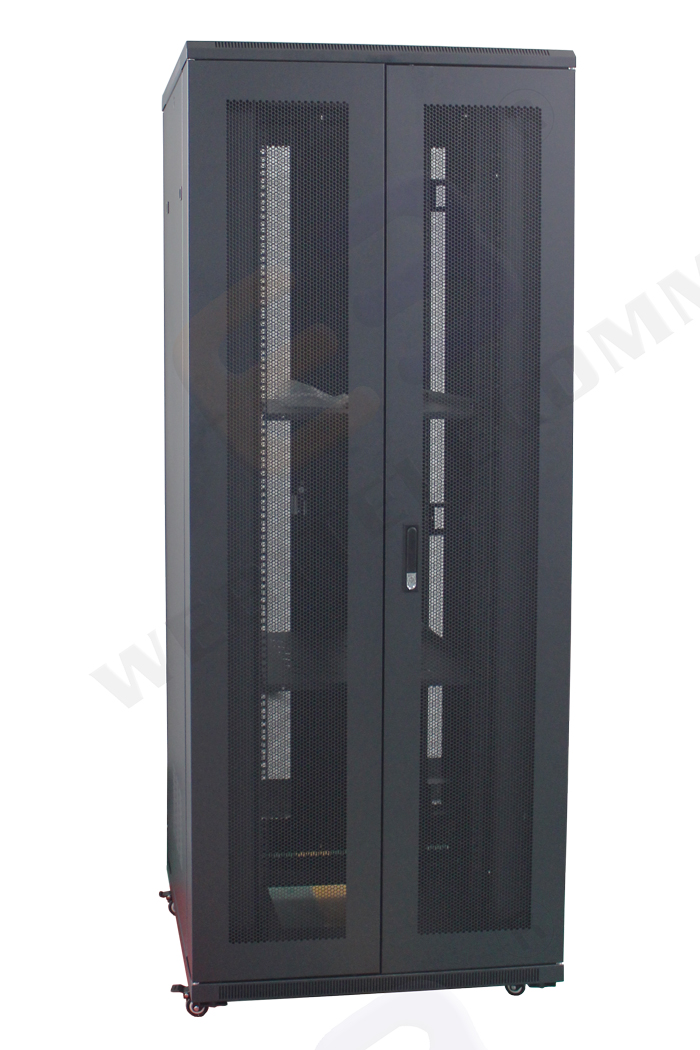

  • Front view


Back view

  • IMG_9553.jpg

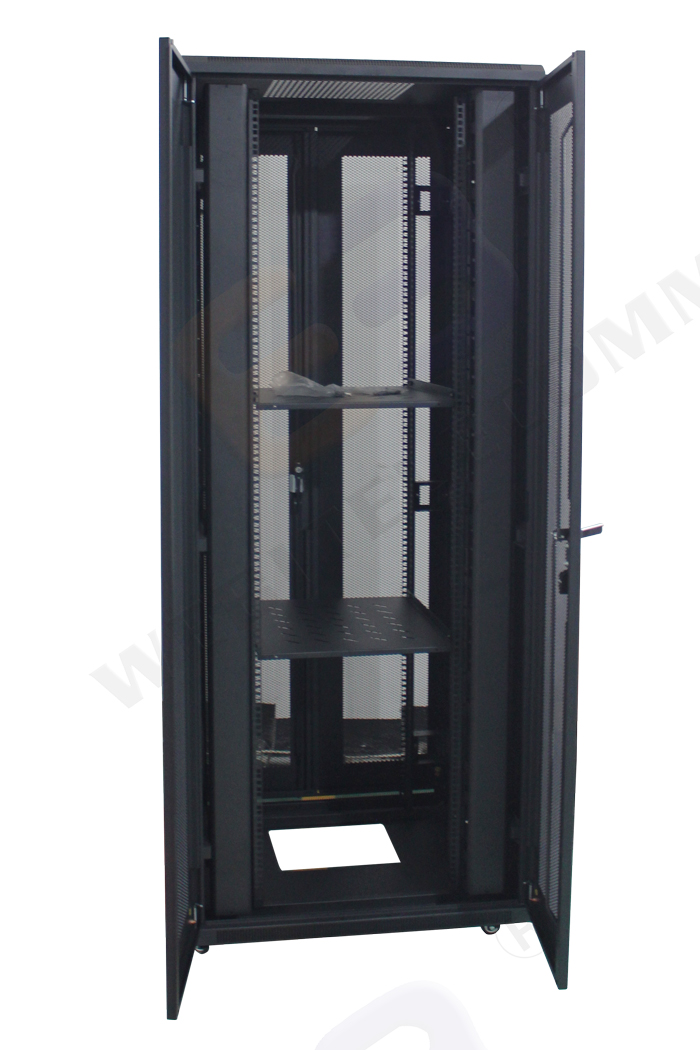

  • Front opening


  • Top fan tray - 4 fans

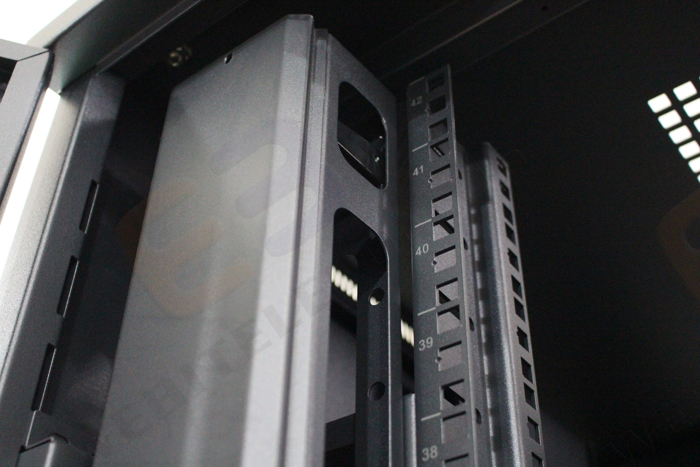

  • Vertical cable management [800 wide cabinet only]

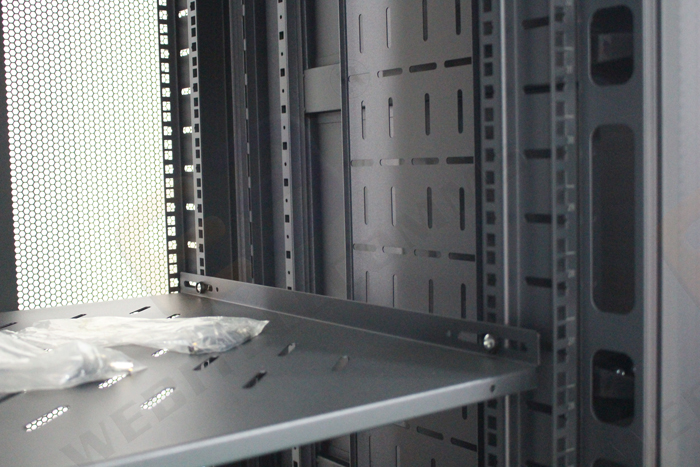

  • Fixed tray & Vertical cable tray at side



  • Both round & Hex hole are available

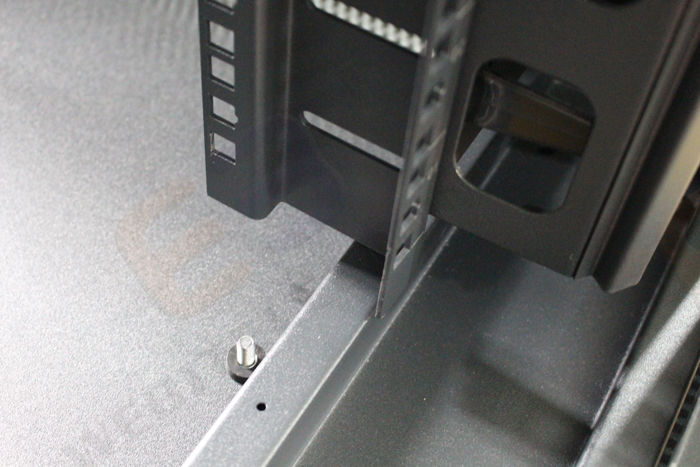

Rail touch the bottom frame, can bear up to 1000KG device




Explosive view




Standard Package


We take great commitments to photograph products indeed without any cheating and plagiarism !


=Shipment & Delivery =


Shipment

Note

Express

Door to door, very convenient, don't need to clearance or pick-up

By air

Airport to airport, you need to do the customs clearance and pick up the goods at your local airport

By sea

Port to port and you need to do the customs clearance and pick-up the goods at your local port


Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.



OPERATION CONDITIONS


• Operation environment:

– Office

– The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).


• Must be protected against:
– Mechanical damage
– Improper handling
– A different usage than the cabinet is intended for

• Improper handling is especially:
– Overloading (maximum recommended load exceeding)
– Device installation that can influence negatively operation and function of the cabinet or the installed equipment
– Change of the construction or design of the cabinet

INSTALLATION OF THE CABINET

• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame

(both can be purchased from us).

ENVIRONMENTAL PROTECTION

• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

CERTIFICATE AND CONFORMITY

• This product is fully in accordance with CE & RoHS.



600 width cab size list

ModelW(mm)D (mm)H(mm)UCBM (m3)
WB-NC-661877B60060099218U0.4957
WB-NC-681877B8000.6415
WB-NC-662277B600108122U0.5364
WB-NC-682277B8000.6941
WB-NC-602277B10000.8519
WB-NC-662777B600130327U0.6395
WB-NC-682777B8000.8276
WB-NC-602777B10001.0157
WB-NC-663277B600152532U0.7421
WB-NC-683277B8000.9604
WB-NC-603277B10001.1787
WB-NC-663777B600174837U0.8462
WB-NC-683777B8001.0951
WB-NC-603777B10001.3440
WB-NC-664277B600197042U0.9480
WB-NC-684277B8001.2267
WB-NC-604277B10001.5055
WB-NC-664777B600219247U1.0508
WB-NC-684777B8001.3596
WB-NC-604777B10001.6686
